Thẻ Mở Rộng Pcie M.2 Nvme Ssd Pci-E X4 M.2 B & M Cho Máy Tính
0 Đánh Giá
0 Đã Bán
50
242.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ hai 09/08/2021 lúc 11:47 CH

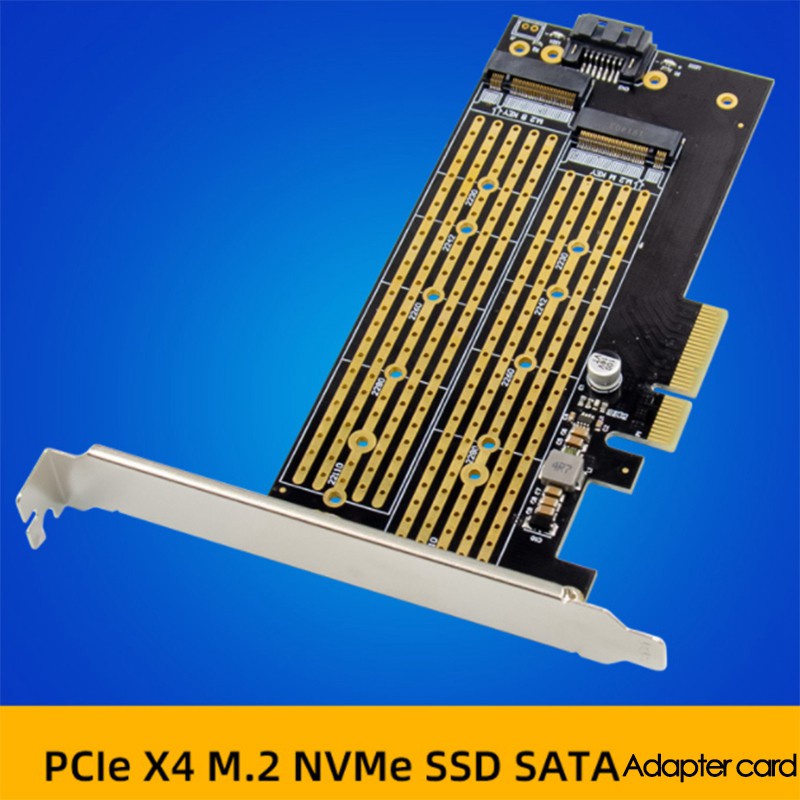

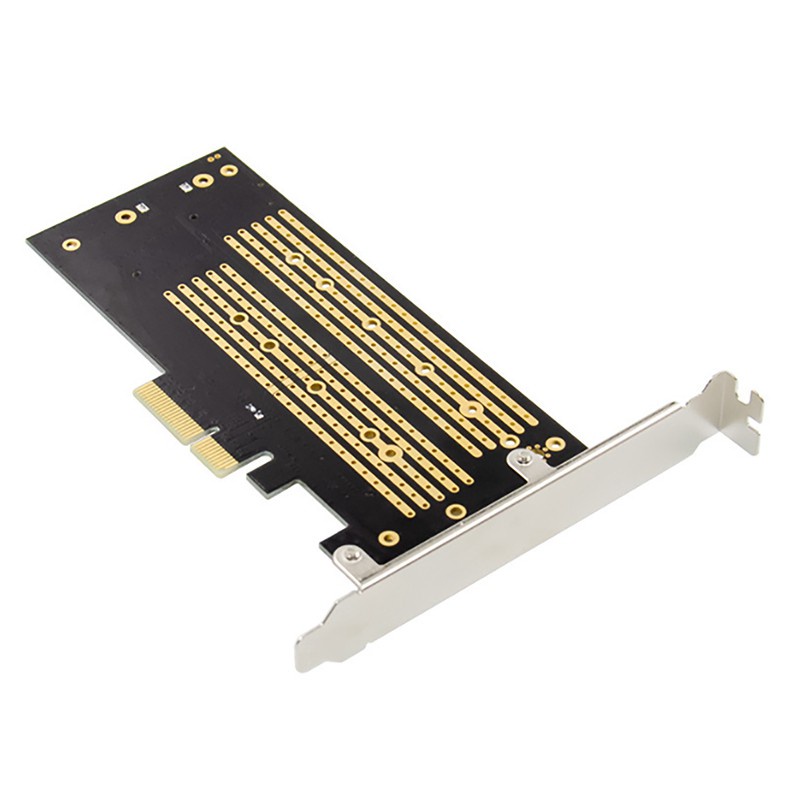

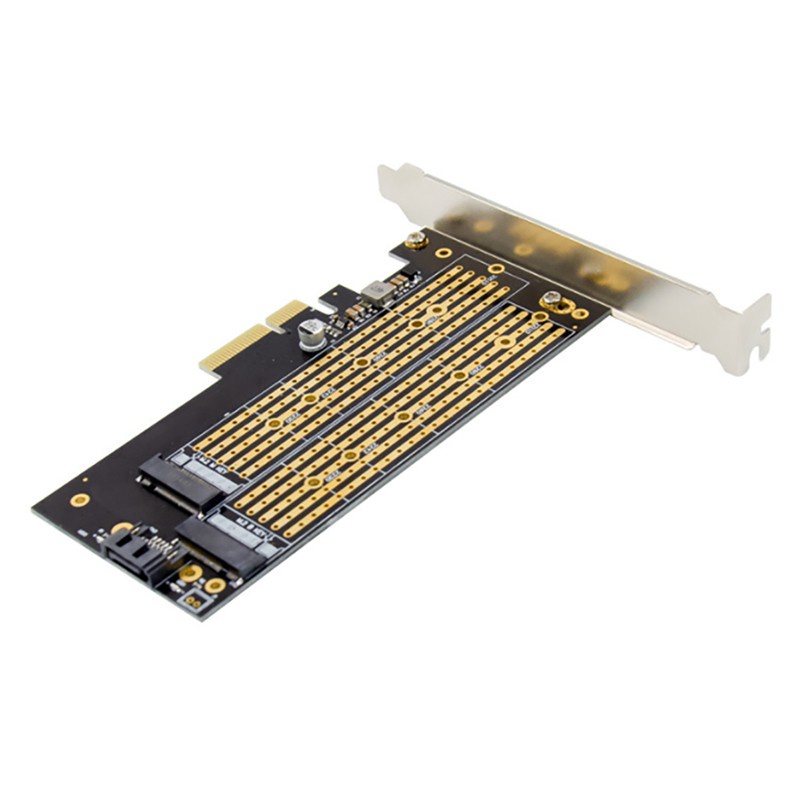

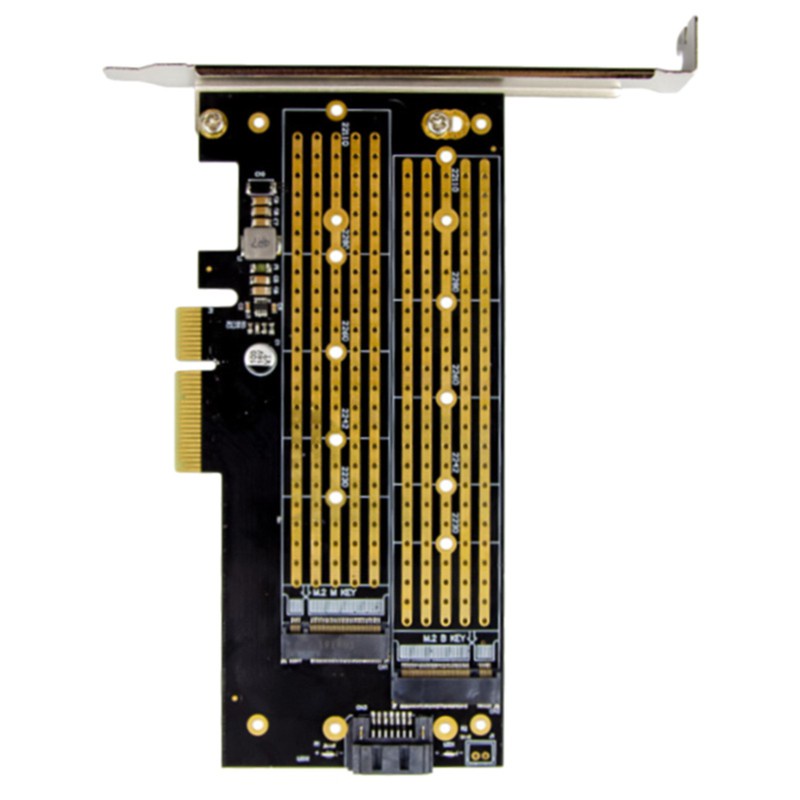

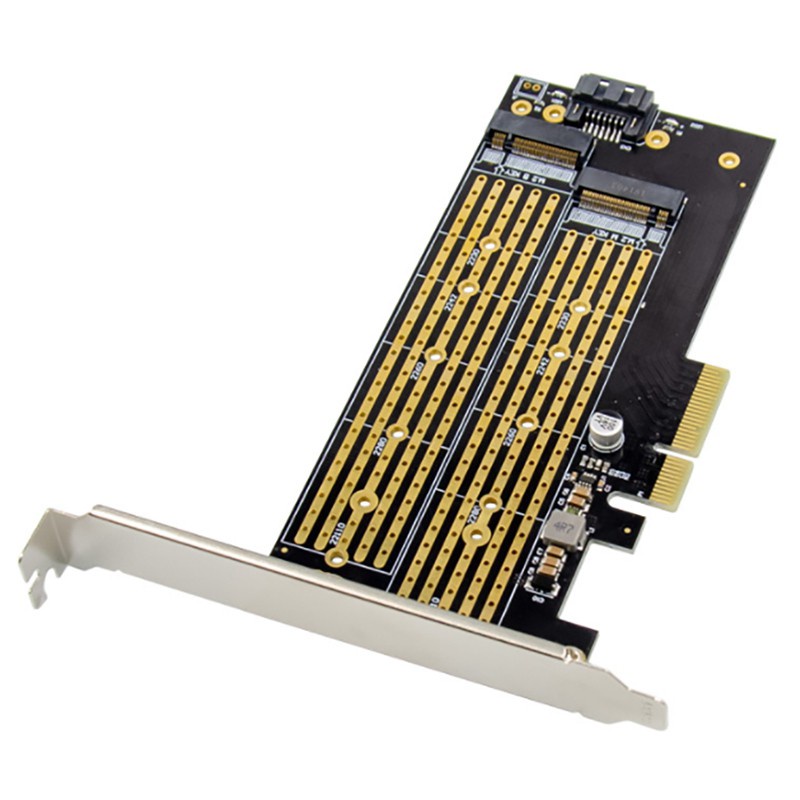

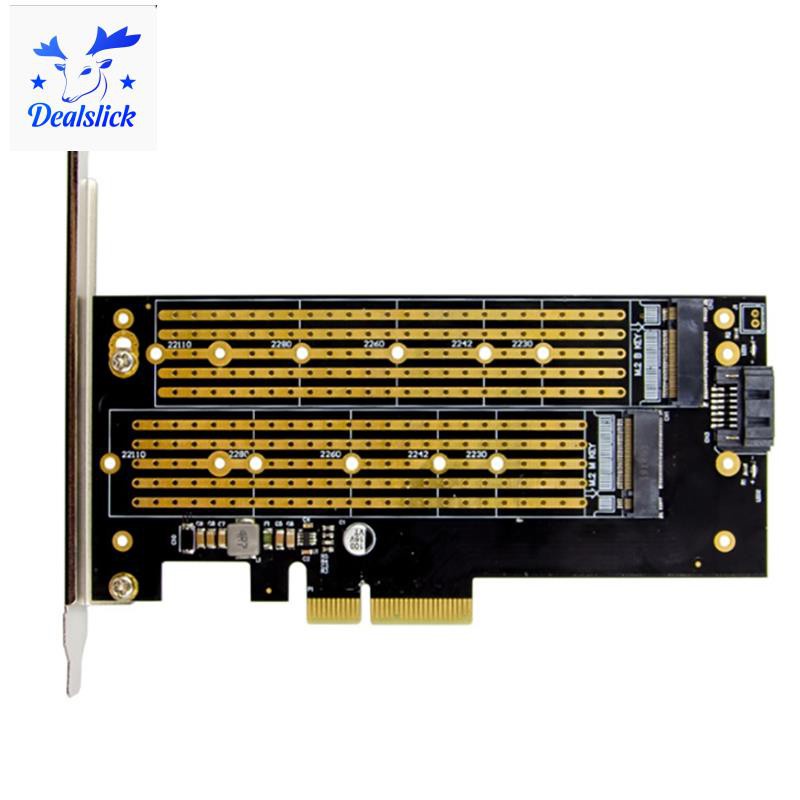

The PCIe X4 M.2 NVMe SSD adapter is a multifunctional NVMe conversion card, which can support the PCIe protocol to directly connect to the NVMe SSD
To the motherboard, or support the SATA protocol NVMe SSD connected to the motherboard SATA port through a SATA cable.
It supports ultra-fast PCIe V3.0 X4 channel transmission bandwidth up to 32GT/S, and supports serial ATA v3.0 transmission speeds up to 6Gbps. Through the adapter, the system speed can be increased, and office and entertainment efficiency can be improved.
Compliant with PCI Express specification revision 3.0
Backward compatible with PCIE V2.0 and V1.0 motherboards
Compliant with Serial ATA specification revision 3.0
Drive sizes are 110, 80, 60, 42 and 30mm
Support any "M" key M.2 SSD, "B" key and "B+M" key M.2 SSD
Applicable type: M.2 NVMe SSD adapter
Bus interface: PCI Express X4 rev3.0
Connection port: 1 x M.2 Key B SSD port
1 x M.2 Key M SSD port
1 x SATA (7-Pin) connector
colour:yellow
Material:PCB
size: 140x68x10mm
Package Contents:
1 * PCI-E X4 M.2 NVMe SSD adapter
1 * Screw set + screwdriver (kit)
1 * Short iron sheetOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
