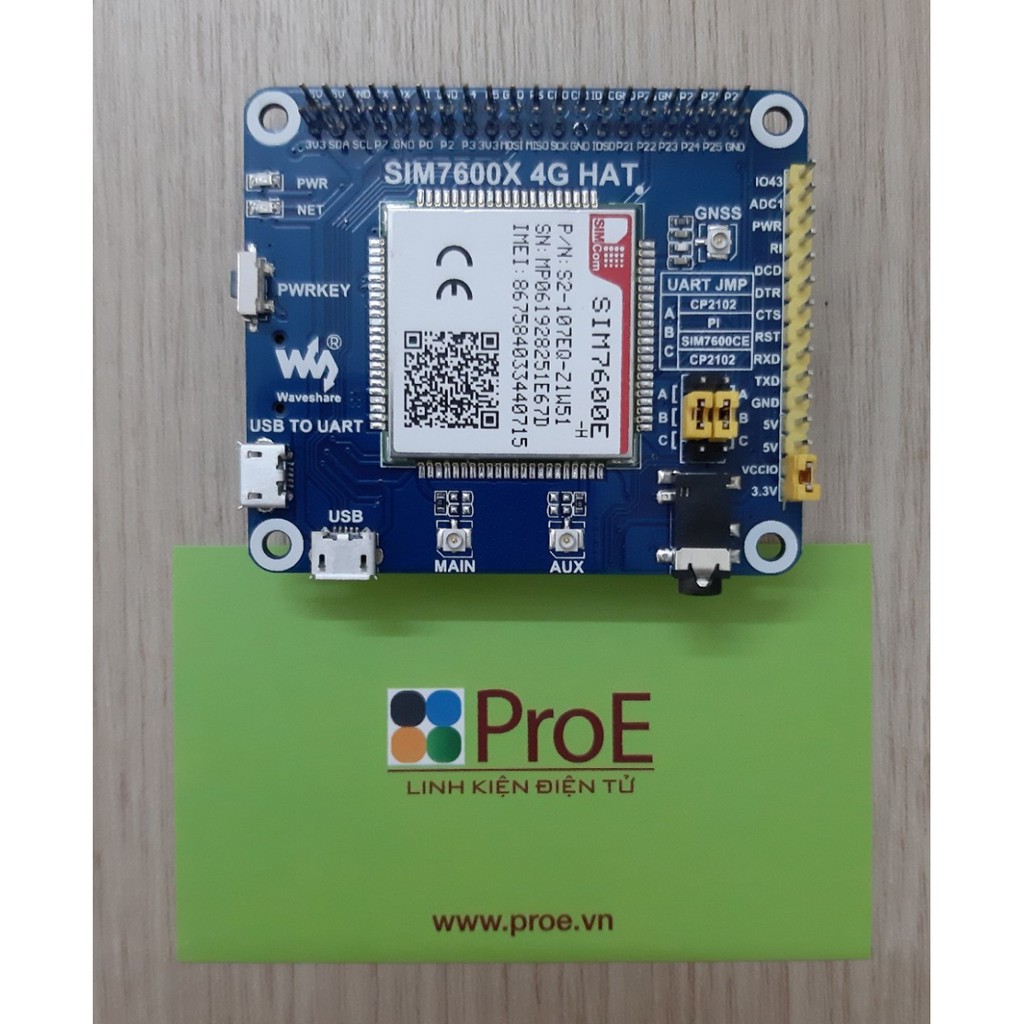

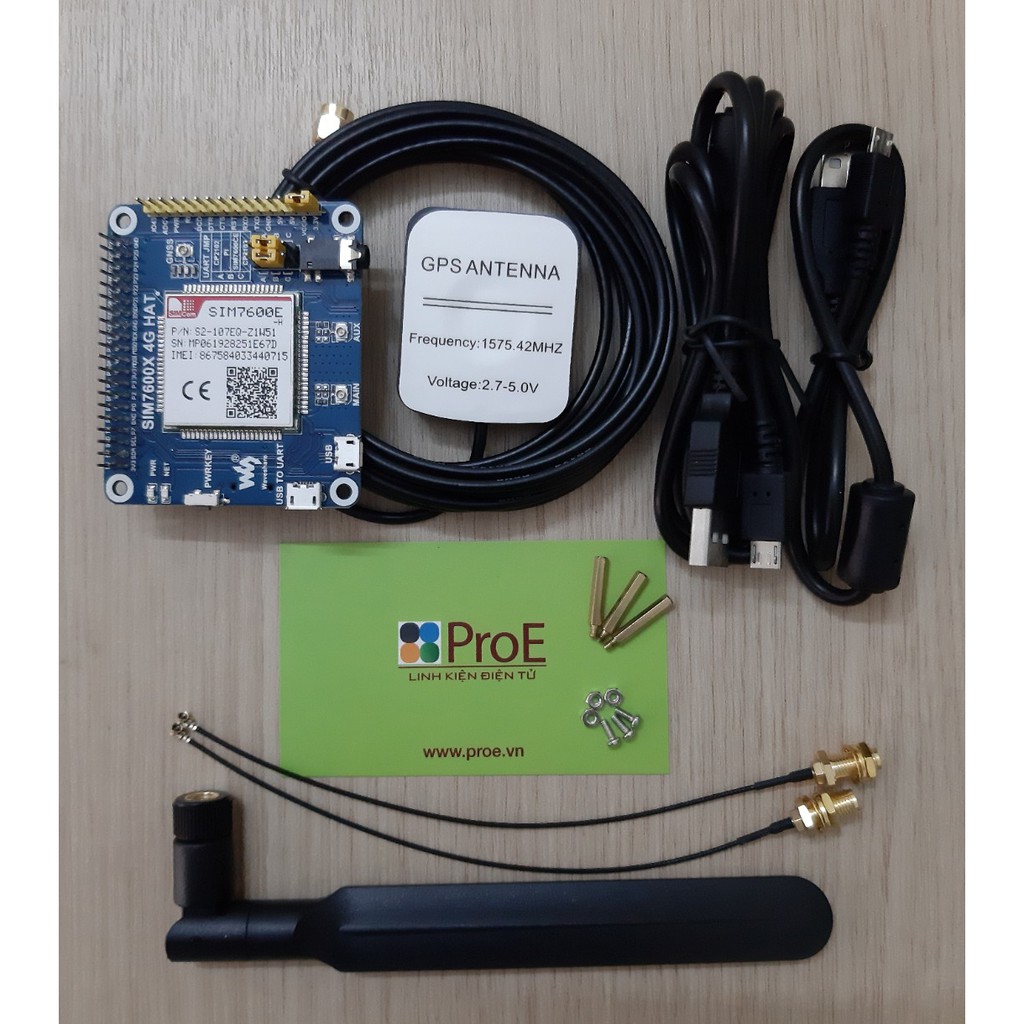

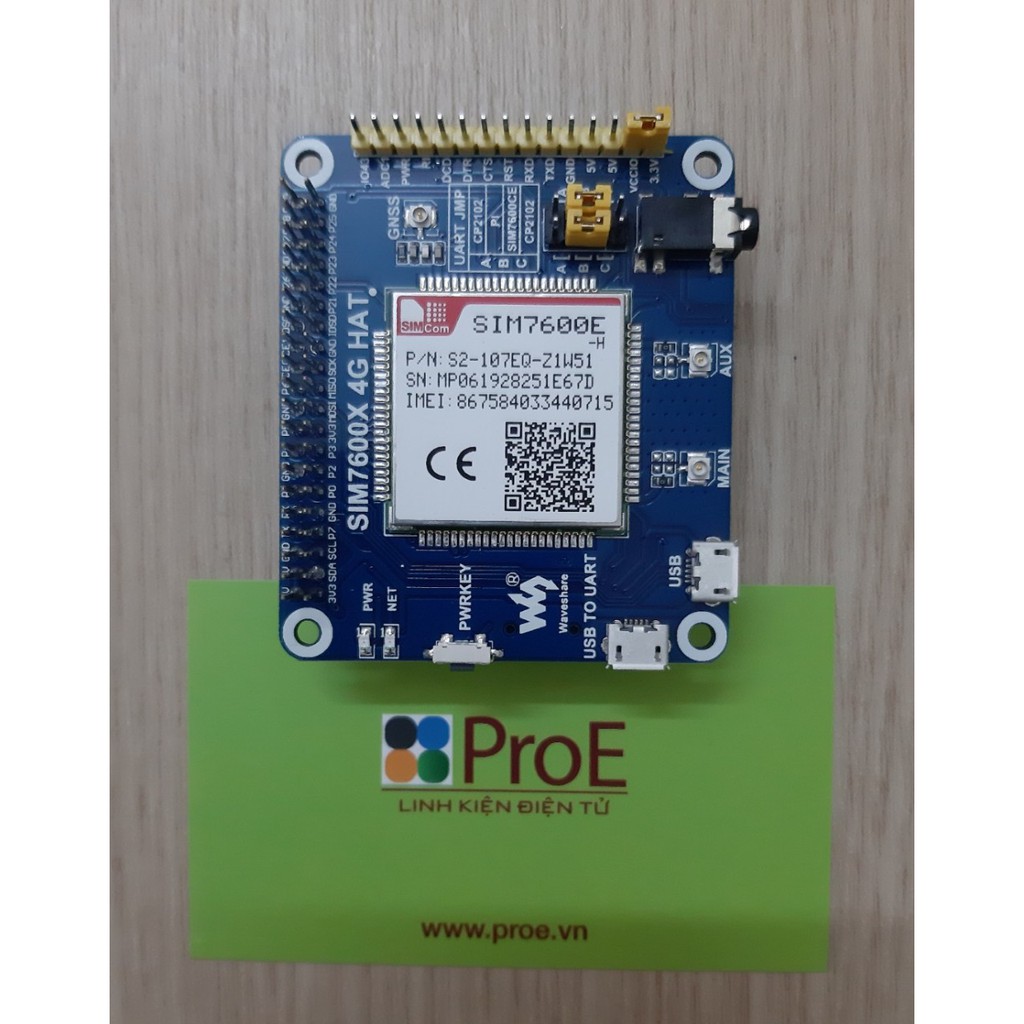

SIM 7600E-H 4G HAT (sử dụng tương thích với Raspberry Pi)
3 Đánh Giá
Đã Bán 4
160
1.600.000 đ
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuận 11, TP. Hồ Chí Minh
Cập nhật: thứ tư 15/07/2026 lúc 01:10 CH
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi, Based on SIM7600E-H
Applicable Region
SIM7600A-H is mainly applicable in North America (US, CA), SIM7600E-H is mainly applicable in Southeast Asia, West Asia, Europe, Africa, SIM7600CE-T is mainly applicable in China.
Please check the supported bands according to your local service provider, select the proper one when placing order.
Overview
The SIM7600E-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption.
You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc.
Features
Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, LBS base station positioning
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Onboard CP2102 USB to UART converter, for serial debugging
Breakout UART control pins, to connect with host boards like Arduino/STM32

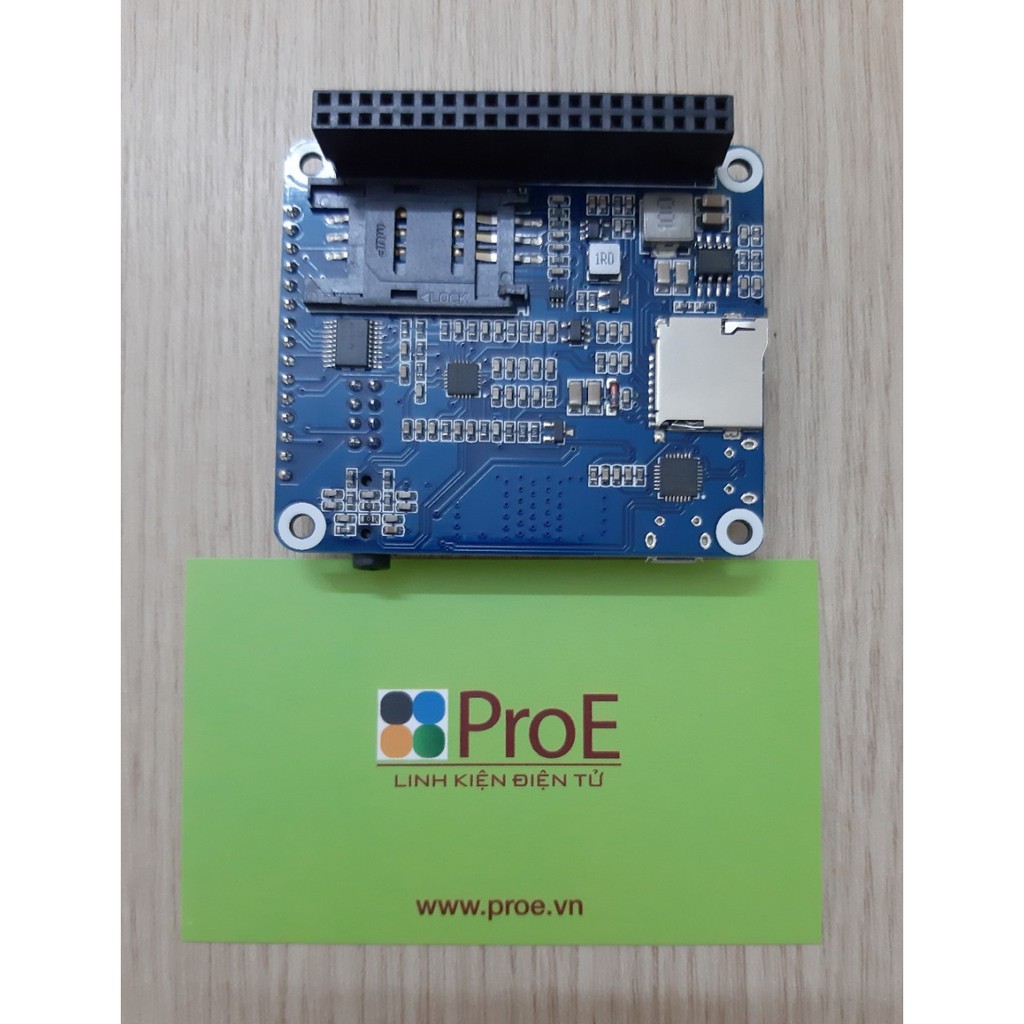

SIM card slot, supports 1.8V/3V SIM card
TF card slot for storing data like files, messages, etc.
Onboard audio jack and audio decoder for making telephone call
2x LED indicators, easy to monitor the working status
Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
Baudrate: 300bps ~ 4Mbps (default: 115200bps)
Autobauding baudrate: 9600bps ~ 115200bps
Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
GNSS Specifications
Receiver type
16-channel
C/A code
Sensitivity
Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
Cold starts: -148 dBm
Time-To-First-Fix (open air)
Cold starts: <35s
Hot starts: <1s
Accuracy
Position: <2.5m CEP
SMS and Audio Specifications
SMS
Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature
Supports echo cancellation
Supports noise reduction
Other Specifications
Power supply: 5V
Operating voltage: 5V/3.3V (configured via jumper)
Operating temperature: -30°C ~ 80°C
Storage temperature: -45°C ~ 90°C
Dimension: 56.21mm x 65.15mm
