Set 10 Mạch Điều Khiển Công Tắc Dc 5v-36v 15a (Max 30a) Mosfet Mos Fet 0-20khz Pwm
0 Đánh Giá
Đã Bán 0
101
100.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ sáu 14/05/2021 lúc 02:54 CH
MÔ TẢ SẢN PHẨM

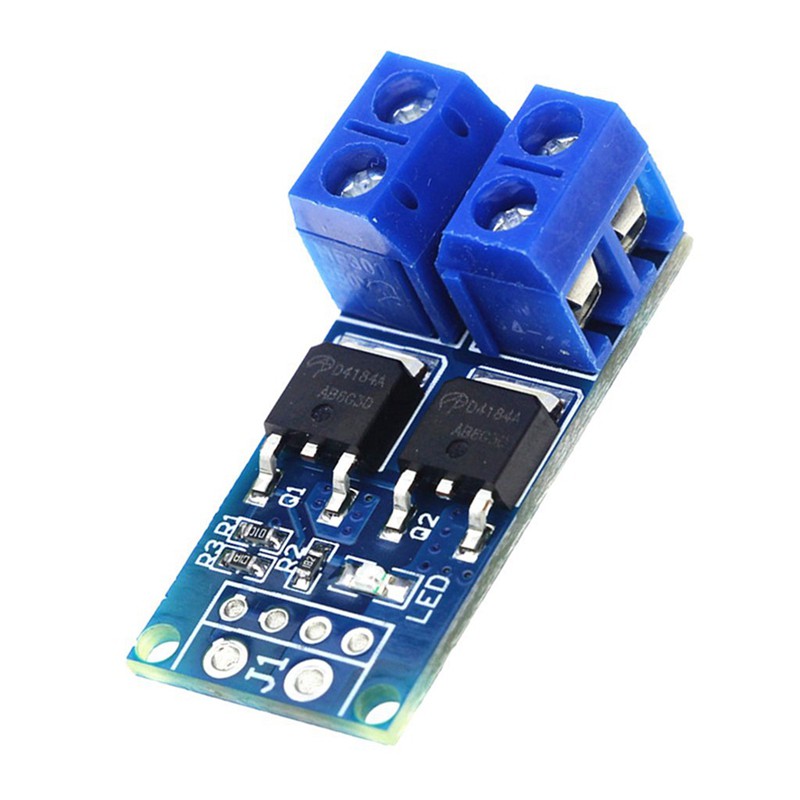

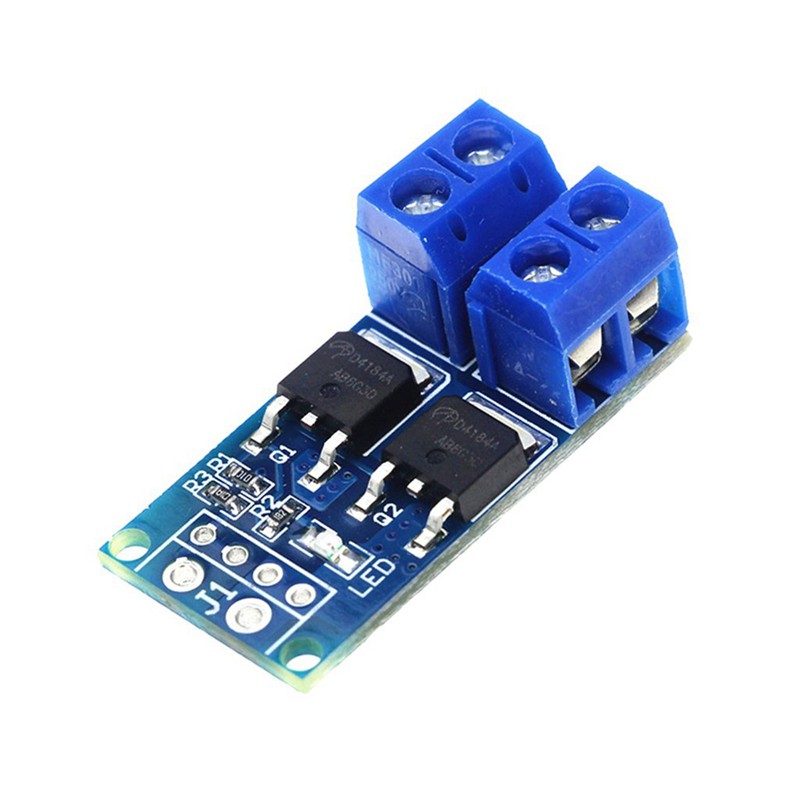

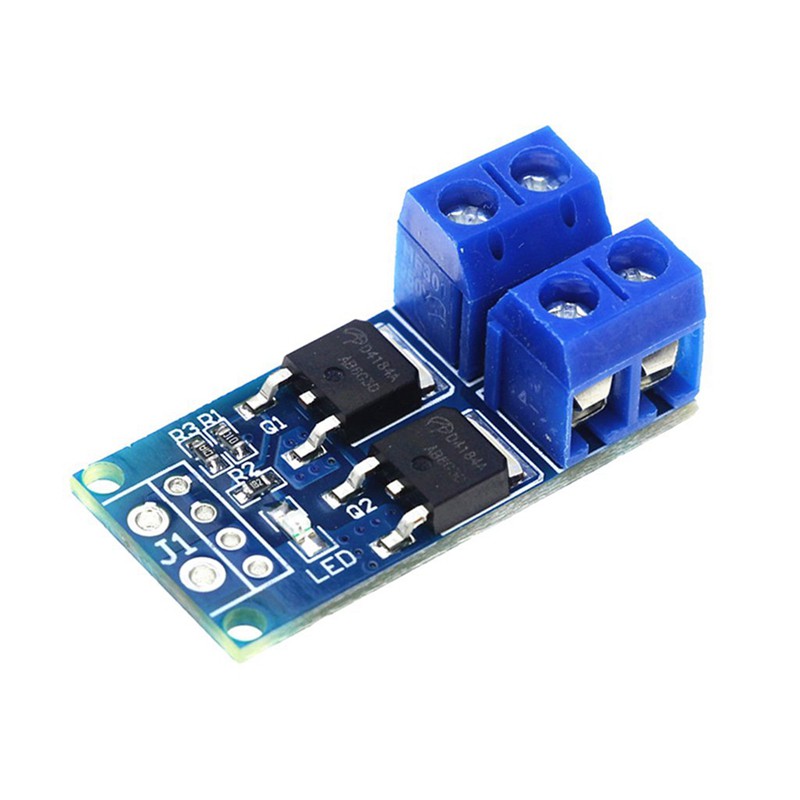

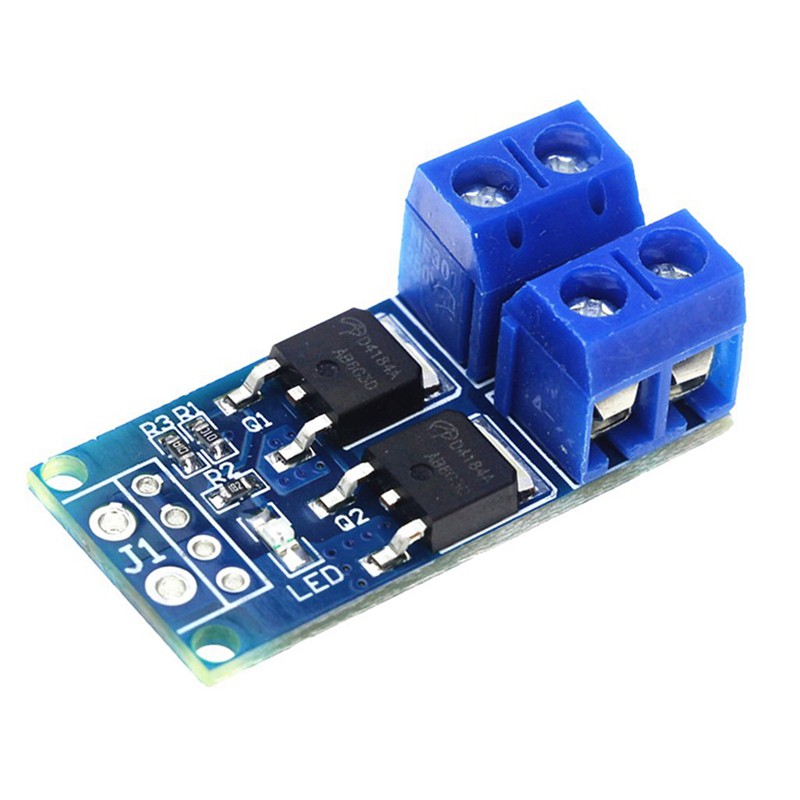

High power MOS field effect tube trigger switch driver ule PWM regulating electronic switch panel.
Adopts imported large power dual-mos transistor parallel active output, lower resistance, higher current and strong power.
Perfect support PWM signal: the PWM controller can access PWM signal, which can perfectly supported the frequency of 0-20khz.
This motor control ule can tolerate wide input Voltage (DC 5-36v) it can be applied in various high power equipments.
Applications: motor,lamp bulb,LED lamp strip, mini water pump etc.
Operating Voltage:DC 5V-36V
Trigger Signal Source: digital high/low level (DC 3.3-20V),can connect with MCU IO port, PLC interface, DC power etc; can connect with PWM signal; support signal frequency 0--20KHz.
Output Power: DC 5v-36v, room temperature sustained current 15A, power 400W! Auxiliary cooling conditions, the maximum current can be up to 30A.
Operating Temperature: -40~85 Celsius
Colour: blue
Material: PCB
Size: 3.4 x 1.7 x1.2cm
Package Contents:

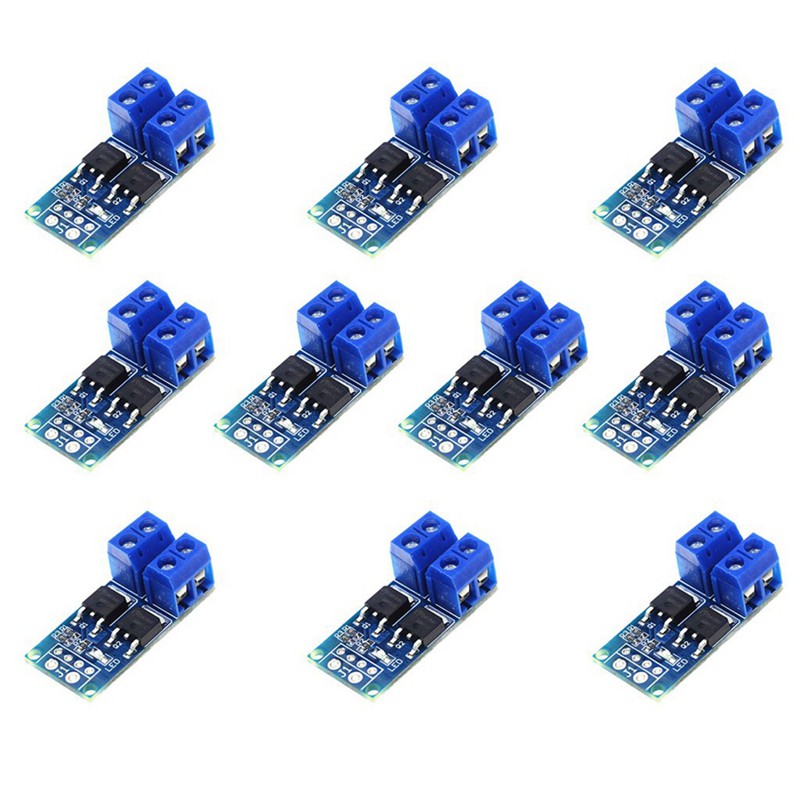

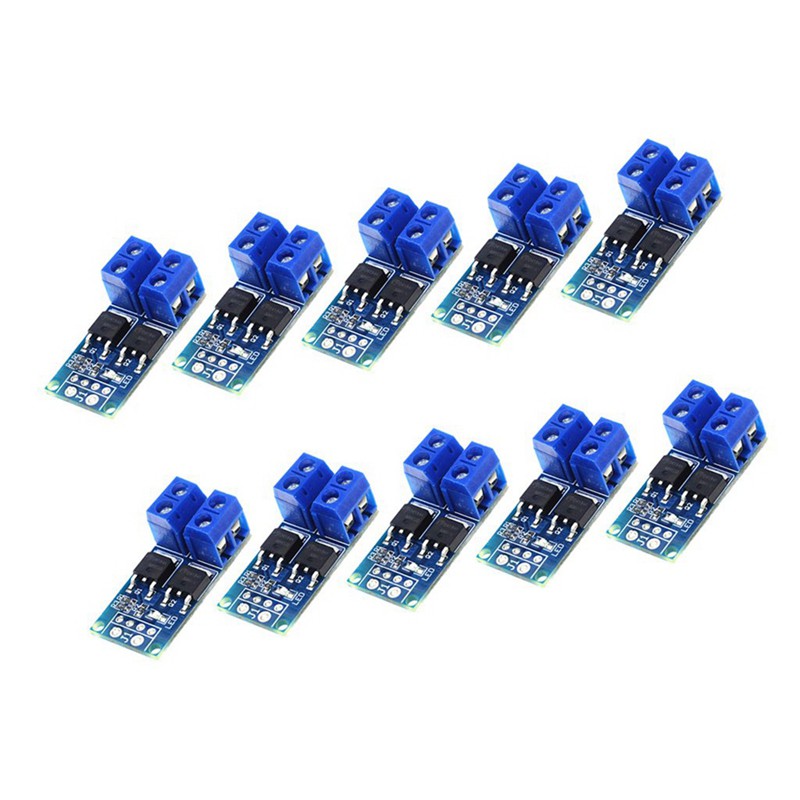

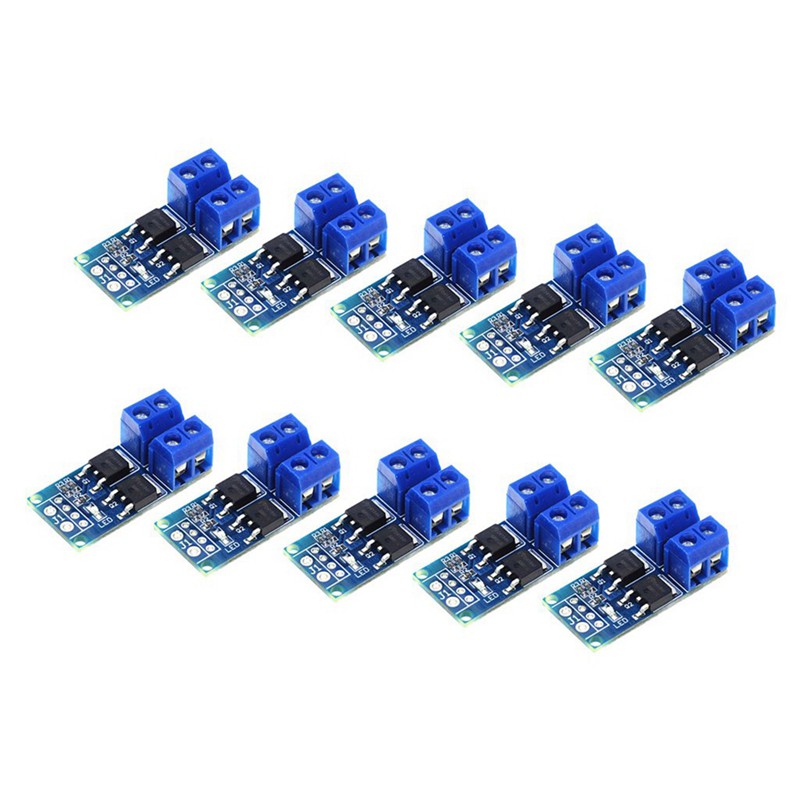

10 * MOS FET Trigger Switch Drive uleOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
