Mô-Đun Cảm Biến Thẻ Từ Rfid-Rc522 Nfc Rf Ic Với 2 Tag Mfrc522 Dc 3.3v
0 Đánh Giá
Đã Bán 2
286
23.300₫
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
Cập nhật: thứ tư 16/09/2026 lúc 03:48 CH
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
100% Brand New and High Quality !
Features:
Operation Current 13~26mA/DC3.3V
Idle Current 10~13mA/DC3.3V
Sleep Current <80μA
Peak Current <30mA
Operation Frequency 13.56MHz Read Range 0~60mm(mifare1)
Interface SPI Data Transition Rate Up to 10Mbit/s
Support Cards mifare1 S50 mifare1 S70 mifare UltraLight mifare Pro mifare
Design
Dimension 40mm×60mm
Operation Temperature -20~80℃
Relative Humidity %5~%95
Notes：
Support the operating mode:Reader/writer mode supporting ISO 14443A / MIFARER

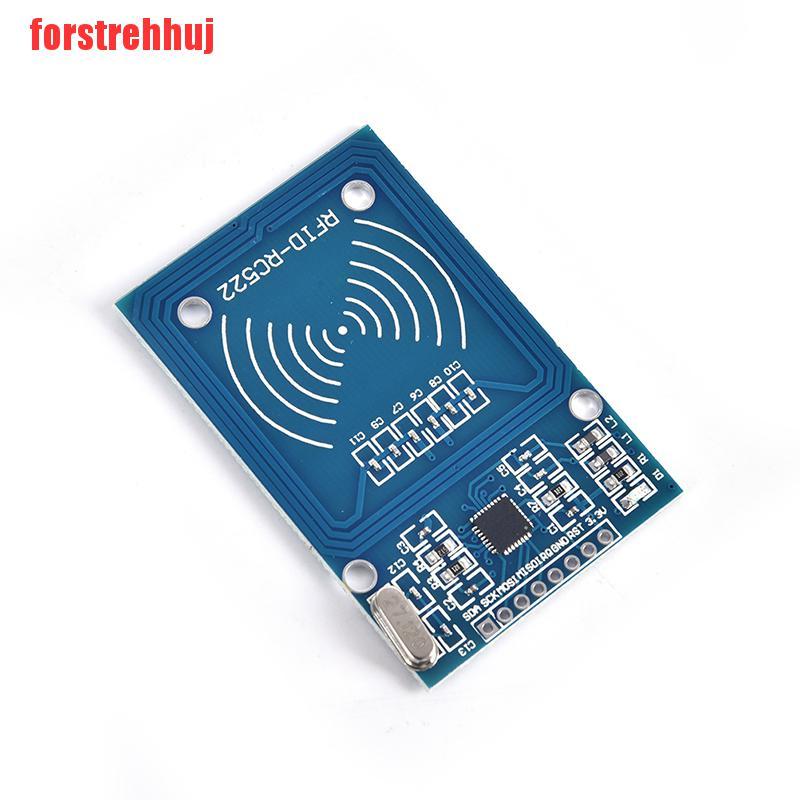

The RFID Module with the Philips MF RC522 chip is used for RFID products development.
The Module supply voltage is 3.3V,users can connect the module to any CPU board with the SPI interface.
Note:
MF RC522 is a highly integrated transmission module for contactless communication at 13.56 MHz. This transmission module utilises an outstanding modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz.
Package Included:

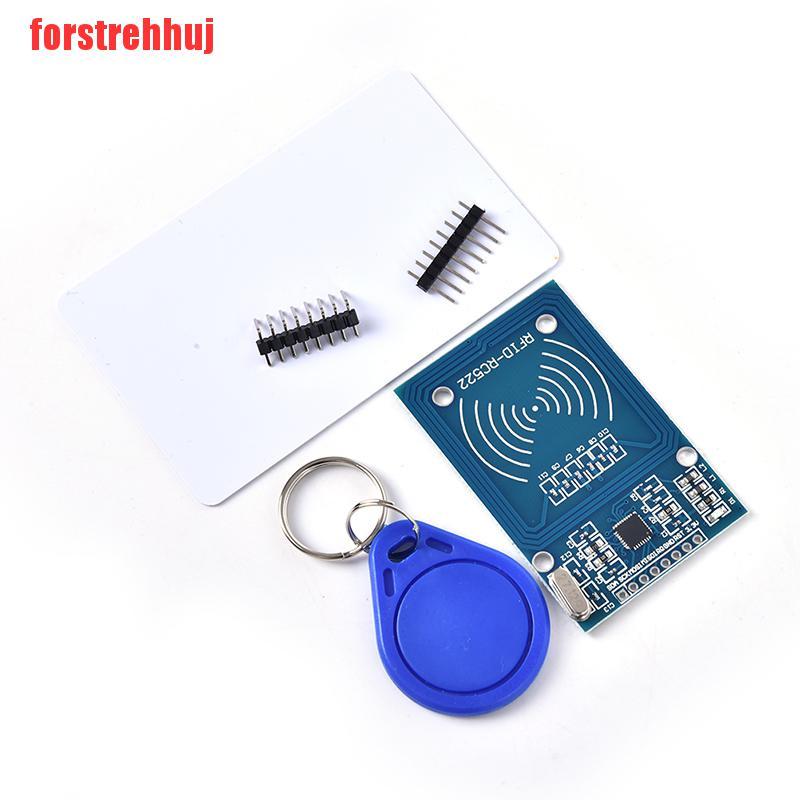

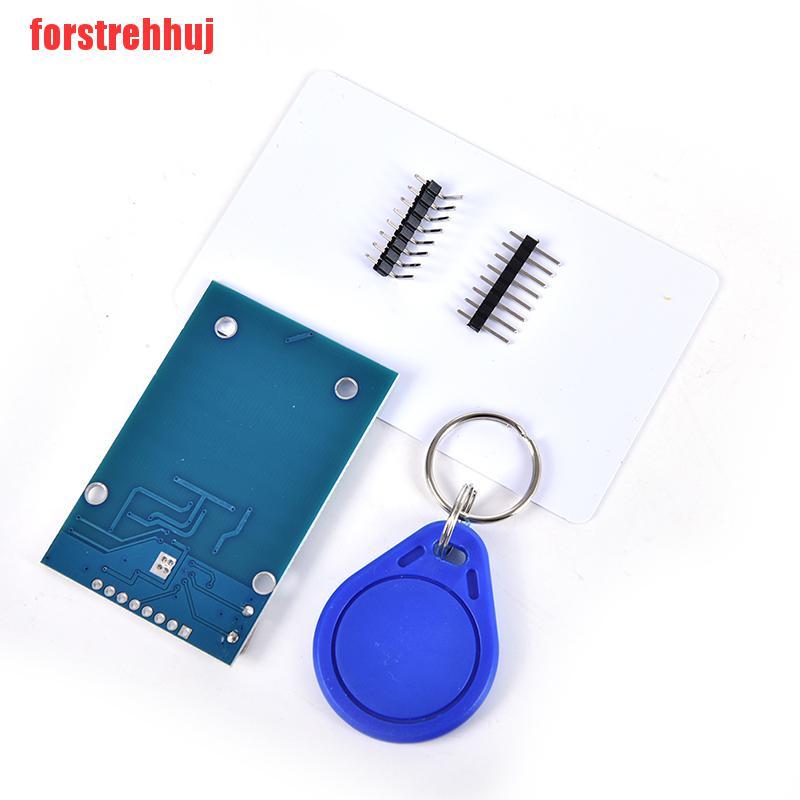

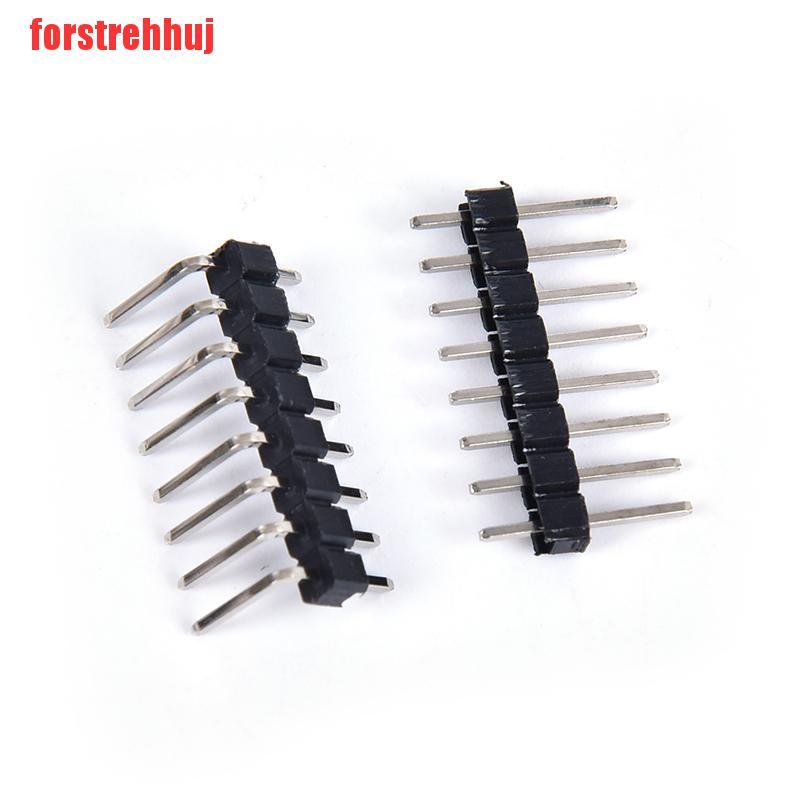

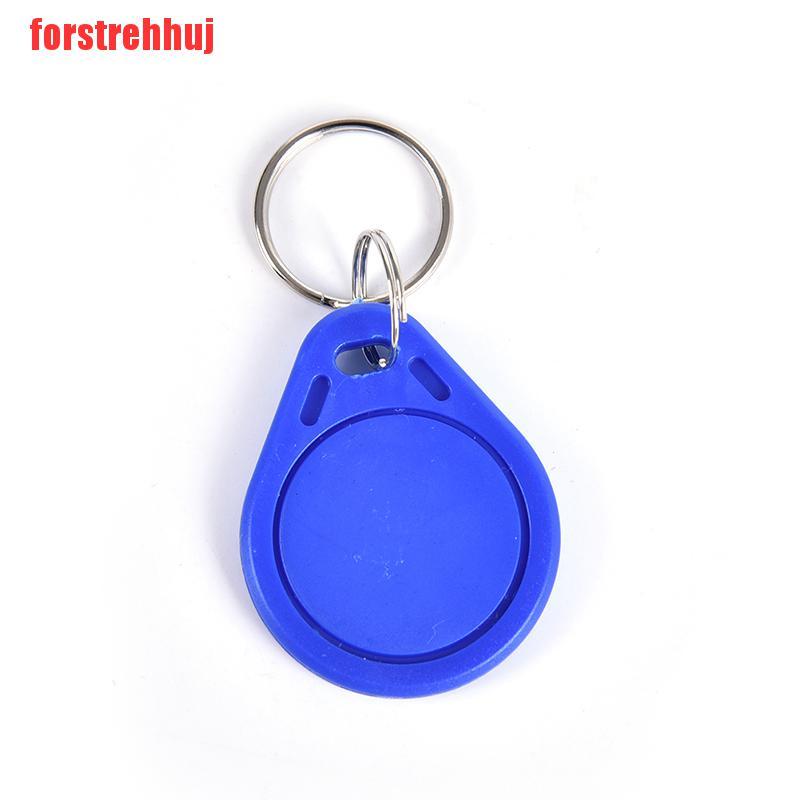

1*RFID-RC522 module one+1*Standard S50 Blank Card+1*S50 shaped cards one (as shown keychain shape)+1*Straight row pin+1*Curved row pin
Features:
Operation Current 13~26mA/DC3.3V
Idle Current 10~13mA/DC3.3V
Sleep Current <80μA
Peak Current <30mA
Operation Frequency 13.56MHz Read Range 0~60mm(mifare1)
Interface SPI Data Transition Rate Up to 10Mbit/s
Support Cards mifare1 S50 mifare1 S70 mifare UltraLight mifare Pro mifare
Design
Dimension 40mm×60mm
Operation Temperature -20~80℃
Relative Humidity %5~%95
Notes：
Support the operating mode:Reader/writer mode supporting ISO 14443A / MIFARER
The RFID Module with the Philips MF RC522 chip is used for RFID products development.
The Module supply voltage is 3.3V,users can connect the module to any CPU board with the SPI interface.
Note:
MF RC522 is a highly integrated transmission module for contactless communication at 13.56 MHz. This transmission module utilises an outstanding modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz.
Package Included:
1*RFID-RC522 module one+1*Standard S50 Blank Card+1*S50 shaped cards one (as shown keychain shape)+1*Straight row pin+1*Curved row pin
