Mô Đun Truyền Tín Hiệu Không Dây 433mhz Mini 1527
2 Đánh Giá
Đã Bán 9
74
35.900 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 17/04/2021 lúc 01:58 CH
MÔ TẢ SẢN PHẨM
100% brand new and high quality.
Each module has a unique ID address code.
All modules K1-K4 four key code is the same.

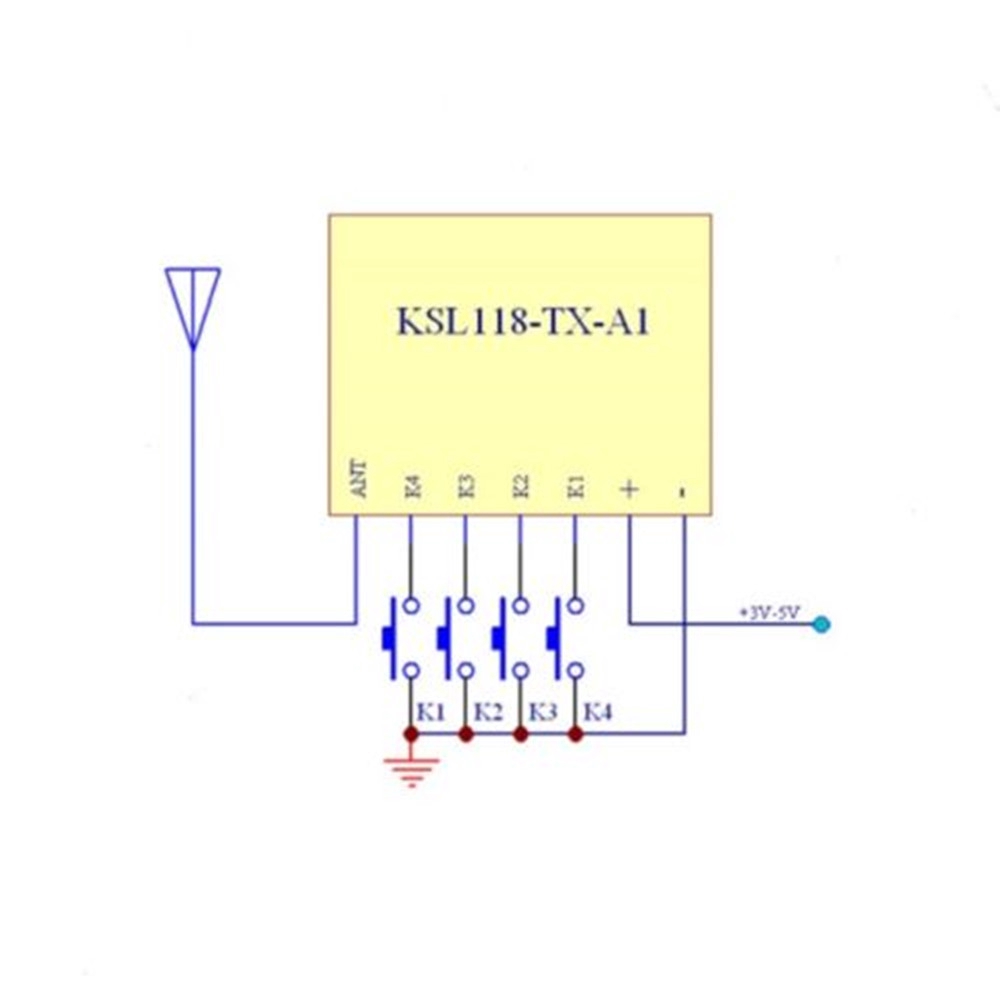

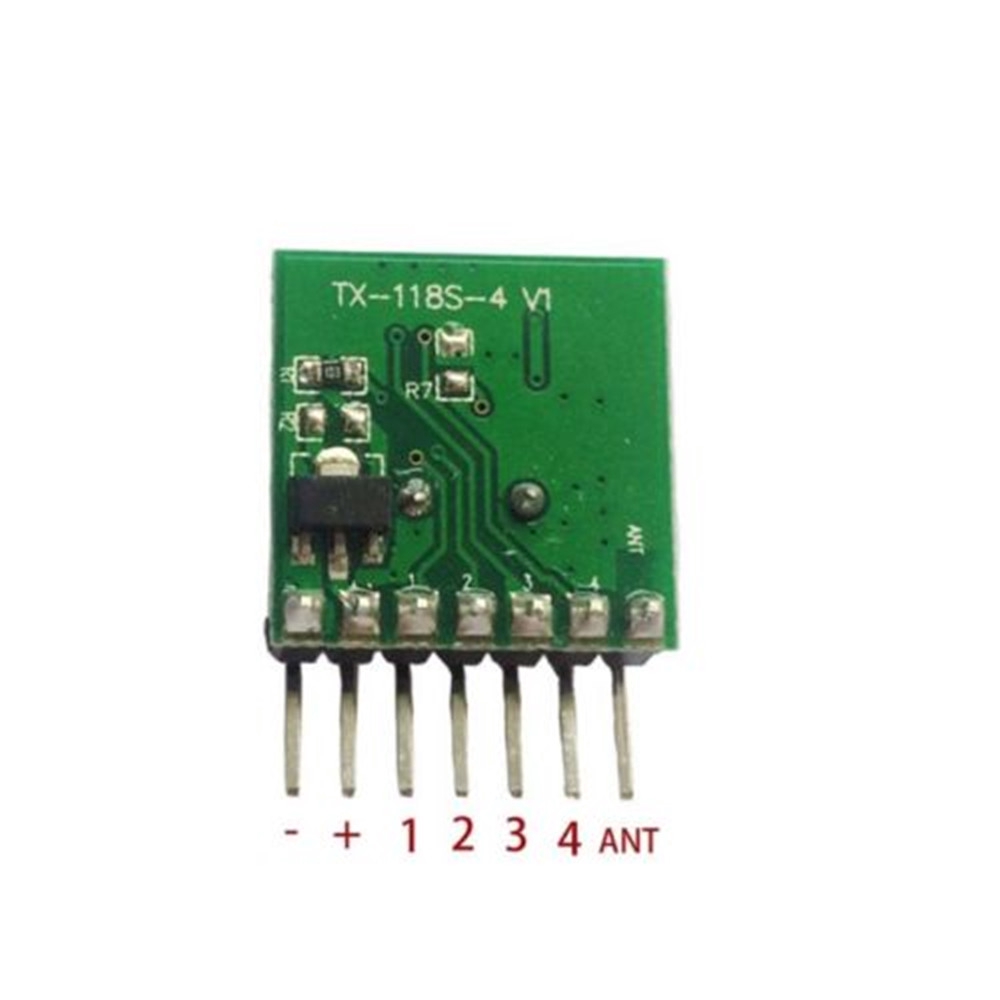

Pin Description:
- : Negative power supply
+: Positive power supply, DC 3-24V
K1: 1 short to Negative start transmitting data, Similar the A button on the remote control.
K2: 2 short to Negative start transmitting data, Similar the B button on the remote control.
K3: 3 short to Negative start transmitting data, Similar the C button on the remote control.
K4: 4 short to Negative start transmitting data, Similar the D button on the remote control.
Application Environment:
Remote control switch, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3, etc.
Specifications:

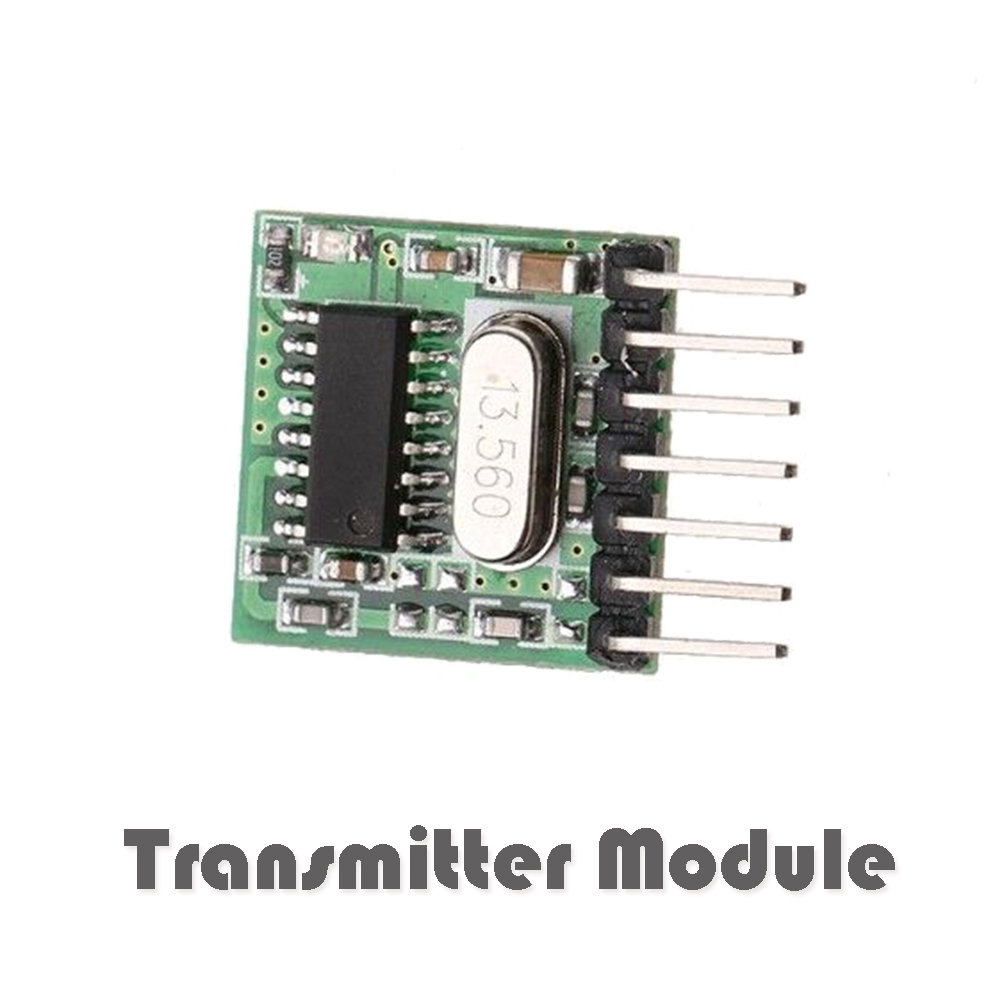

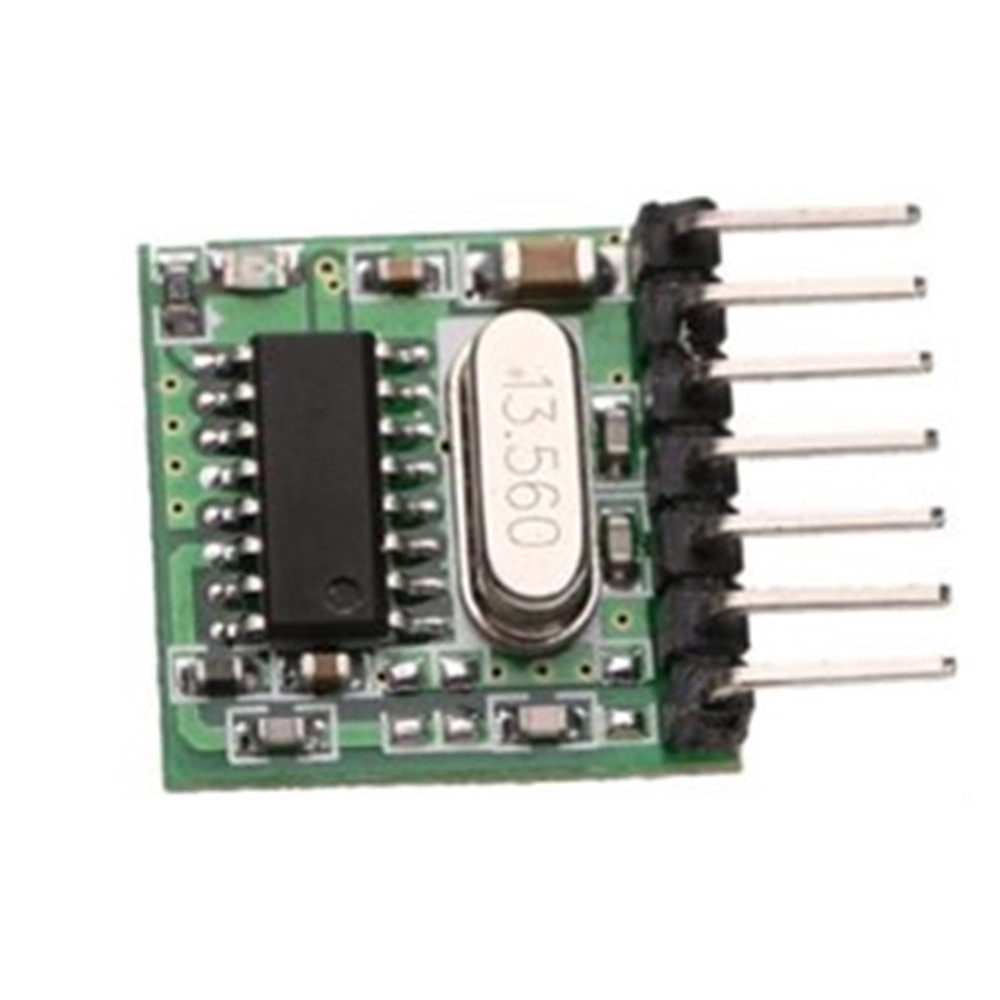

Item Type: Wireless RF Remote Control Transmitter Module
Transmitting power: 11dbm
Distance: 30-100m
Emission current: 10MA
Rate of fire: maximum 10KB / S
Transmit deviation: +/- 7. 5KHZ / narrow-band emission
Modulation: ASK
Operating Voltage: DC 3V-24V
Encoding: EV1527 1527 Learning code
Material: Plastic+Metal
Color: shown as pictures

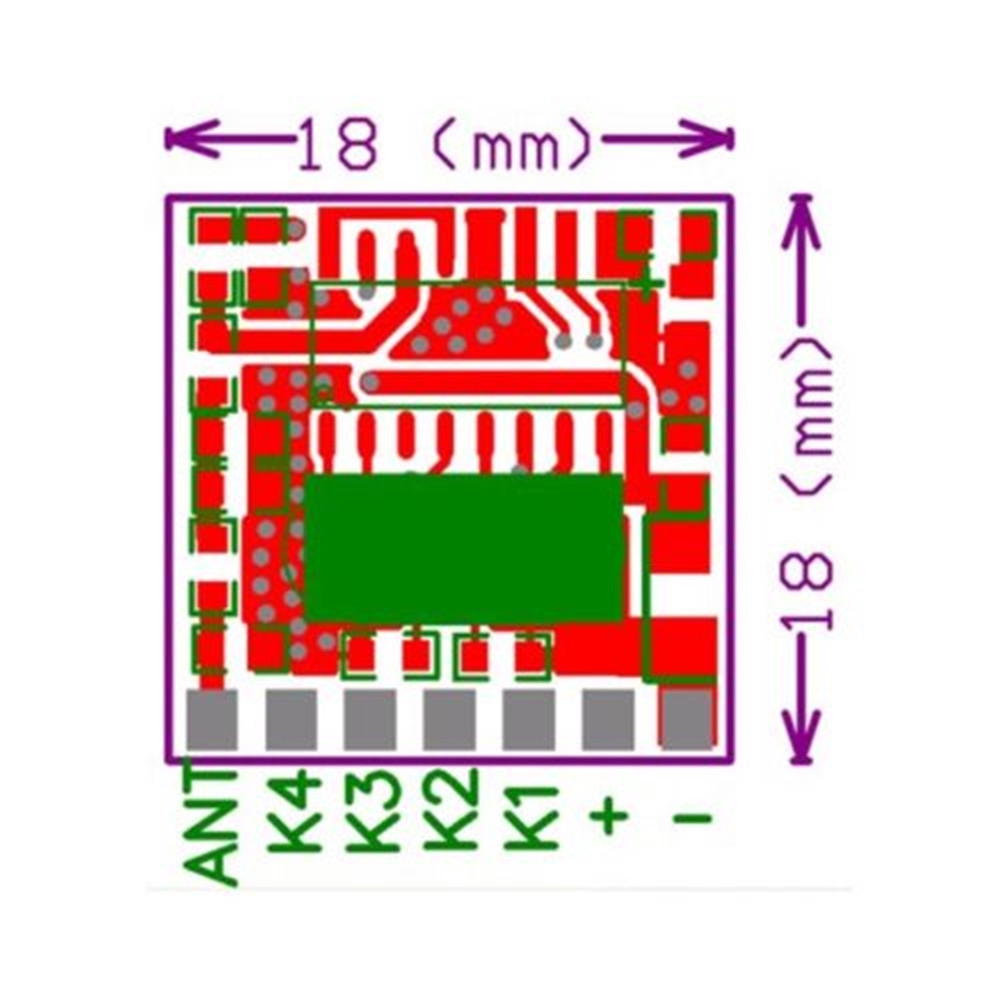

Size: 1.8×1.8cm
Quantity: 1 PC (other accessories demo in the picture is not included)
Package:
1 x Wireless RF Remote Control Transmitter Module (No retail package)
Note:
-Transition: 1cm=10mm=0.39inch
-Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
-Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
