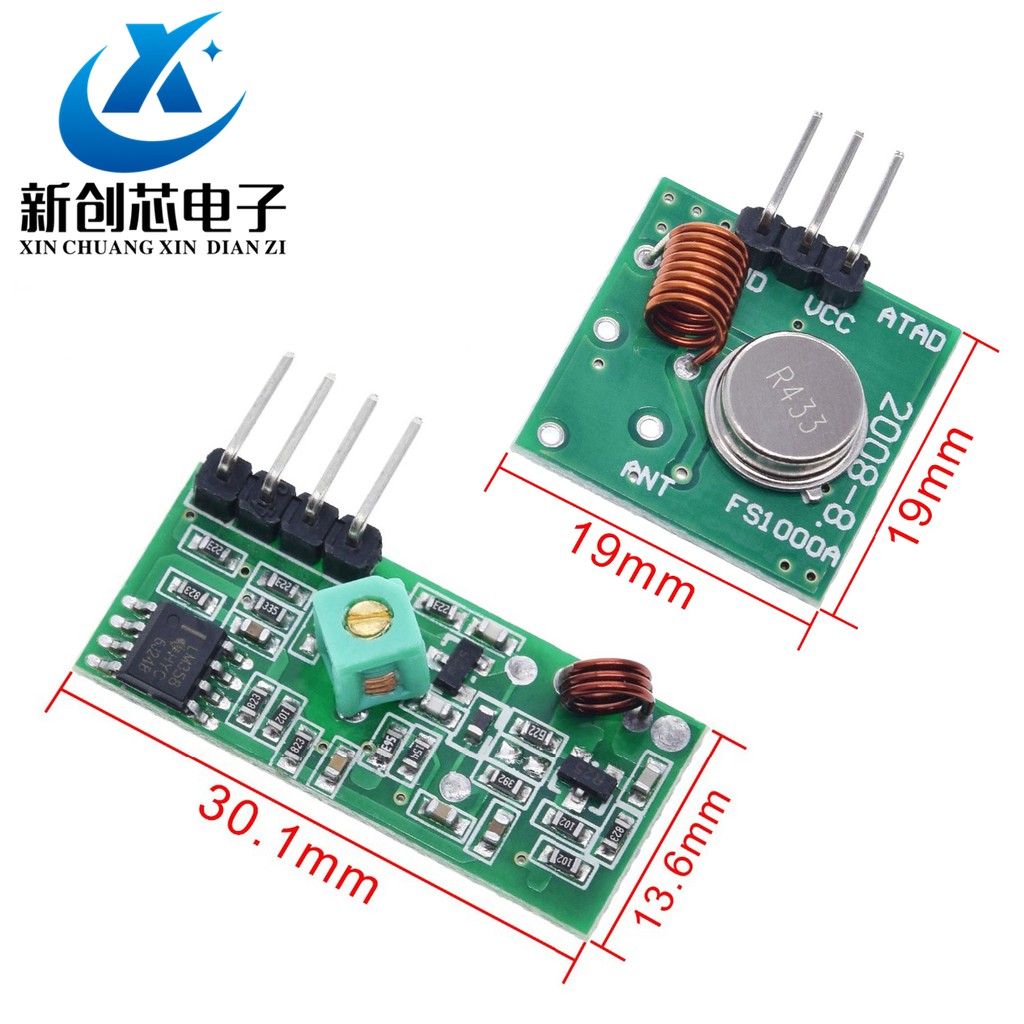

Mô đun truyền tín hiệu không dây 315Mhz / 433Mhz Rf cho Arduino Raspberry Pi
1 Đánh Giá
Đã Bán 2
112
32.400 đ
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
Cập nhật: thứ ba 07/07/2026 lúc 01:52 CH
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
Product specification and operational instructions for launch head and receiver templates

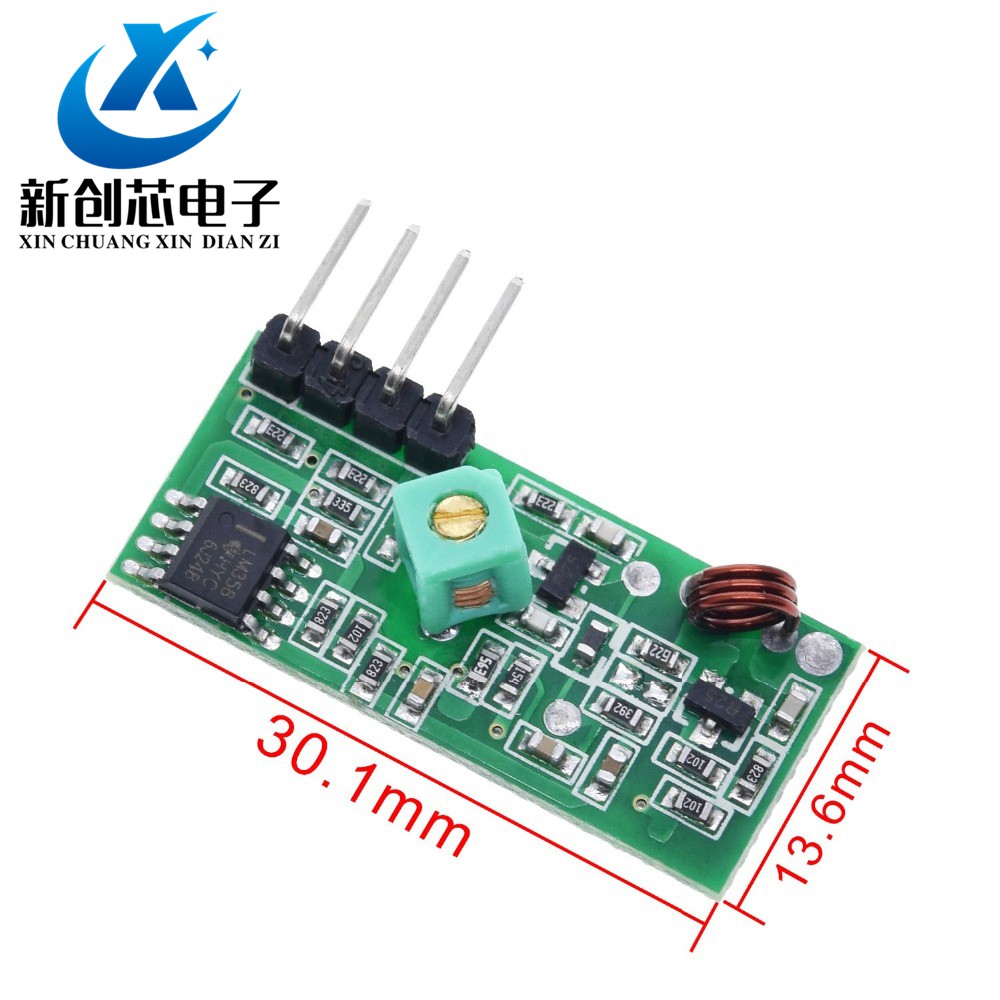

Receiver module parameters
Working voltage: dc5v static current: 4ma
Frequency of reception: 433.92 mhz
Receiver sensitivity: - 105db
Size: 30x14 x 7mm external antenna: 32cm single core line winding into spiral

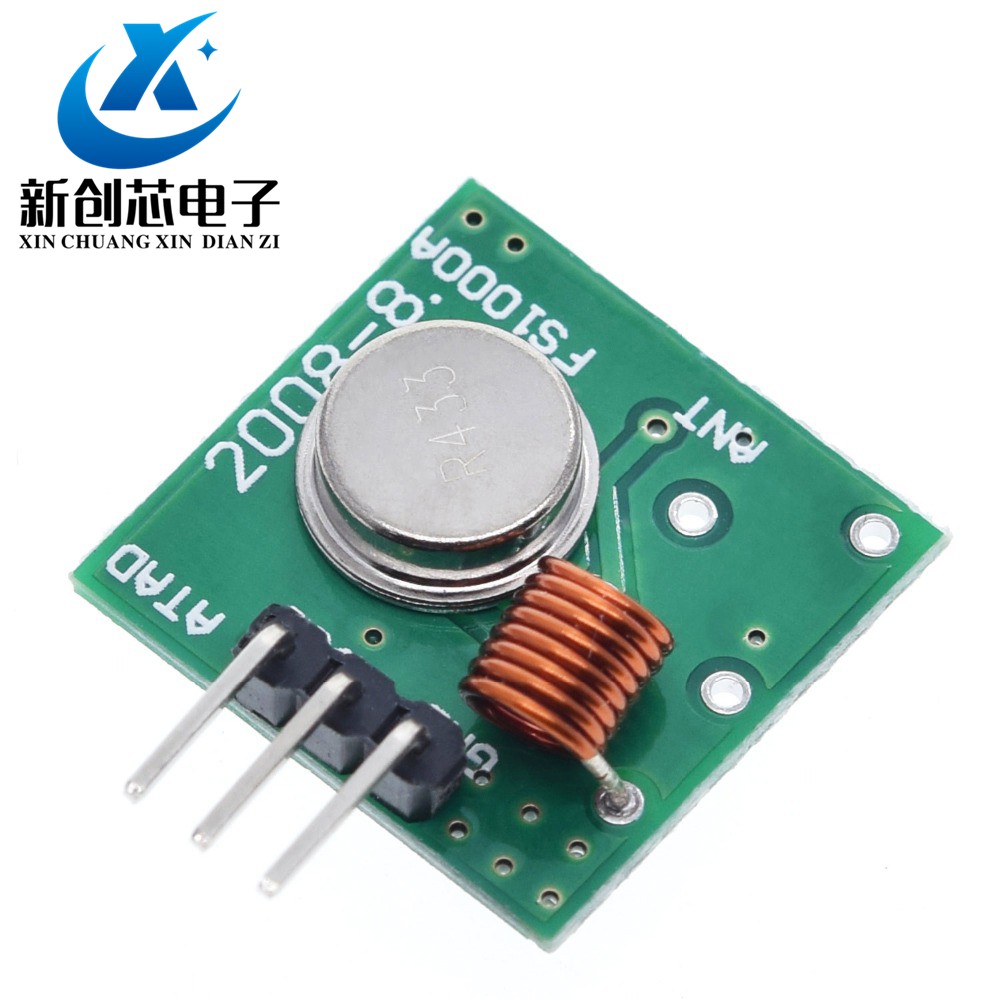

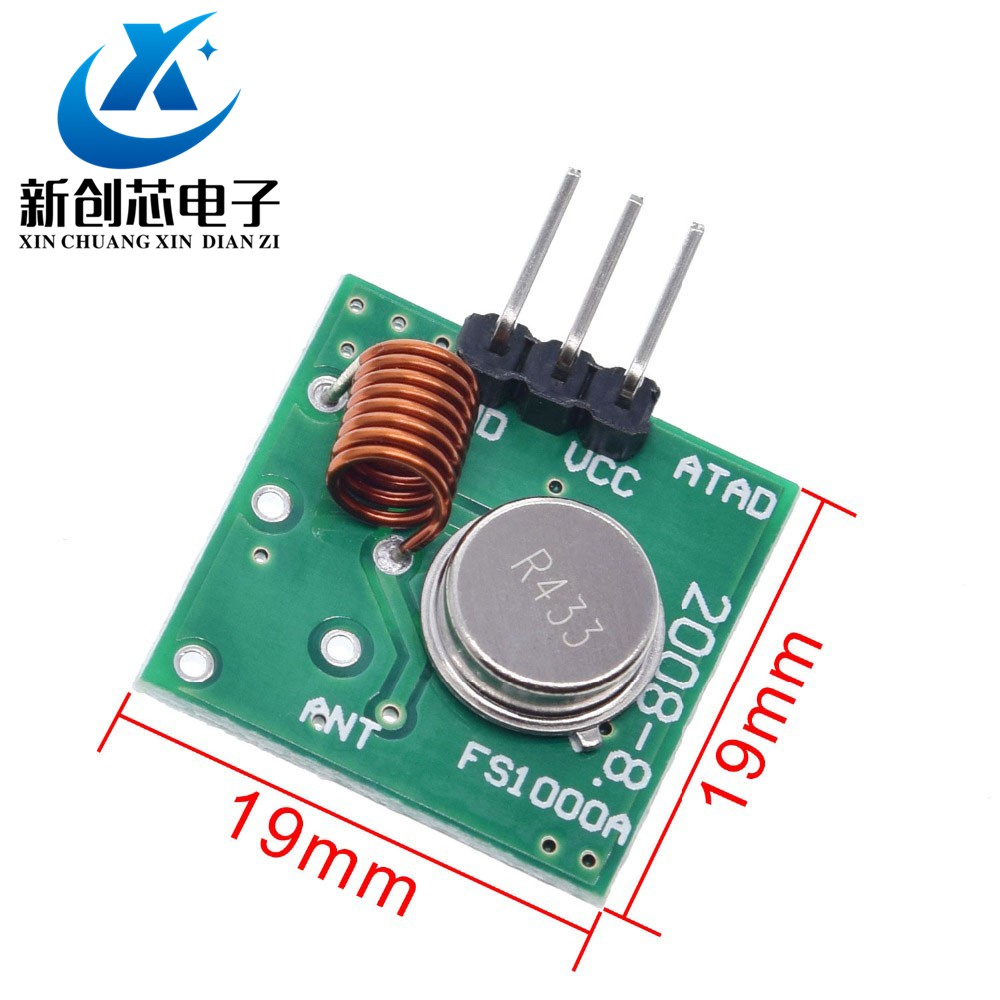

Technical parameters of launch head
Product type: mx-fs
Launch distance: 20-200 m (different voltages, different results) operating voltage: 3.5-12v size: 19x19mm
Mode of work: am transmission rate: 4kb/s transmitter power: 10mw
Launch frequency: 433m
External antenna: 25cm common multi core or single core line
To rank from left to right: (data; vcc; gnd)
Application environment
Remote control switch,Receiver module,Motorcycles,Car anti-theft products,Household safety products,Electric door,Roll curtain door,Window,Remote control socket,Remote control led,Remote control audio remote control electric door,Garage door remote control,Retractable remote control door,Remote control volume door,Flat door,Remote control door opener,Closed-door control system,Remote control curtain,Alarm host,Alarm,Remote control motorcycle remote control electric car,Remote control mp3.
Receiver module parameters
Working voltage: dc5v static current: 4ma
Frequency of reception: 433.92 mhz
Receiver sensitivity: - 105db
Size: 30x14 x 7mm external antenna: 32cm single core line winding into spiral
Technical parameters of launch head
Product type: mx-fs
Launch distance: 20-200 m (different voltages, different results) operating voltage: 3.5-12v size: 19x19mm
Mode of work: am transmission rate: 4kb/s transmitter power: 10mw
Launch frequency: 433m
External antenna: 25cm common multi core or single core line
To rank from left to right: (data; vcc; gnd)
Application environment
Remote control switch,Receiver module,Motorcycles,Car anti-theft products,Household safety products,Electric door,Roll curtain door,Window,Remote control socket,Remote control led,Remote control audio remote control electric door,Garage door remote control,Retractable remote control door,Remote control volume door,Flat door,Remote control door opener,Closed-door control system,Remote control curtain,Alarm host,Alarm,Remote control motorcycle remote control electric car,Remote control mp3.
