Mô Đun Tăng Áp Dc-Dc Usb 5v Sang 6v 9v 12v 15v
0 Đánh Giá
Đã Bán 0
73
56.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 29/05/2021 lúc 02:55 CH
MÔ TẢ SẢN PHẨM

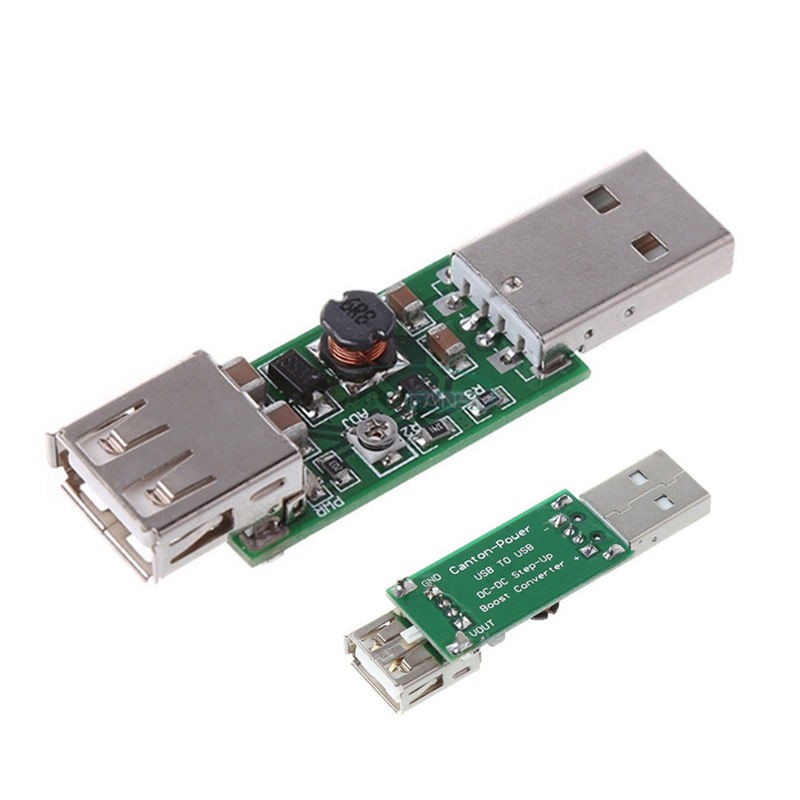

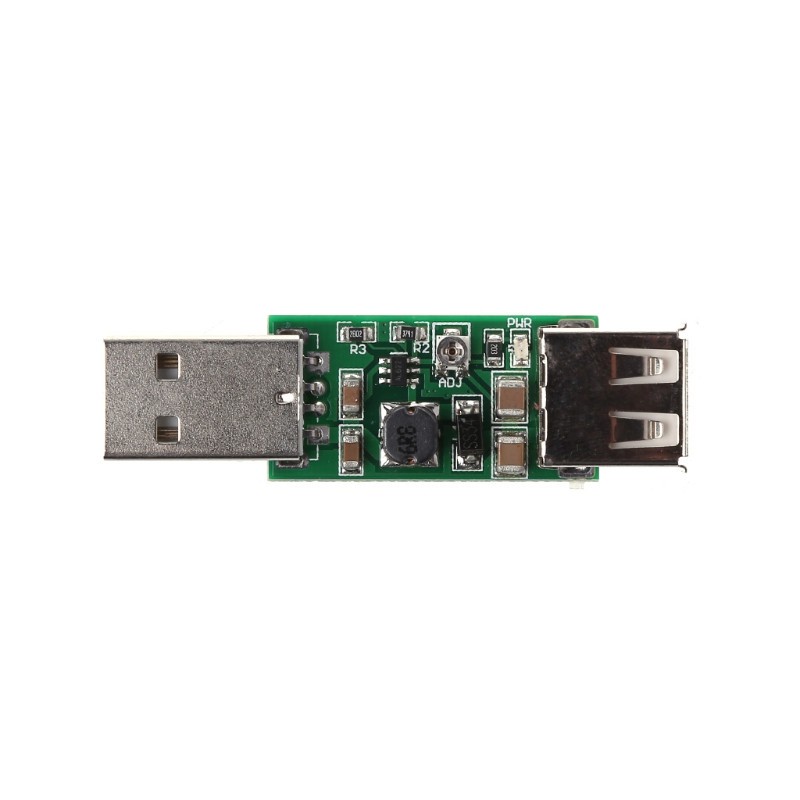

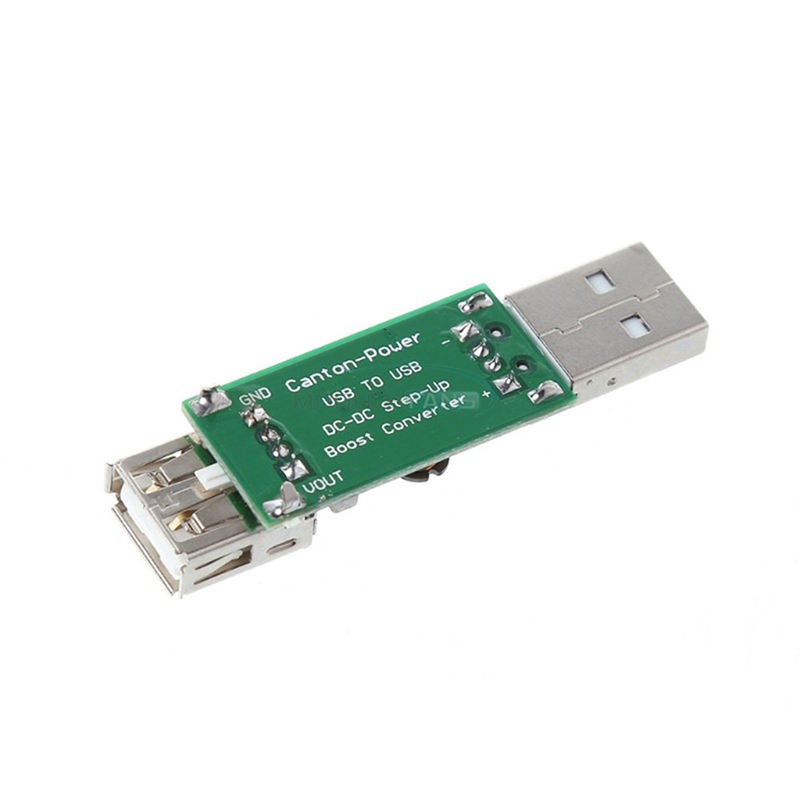

Product Name: DC-DC USB 5V to 6V 9V 12V 15V Adjustable Step-Up Boost Converter Voltage ule
ule No.: TB398
ify Parameter Description:
1.4A current limiting resistor,Remove the resistance, the maximum input current can reach 2A.
But IC have "Over Temperature Protection" Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 Degrees Celsius. The power MOSFET wake up when the junction emperature drops 30 Degrees Celsius under the OTP threshold temperature. The master chip is FP6291
Description:
Color: green
Material: PC + metal
Input voltage 3~6V, output 6-15.5V
Maximum input current : 1.4A
Long-term work Current : 1A
Conversion efficiency : 79-90%

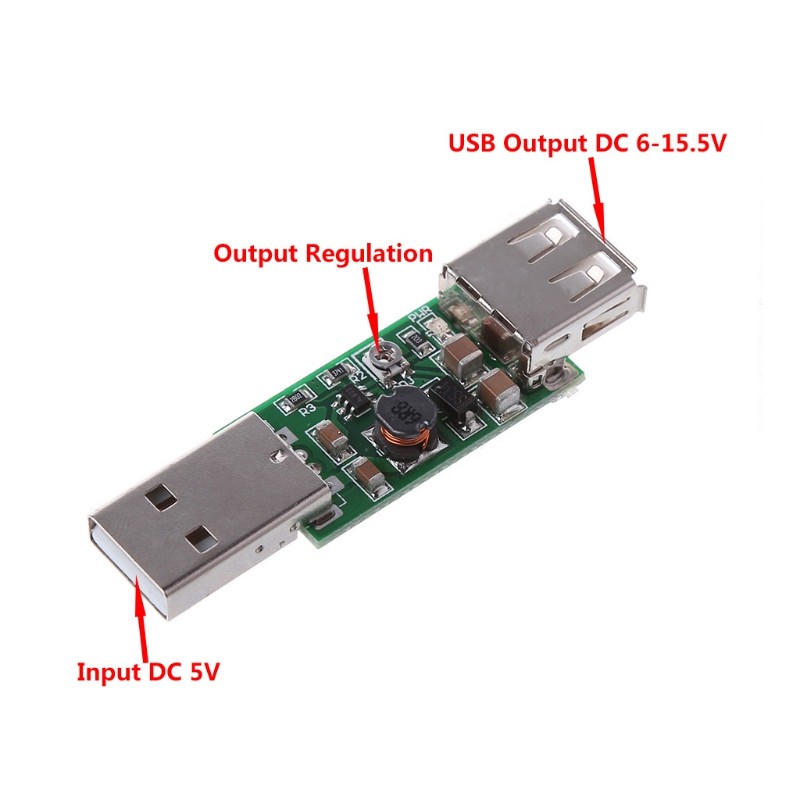

Input : USB Male Interface, DC 3-6V;
Ouput : USB Fem ale Interface , DC 6-15.5V;
If input dc 5v,output 6-15.5V Adjustable
Power : Maximum 7W;
DC-DC Boost ule working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius .

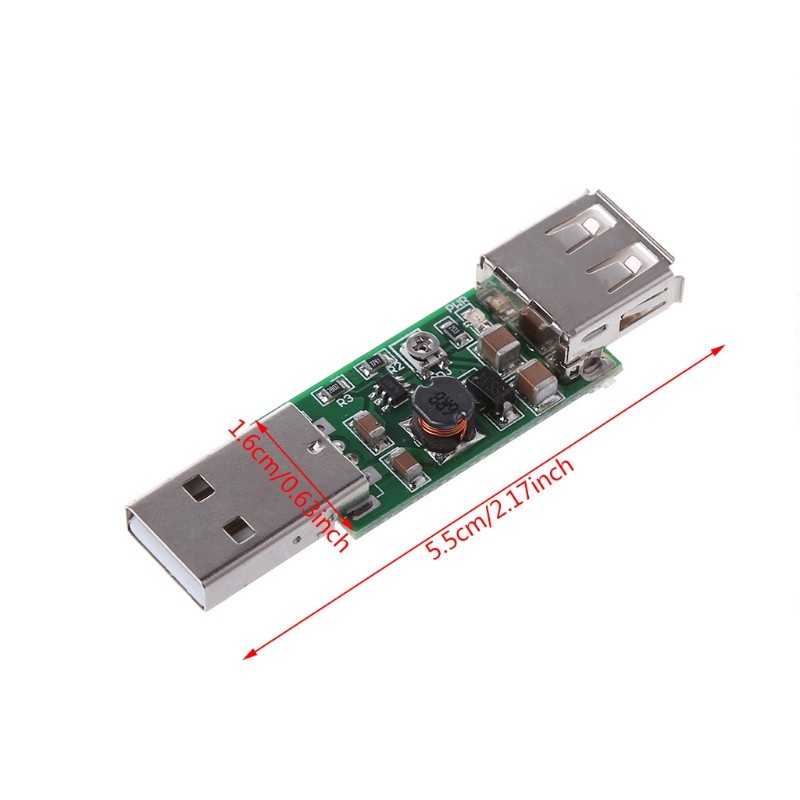

Size 56mm x 16mm
Weight : about 6g(light)
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
Package Contents:1*DC-DC USB 5V to 6V 9V 12V 15V ule
Note: Adjustable resistors (potentiometers) are components that are easily damaged. Use a suitable screwdriver to slowly rotate.
Attention :
This is a DC-DC voltage converter ule,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the ule itselfOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
