MÔ TẢ SẢN PHẨM
Estimated delivery time for this product is 7-9 days

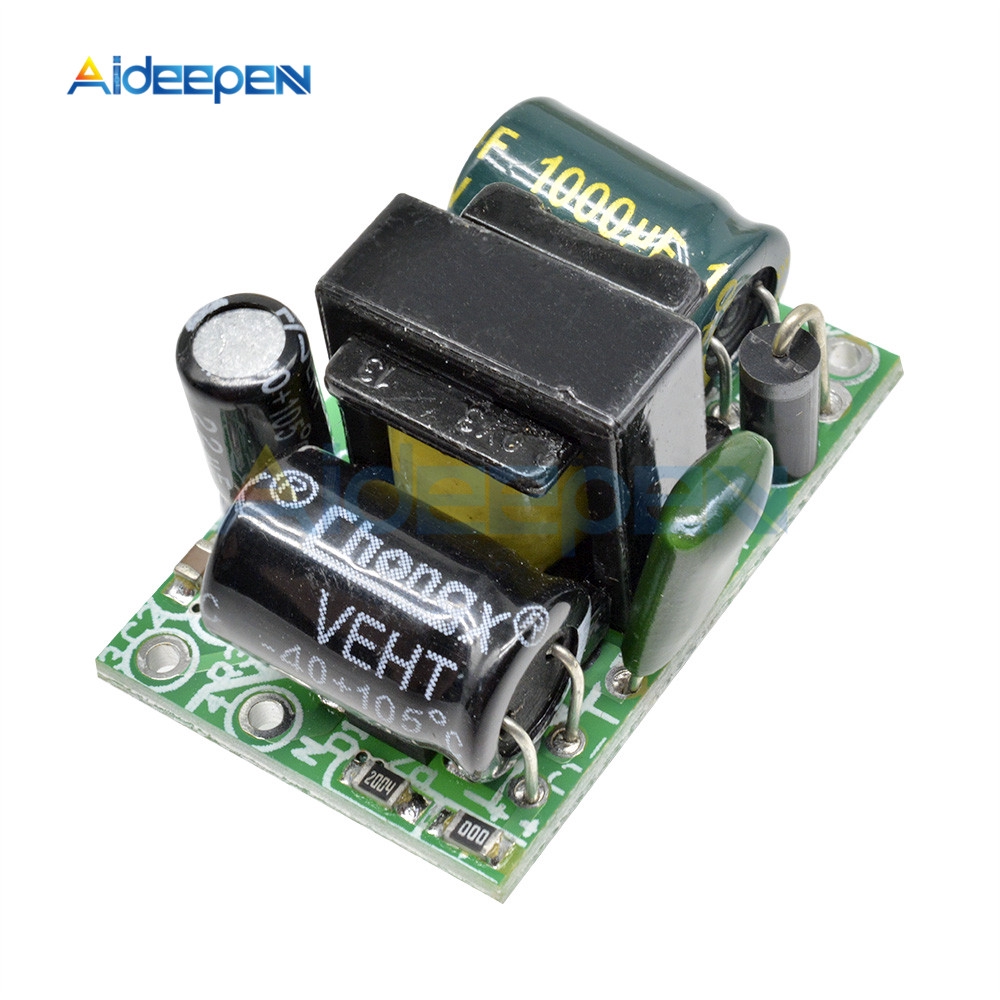

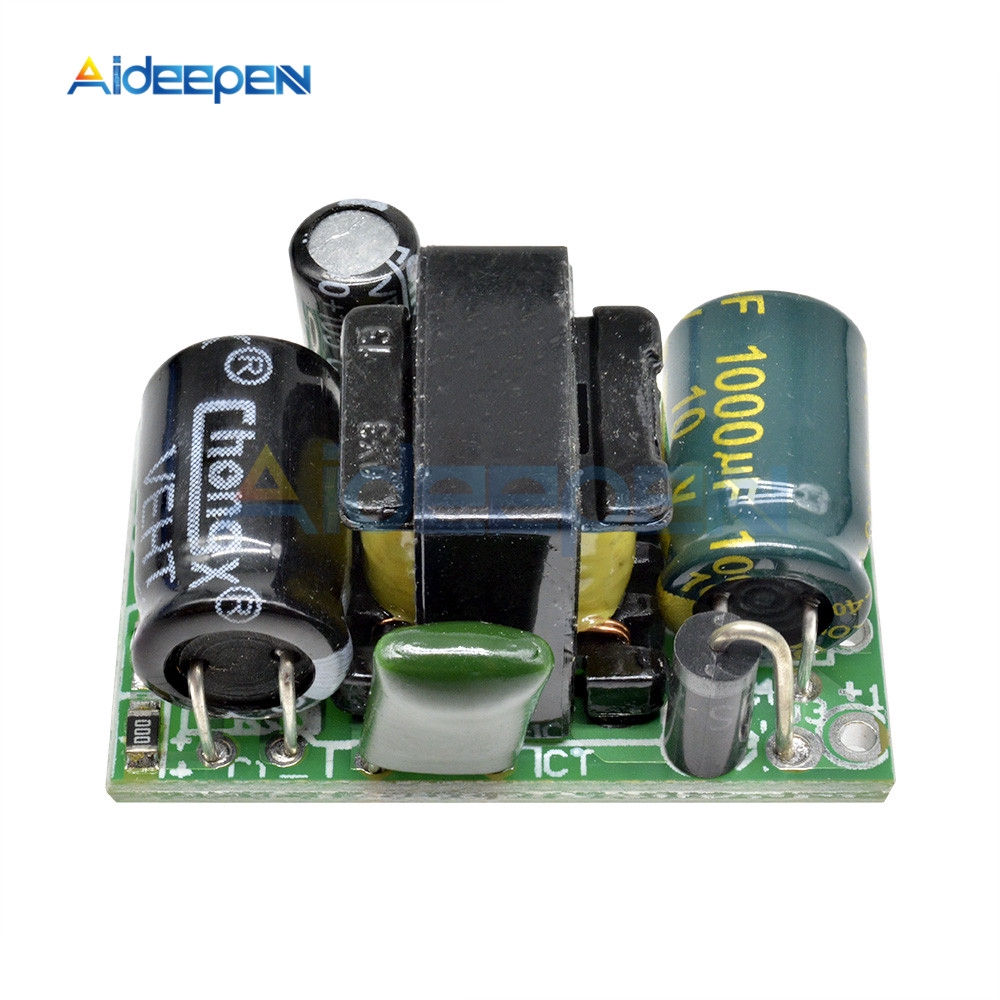

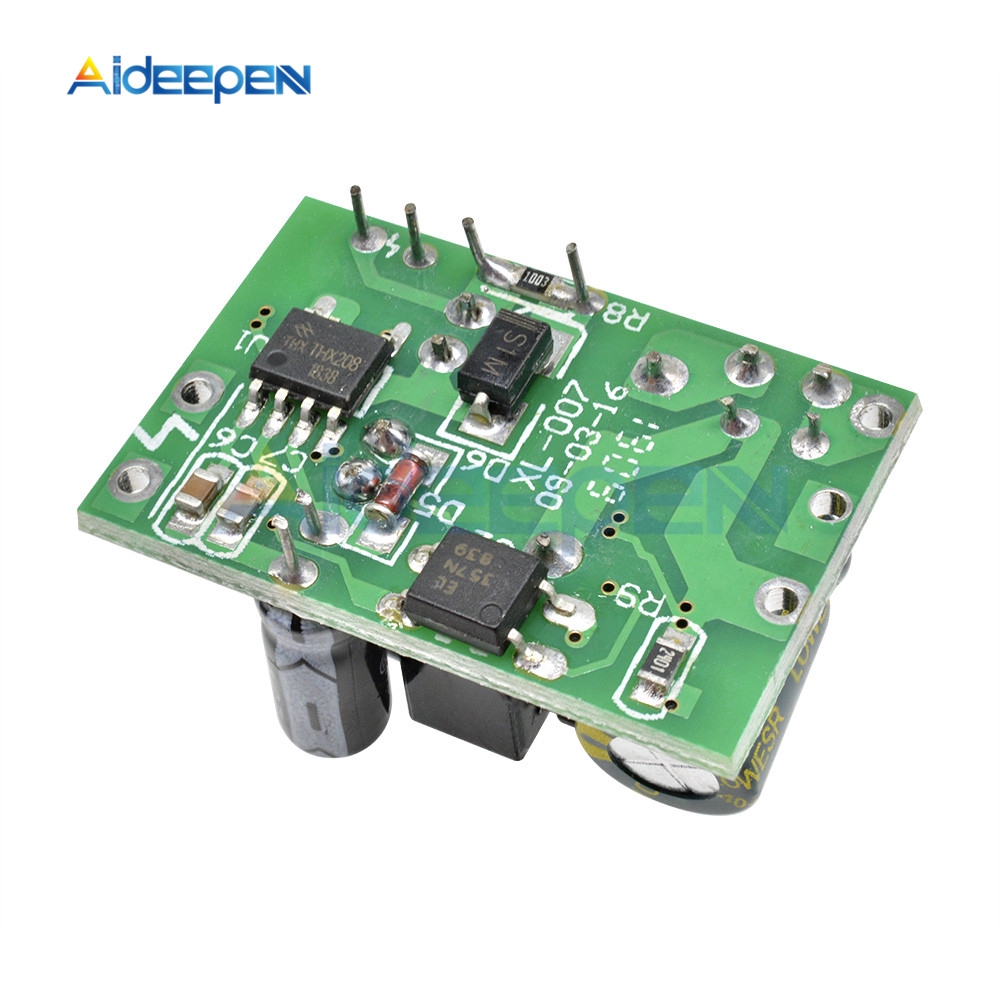

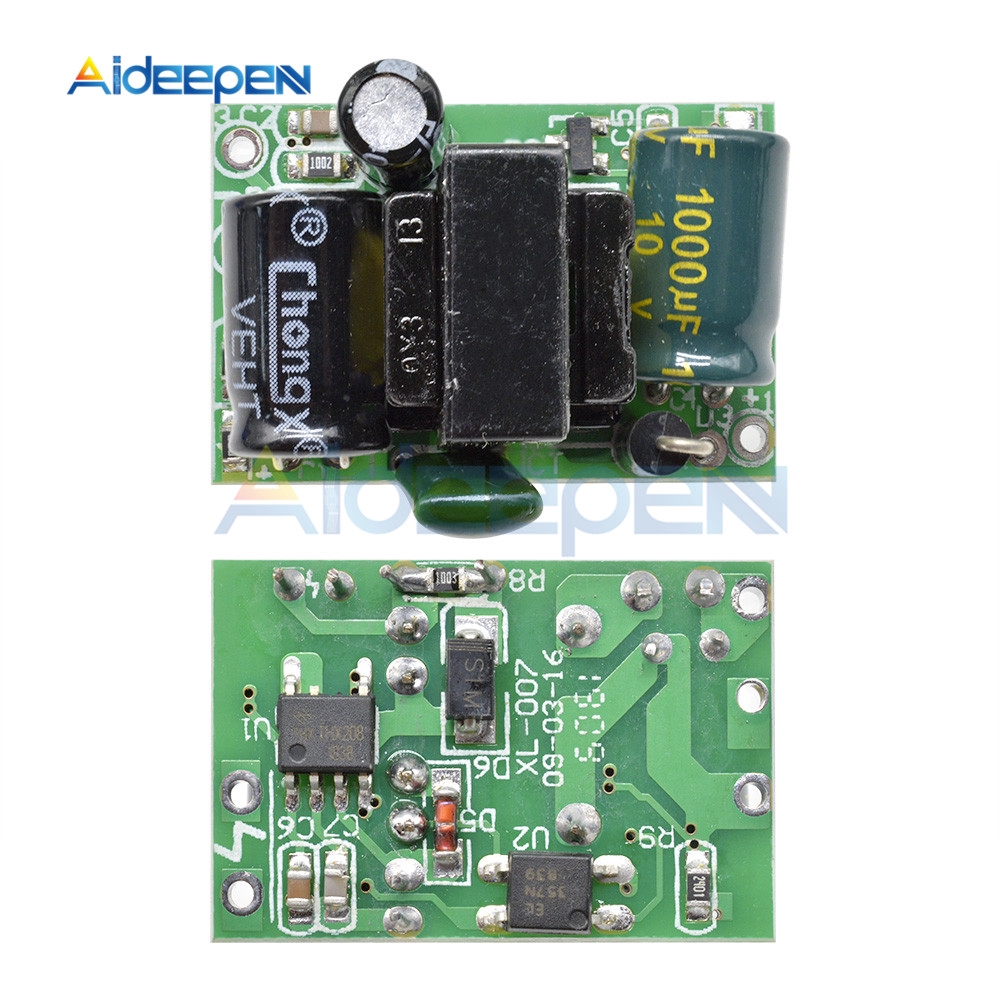

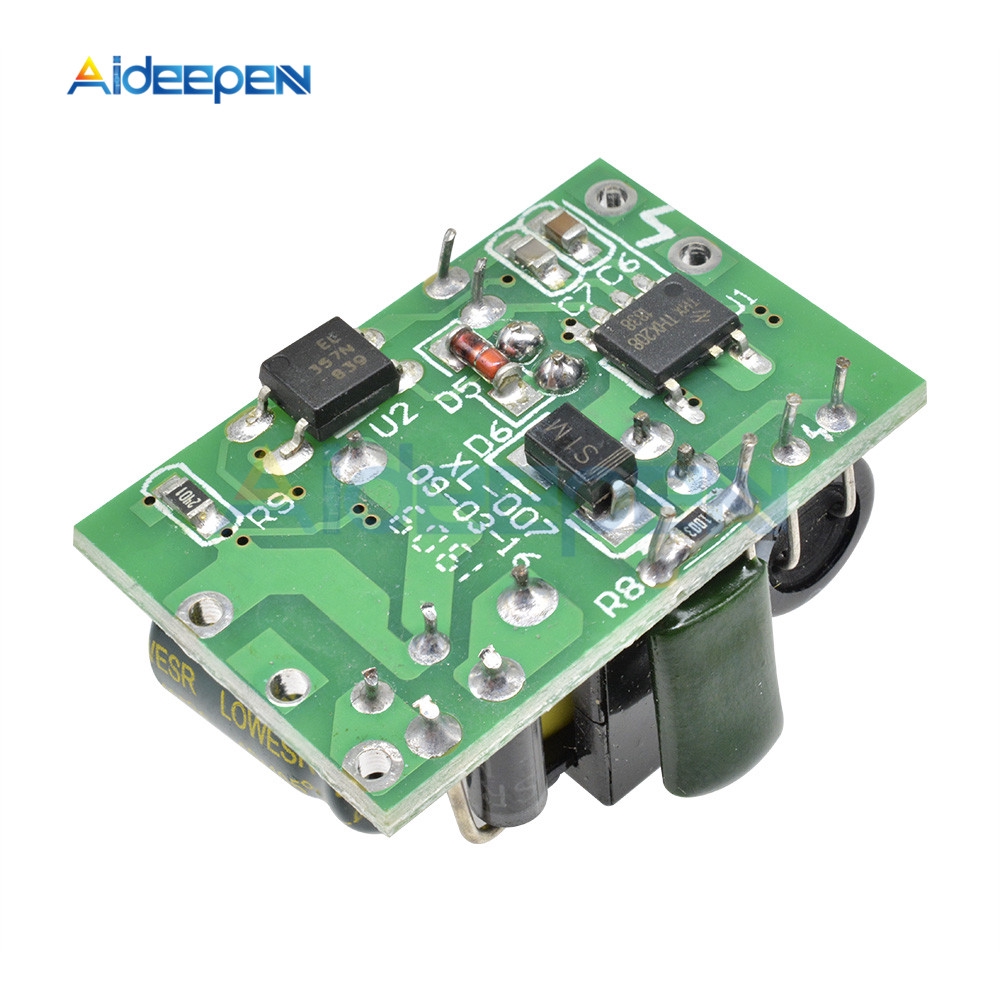

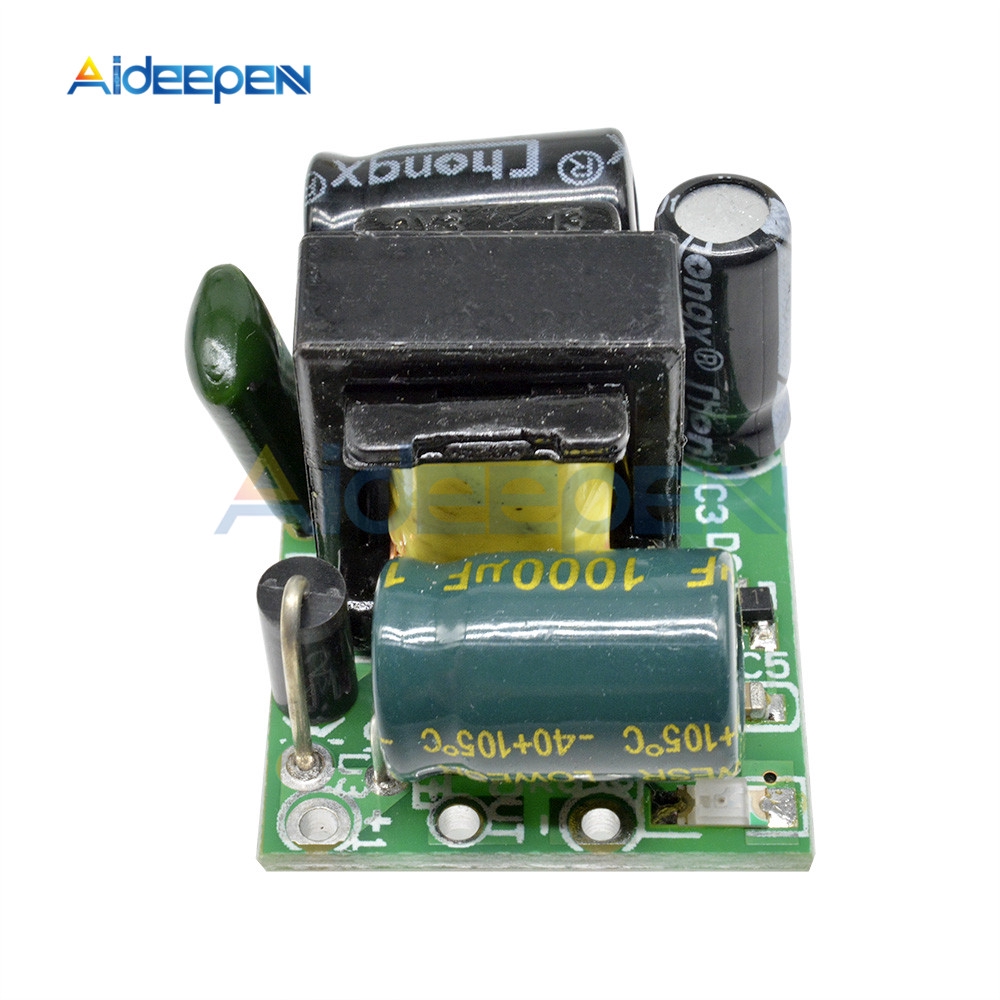

Low voltage module from AC 220V to DC 12V 400mA intensity
Details:
1. Input voltage: AC85 ~ 265V 50 / 60HZ or DC100v-370v
2. Output voltage: PCB (± 0.1V)
3. Output current: 400mA
4. Power: 5W
5. Circuit board size: 3 * 2 * 1.8cm
Use in environment:
1. Working temperature: -20 to 60 degrees C
2. Relative humidity: 40 to 90% rh
Input characteristics
1. Input voltage range: 85VAC-265VAC / 100VDC-370VDC
2. Input current: 0.0273 (AC110V) 0.011 (AC220V)
3. Input surge current: 20A (full load)
Output characteristics
1. Output voltage range: 11.80 ~ 12.1V
2. Output current range: 0A to 400mA, maximum current 450mA
3. Output power: 5W.
4. Output efficiency: 80%
5. Excess Conversion: 10%
6. Output gain time: 100ms
7. Ripple: 150mV
Note before buying:
1. All goods are ready, we will arrange shipment immediately if we get your order.
2. Please read product description, if you have any questions, don't hesitate to contact us.
3. No warranty, if you receive a defective item, please contact us at once with item photos.
After buying:
1.If you are satisfied give us 5 stars praise.
2. Please contact us first before you give us a bad review. We are very responsible and will resolve the issues. If you receive a defective product, please contact us together with the photo or video
# 12V # 400mA # AC-DC #Isolated #Power #Buck #Converter #AC # 220V #to # 12V #DC #Step Down #Module #Transforme
