Mô Đun Cung Cấp Nguồn Dc Sang Atx Dc 12v 250w 24pin Psu Cho Máy Tính
0 Đánh Giá
Đã Bán 0
98
499.498 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 08/08/2021 lúc 06:35 CH
MÔ TẢ SẢN PHẨM
Description:

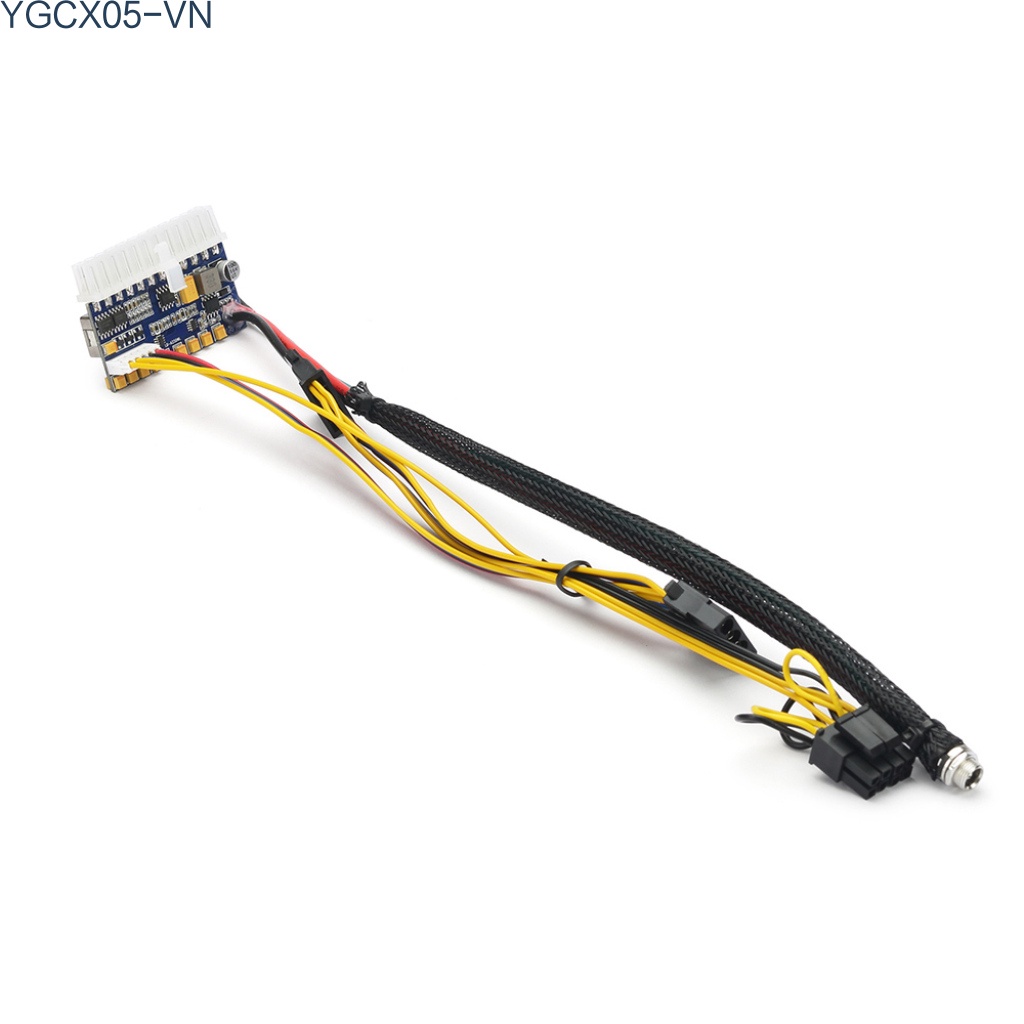

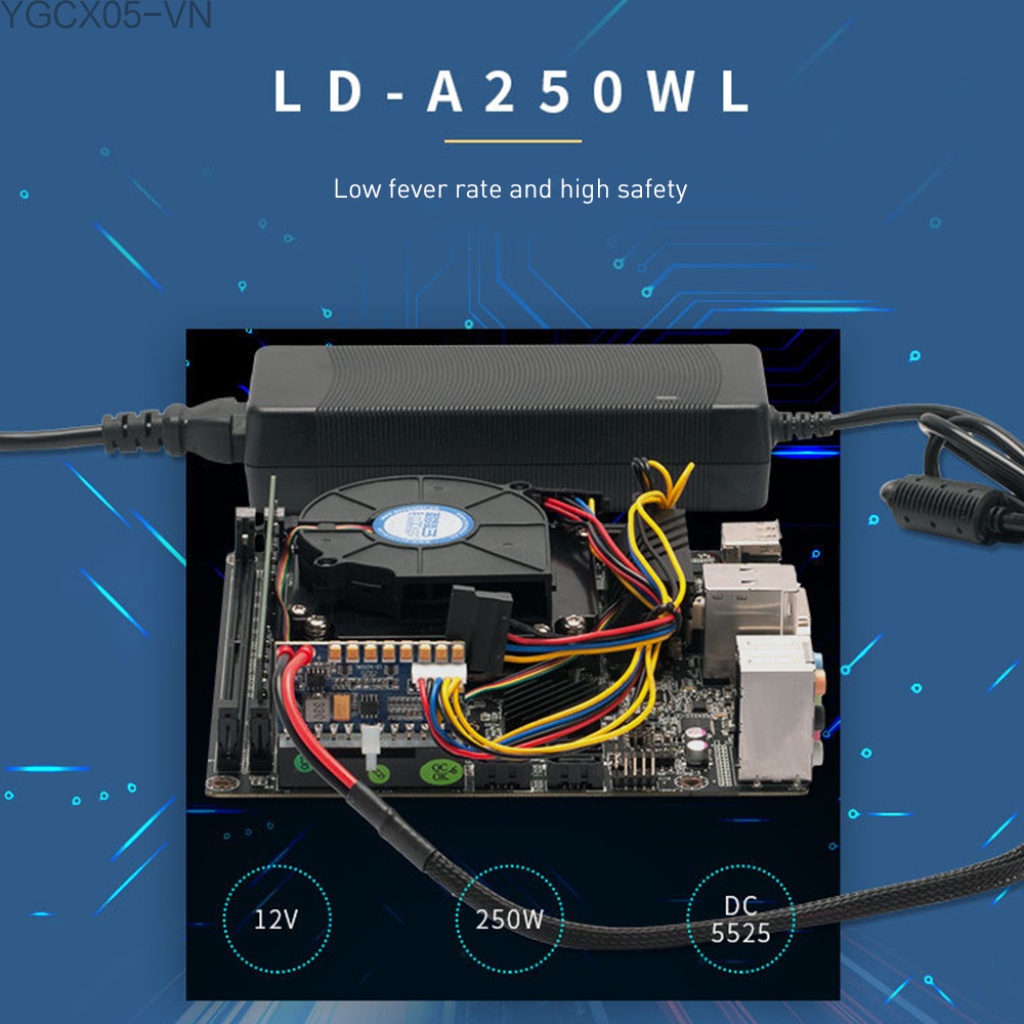

250 Watt Output 12 Volt DC Input.
24 pin ATX connector,Plugs directly into the ATX connector.
Solid Polymer Caps on the PCBA,Long life..

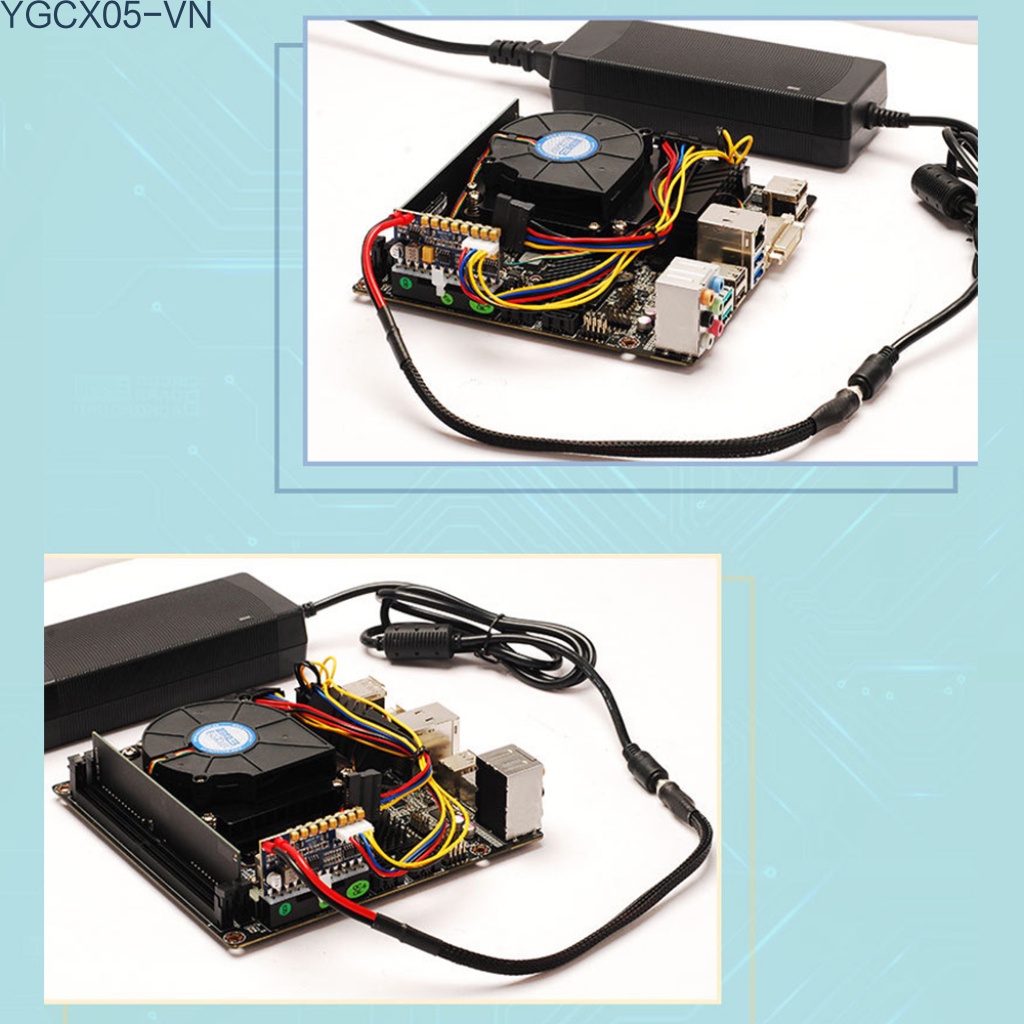

Perfect DC PSU for mini ITX Motherboards.
Applications: MINI computers, one computer, POS,digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
Specification:
Item name:;
Material: Metal + plastic
Color: Blue
Power: 250 w
Input voltage: 12V
Output voltage: maximum load
+5VSB: 2A
+5VDC: 6A
+3.3VDC: 6A
+12VDC: 16A
-12VDC: 0.15A

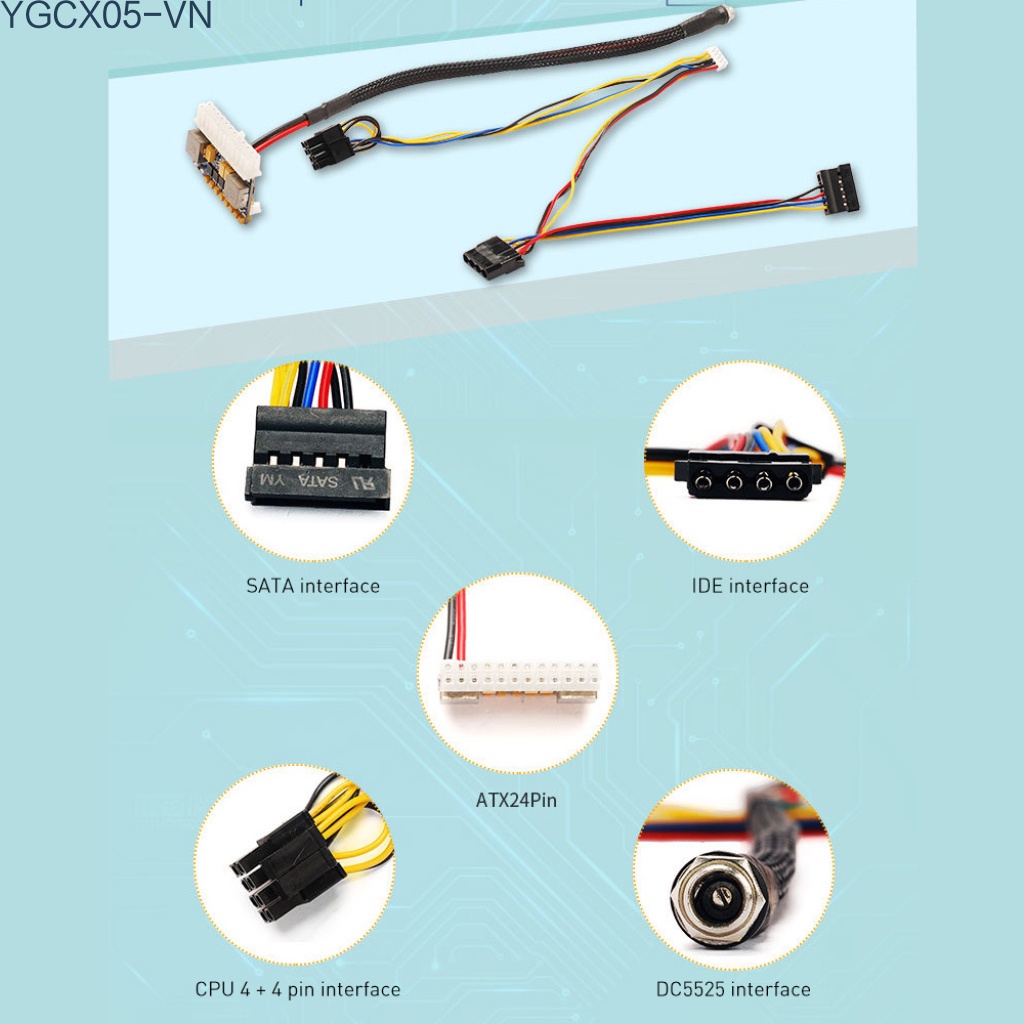

Interface: 1*ATX24Pin, 1*CPU8Pin+4Pin, 1*SATA, 1*IDE, 1*DC5525

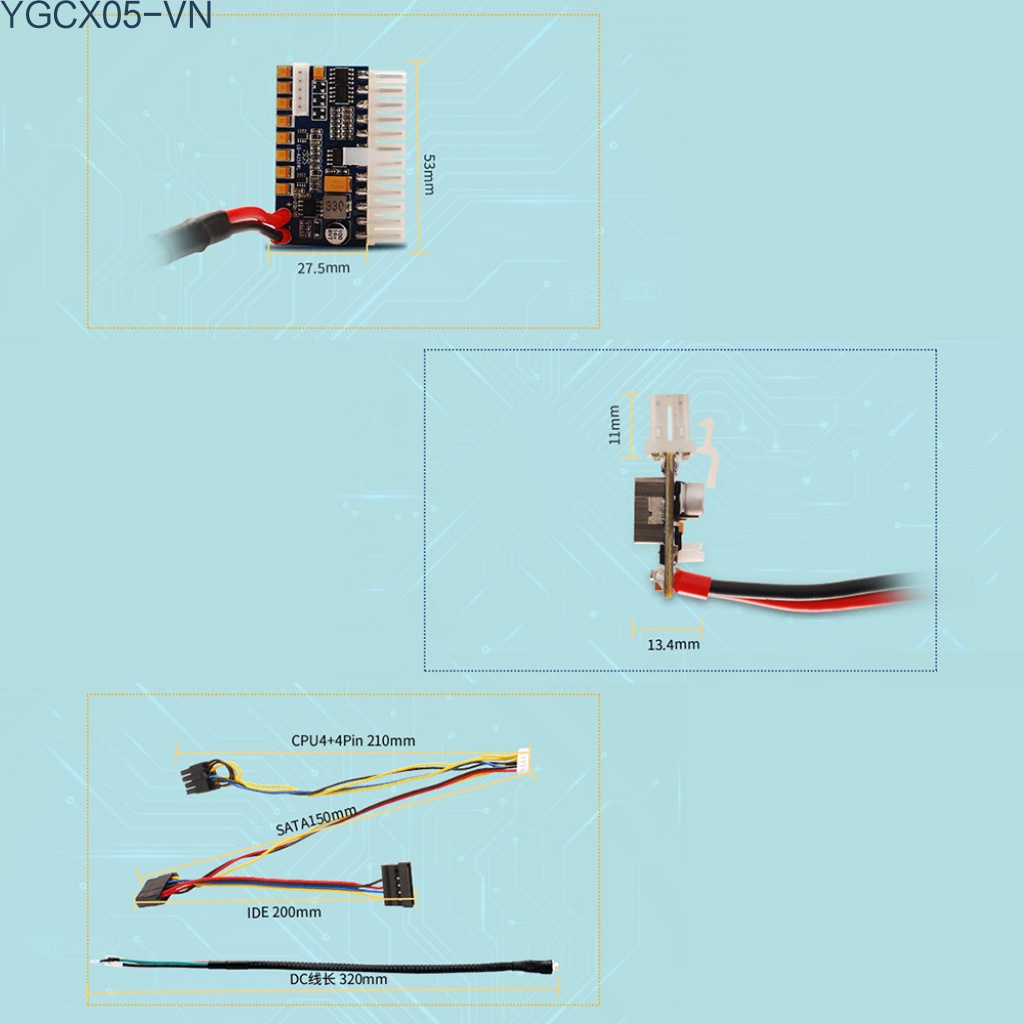

Line length: DC line length 320mm, IDE200mm+SATA150mm+CPU4+ 4PIN210mm
Note:
- There might be little error of size for manual measurement.
- Due to different lighting effects and monitor settings, the actual item;s color may not exactly reflect the color on pictures.
250 Watt Output 12 Volt DC Input.
24 pin ATX connector,Plugs directly into the ATX connector.
Solid Polymer Caps on the PCBA,Long life..
Perfect DC PSU for mini ITX Motherboards.
Applications: MINI computers, one computer, POS,digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
Specification:
Item name:;
Material: Metal + plastic
Color: Blue
Power: 250 w
Input voltage: 12V
Output voltage: maximum load
+5VSB: 2A
+5VDC: 6A
+3.3VDC: 6A
+12VDC: 16A
-12VDC: 0.15A
Interface: 1*ATX24Pin, 1*CPU8Pin+4Pin, 1*SATA, 1*IDE, 1*DC5525
Line length: DC line length 320mm, IDE200mm+SATA150mm+CPU4+ 4PIN210mm
Note:
- There might be little error of size for manual measurement.
- Due to different lighting effects and monitor settings, the actual item;s color may not exactly reflect the color on pictures.
