Mô Đun Biến Áp 10-42 Inch Led Tv Chuyên Dụng
1 Đánh Giá
1 Đã Bán
41
46.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ ba 16/11/2021 lúc 01:29 CH

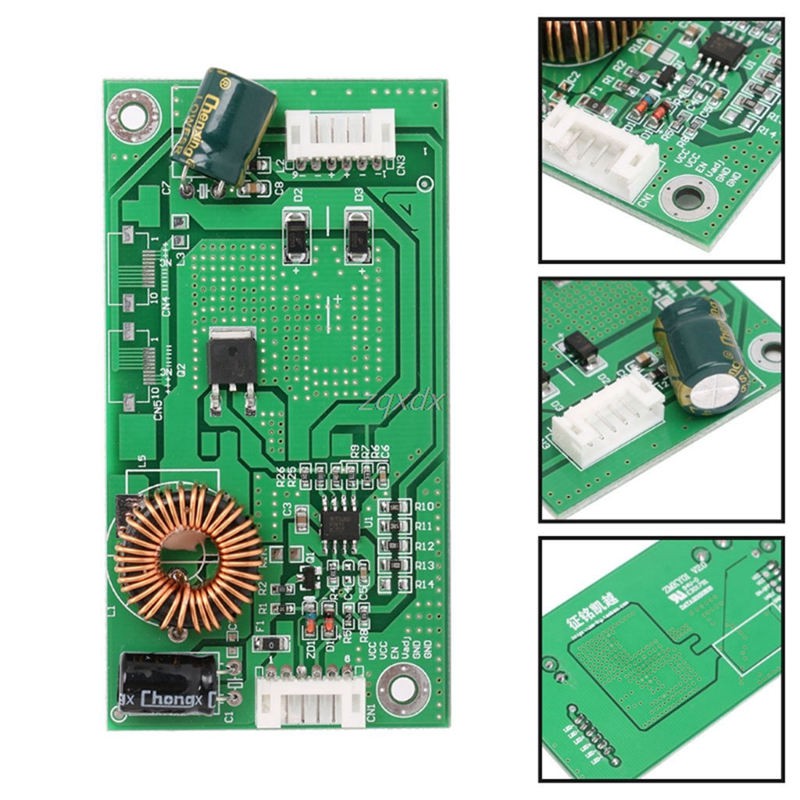

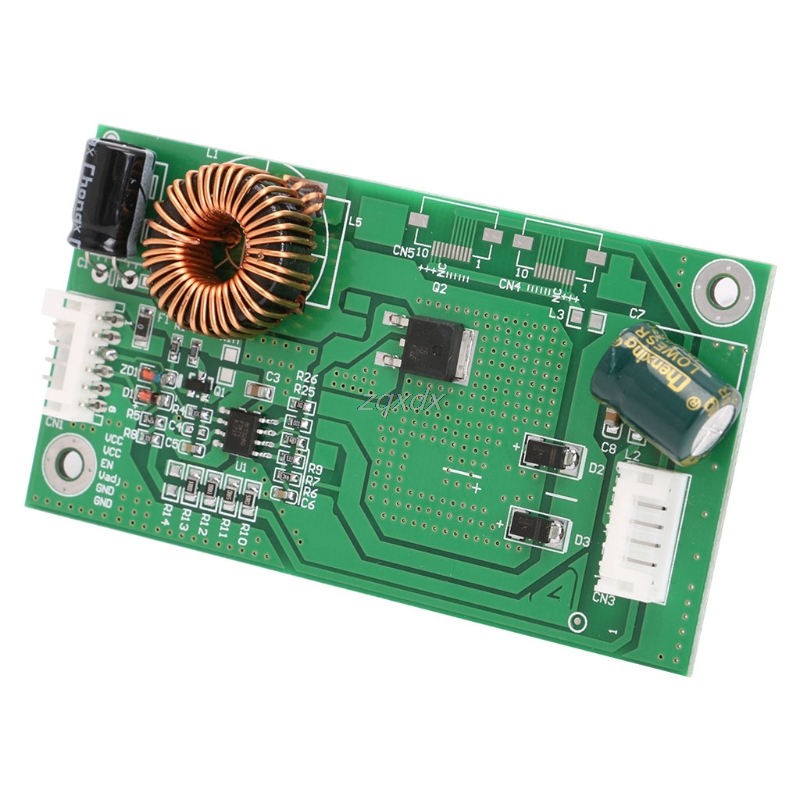

10-42 inch LED Backlight Lamp Driver Board Constant current board
Conversion efficiency reached more than 92%
You can use the 12V power supply to reduce the system cost!
This product is constant current board,voltage is automatically adapted
The temperature rise is controlled at about 25 Degree(Temperature rise =device surface temperature-ambient temperature)
Color:green
Material:plastic +metal

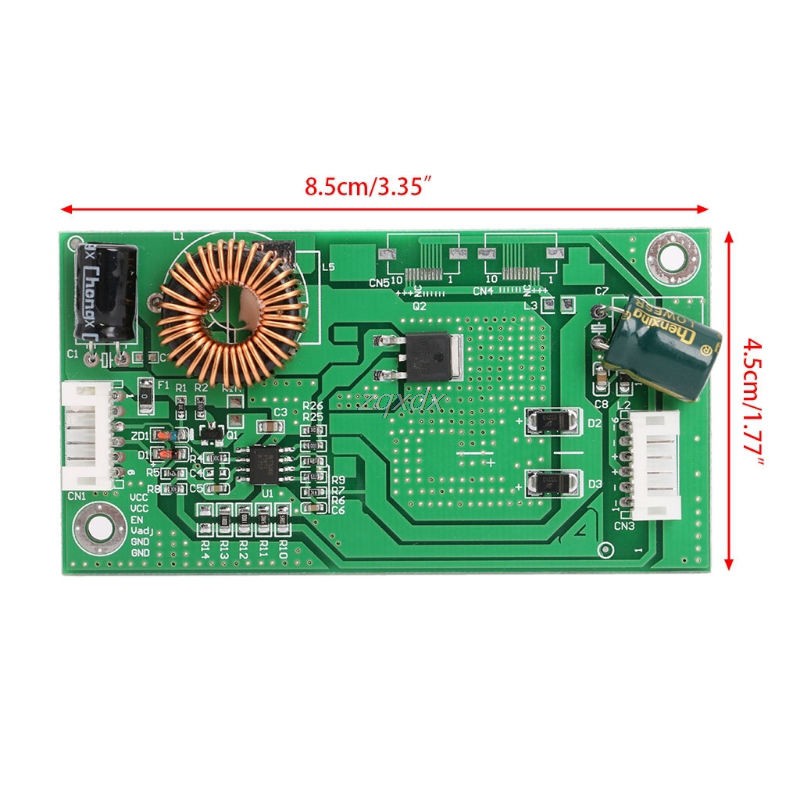

Size:8.3*4.3cm

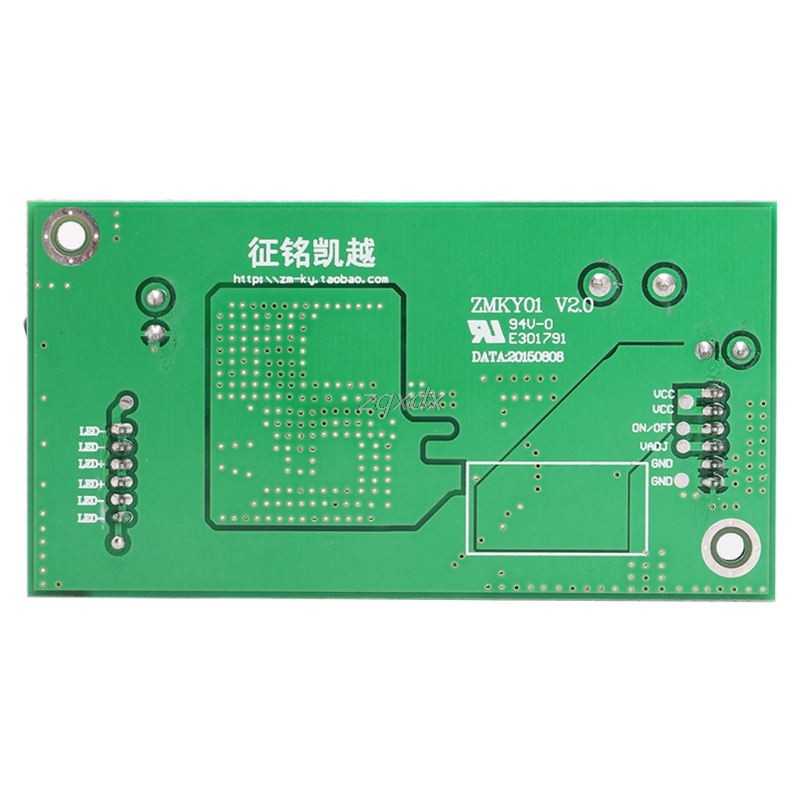

Common Electronic symbolic code of Backlight:
VCC:The positive of voltage supply.Circuit supply voltage(voltage is usually 12V or 24V)
ON/OFF,ON,EN,ON_BL:Switch signal pin
PWM,PDIM,VDAJ,BL-PWM:Brightness adjusting pin
GND:Ground(negative electrode)
LED+:the positive electrode of Light emitting diode(lamp)
LED-:the negative electrode of Light emitting diode(lamp)
Package Contents:
1x Universal InverterOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
