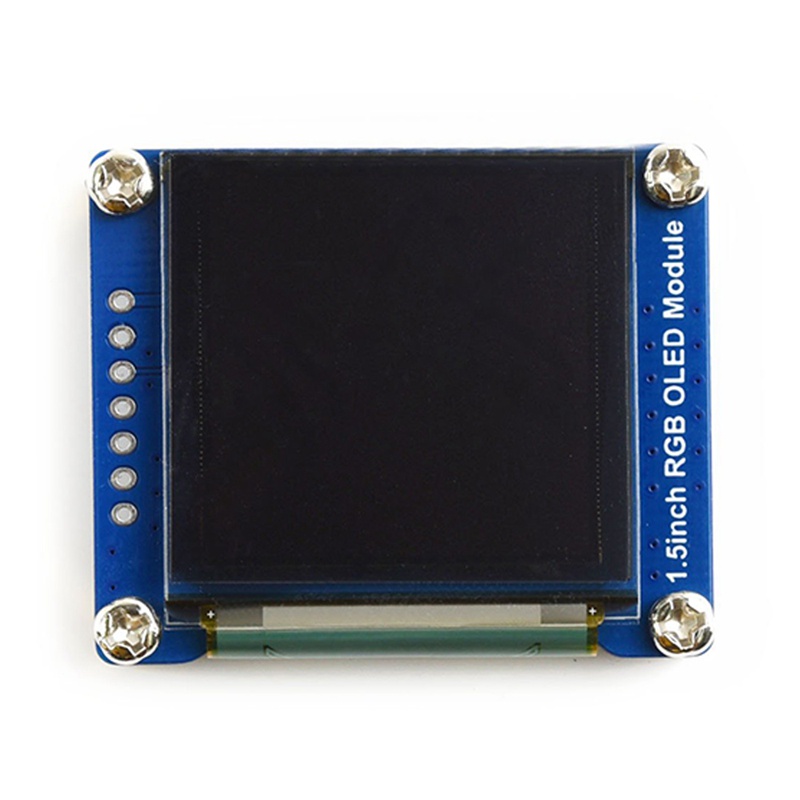

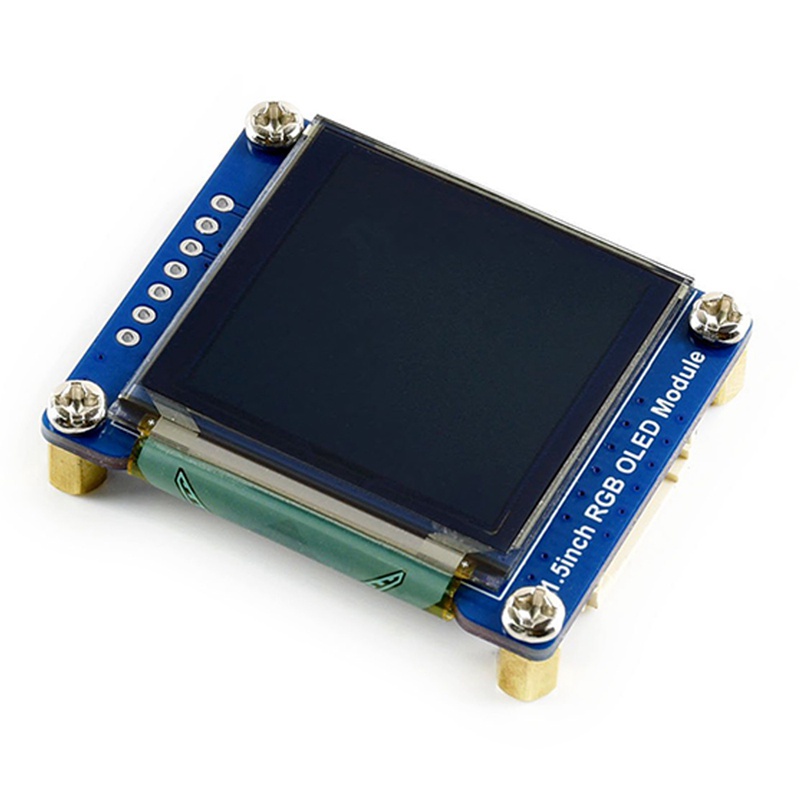

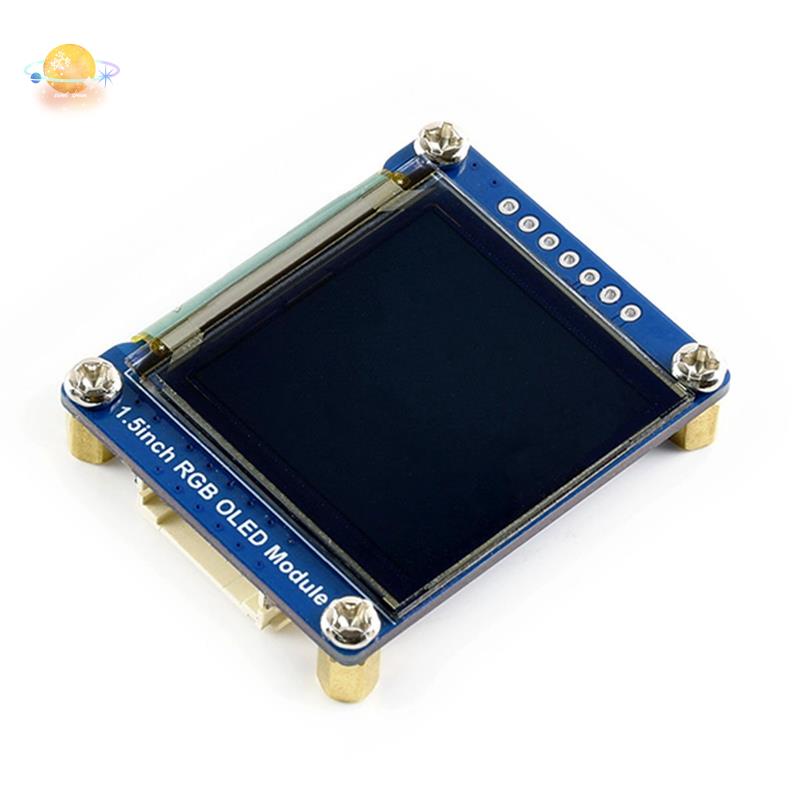

Màn hình OLED RGB 1.5Inch 16-Bit 65K 128X128 SSD1351 SPI I2C IIC cho Arduino Raspberry Pi STM32
0 Đánh Giá
0 Đã Bán
68
447.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ sáu 19/11/2021 lúc 04:47 CH
128x128 high resolution, 65K colors, clearly displays colorful images
Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Driver: SSD1351
Viewing angle: more than 160 degree
Operating voltage: 3.3V / 5V

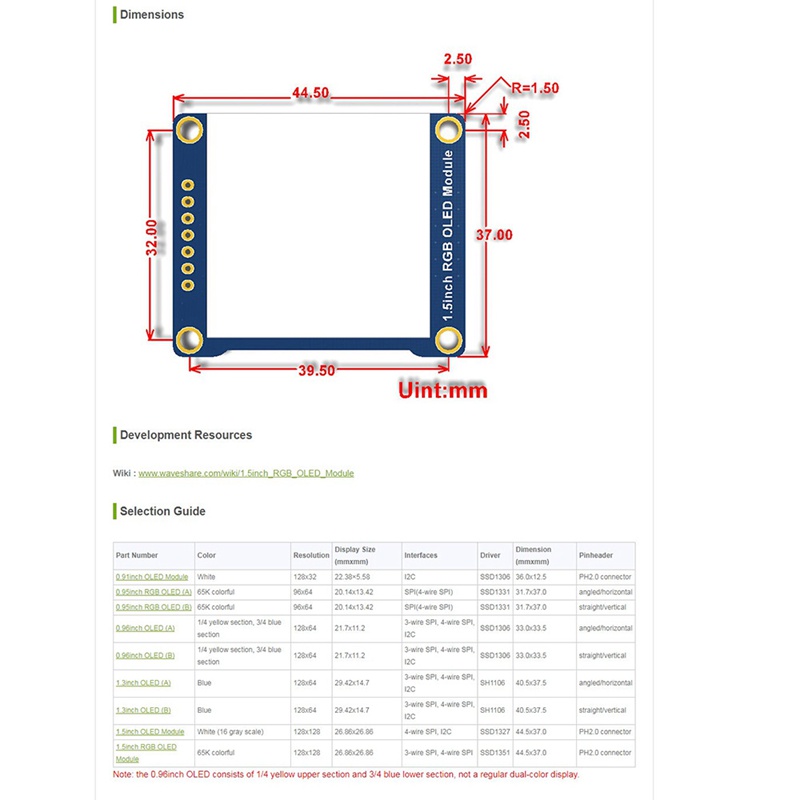

Dimension: 44.5 x 37 (mm)

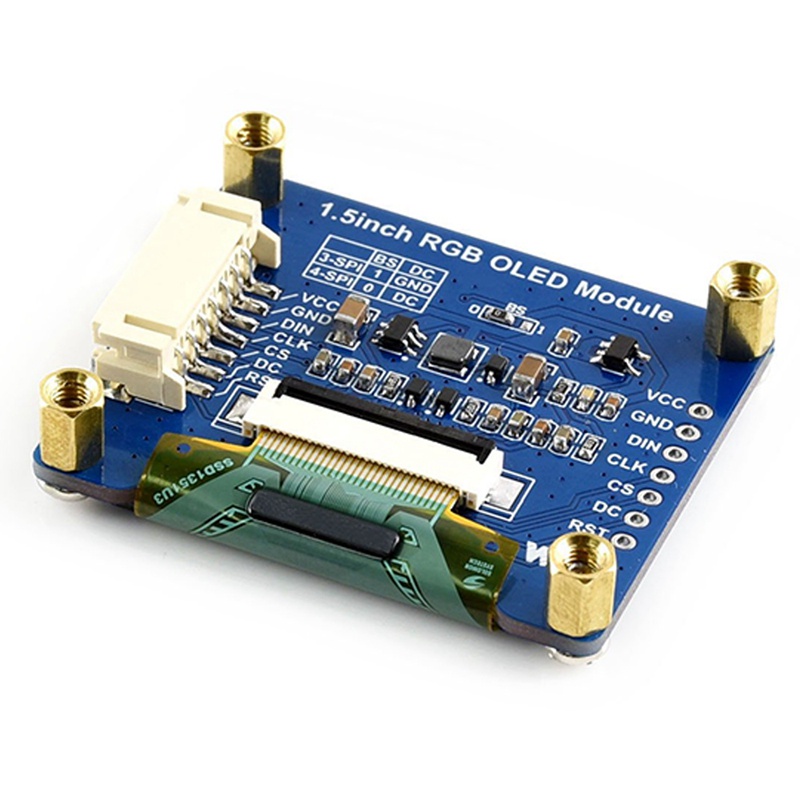

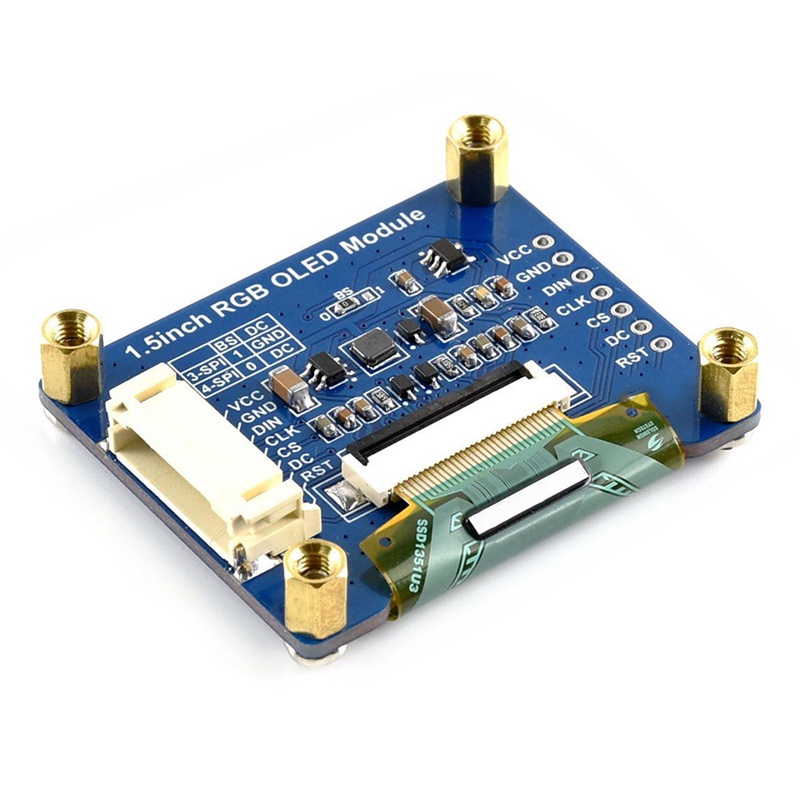

Interface:
Port / Description
VCC / Power (3.3~5V input)
GND / Ground
DIN / Data input
CLK / Clock data input
CS / Chip selection, low active
DC / 4-wire SPI: Data/Command selection (high for data, low for command); 3-wire SPI: Connects to GND, keeps low
RST / Reset, low active
There are two available drive interfaces for this RGB OLED ule: 4-wire SPI (default) and 3-wire SPI: BS/DC
4-wire SPI: 0, DC
3-wire SPI: 1, Connects to GND
colour: blue
Material: plastic
Package Contents:
1 x 1.5inch OLED Display ule
1 x dupond cableOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Driver: SSD1351
Viewing angle: more than 160 degree
Operating voltage: 3.3V / 5V
Dimension: 44.5 x 37 (mm)
Interface:
Port / Description
VCC / Power (3.3~5V input)
GND / Ground
DIN / Data input
CLK / Clock data input
CS / Chip selection, low active
DC / 4-wire SPI: Data/Command selection (high for data, low for command); 3-wire SPI: Connects to GND, keeps low
RST / Reset, low active
There are two available drive interfaces for this RGB OLED ule: 4-wire SPI (default) and 3-wire SPI: BS/DC
4-wire SPI: 0, DC
3-wire SPI: 1, Connects to GND
colour: blue
Material: plastic
Package Contents:
1 x 1.5inch OLED Display ule
1 x dupond cableOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
