Màn hình hiển thị 1.44" TFT LCD 128 RGB cho Arduino
1 Đánh Giá
Đã Bán 1
65
101.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ năm 29/07/2021 lúc 10:55 SA
MÔ TẢ SẢN PHẨM
___________________* ❤❤ * ujewndju* ❤❤ * ___________________
Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked
☀️☀️ Surprises for you ☀️☀️
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
✈Shipping in 1 day
Tip: If you want a free gift, please send me the screenshot that you follow my shop
☀️☀️ Attention ☀️☀️
❀We will be based on your guests in your country to send the corresponding adapter plug.
➷Wholesale retailers are welcome to negotiate long-term business with us! #ujewndju
_______________❀Product Information❀______________

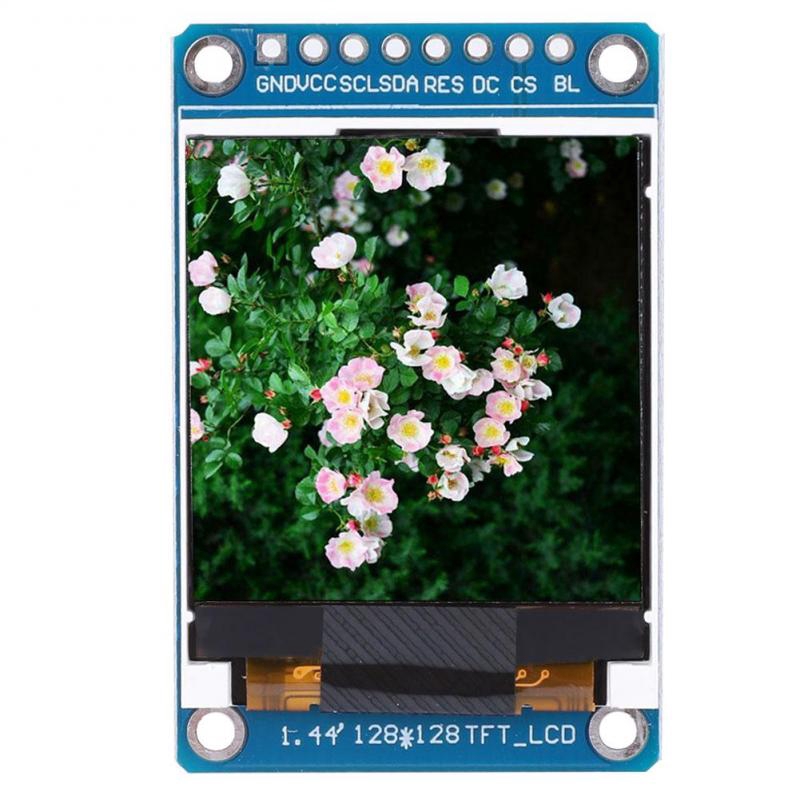

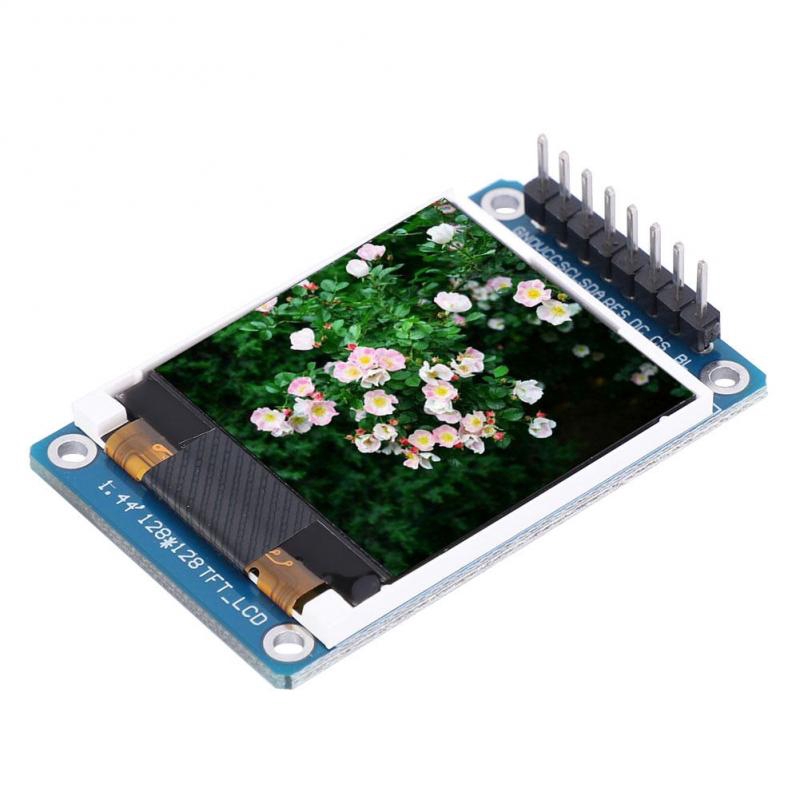

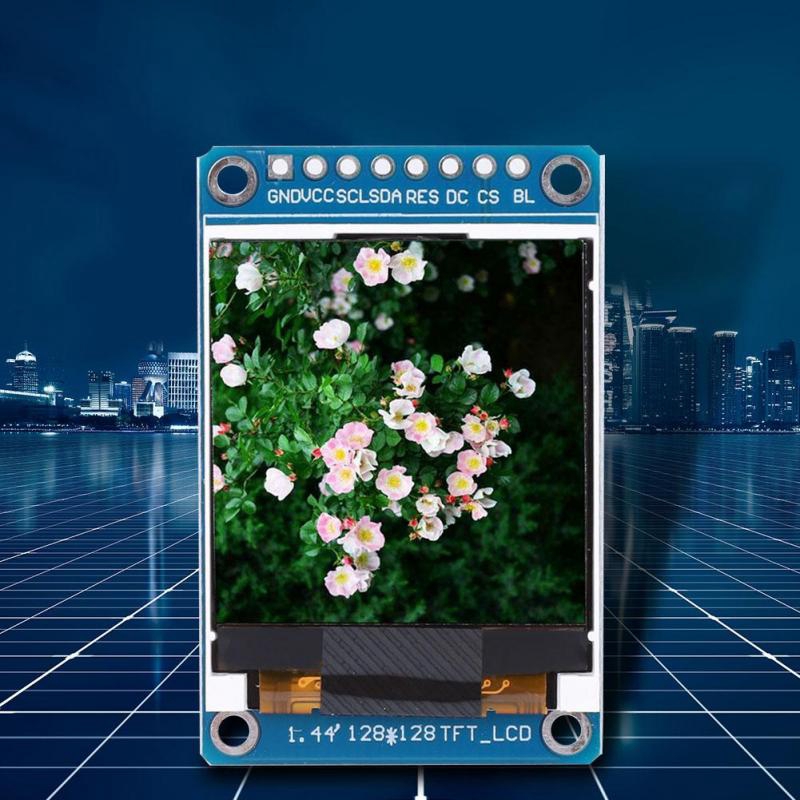

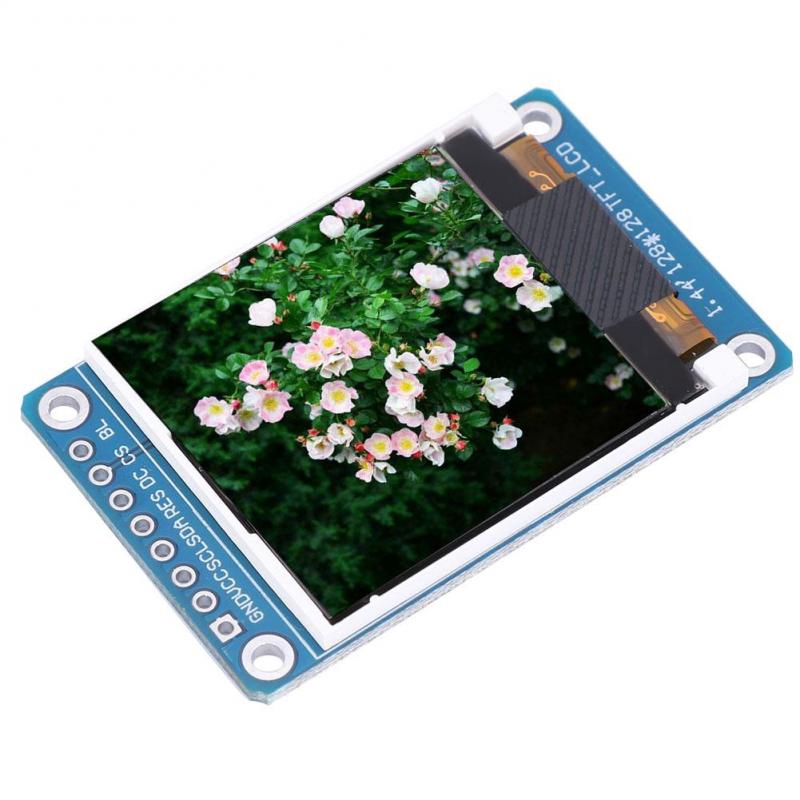

Features:
The display model is a-TFT with a display size of 1.4in.
The display format is graphical 128RGBx128 dot .
The display module is connected with other board via a serial peripheral interface .

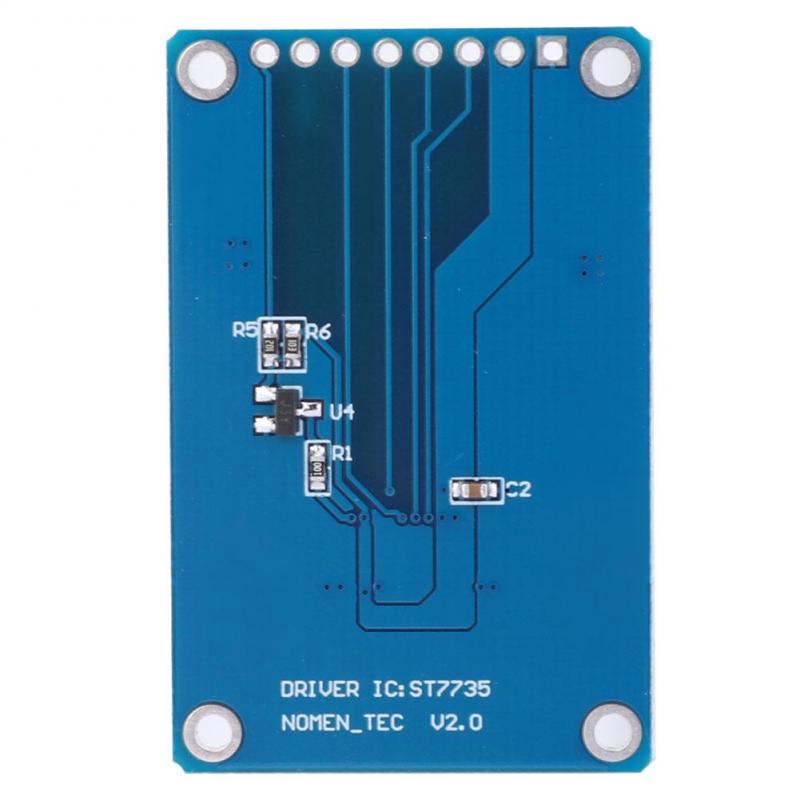

With the high quality driving IC chip ST7735S,the module works more stable.
The LCD effective area is 25.5x26.5mm and the size of each pixel is 0.20x0.20.
Specification:
Item Type:Display Module
Size: 1.44inch
Display Mode: a-TFT
Display Format: Graphics 128RGB * 128 Dot
Input Data: Serial Peripheral Interface
Driver IC: ST7735S
Dimensional : 30(W)* 46.5(H)* 3.45 +/- 0.1(T)Mm
Resolution: 128RGB * 128 Points
LCD Effective Area: 25.5mm (Width) * 26.5mm (Height)
Pixel Size: 0.20 (Width) * 0.20 (Height)
Working Temperature: -20~70°C

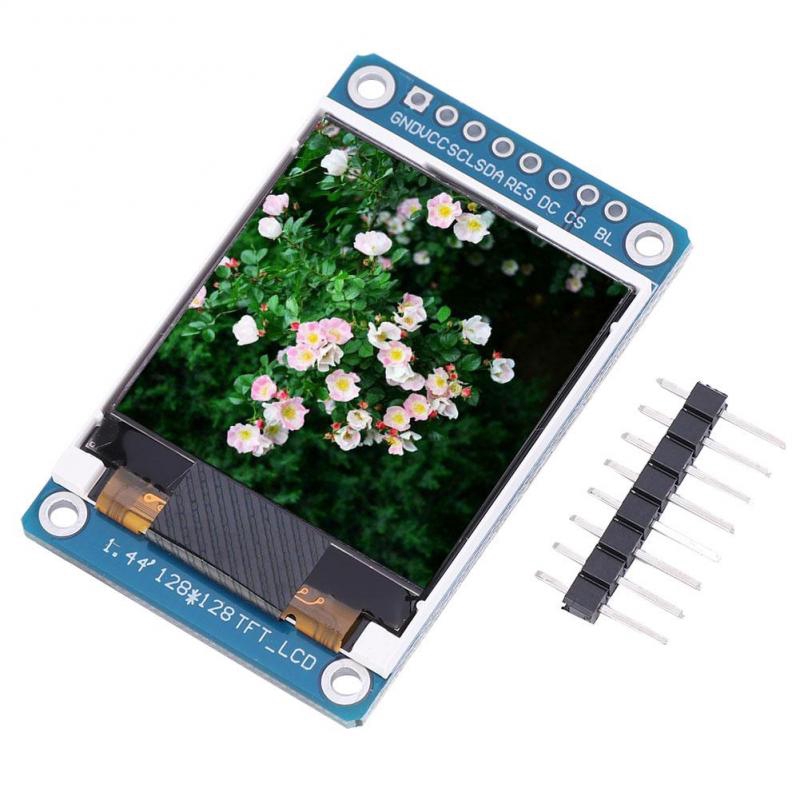

Package List:
1 x Module
1 x 8 Pin Header
Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked
☀️☀️ Surprises for you ☀️☀️
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
✈Shipping in 1 day
Tip: If you want a free gift, please send me the screenshot that you follow my shop
☀️☀️ Attention ☀️☀️
❀We will be based on your guests in your country to send the corresponding adapter plug.
➷Wholesale retailers are welcome to negotiate long-term business with us! #ujewndju
_______________❀Product Information❀______________
Features:
The display model is a-TFT with a display size of 1.4in.
The display format is graphical 128RGBx128 dot .
The display module is connected with other board via a serial peripheral interface .
With the high quality driving IC chip ST7735S,the module works more stable.
The LCD effective area is 25.5x26.5mm and the size of each pixel is 0.20x0.20.
Specification:
Item Type:Display Module
Size: 1.44inch
Display Mode: a-TFT
Display Format: Graphics 128RGB * 128 Dot
Input Data: Serial Peripheral Interface
Driver IC: ST7735S
Dimensional : 30(W)* 46.5(H)* 3.45 +/- 0.1(T)Mm
Resolution: 128RGB * 128 Points
LCD Effective Area: 25.5mm (Width) * 26.5mm (Height)
Pixel Size: 0.20 (Width) * 0.20 (Height)
Working Temperature: -20~70°C
Package List:
1 x Module
1 x 8 Pin Header
