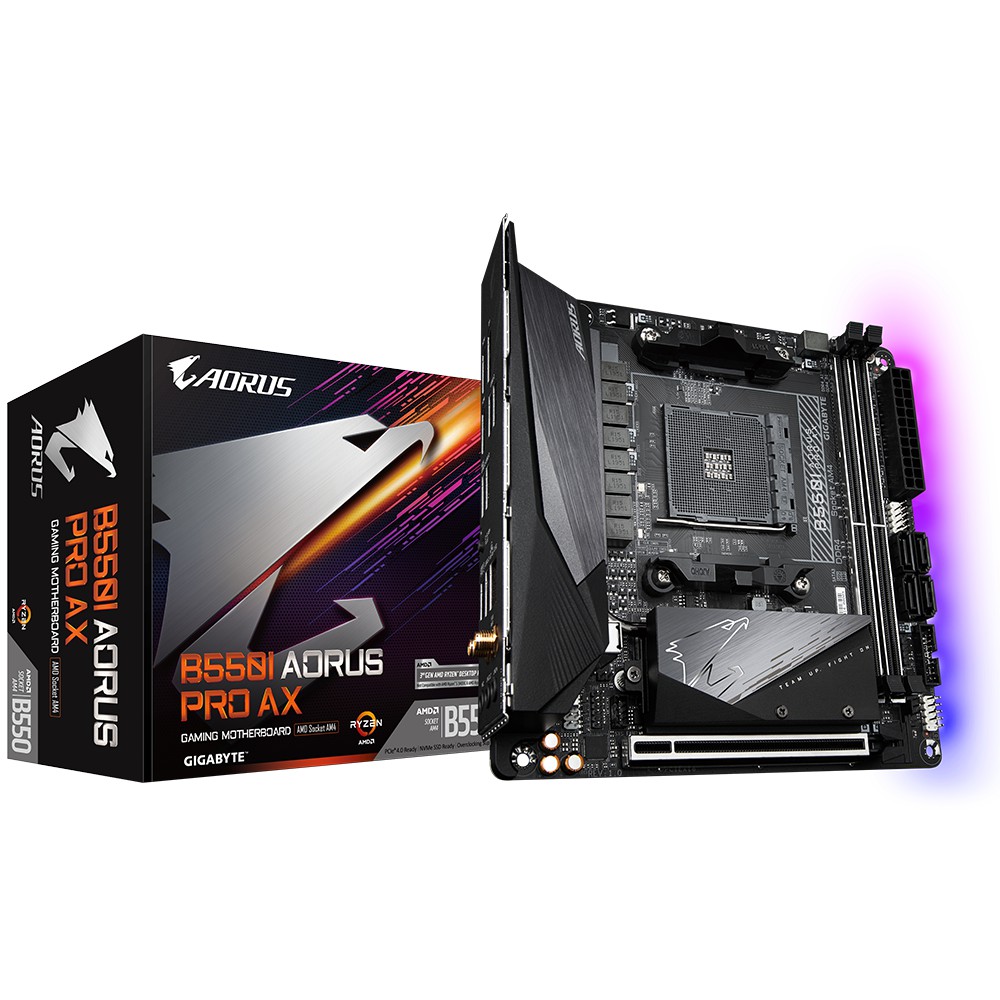

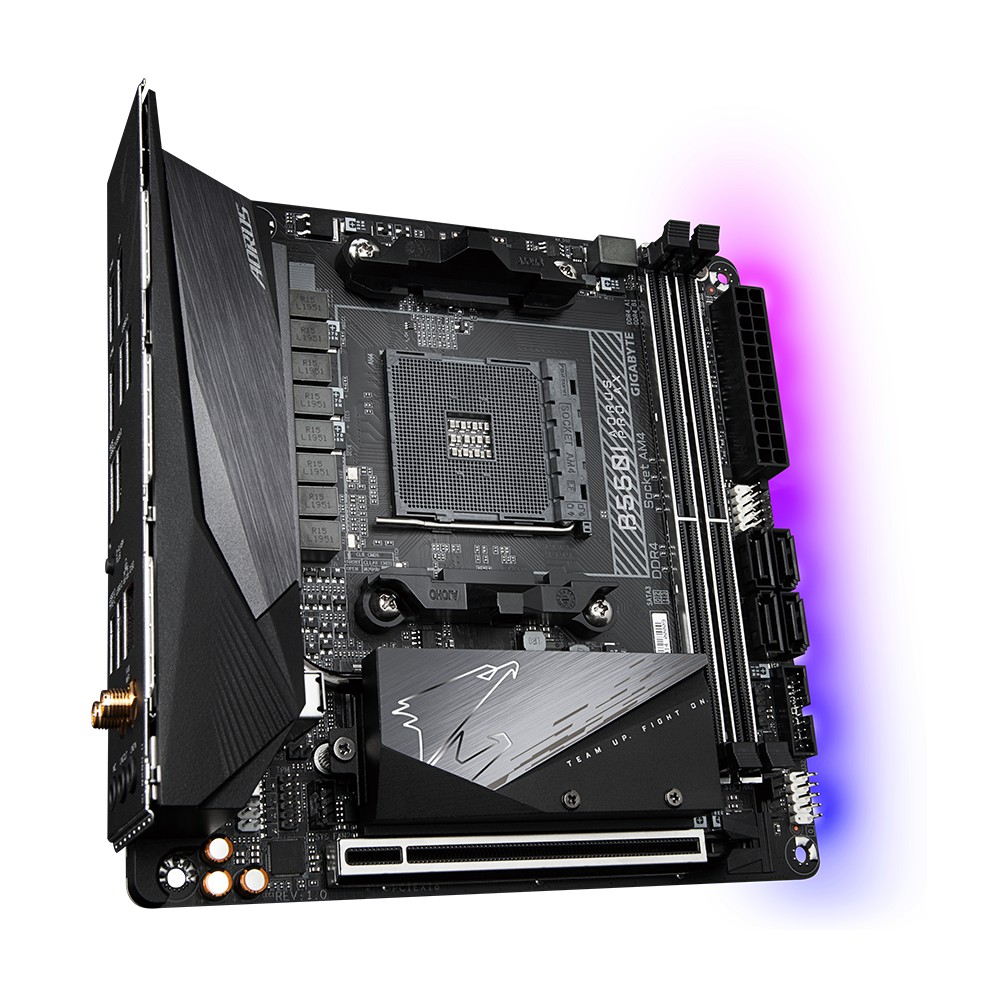

Mainboard Gigabyte B550I AORUS PRO AX
5 Đánh Giá
Đã Bán 5
249
4.789.999 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuận Tân Bình, TP. Hồ Chí Minh
thứ ba 08/09/2020 lúc 11:00 CH
normal
MÔ TẢ SẢN PHẨM
Thông số kỹ thuật
CPU
AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
Chipset
AMD B550
Bộ nhớ
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Card đồ họa tích hợp
Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Âm thanh
Realtek® ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel® Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Khe cắm mở rộng
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
Giao diện lưu trữ
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
– 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
– New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
– Supporting SATA and PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
– Support for RAID 0, RAID 1, and RAID 10
Kết nối I/O bên trong
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
