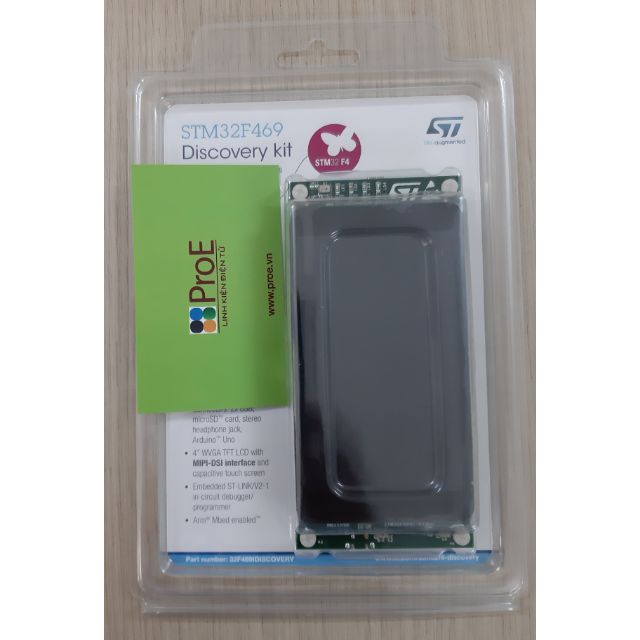

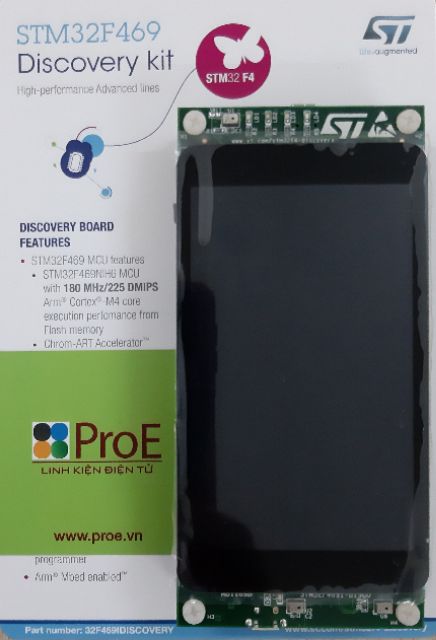

[Mã 88ELSALE hoàn 7% đơn 300K] Mạch điện tử STM32F469

The STM32F469 Discovery kit (32F469IDISCOVERY) allows users to easily develop applications with the STM32F469 high-performance MCUs with ARM®Cortex®-M4 core and Chrom-ART Accelerator™. The discovery kit enables a wide range of use cases taking advantage of premium graphics, audio, multi-sensor support, WVGA color display, security, memory extension and connectivity features. An embedded ST-LINK/V2-1 debugger/programmer is included; specialized add-on boards can be connected thanks to the Arduino™ UNO or to the expansion connectors.
Key Features

STM32F469NIH6 microcontroller featuring 2 Mbytes of Flash memory and 324 Kbytes of RAM in BGA216 package

On-board ST-LINK/V2-1 SWD debugger, supporting USB reenumeration capability:

Mbed-enabled (mbed.org)

USB functions: USB virtual COM port, mass storage, debug port

4 inches 800x480 pixel TFT color LCD with MIPI DSI interface and capacitive touch screen

SAI Audio DAC, with a stereo headphone output jack

3 MEMS microphones

MicroSD card connector

I2C extension connector

4Mx32bit SDRAM

128-Mbit Quad-SPI NOR Flash

Reset and wake-up buttons

4 color user LEDs

USB OTG FS with Micro-AB connector

Three power supply options:

Expansion connectors and Arduino™ UNO V3 connectors

Comprehensive free software including a variety of examples, part of STM32Cube package

Supported by a wide choice of integrated development environments
