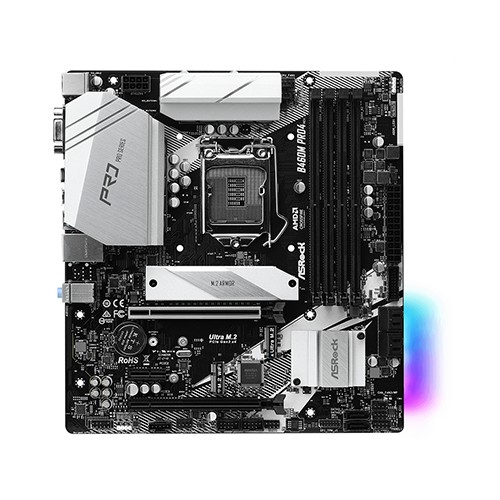

[Mã ELMS05 giảm 5% đơn 300k]Bo mạch chủ - Mainboard Asrock B460M Pro4
4 Đánh Giá
Đã Bán 9
99
2.050.000 đ
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuận Tân Bình, TP. Hồ Chí Minh
Cập nhật: thứ hai 17/08/2026 lúc 09:07 CH
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
Sản phẩm
Bo mạch chủ
Tên Hãng
Asrock
Model
B460M Pro4
CPU hỗ trợ
Intel
Chipset
B460
RAM hỗ trợ
4 x DDR4 DIMM Slots ( tối đa 128GB )
Khe cắm mở rộng
2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
1 x PCI Express 3.0 x1 Slot
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Ổ cứng hỗ trợ
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Cổng kết nối (Internal)
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Cổng kết nối (Back Panel)
1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Kích cỡ
Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
Bo mạch chủ
Tên Hãng
Asrock
Model
B460M Pro4
CPU hỗ trợ
Intel
Chipset
B460
RAM hỗ trợ
4 x DDR4 DIMM Slots ( tối đa 128GB )
Khe cắm mở rộng
2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
1 x PCI Express 3.0 x1 Slot
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Ổ cứng hỗ trợ
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Cổng kết nối (Internal)
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Cổng kết nối (Back Panel)
1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Kích cỡ
Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
