Động Cơ Không Chổi Than 3 Pha Dc 5v-36v 15a
4 Đánh Giá
Đã Bán 8
69
176.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 29/05/2021 lúc 03:41 CH
MÔ TẢ SẢN PHẨM

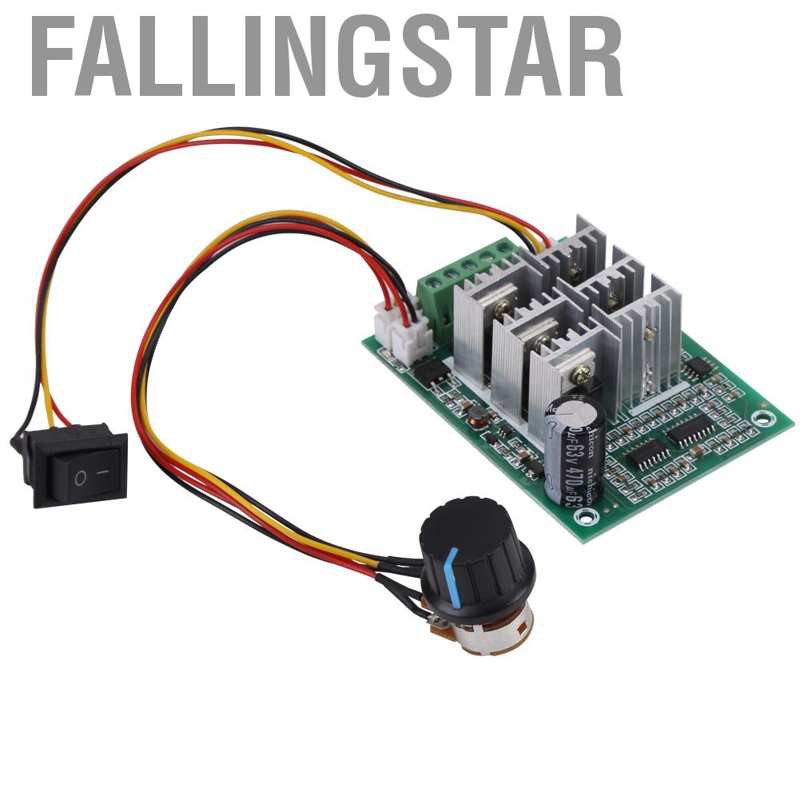

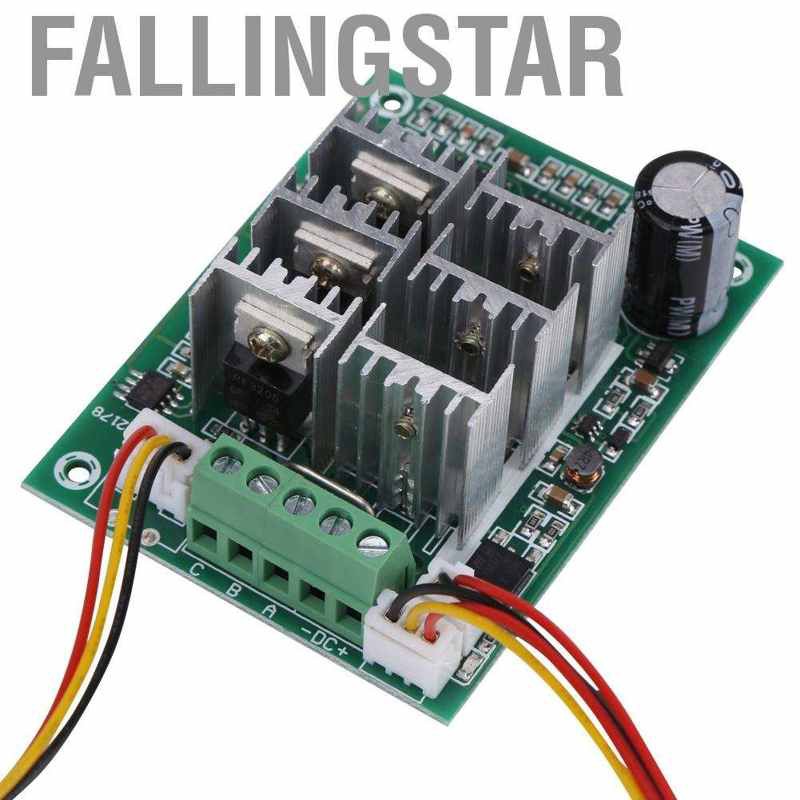

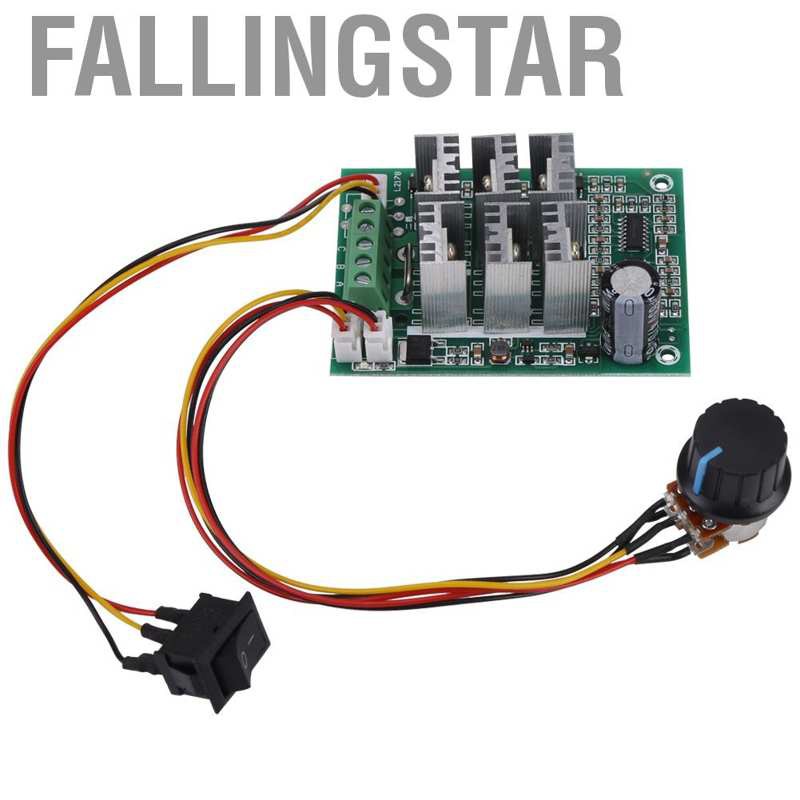

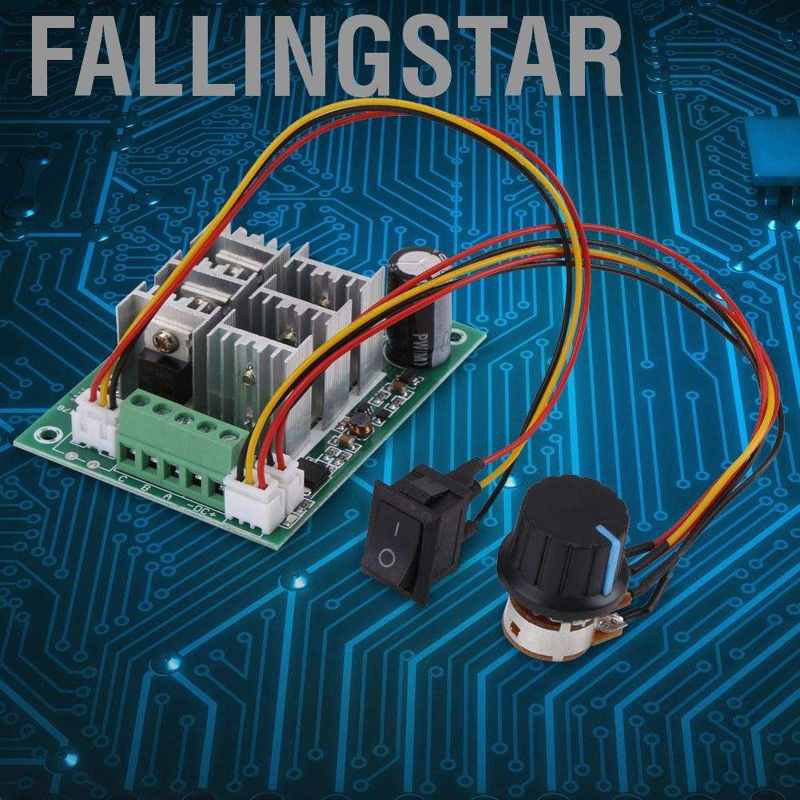

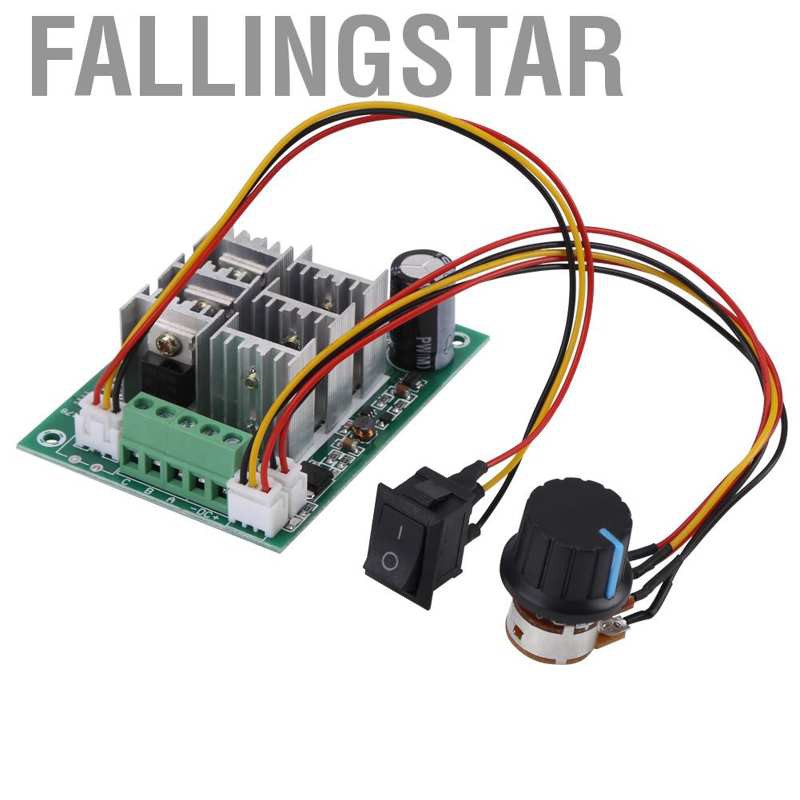

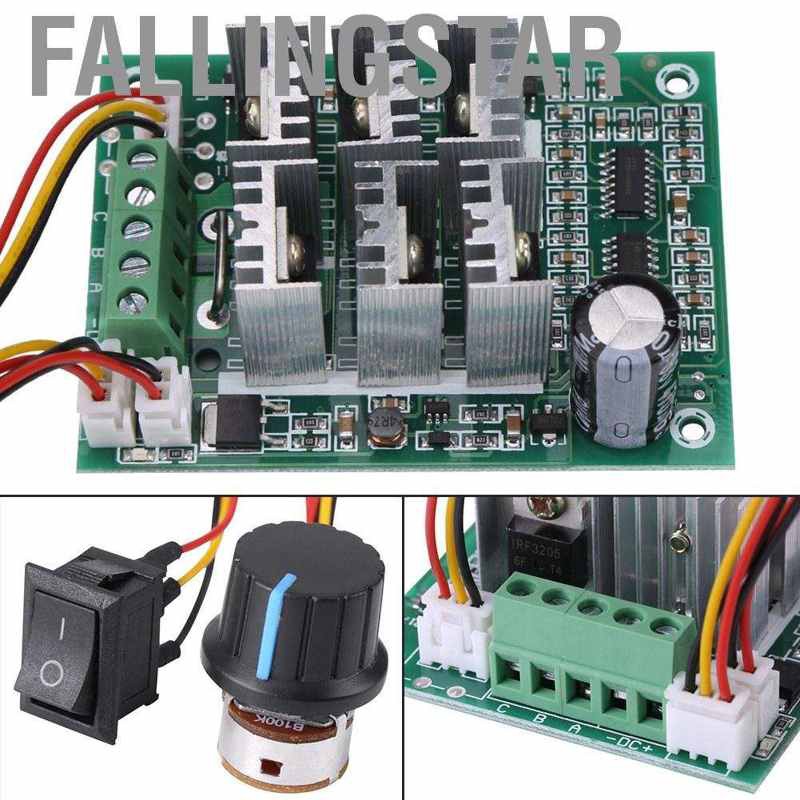

Features:
This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW
Stable performance, simple and most cost-effective multi-function operation.
The speed of the motor can be regulated by the potentiometer, easy to use.
With wide voltage range, DC5-36v, and protective current is 15A.
Small size and elegant appearance.
Specifications:
Input voltage: DC5-36v
Output current:
Protective current: 15A
CW CCW: support
Speed regulating mode: potentiometer (270 degree linear)
Speed adjustment range: 0-100%
support for Motor: brushless motor
Connection type: fence type terminal
Knob
Specification: 100K (with switch)

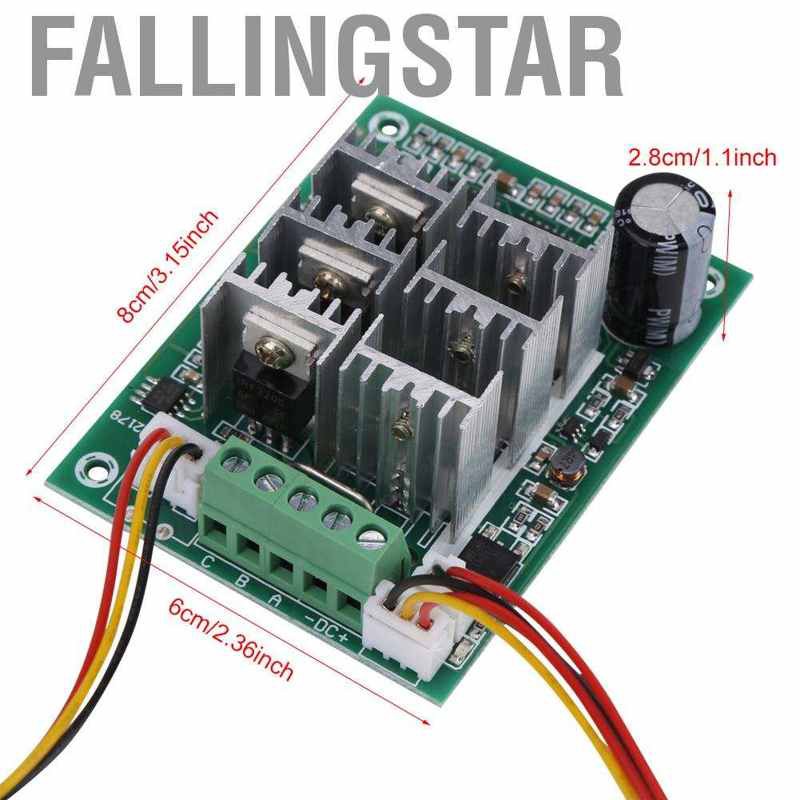

Module size: 8 x 6 x 2.8cm/3.15 x 2.36 x 1.1inch
Weight: 87g
Package Included:
1 x Motor Speed Controller
Note:
1.The input voltage must be divided into positive and negative and cannot enter 220V home power
2.The input voltage shall be equal to the rated voltage of the motor (5-36v).

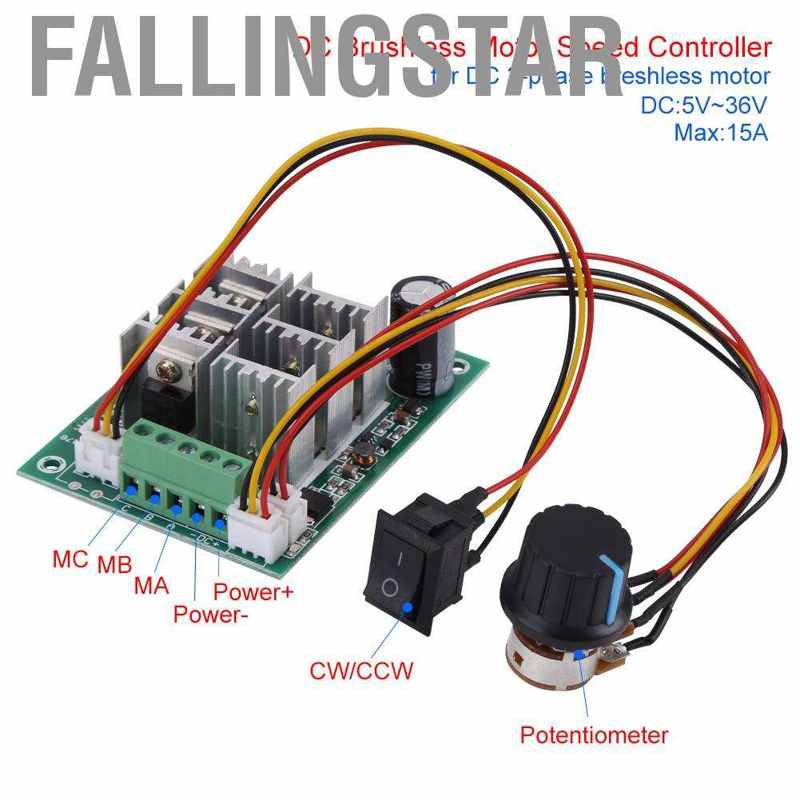

3. Motor line ABC,no sequence of distinction
