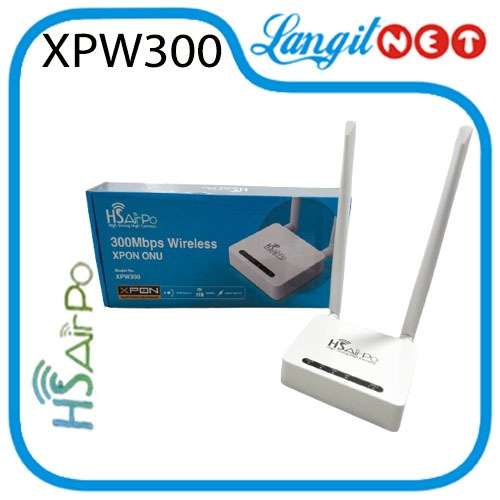

Điện Thoại Không Dây Hsairpo Xpw300 300mbps 1ge + Wifi 2.4 X

Xpon - call can be gpon can, without a fuss replace 2 onu
Support phone = huawei,zte, hioso, bt-pon, hsairpo
Support gpon = huawei, zte, bt-pon, hsairpo

Specifications.
Technical item details.
Pon interface
1 g / ephone port (px20 + and gpon class b +)
Upstream: 1310nm; downstream: 1490nm
Sc / upc connector
Receiving sensitivity: - 27dbm
0 ~ + 4dbm optical power transmission
Transmission distance: 20km
Lan interface 1x10 / 100 / 1000mbps auto adaptive ethernet interfaces. Full / half, rj45 connector
Wifi interface
Compliant with ieee802.11b / g / n
Operating frequency: 2,400-2,4835ghz
Support mimo, rate up to 300mbps
2t2r.2 external antenna 5dbi
Support: Multiple ssid
Channel: 13.
Modulation type: Dsss?Cck and ofdm

Lights and introduction panel
Pilot lamp status description
Wifi on the wifi interface is up.
Blink the wifi interface is sending or / and receiving data (act).
Off the wifi interface is down.
Wps
Blink the wifi interface is securly establishment a connection.
Off the wifi interface does not establish a secure connection.
Pwr
On the device is powered up
Off the device is powered down
Los.
Blink the device does not receive optical signals or with low signals.
Off the device has received optical signal.
Pon
On the device has registered to the pon system.
Blink the device is registering the pon system.
