MÔ TẢ SẢN PHẨM
Posiotion Quantity/Terminals Quantity: 4/6
Rated Voltage (max.): AC 380V, DC 220V
Rated Current (max.): 20A
Screw Hole Diameter: 0.45cm/ 0.18"
Mounting Hole Distance: 3.6 x 3.6cm/ 1.4" x 1.4" (L*W)

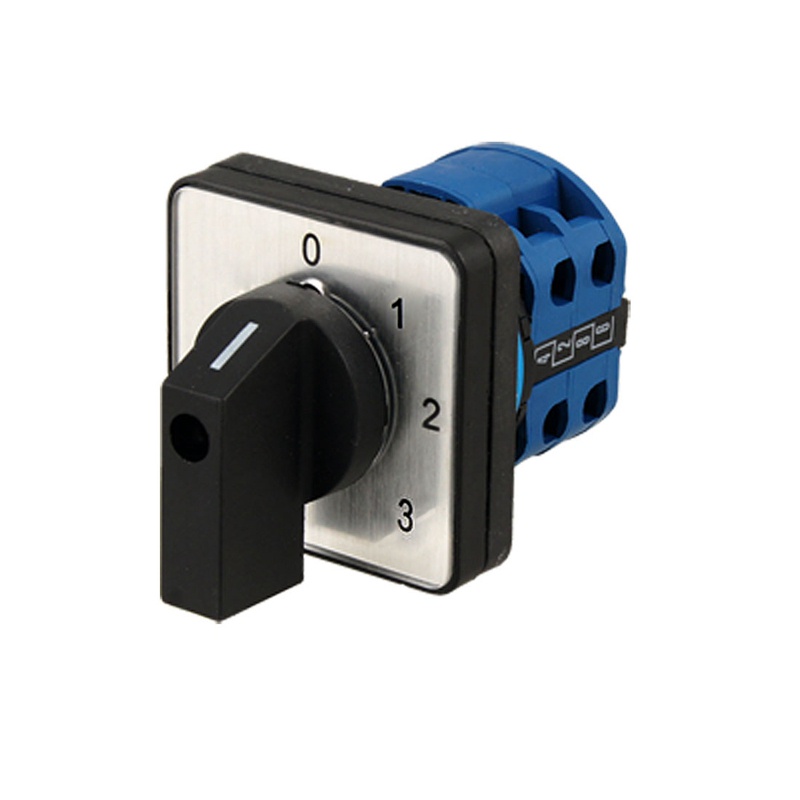

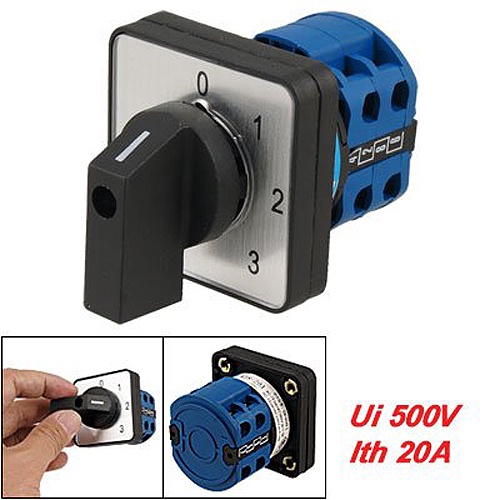

Product Name: Changeover Cam Switch;
Control Type: Off - On - On - On;
Ui: 500V;
Ith: 20A;
Overall Size: 4.8 x 4.8 x 7.2cm/ 1.9" x1.9" x 2.8" (L*W*H);
Off - On - On - On 4 positions control and 6 terminals design;
Suitable for the thickness between 1mm to 4mm of the mounting board;
Suitable for a wide range of applications, it can be applied as a circuit control switch, master control switch, testing equipment control switch, or change-over switch for electric welding machinery and other equipment.
Mateiral: Plastic ， Electronics;
Color: Black ， Blue;
Net Weight: 87g;
Package: 1 x Changeover Cam Switch, 4 x Screws
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Rated Voltage (max.): AC 380V, DC 220V
Rated Current (max.): 20A
Screw Hole Diameter: 0.45cm/ 0.18"
Mounting Hole Distance: 3.6 x 3.6cm/ 1.4" x 1.4" (L*W)
Product Name: Changeover Cam Switch;
Control Type: Off - On - On - On;
Ui: 500V;
Ith: 20A;
Overall Size: 4.8 x 4.8 x 7.2cm/ 1.9" x1.9" x 2.8" (L*W*H);
Off - On - On - On 4 positions control and 6 terminals design;
Suitable for the thickness between 1mm to 4mm of the mounting board;
Suitable for a wide range of applications, it can be applied as a circuit control switch, master control switch, testing equipment control switch, or change-over switch for electric welding machinery and other equipment.
Mateiral: Plastic ， Electronics;
Color: Black ， Blue;
Net Weight: 87g;
Package: 1 x Changeover Cam Switch, 4 x Screws
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
