Công Tắc Đèn Led 19mm 22mm 12v 220v 24v 3v 6v
23 Đánh Giá
Đã Bán 79
59
46.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ tư 09/06/2021 lúc 04:07 CH
MÔ TẢ SẢN PHẨM
If you want yellow led or white led. you can contact the service and note it
Specification:
Contact:sterling silver
Head: Flat Head
Material: Nickel Brass
Color: Silver

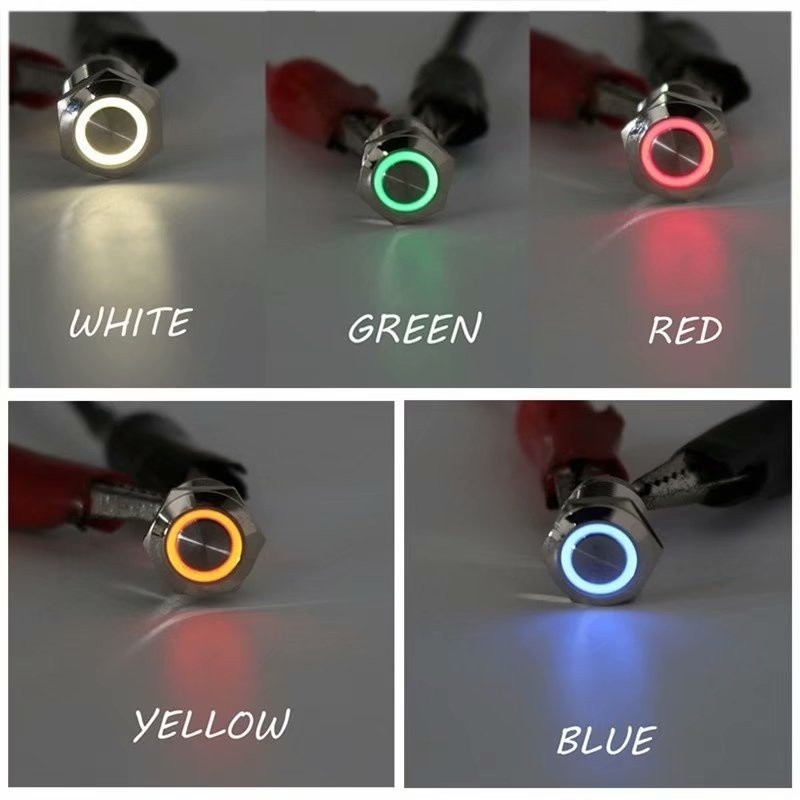

LED color: White Yellow Red Green Blue
Switch Rating: 3A /250VAC
Waterproof Grade: IP65
LED Voltage: 3-6V,12V,24V,220V
Operation Type: Momentary and Latching
Hole size: 12/16/19/22mm
Voltage Selection
3V-6V :3V 5V 6V
12V-24V: 12V 24V
220V: 220V 230V

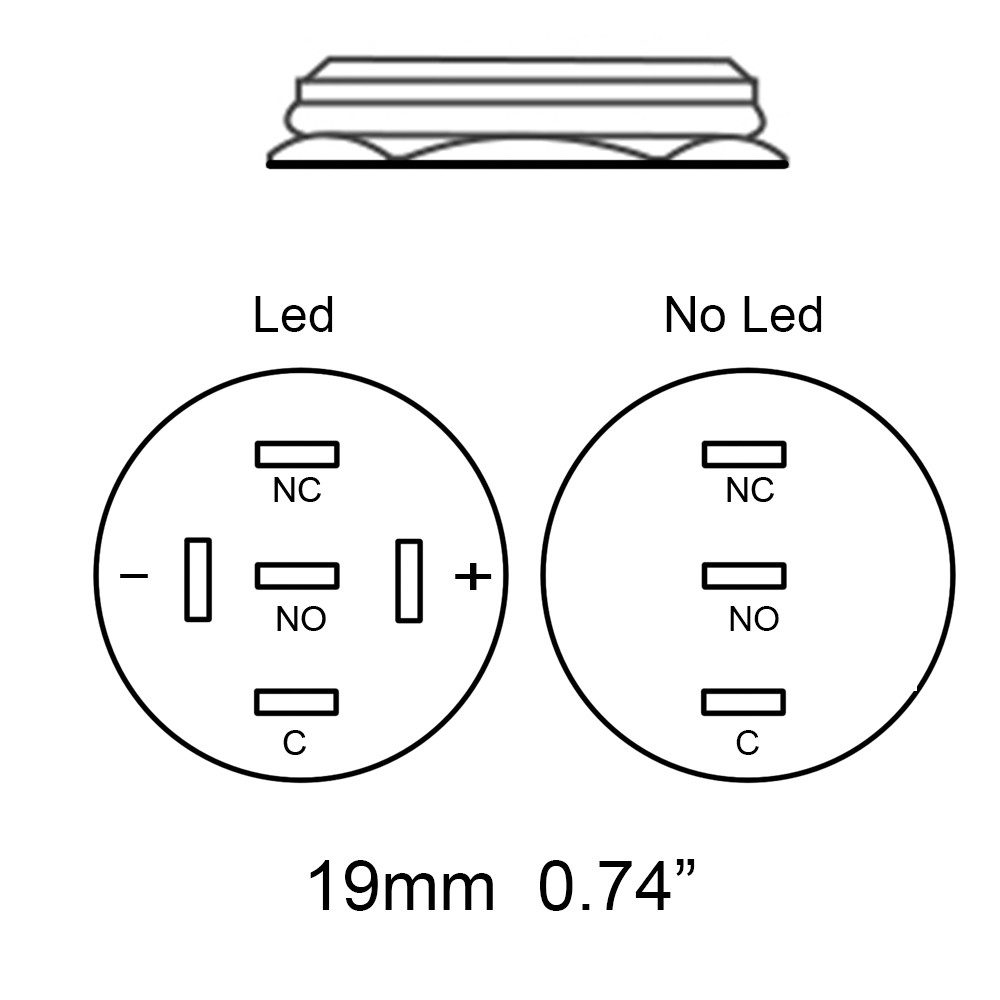

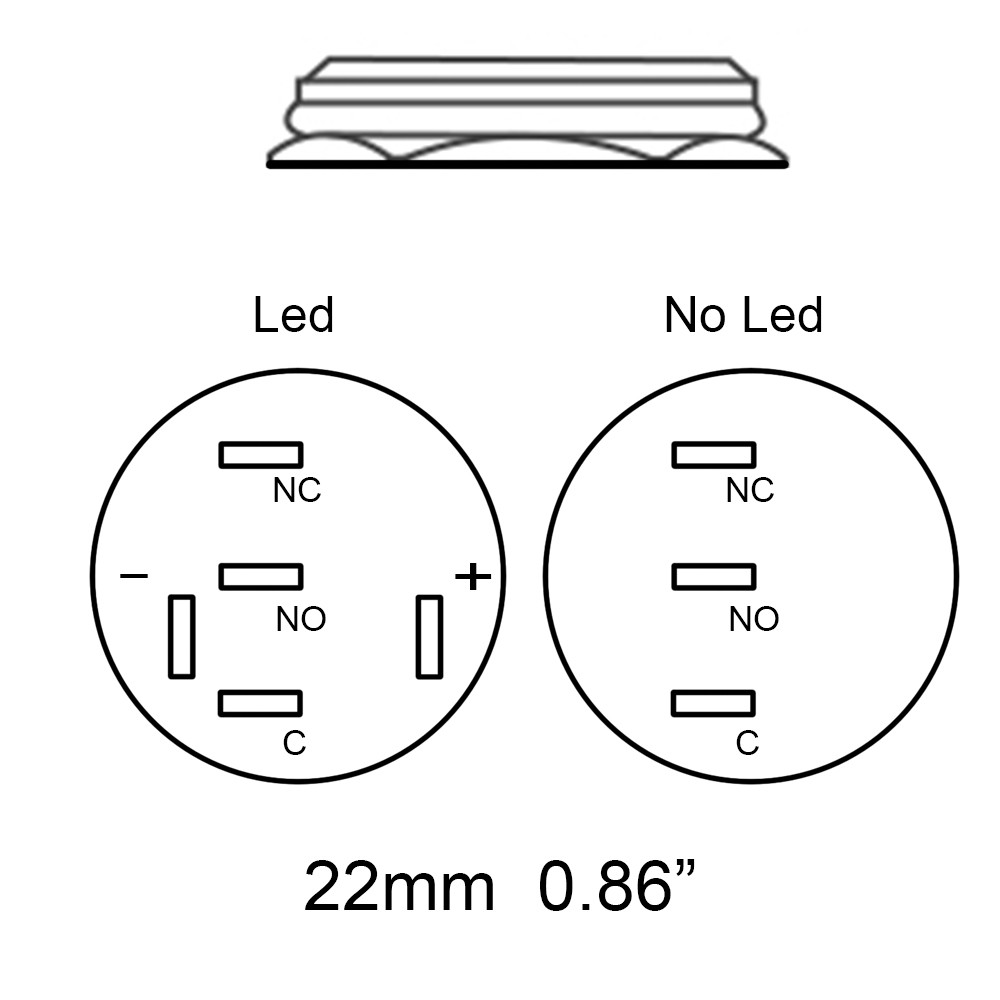

Pin Terminal Introduction
"+": positive pole of the led
" - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
Connect " NO " and " C " : The circuit is alway open unless press the button.
Connect " NC " and " C " : The circuit is alway close unless press the button.
Operation Type
Momentary :After pressing the button ,press-key will return automatically If you don't continue to press the button。Self-reset. (like Computer button)
Latching Fixing: After pressing the button ,press-key stay in a position until it is pressed again, then it return. (like lamp switch)
Note:
-We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
-Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
-There Are No Instructions Included In This Kit.Professional Installation Is Highly Recommended!
▲Package Includes:
1 x LED Button Switch
