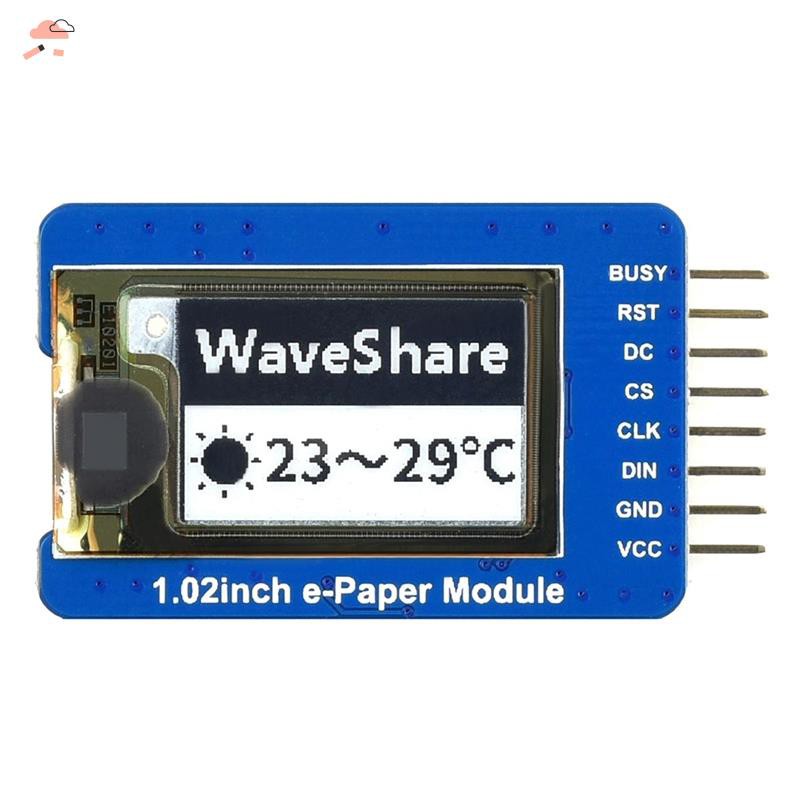

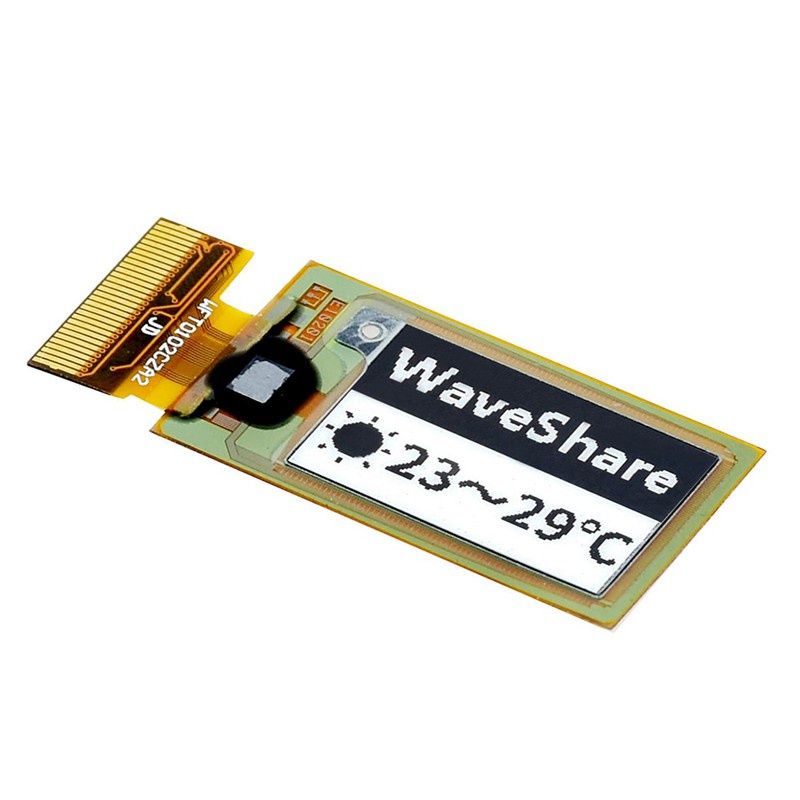

【COD】Waveshare 1.02 Inch Ink Screen Electronic Paper Flexible Ink Screen ule Partially Refreshed for Raspberry Pi
0 Đánh Giá
Đã Bán 0
101
399.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 17/07/2021 lúc 08:22 SA
MÔ TẢ SẢN PHẨM
No backlight is needed, low power consumption, and the last screen display content can be maintained for a long time after power off.
It can be partially refreshed, the viewing angle is wide (170 degree), and the power-off approval is clearly displayed.
SPI control interface, which can be connected to Raspberry Pi/ Jetson Nano/for Arduino/STM32 and other main control boards.
The onboard level conversion chip is compatible with 3.3V and 5V MCU interfaces.
Application scenarios: suitable for shopping mall price tags, asset equipment tags, electronic shelf tags, conference name tags, etc.
Colour: Blue
Material: PCB board + glass

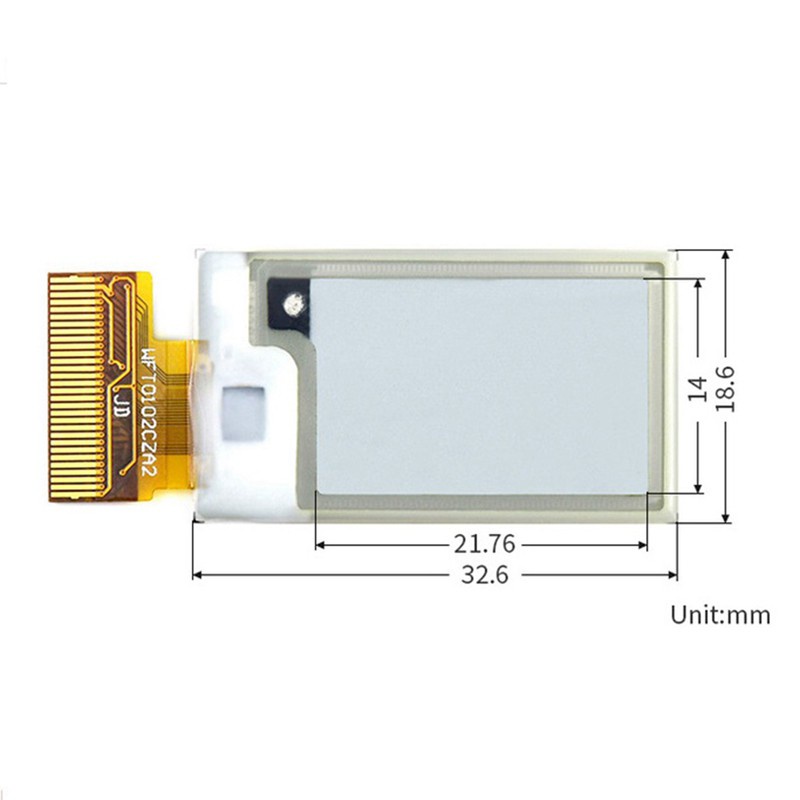

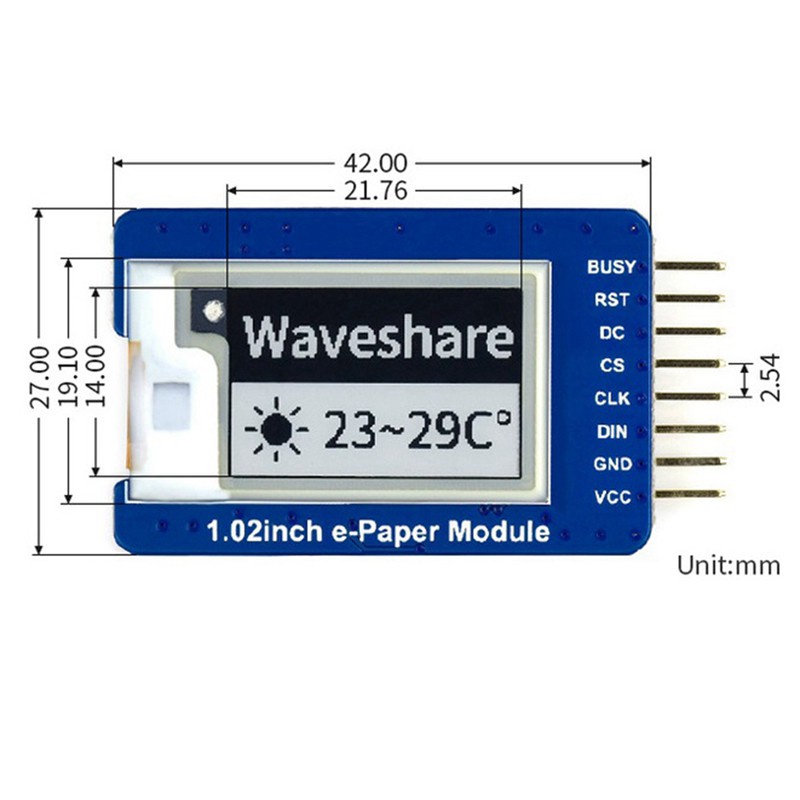

Size: 42x27mm

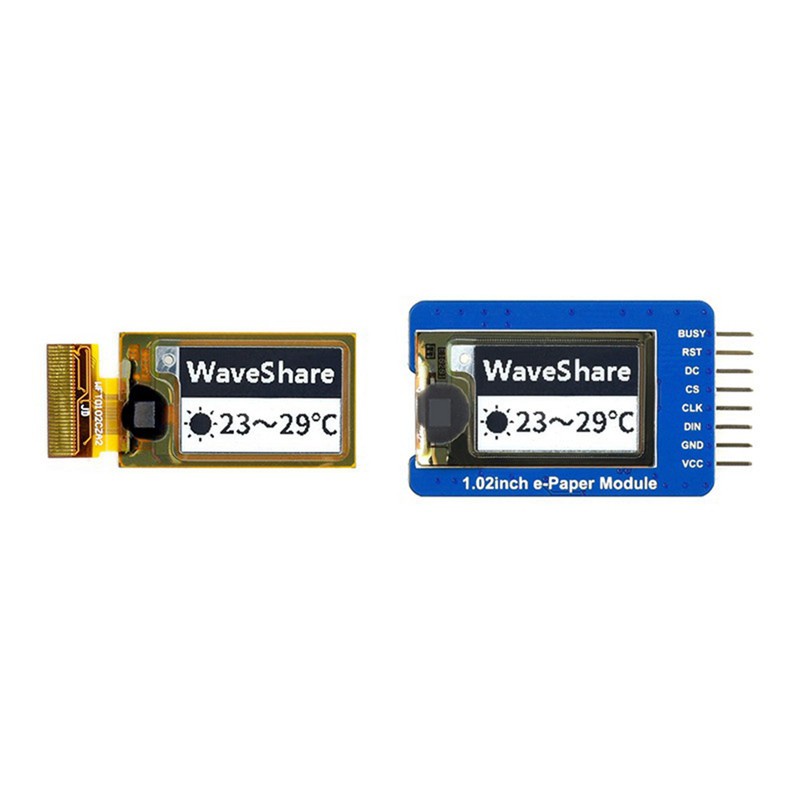

Package Contents:
1 * Ink Screen
1 * Drive backplaneOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
It can be partially refreshed, the viewing angle is wide (170 degree), and the power-off approval is clearly displayed.
SPI control interface, which can be connected to Raspberry Pi/ Jetson Nano/for Arduino/STM32 and other main control boards.
The onboard level conversion chip is compatible with 3.3V and 5V MCU interfaces.
Application scenarios: suitable for shopping mall price tags, asset equipment tags, electronic shelf tags, conference name tags, etc.
Colour: Blue
Material: PCB board + glass
Size: 42x27mm
Package Contents:
1 * Ink Screen
1 * Drive backplaneOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
