Chiết Áp 3590s-2-103l 10k Ohm 10-tkn Chuyên Dụng
0 Đánh Giá
Đã Bán 4
75
44.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 17/07/2021 lúc 06:40 SA
MÔ TẢ SẢN PHẨM

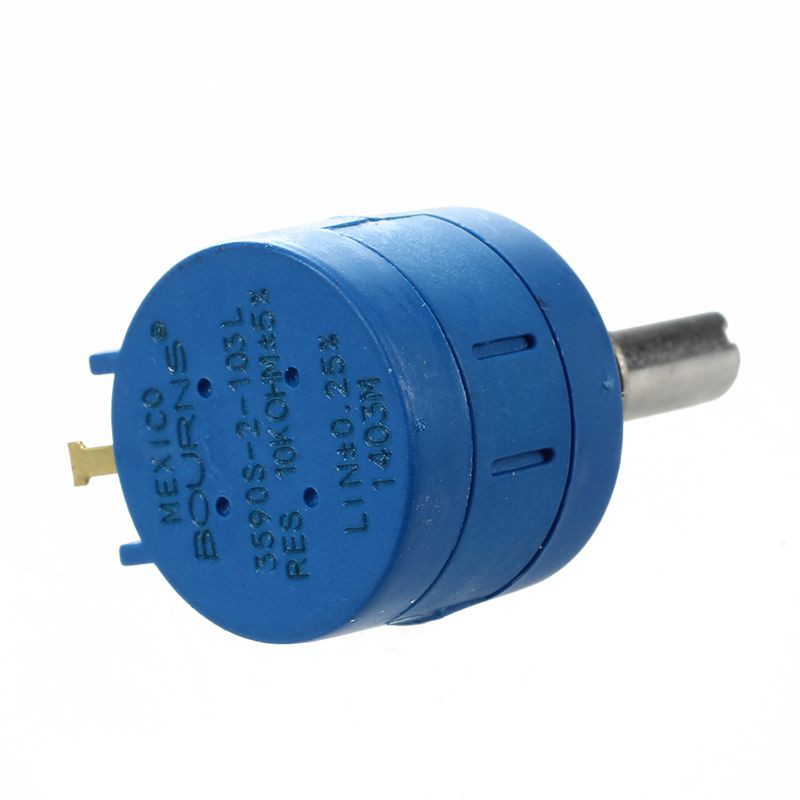

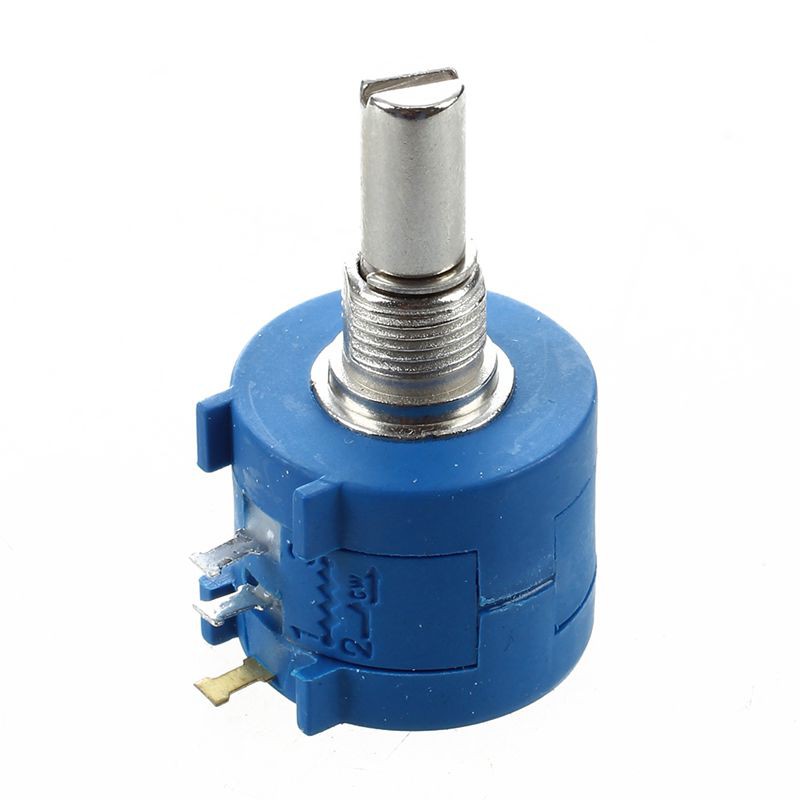

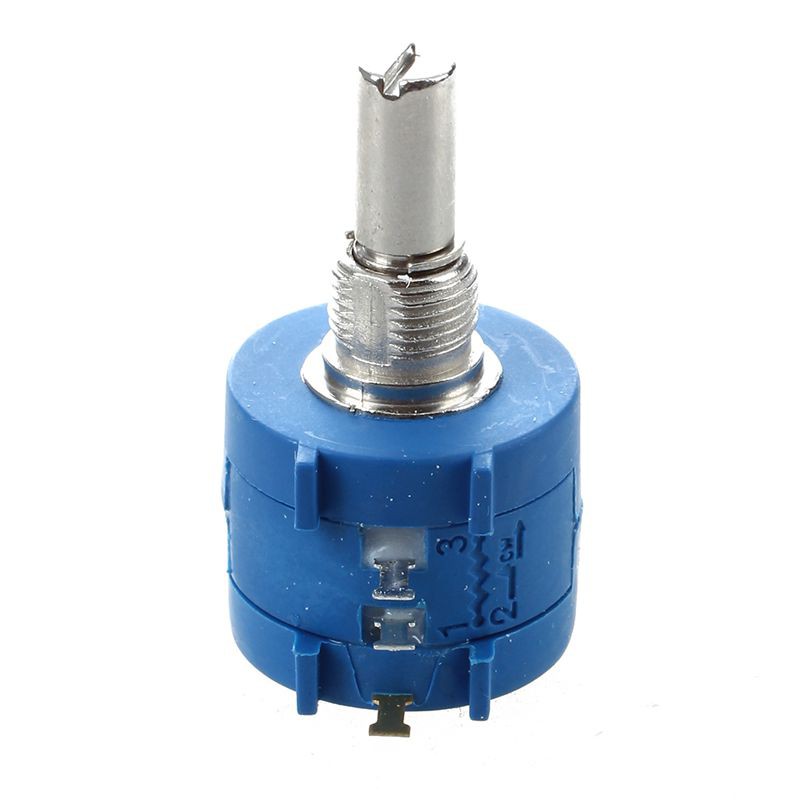

Product Name : Potentiometer;el : 3590S-2-103L;Type : Rotary Shaft
Technology : Wirewound;Turns : 10;Resistance Value : 10K Ohm
Resistance Tolarance : +/-5%;Linearity : +/-0.25%;Shaft Diameter : 6mm/0.24"
Threaded Diameter : 9mm/ 0.35";Body Size(No Include Shaft) : 22 x 19mm/ 0.9" x 0.7" (D*H);Total Length : 40mm/1.6"
Color : Blue;Weight : 19g
Feature:10K Ohm Resistance, 5% Tolerance,0.25% Linearity, 3 Terminals Multiturn Potentiometer.
This Wirewound Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipments.
Material: plastic + metal
Package Content: 1 x Potentiometer
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Technology : Wirewound;Turns : 10;Resistance Value : 10K Ohm
Resistance Tolarance : +/-5%;Linearity : +/-0.25%;Shaft Diameter : 6mm/0.24"
Threaded Diameter : 9mm/ 0.35";Body Size(No Include Shaft) : 22 x 19mm/ 0.9" x 0.7" (D*H);Total Length : 40mm/1.6"
Color : Blue;Weight : 19g
Feature:10K Ohm Resistance, 5% Tolerance,0.25% Linearity, 3 Terminals Multiturn Potentiometer.
This Wirewound Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipments.
Material: plastic + metal
Package Content: 1 x Potentiometer
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
