Card Song Song Pci-E To Song Port Card Db25 Ax99100
0 Đánh Giá
Đã Bán 0
64
274.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ sáu 14/05/2021 lúc 02:23 CH
MÔ TẢ SẢN PHẨM

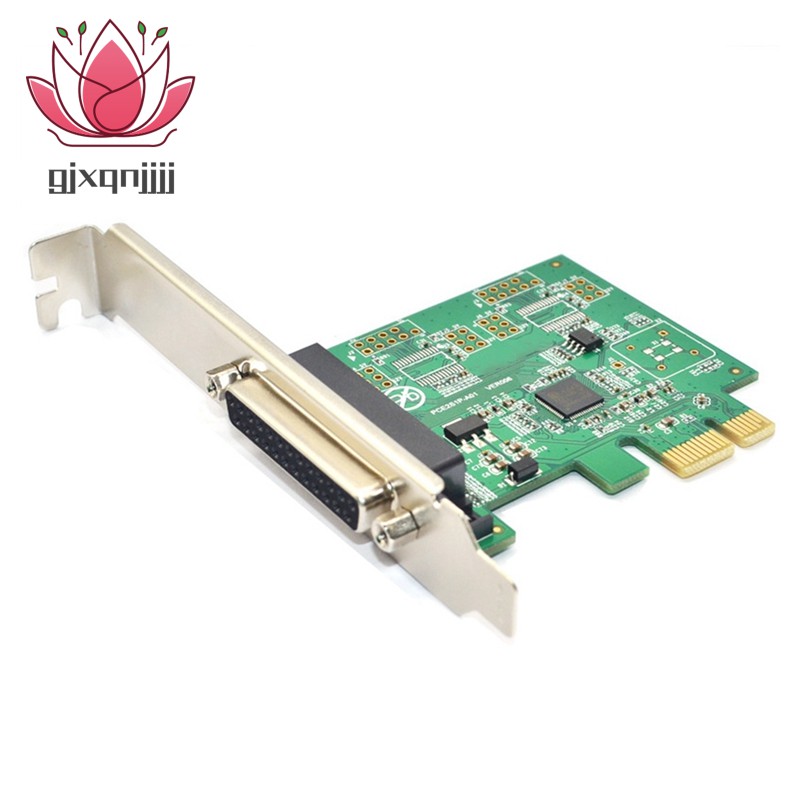

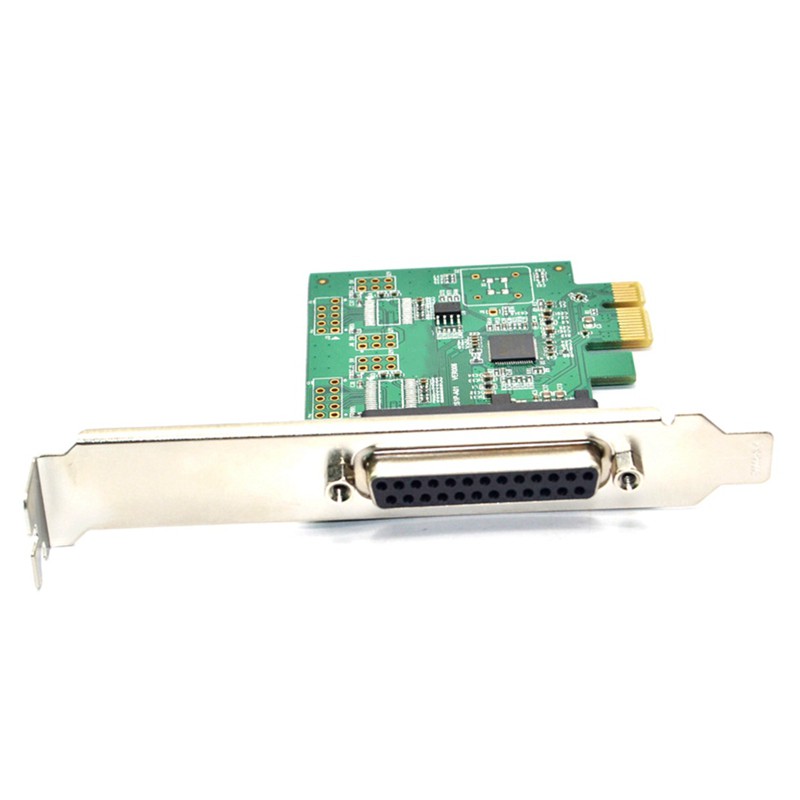

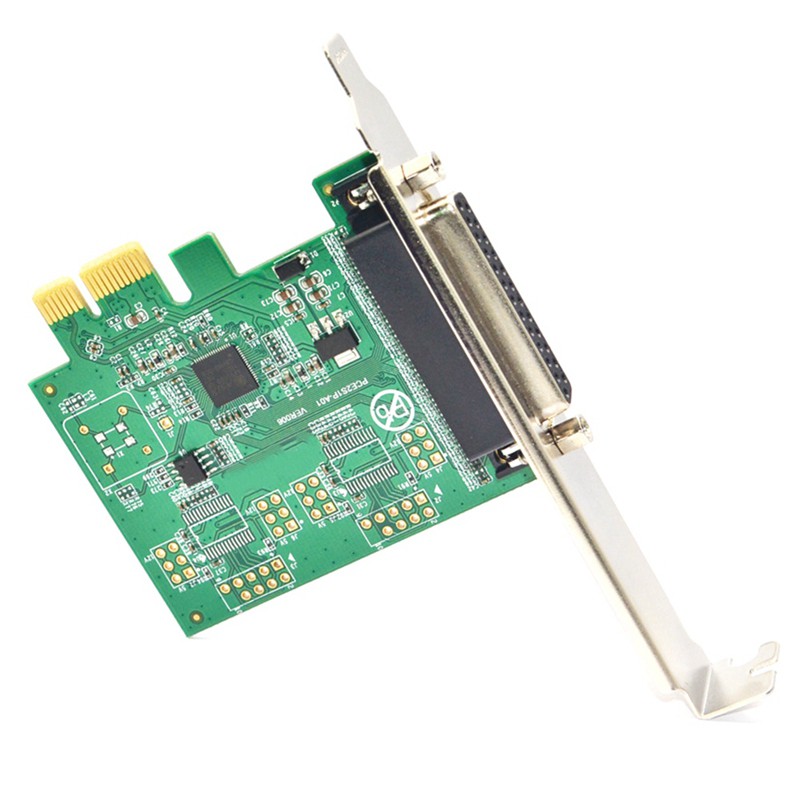

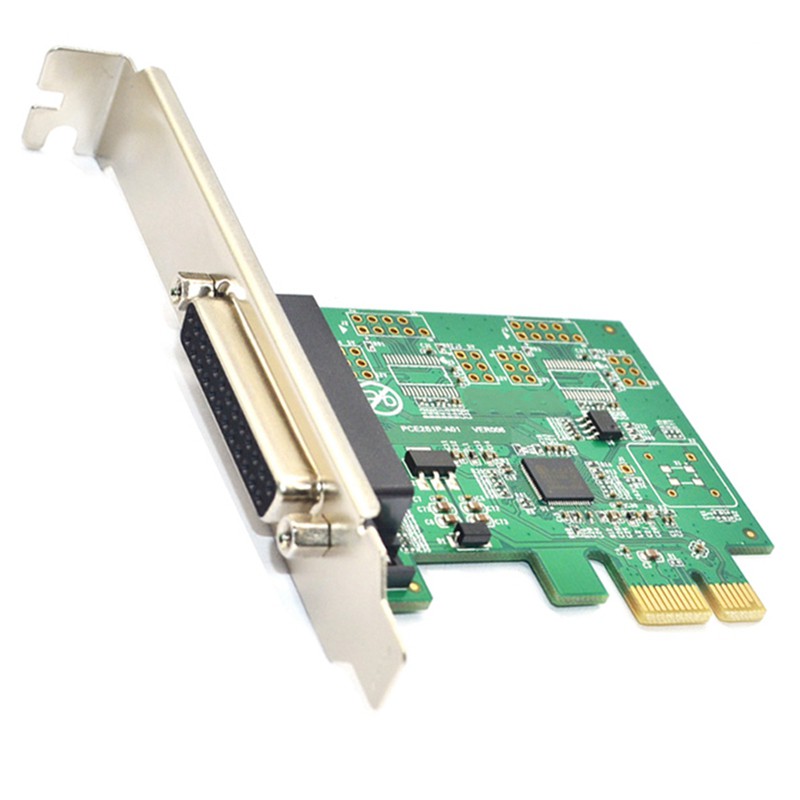

The product can obtain a parallel communication port through the PCI-E slot of the PC host. Its excellent electrical performance design ensures stable and fast communication capabilities, and is a wise choice for automation engineering application users.
This product is a desktop PCI-E expansion card. You need a free PCI-E slot on the motherboard to install and use. Make sure that the slot is blocked by the image card. In addition, the PCI slot cannot be installed and used. Never plug it into the PCI slot.
Application areas: label machines (thermal) and other els; parallel printers, POS machines (thermal, printing) and other small ticket machines; scanners, programmers, access control systems, industrial control fields.
Support multiple operating systems, configure the driver CD for easy one-click installation.
Driver support: Windows XP/2003 Server/Vista/7/8/10/Linux Kernel 2.6.15 and later/Android 1. x/2. x/3.x/4.x/5.x
1. PCI Express
Single-channel (X1) PCI Express endpoint control integrated with PHY
Compliant with PCI Express 2.0 Gen 1
Comply with PCI Express card specifications
Compliant with PCI power management 1.2
Support both traditional interrupt and MSI interrupt
Support ASPM power management
Equipped with short iron sheet (optional), supporting 2U chassis.
2. IEEE1284 parallel port
Compatible with IEEE 1284-spp/byte/ECP e
Driver installation instructions:
Open the supporting CD folder--/Serial-Parallel Card/AX99100

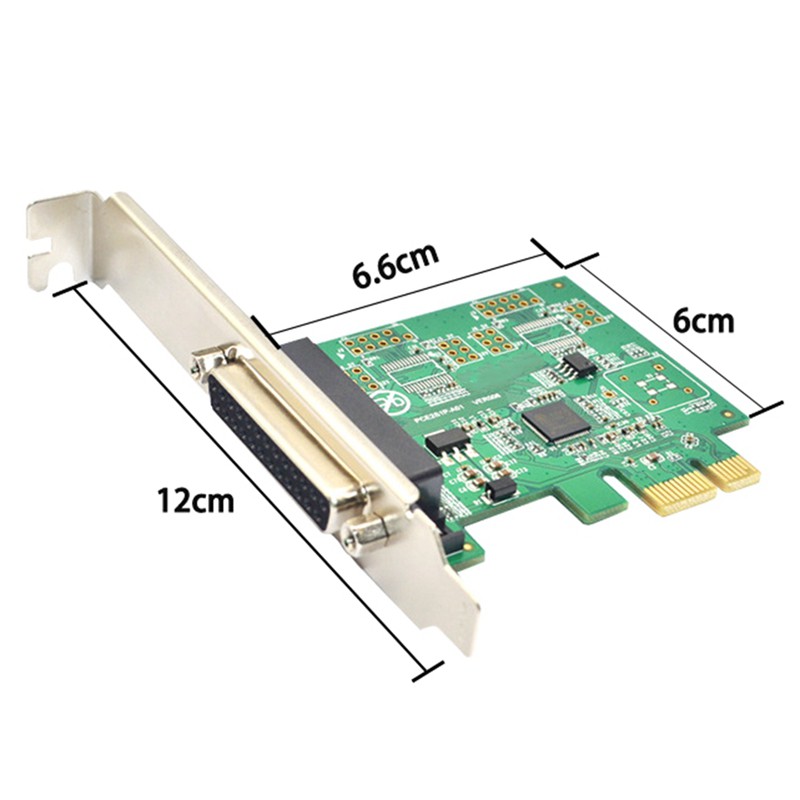

size:12x6.6x6cm
Material:PCB board + metal
colour:Green
Package Contents:
1 x Expansion Card
1 x Driver CDOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
