Cáp linh hoạt FFC FPC màn hình cảm ứng bảng linh kiện máy in 3D chuyên dụng cho bảng Lerdge
0 Đánh Giá
Đã Bán 3
128
23.800 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 11/07/2021 lúc 06:11 SA
MÔ TẢ SẢN PHẨM

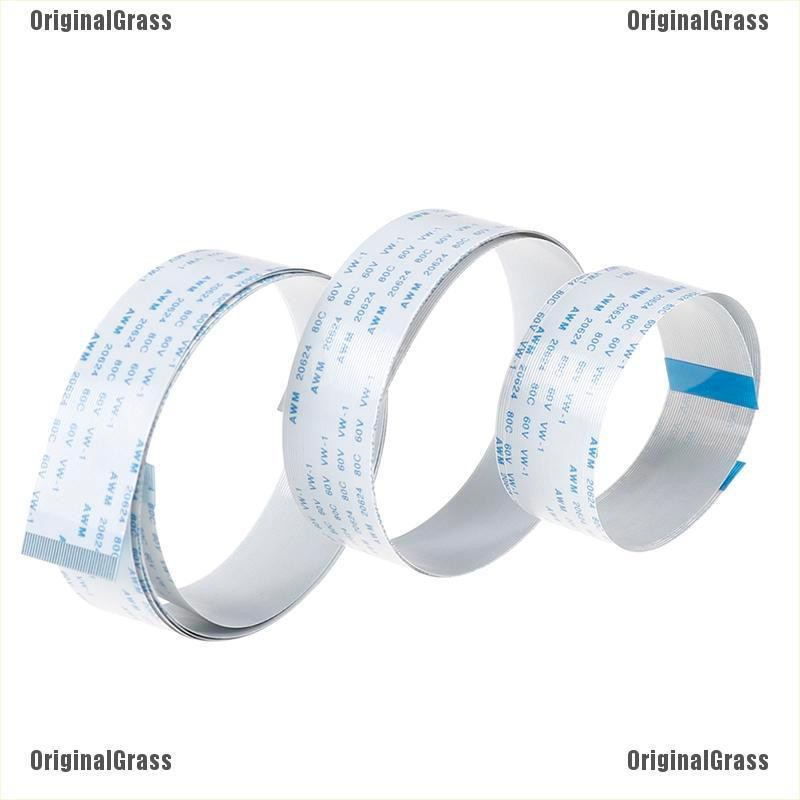

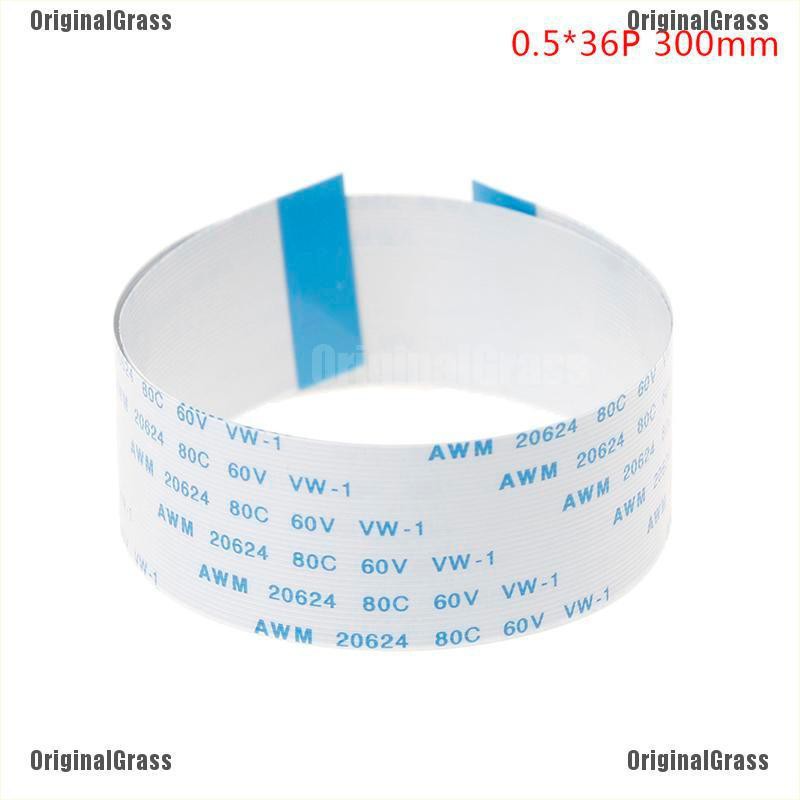

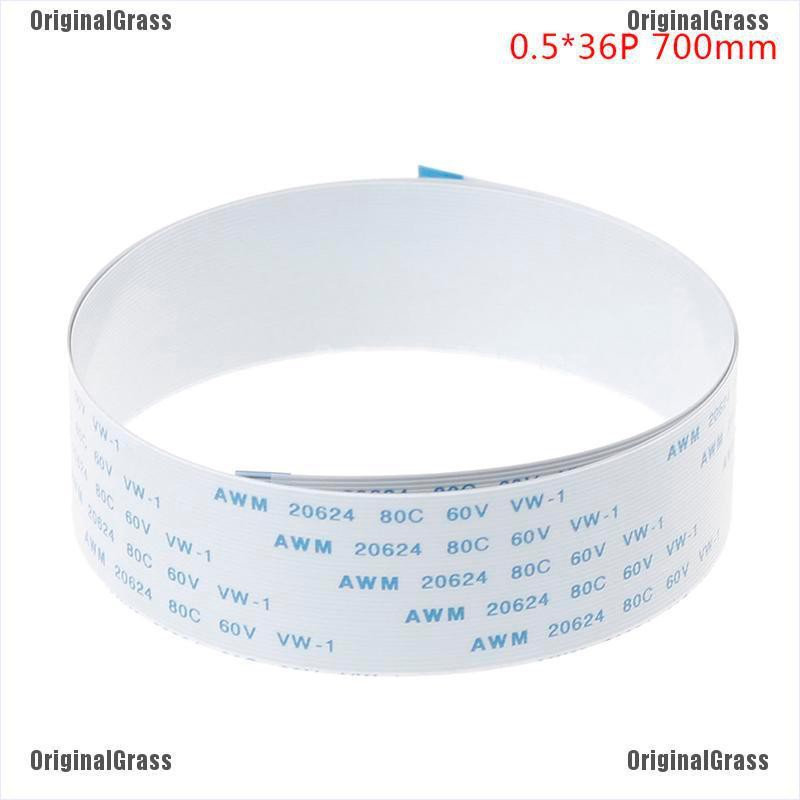

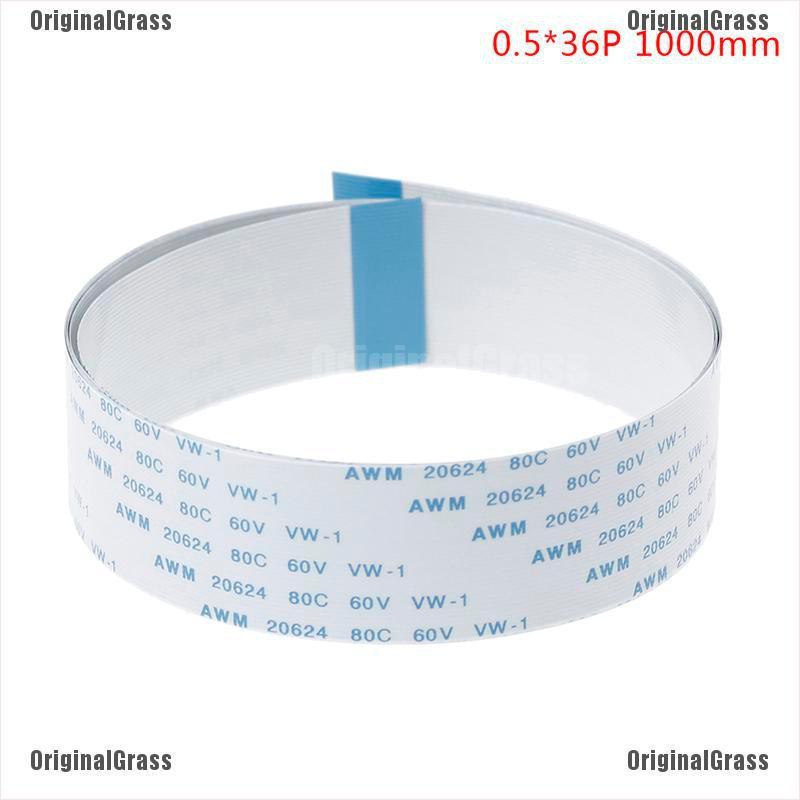

FFC soft cable 0.5 pitch 36pin, the direction is of the same direction
Product introduction:
-P = bit = core = pin (number of copper)

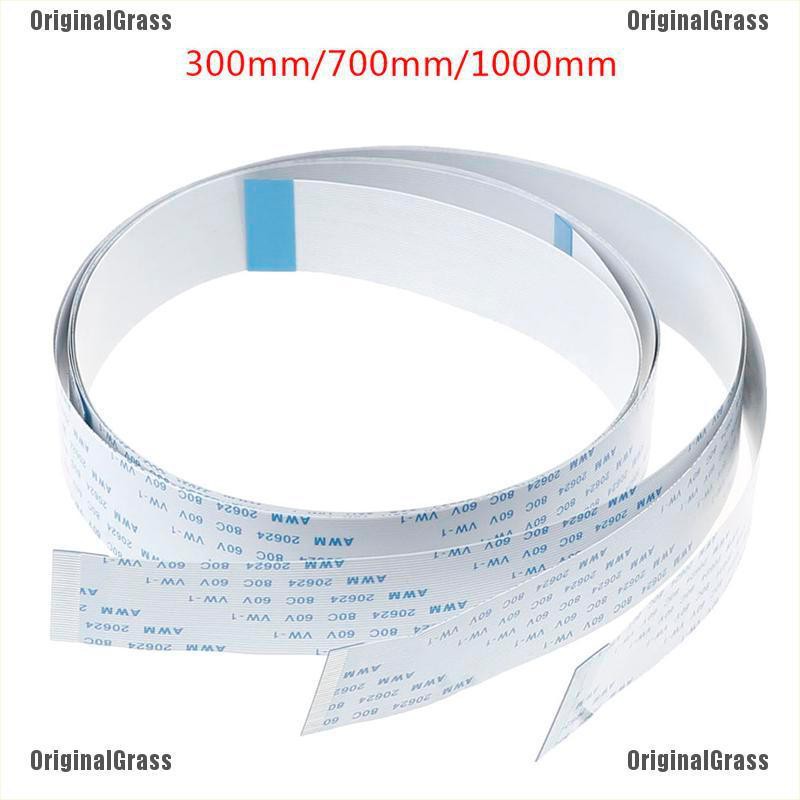

-Cable length optional. 30cm, 70cm and 100cm.
-Spacing: the distance between the two needle center. If uncertain, measure the bus width (unit: mm),Spacing algorithm: bus width / (number of pins+ 1)

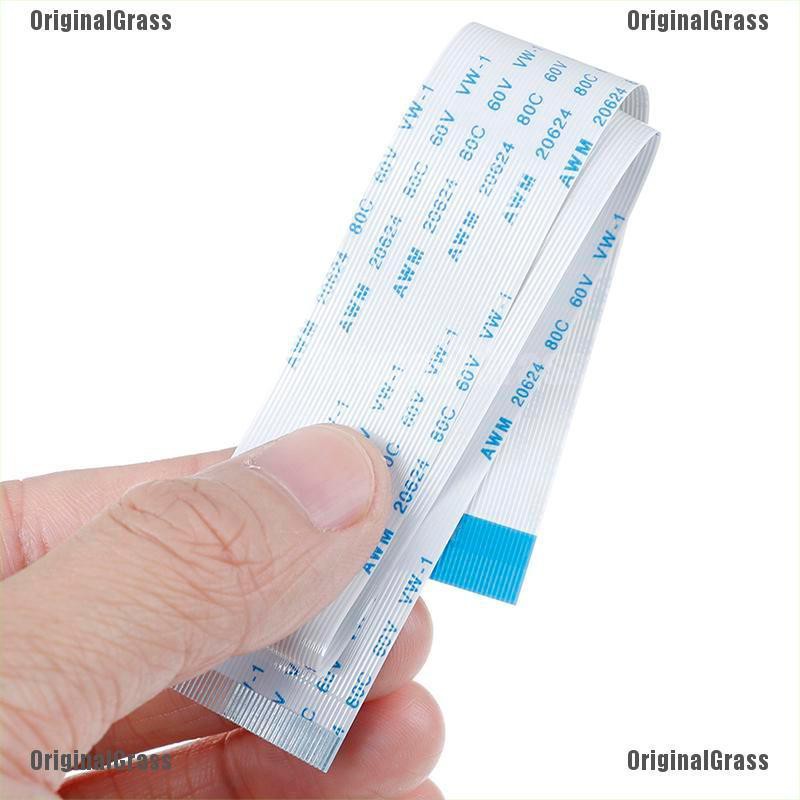

-Direction (check the ends of the cable): A with the same direction (metal surface in the same side)
Test with Lerdge board. Use the board test with the 2 meters cable (without shielding tape), and with the cable winding the stepper motor. The touch screen display operation is normal, no interference phenomenon, the test passed.

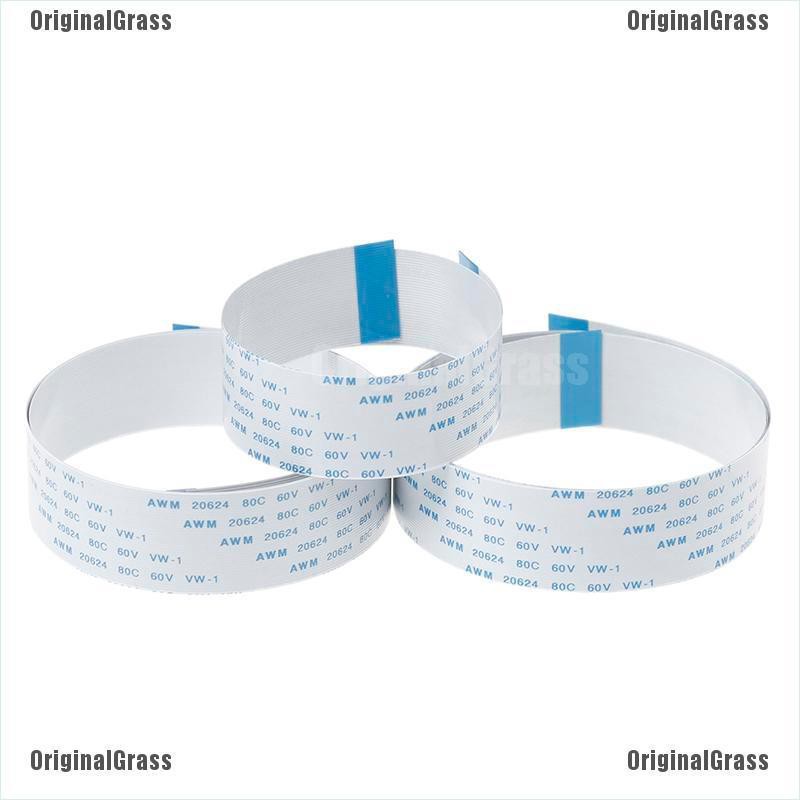

Packaging includes:1Pc 30cm/70cm/100cm FFC FPC flexible cable
Product introduction:
-P = bit = core = pin (number of copper)
-Cable length optional. 30cm, 70cm and 100cm.
-Spacing: the distance between the two needle center. If uncertain, measure the bus width (unit: mm),Spacing algorithm: bus width / (number of pins+ 1)
-Direction (check the ends of the cable): A with the same direction (metal surface in the same side)
Test with Lerdge board. Use the board test with the 2 meters cable (without shielding tape), and with the cable winding the stepper motor. The touch screen display operation is normal, no interference phenomenon, the test passed.
Packaging includes:1Pc 30cm/70cm/100cm FFC FPC flexible cable
