[Mã 88ELSALE hoàn 7% đơn 300K] Cảm biến đo nồng độ chất dinh dưỡng TDS, chính hãng DFRobot

INTRODUCTION

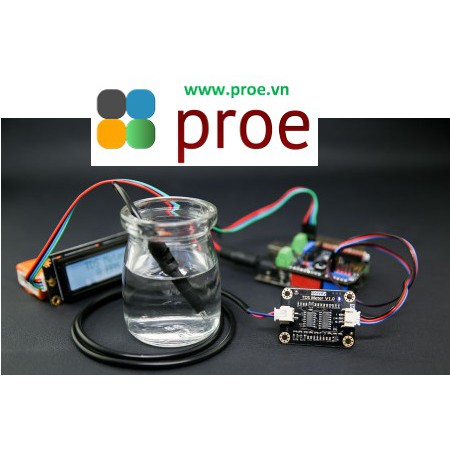

This is an Arduino-compatible TDS sensor/Meter Kit for measuring TDS value of the water, to reflect the cleanliness of the water. It can be applied to domestic water, hydroponic and other fields of water quality testing.
TDS (Total Dissolved Solids) indicates that how many milligrams of soluble solids dissolved in one liter of water. In general, the higher the TDS value, the more soluble solids dissolved in water, and the less clean the water is. Therefore, the TDS value can be used as one of the references for reflecting the cleanliness of water.
Attention:
1.The probe can not be used in water above 55 degrees centigrade.
2.The probe can not be left too close to the edge of the container, otherwise it will affect the reading.
3.The head and the cable of the probe are waterproof, but the connector and the signal transmitter board are not waterproof. Please be careful.
FEATURES
Wide Voltage Input: 3.3~5.5V
Good Compatibility Output: 0~2.3V analog signal output, compatible with 5V or 3.3V controller
AC Excitation Source: effectively prevent probe from polarization
Waterproof Probe
Easy to Use: Arduino compatible, simple connection, plug and play without soldering
SPECIFICATION

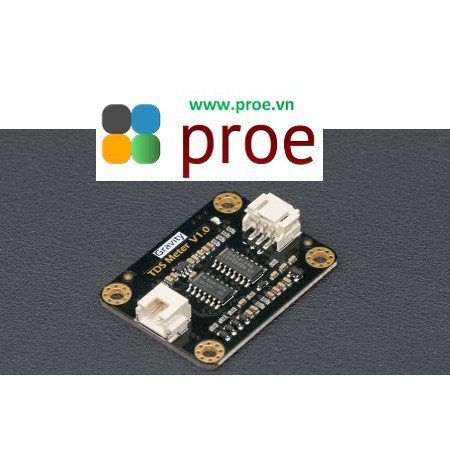

Signal Transmitter Board

Input Voltage: 3.3 ~ 5.5V
Output Voltage: 0 ~ 2.3V
Working Current: 3 ~ 6mA
TDS Measurement Range: 0 ~ 1000ppm
TDS Measurement Accuracy: ± 10% F.S. (25 ℃)
Module Size: 42 * 32mm
Module Interface: PH2.0-3P
Electrode Interface: XH2.54-2P
TDS probe
Number of Needle: 2
Total Length: 83cm
Connection Interface: XH2.54-2P
Color: Black
Other: Waterproof Probe

SHIPPING LIST
Gravity: Analog TDS Sensor/Meter for Arduino x1
Waterproof TDS Probe x1
Gravity-3Pin Analog Sensor Cable x1
