Bo Mạch Mở Rộng Cnc Shield V3 + Bảng Mở Rộng A4988 Driver R3 cm Cho Máy In 3d
1 Đánh Giá
Đã Bán 1
86
199.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 11/07/2021 lúc 05:53 SA
MÔ TẢ SẢN PHẨM
Welcome to the [aurorawell] store
Follow the store and enjoy the discount.
Every week, creative new products are on the shelves.
Selling is not the end, but the beginning of the promise!
[Before ordering]
Please read the dimensions and other related content carefully before purchasing.
[shipment precautions]
✎The actual product is the same as the image displayed on the page.
Shipped within 24 hours after delivery
✎ Normally, transportation takes 15-20 working days.
✎ Shipping costs are automatically displayed by the shopee system.
Please contact the owner if you have any questions.
I wish you a happy shopping!
_______________❀Product Details❀_______
Features:

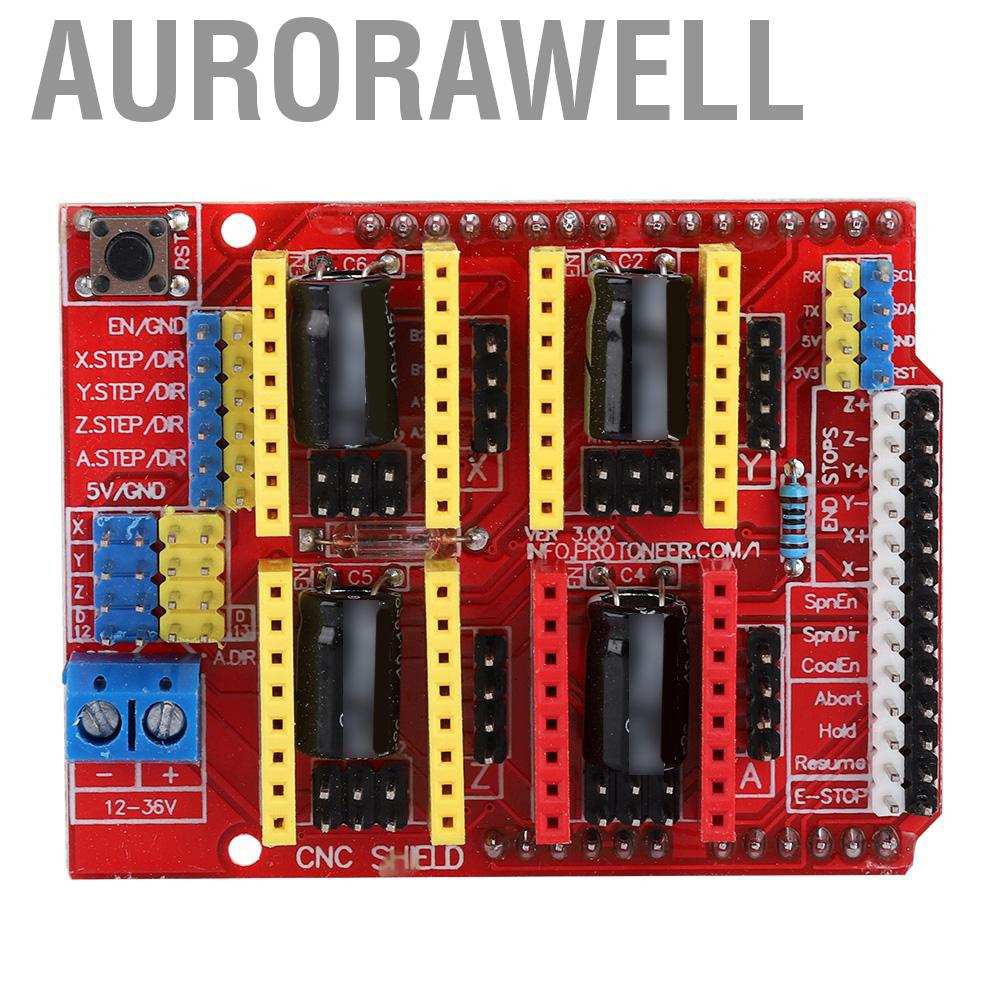

CNC V3 Board:
Detachable A4988 compatible stepper drive.

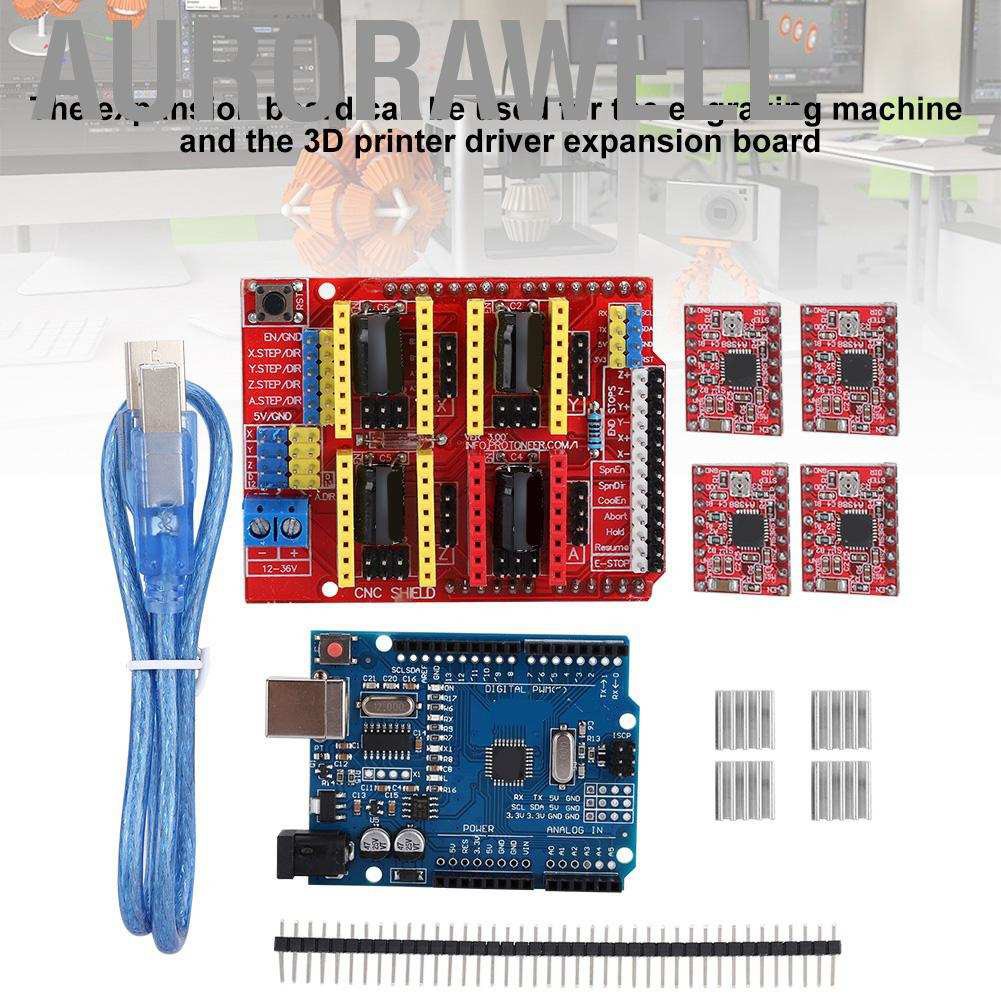

The expansion board can be used for the engraving machine and the 3 d printer driver expansion board.
GRBL 0.8 compatible. Open source firmware running for Arduino UNO, converting G code commands to step signals.
PWM spindle and direction pins, 4-axis support (X, Y, Z, A- can copy X, Y, Z or make a complete 4th axis, using custom firmware, using pins D12 and D13).
Compact design. The stepper motor can be connected or soldered into place with a 4-pin molex connector.
Please note that this is an unassembled kit that requires basic welding skills.

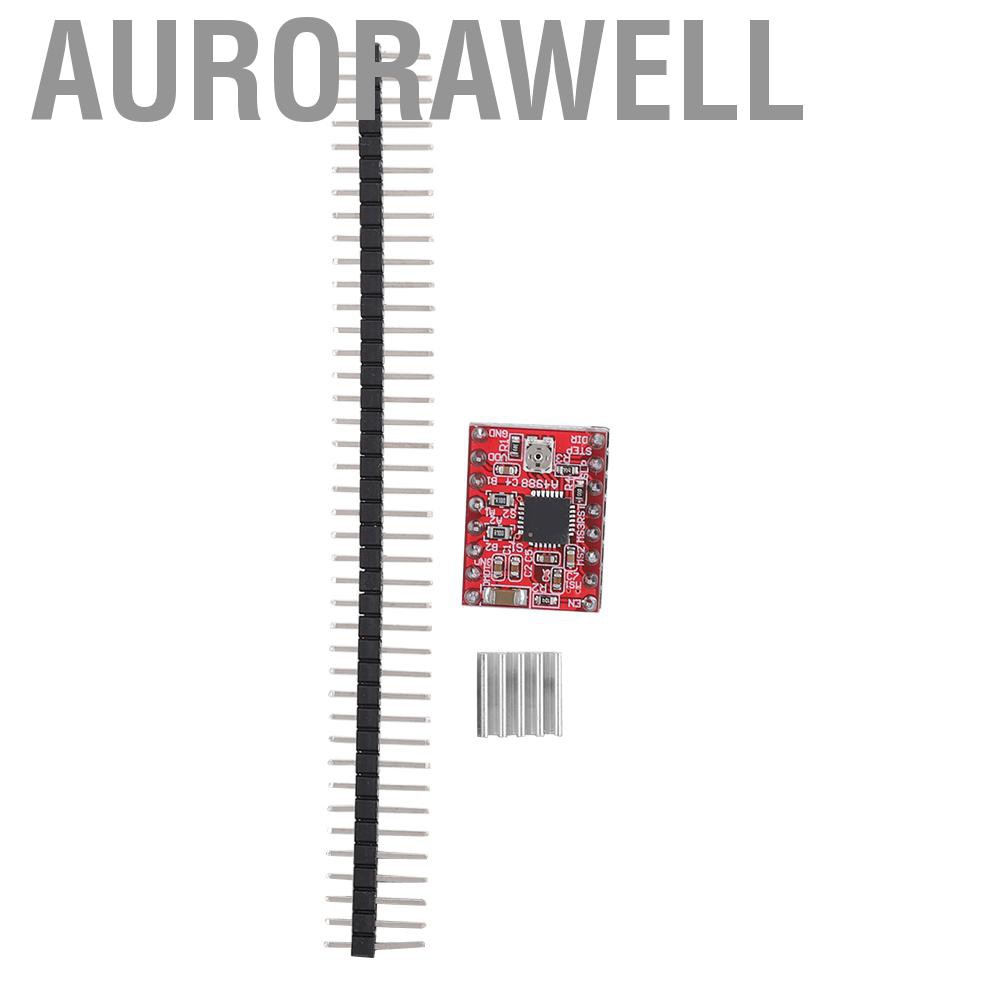

A4988 Stepper Motor Driver:

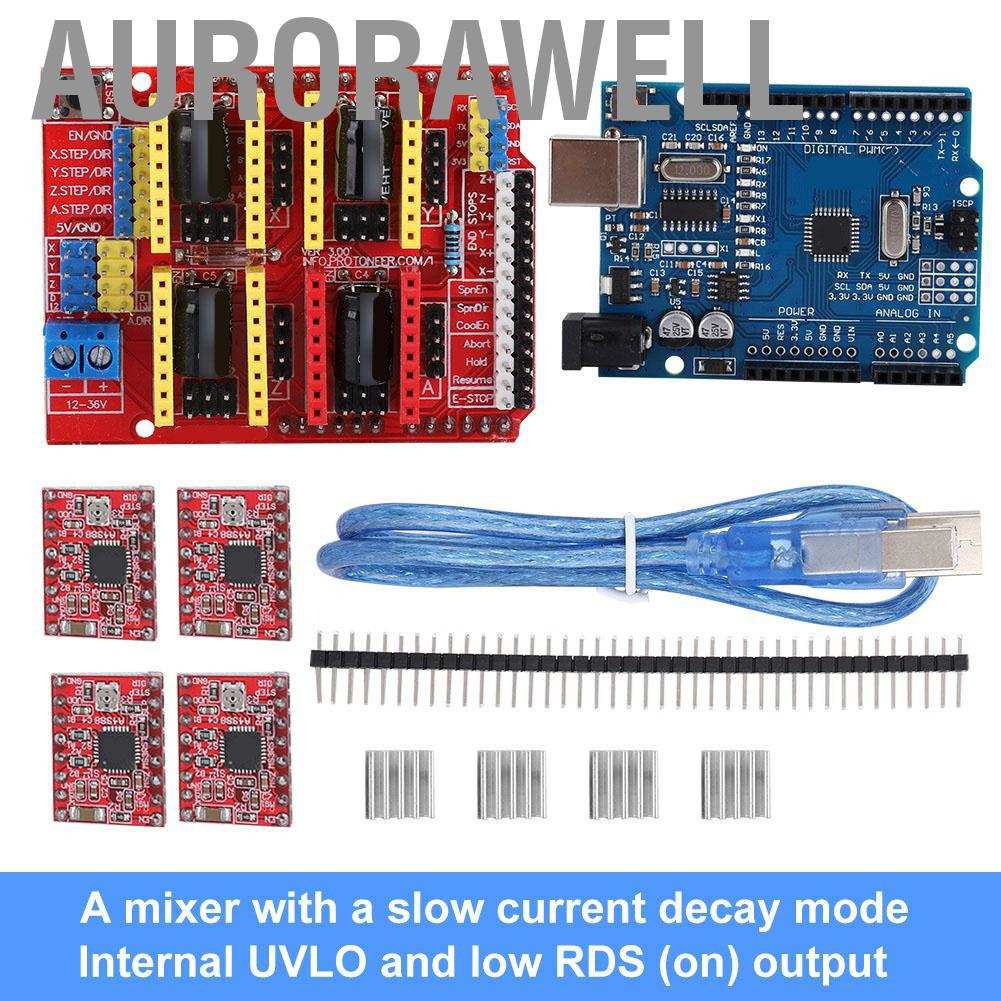

A mixer with a slow current decay mode.
Internal UVLO and low RDS (on) output.
Automatic current decay mode detection/selection.
Synchronous rectification, low power consumption.
Warning: Connecting or disconnecting the stepper motor while the drive is powered may damage the drive.
Specifications:
CNC V3 Board:
Color: Red
Voltage: DC 12~36 V (At this time, only the DRV8825 driver can handle voltages up to 36V, so please consider the operating voltage when powering the board.)
A4988 Stepper Motor Driver:
Color: Red
Thermal shutdown circuit: yes
Cross current protection: yes
Ground fault protection: yes
Load short circuit protection: yes
Compatible logic supplies: 3.3V and 5 V

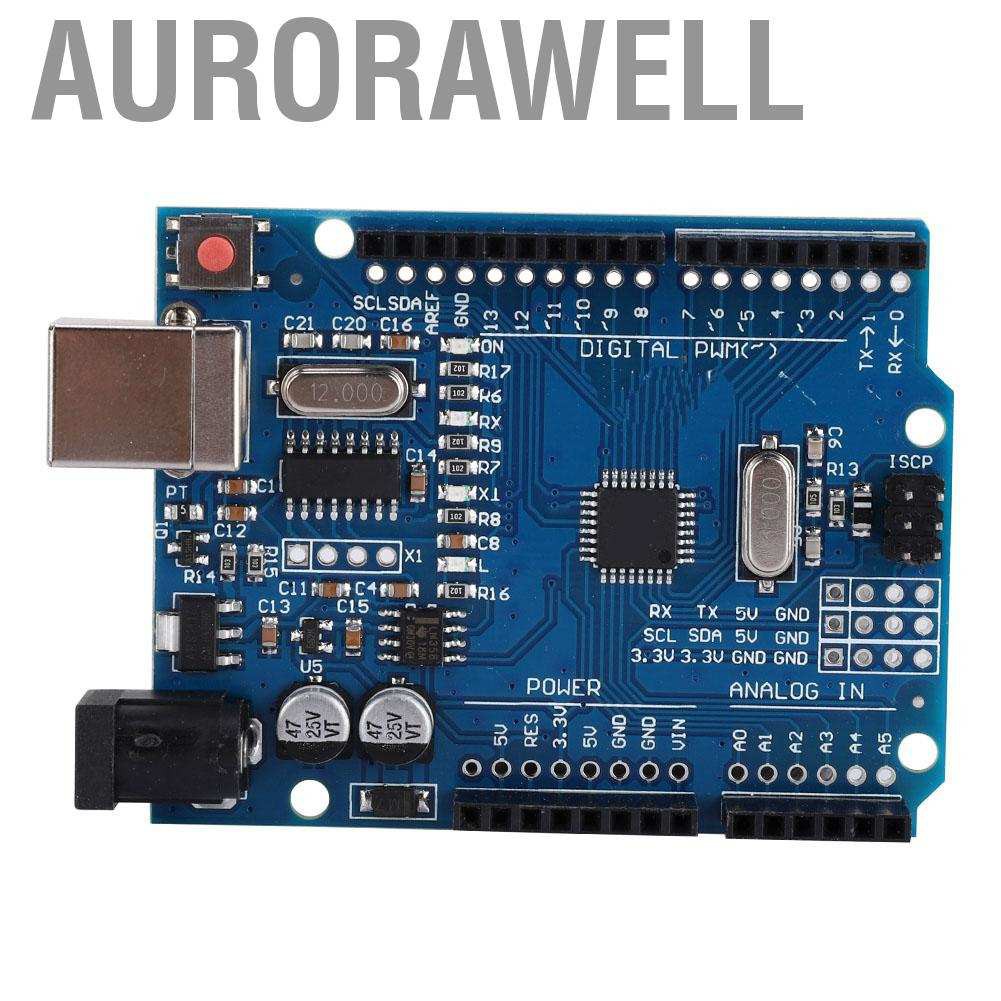

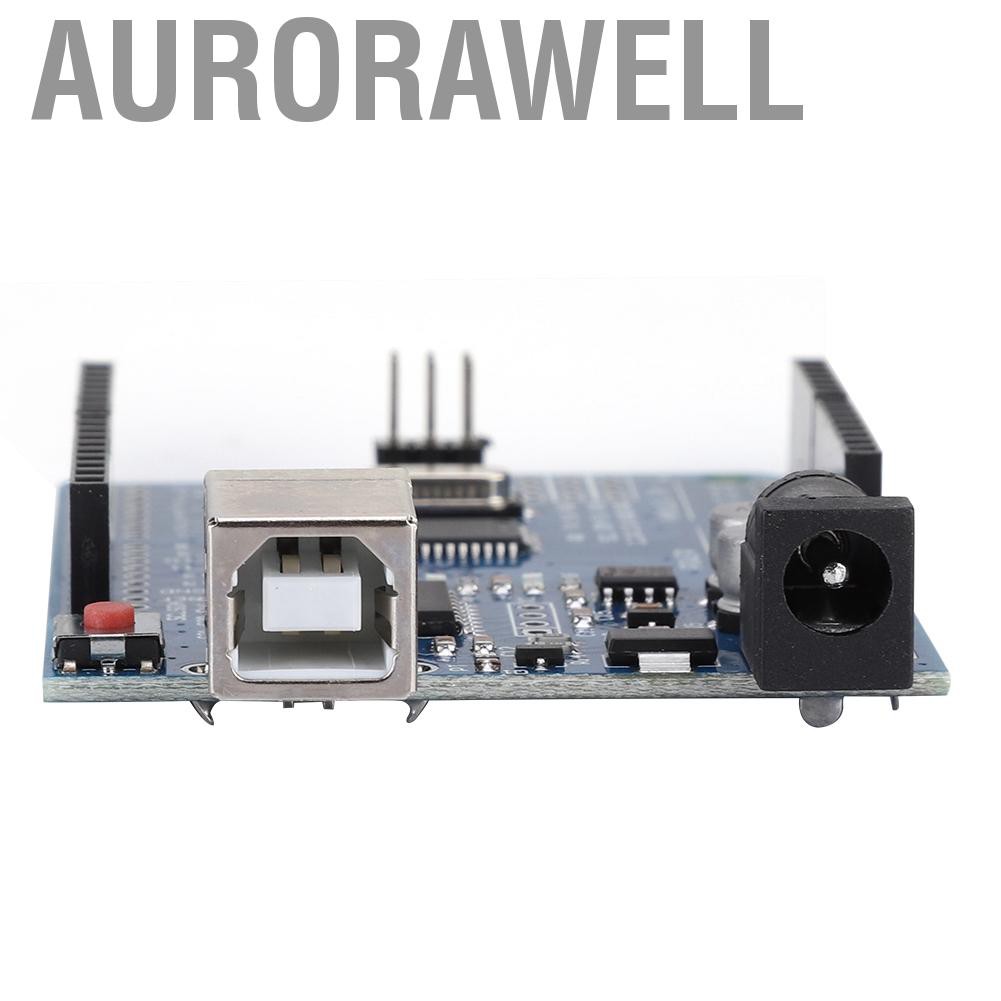

UNO R3 Board:
Single chip microcomputer: ATmega328
Clock speed: 16 MHz
USB interface: ATmega16U2
Operating voltage: 5 V
I-I / O pin output current: up to 40 mA
3.3 V output current: up to 150 mA
Digital I/O pins: 14 (including 6 PWM-capable pins)
Analog input pin: 6
EEPROM: 1 kB
Static RAM (SRAM): 2 kB
Flash: 32 kB

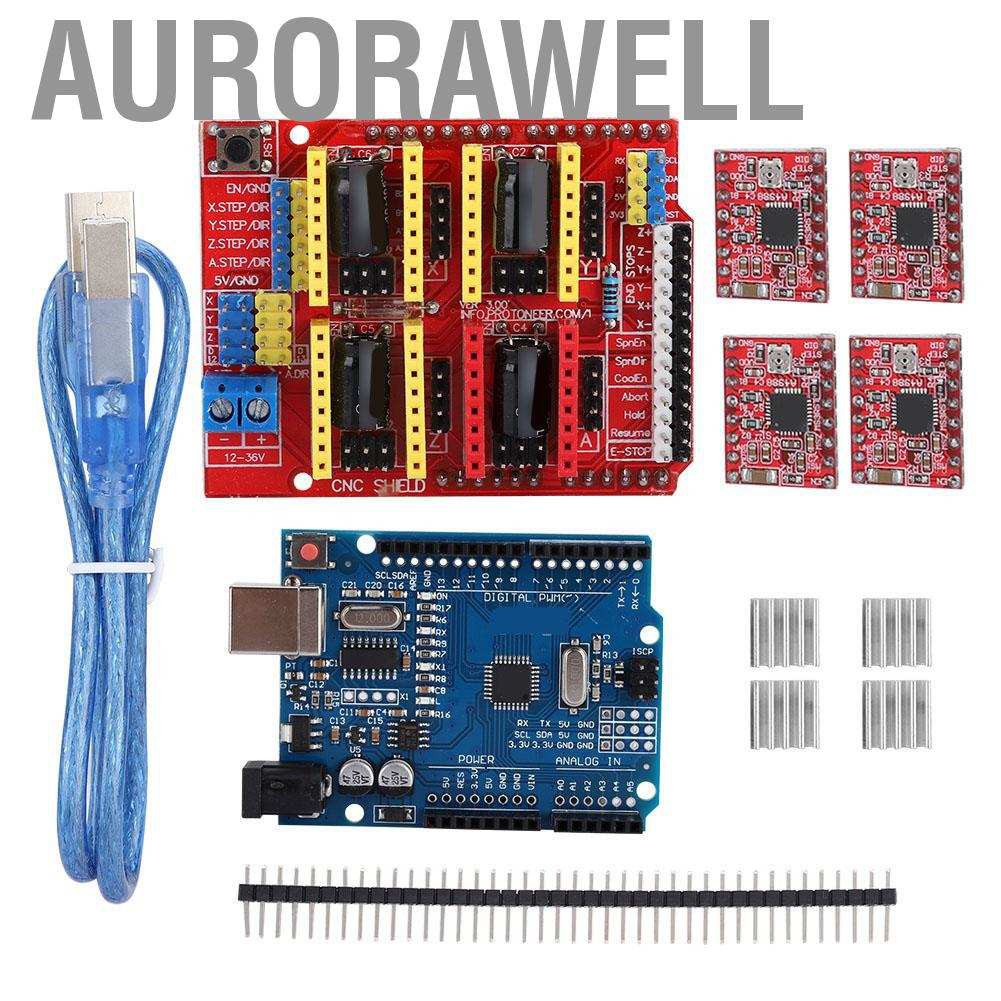

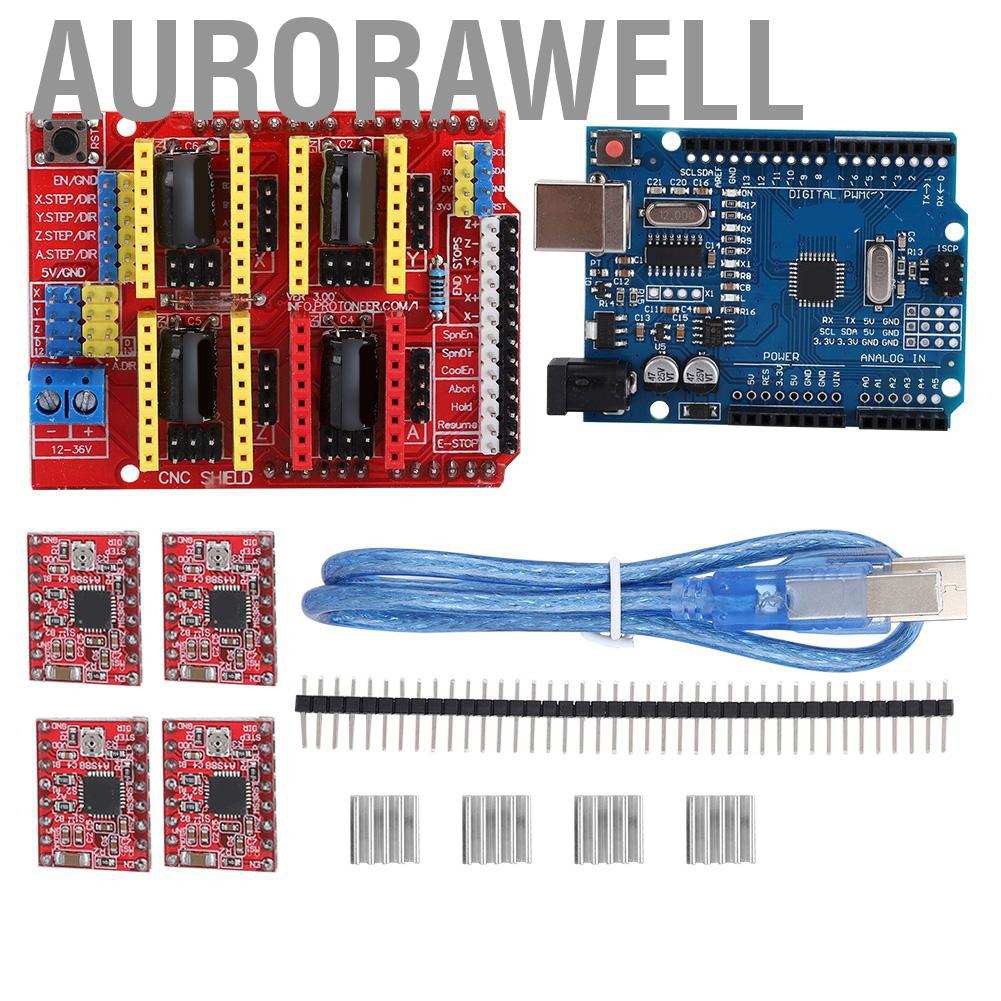

Package List:
1 * UNO R3 Board
1 * CNC Shield V3 Expansion Board
4 * A4988 Stepper Motor Driver
1 * 40-way Pin

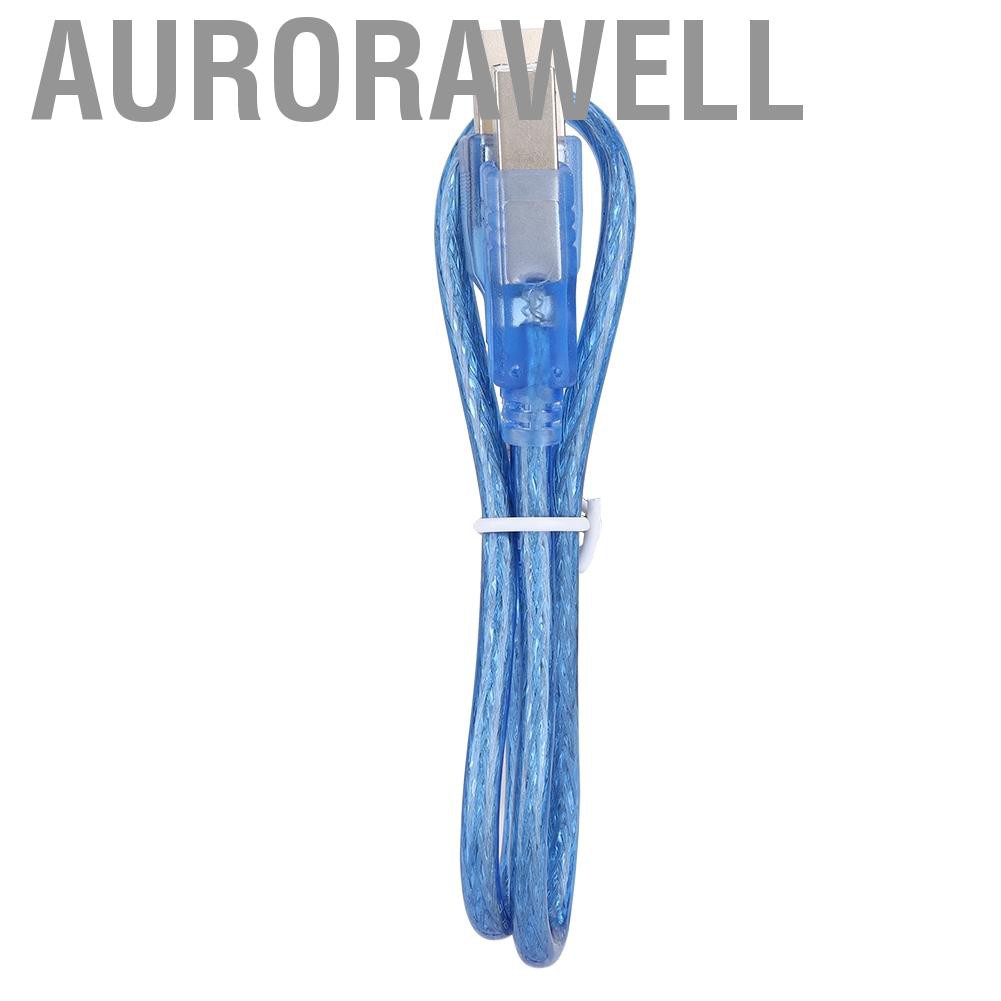

1 * USB Cable
