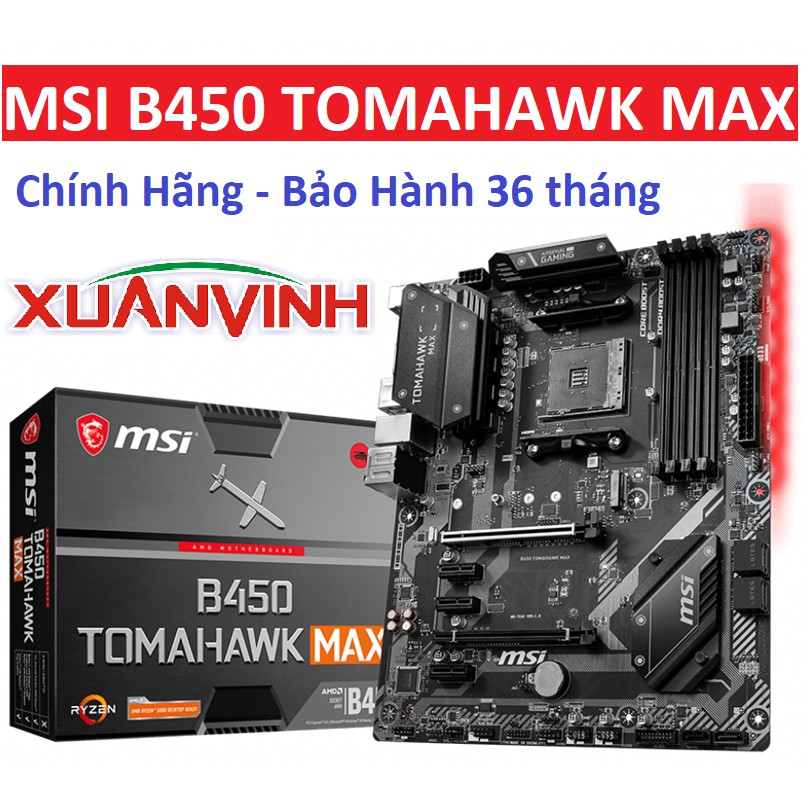

Bo Mạch Chủ mainboard MSI B450 TOMAHAWK MAX II và Tomahawk Max NEW CHÍNH HÃNG

Mới 100% Bảo Hành Chính Hãng 36 tháng.
Sản phẩm
Bo mạch chủ
Tên Hãng
MSI
Model
B450 TOMAHAWK MAX
CPU hỗ trợ
AMD
Chipset
B450
RAM hỗ trợ
4 x DDR4 memory slots, support up to 64GB DDR4
Khe cắm mở rộng
1 x PCIe 3.0 x16 slot (PCI_E1)
Ổ cứng hỗ trợ
2 x SATA 6Gb/s ports1
1 x M.2 slot (Key M
Cổng kết nối (Internal)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Serial Port connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors
Cổng kết nối (Back Panel)
Flash BIOS Button
PS/2 Combo Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
HDMI Port
USB 3.2 Gen2 Type A+C
LAN / Wireless
1 x Realtek® 8111H Gigabit LAN controller
Kích cỡ
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
