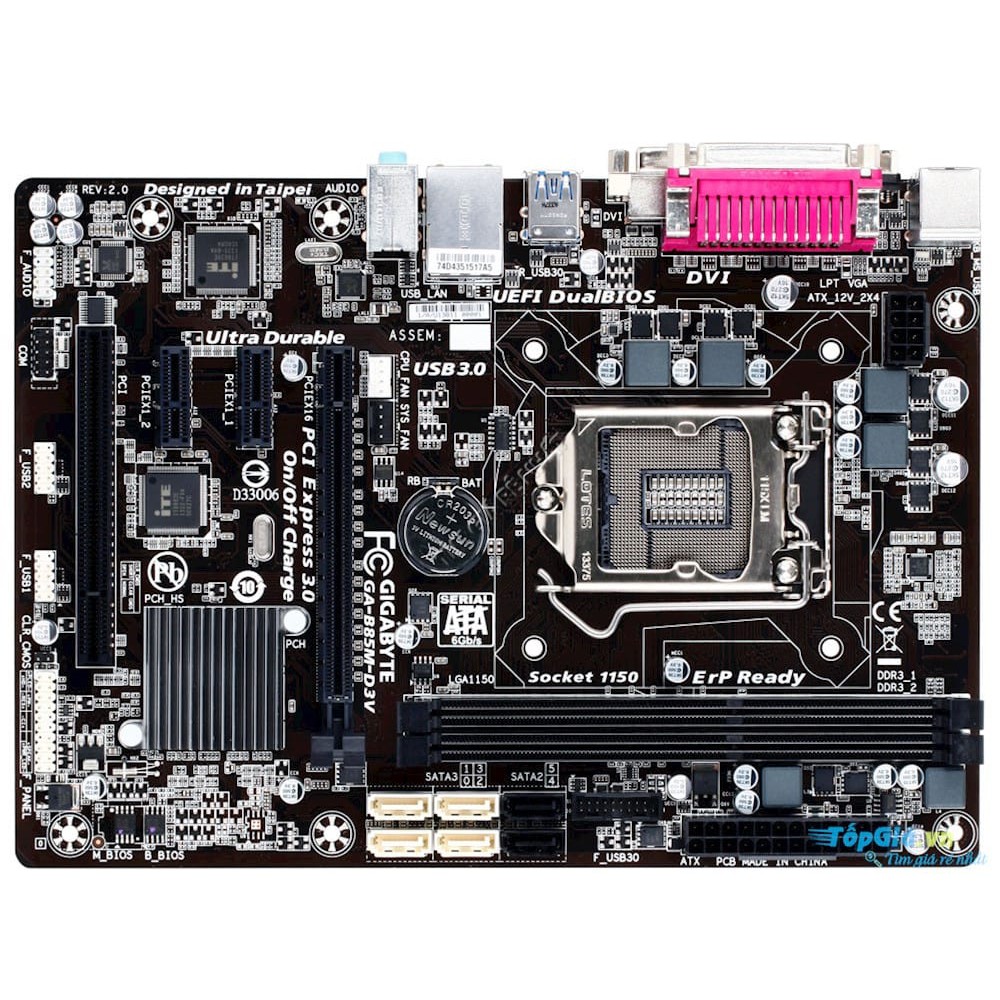

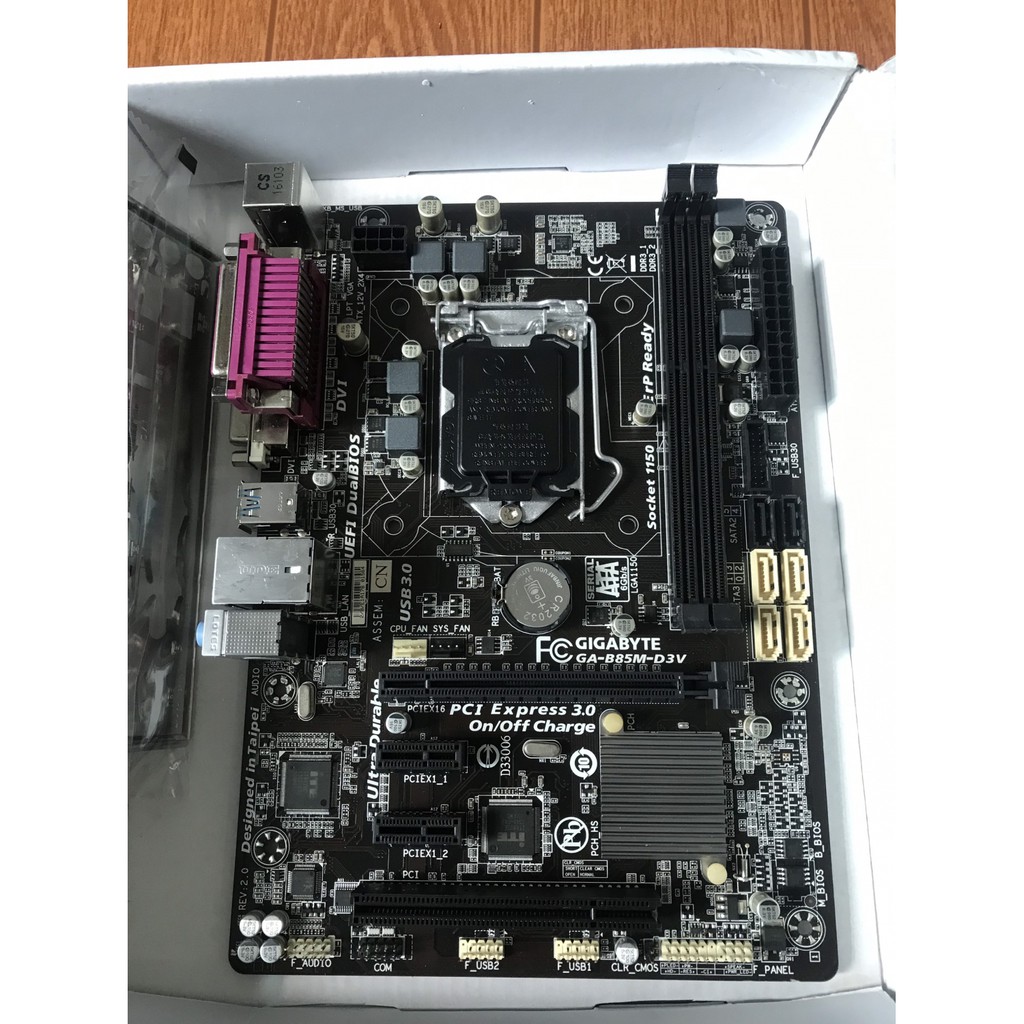

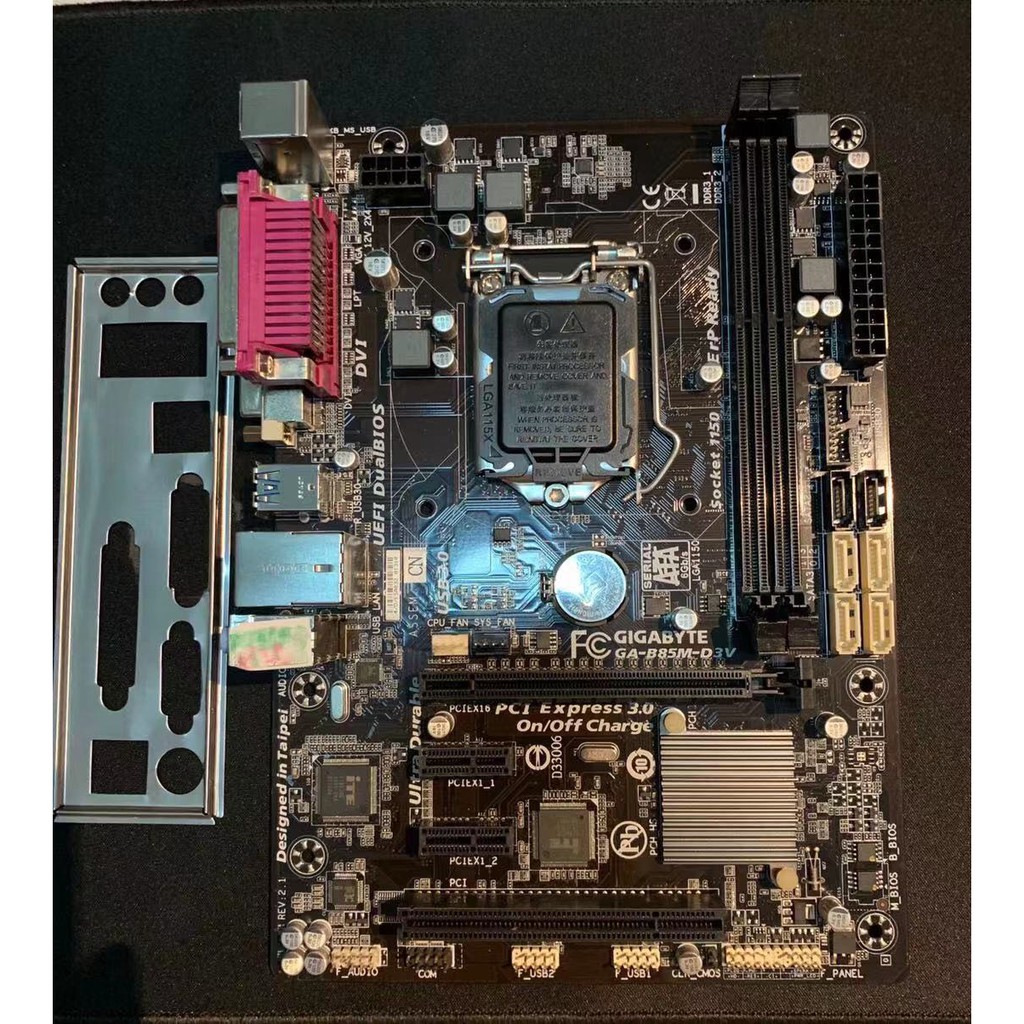

Bo mạch chủ Gigabyte b85m-d3v
0 Đánh Giá
Đã Bán 0
162
580.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuận Hồng Bàng, Hải Phòng
thứ sáu 30/04/2021 lúc 09:57 CH
normal
MÔ TẢ SẢN PHẨM
CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® B85 Express Chipset
Bộ nhớ
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Âm thanh
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
1 x PCI slot
Giao diện lưu trữ
Chipset:
4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)
2 x SATA 3Gb/s connectors (SATA2 4/5)
USB
Chipset:
4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
Kết nối bảng phía sau
1 x PS/2 keyboard/mouse port
1 x parallel port
1 x D-Sub port
1 x DVI-D port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Điều khiển I/O
iTE® I/O Controller Chip
Theo dõi phần cứng
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® B85 Express Chipset
Bộ nhớ
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Âm thanh
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
1 x PCI slot
Giao diện lưu trữ
Chipset:
4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)
2 x SATA 3Gb/s connectors (SATA2 4/5)
USB
Chipset:
4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
Kết nối bảng phía sau
1 x PS/2 keyboard/mouse port
1 x parallel port
1 x D-Sub port
1 x DVI-D port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Điều khiển I/O
iTE® I/O Controller Chip
Theo dõi phần cứng
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications
