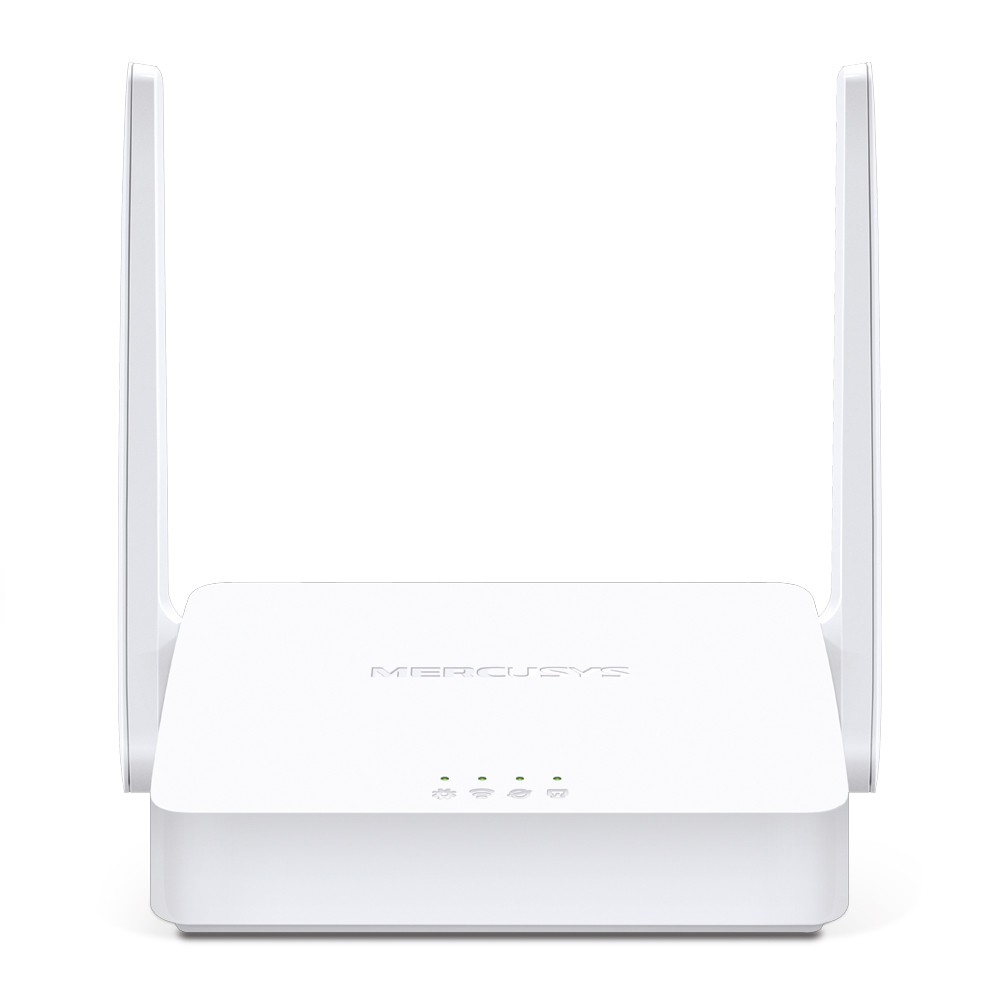

Bộ Định Tuyến Không Dây Mercusys Mw302R

Ethernet ports
2x10 / 100mbps lan ports &
1x10 / 100mbps wan port

Button
Reset button.


External power supply
5v / 0.6a

Dimensions (w x d x h)
114mm x 94mm x 26mm


Type antenna
2x5dbi

Package contents.
300mbps wireless n router mw302r
Power adapter
Quick installlation guide
Ethernet cable

Wireless standards
802.11b / g / n

Frequency
2.4-2.4835ghz

Signal rate
11n: Up to 300mbps (dynamic)
11g: Up to 54mbps (dynamic)
11b: Up to 11mbps (dynamic)

Reception sensitivity
270m: - 73dbm @ 10% per cent
130m: - 75dbm @ 10% per cent
54m: - 77dbm @ 10% per
11m: - 90dbm @ 10% per
6 m: - 94dbm @ 10% per
1 m: - 96dbm @ 10% per

Wireless functions
Wireless wds bridging enable / disable

Wireless security
Wpa-psk / wpa2-psk

Wan type
Dynamic ip / static ip / pppoe / pptp / l2tp

Dhcp.
Server

Port forwarding
Virtual server, upnp, dmz

Management
Access control, local management, remote management

Firewall security.
Ip and mac address binding

Guest network
2.4ghz guest network

Protocols
Ipv4, ipv6.

Environment.
Operating temperature: 0°C ~ 40.°C (32)°F ~ 104.°- f)
Temperature storage: - 40°C ~ 70.°C (- 40°F ~ 158.°- f)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5% ~ 90% non-condensing
