Bộ Điều Khiển Tốc Độ Động Cơ 5a 3v-14v
0 Đánh Giá
Đã Bán 0
78
94.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ sáu 14/05/2021 lúc 03:25 CH
MÔ TẢ SẢN PHẨM
1. Two motors can be controlled independently, each of which can output current 5A, peak value 9A, and standby current only 10uA;
2. Wide power supply range 3-14V, signal power supply range 2.2-6V, 3.3V and 5V levels can be met;
3. The board provides a 3.3V 100ma power supply to meet the power consumption of your control system. It can also be used with a 433M wireless ule to remotely control motors or other loads;

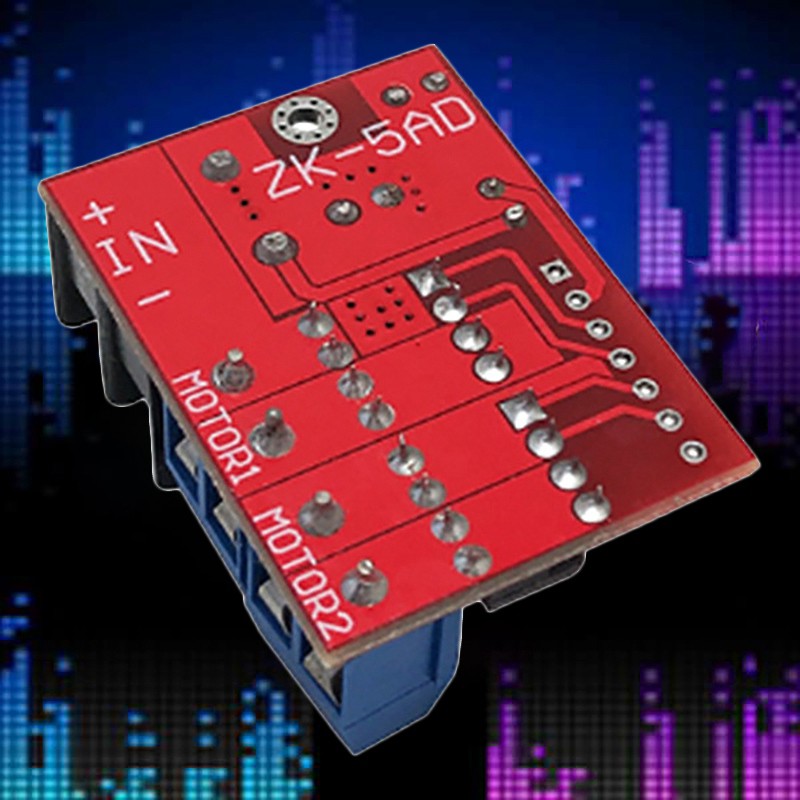

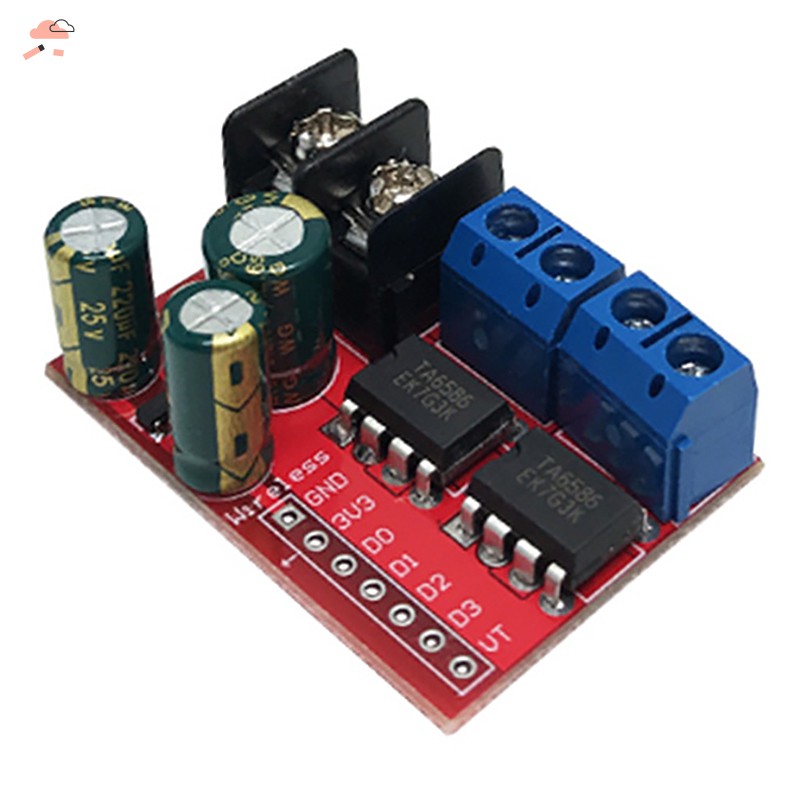

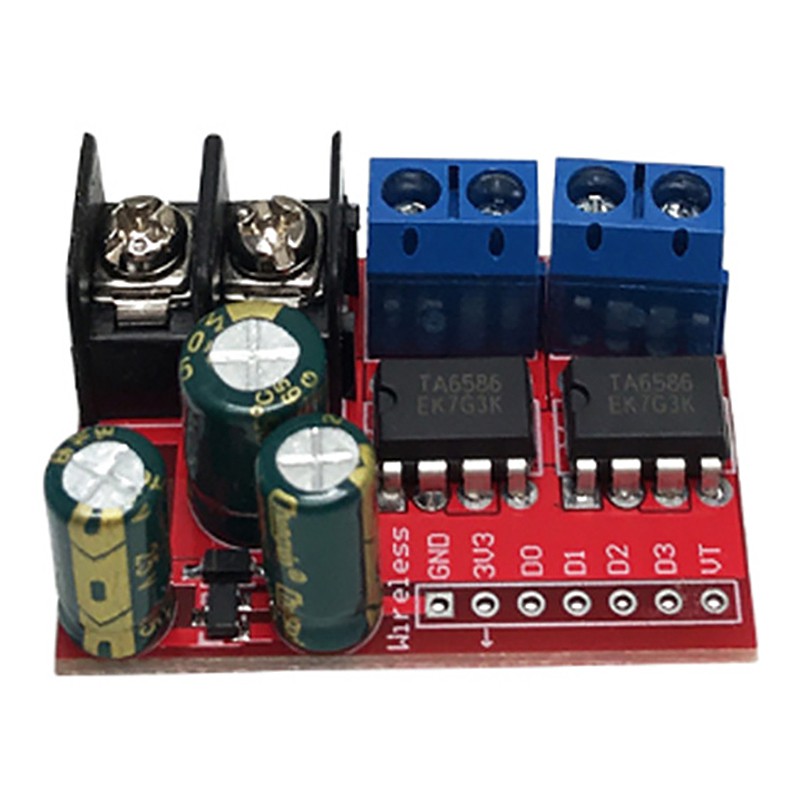

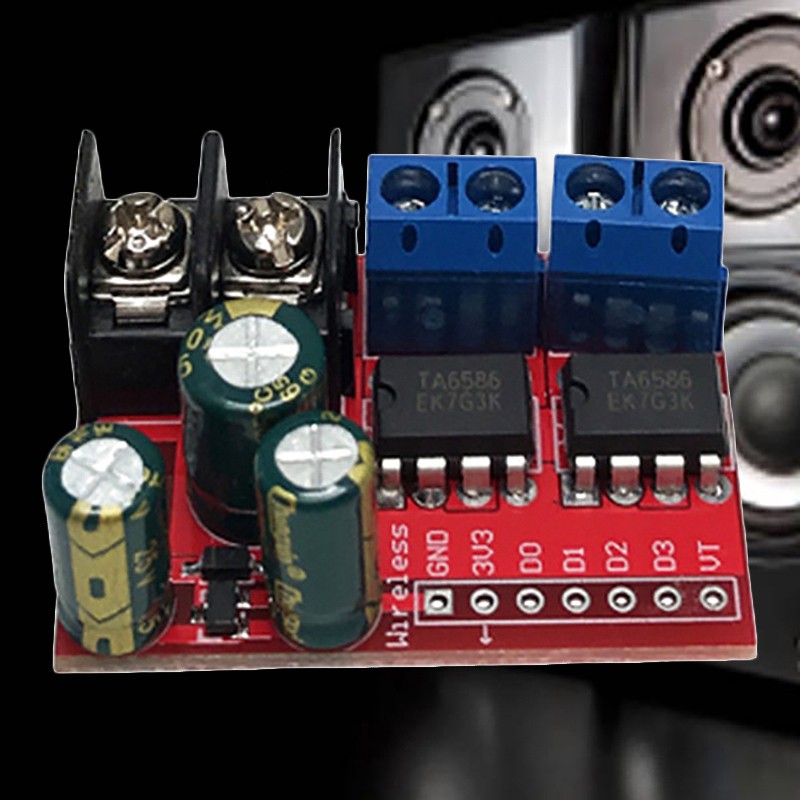

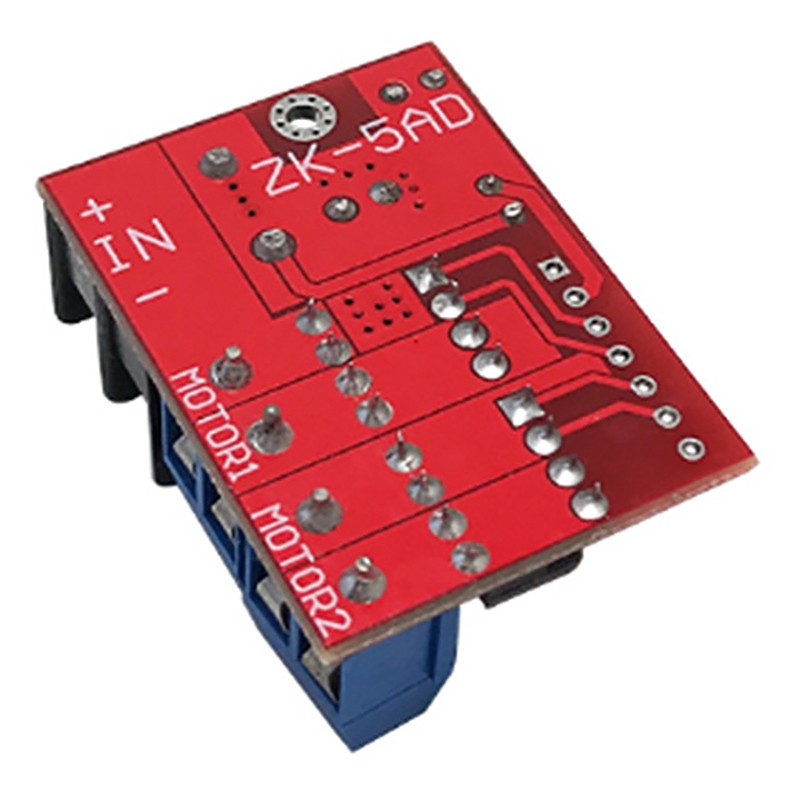

Product name: 5A dual-channel DC motor drive ule

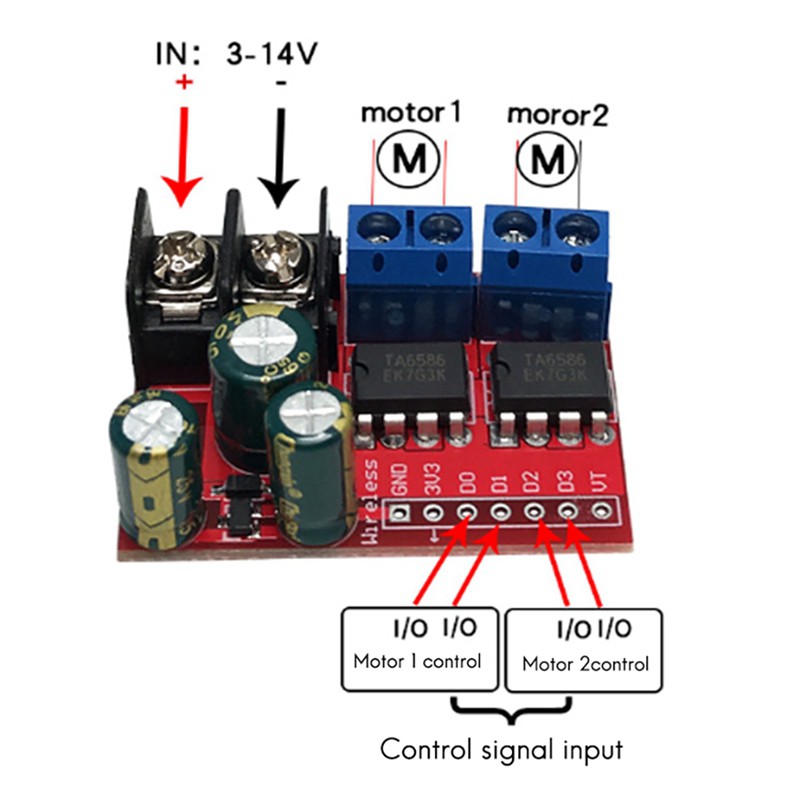

Dual H-bridge motor drive, can drive two DC motors or one 4-wire two-phase stepping motor at the same time;
ule power supply voltage: 3V-14V
Signal input voltage: 2.2-6V, support 3.3V and TTL level
Single channel working current: 5A, peak current up to: 9A, low standby current (less than 10uA)
Processor speed: 2
Mounting hole diameter: 2 mm
Featured service: double H bridge with forward and reverse PWM speed regulation
size:38.5 x 28 x 14mm
Material:PCB+metal
colour:As shown
Package Contents:
1 x 5A dual-channel DC motor drive uleOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
