MÔ TẢ SẢN PHẨM
Support all within 12V 5A fans, synchronous rectifier output, high efficiency!
Even if a large current work does not require additional heat sink!
A plurality of fans can be used in parallel (total current does not exceed 5A), supports automatic temperature control and manumotive speed control, temperature control speed with four temperature zones for setting up, easy to apply in a variety of applications!
It can be opened with a three-wire fan monitoring function (stall warning).
Working voltage:DC12V
Circuit load capacity: maximum current per output 5A, the bus currents up 9A
Output Range: The first channel 20% -100%, or 40% -100% (TFL = ON)
The second channel and the third channel 10% -100%
(Note: Above range only for PWM range, the actual control effect will vary depending on the fan.)
Temperature probe parameters: 50K B = 3950
Thermostat temperature zone error: error depending on the temperature probe, generally 3-5%
Stall alarm minimum speed: 700-800 rpm

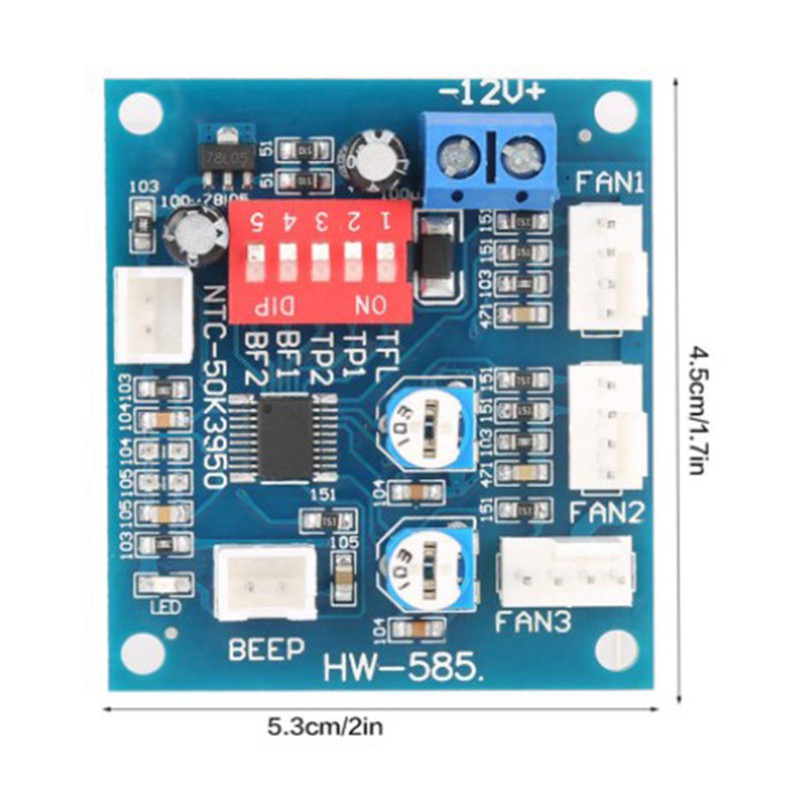

size:50 x 43 x 13mm
Material:plastic
colour:blue
Package Contents:
1 x Voltage RegulatorOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
