Bộ Chuyển Đổi Hdmi Cho Camera An Ninh 720P / 1080P
1 Đánh Giá
1 Đã Bán
136
538.210 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ ba 03/12/2019 lúc 11:23 CH
welcom to klforever11 Shope!
Description:
The SDI interface operates at 2.970 Gbit / s bit rate, 2.970 / 1.001 Gbit / s, 1.485 Gbit / s, 1.485 / 1.001 Gbit / s and 270 MB / sec.
Support HDMI input timing: 480i @ 59.94,576I, 720p @ 50 / 59.94 / 60,1080i @ 50 / 59.94 / 60,1080p @ 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60.
HDMI signals are converted to SDI: 480i / 576i to SD-SDI (SMPTE259M-C, at a bit rate of 270 Mbit / s)
720P / 1080i in HD-SDI (SMPTE292M, at a bit rate of 1.485 Gbit / s or 1.485 / 1.001 Gbit / s)
1080 to 3G-SDI (SMPTE424M / 425M-AB at a bit rate of 2.970 Gbit / s and 2.970 / 1.001 Gbit / s)
Support SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), two hundred and three hundred meters (SD-SDI)
Specification:

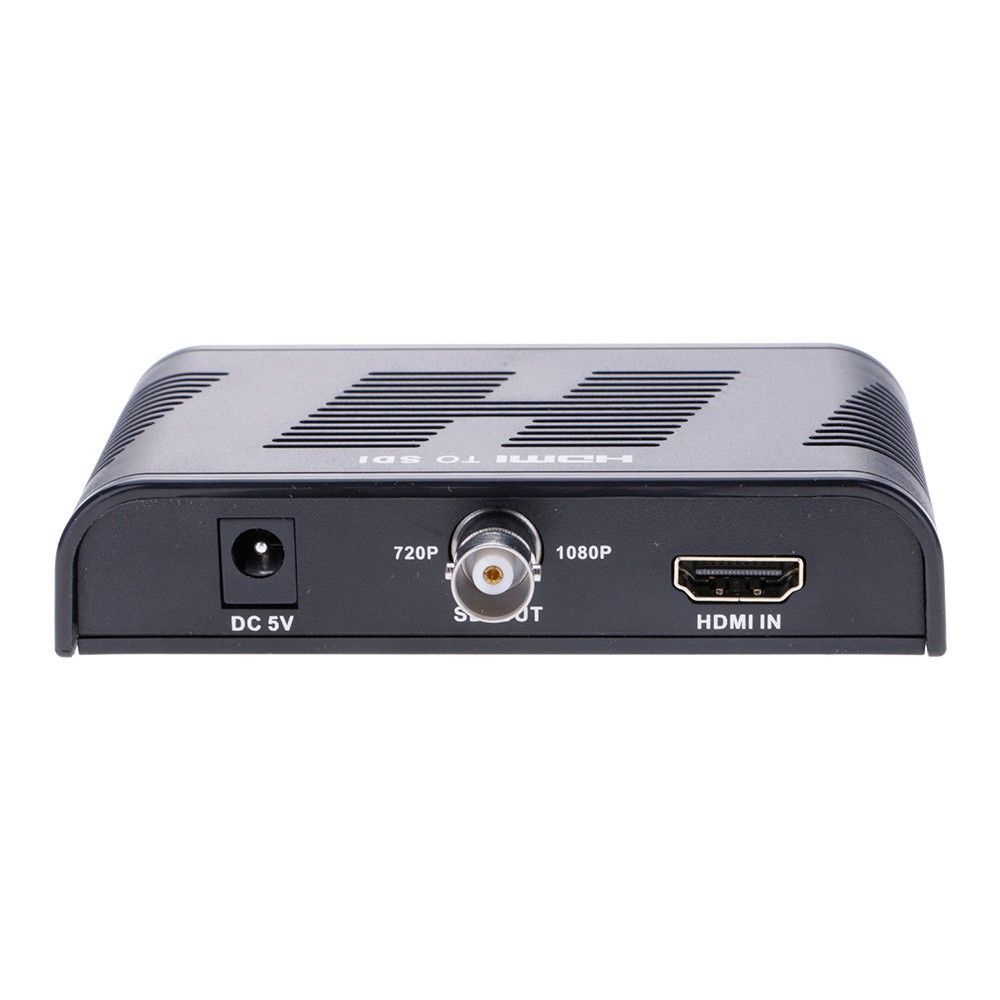

Input port 1 HDMI
Output port 1 BNC (SDI / HD-SDI / 3G-SDI)
SDI transfer rates of 2.970 Gbit / s and 2.970 / 1.001 Gbit / s
Input / output resolutions of 480i, 576i and 720p @ 50 / 59.94, 60,1080i @ 50 / 59.94 / 60
1080p@23.97/24/25/29.97/30/50/59.94/60
Pogap discharge),
± 4kV (contact discharge)

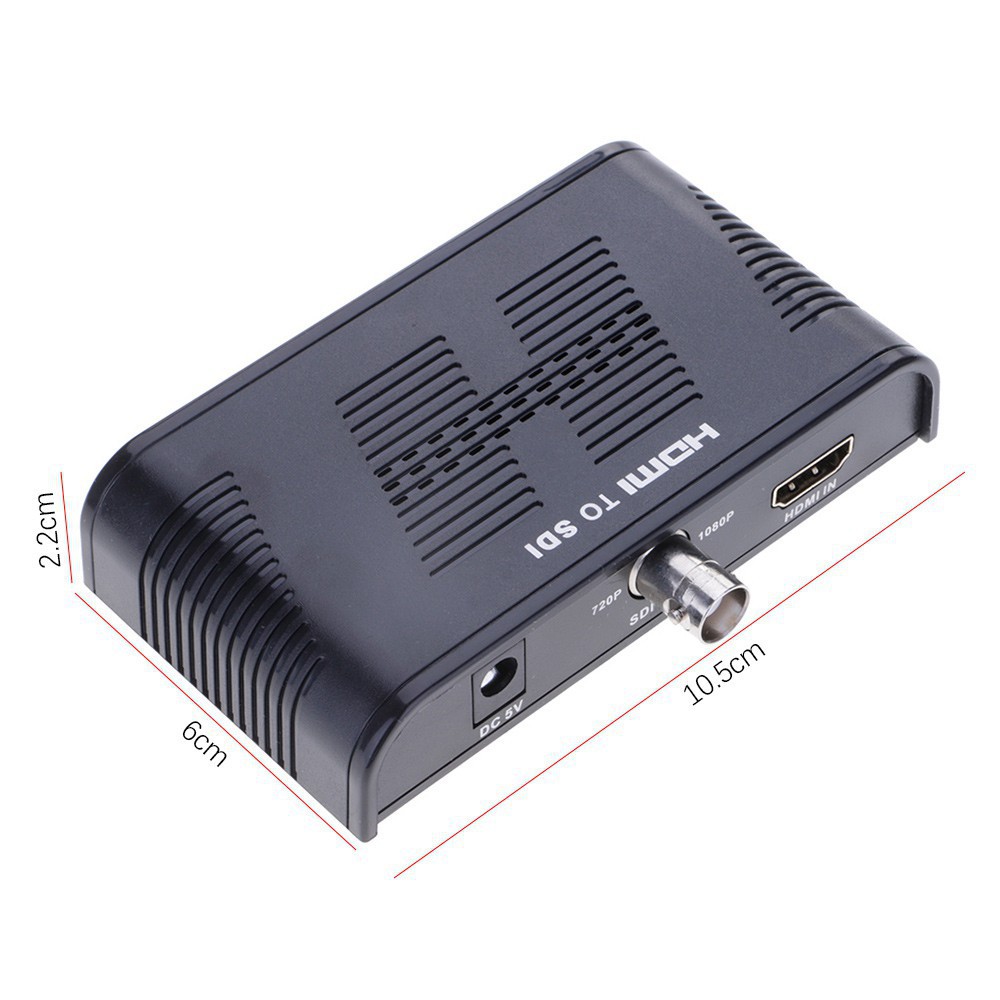

Size: 10.5*6*2.2cm
Operating temperature 0 ° C ~ 40 ° C / 32 ° F ~ 104 ° F
Storage temperature -20 ° C ~ 60 ° C / -4 ° F ~ 140 ° F
elative humidity 20 ~ 90% RH (non-condensing)
Po2cm error due to manual measurement. Please make sure you do not mind before you bid.
2. The colors may be different as the difference display, Please understand
Package Included:
1 x HDMI Video Converter Adapter
1 x
Power Charger
1 x User Manual
