MÔ TẢ SẢN PHẨM
Description:

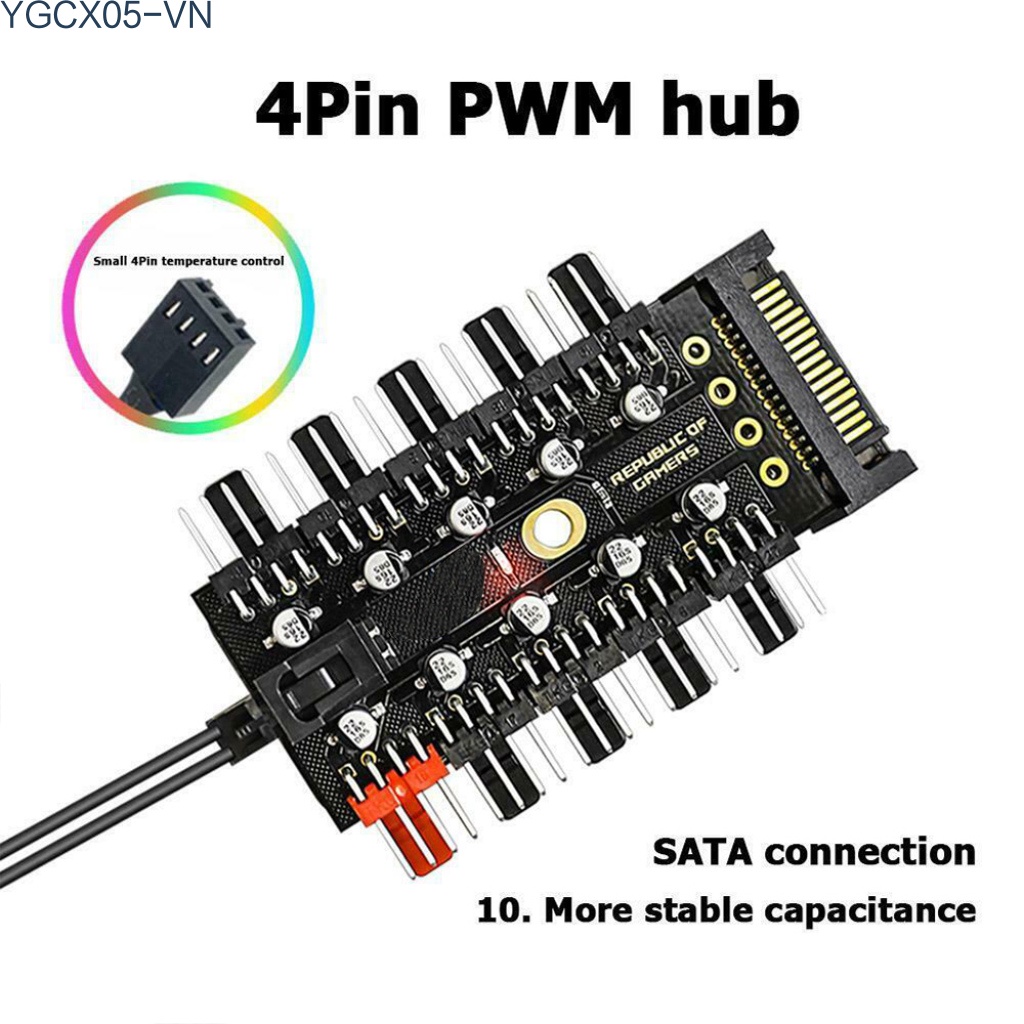

Expand the 10-pin fan 4-pin interface to solve the lack of motherboard interface and centralize the processing of fan wires.
Scope of application: suitable for 12V motherboard 3pin / 4pin fan, 3pin fan can also be used, but plug in to run at full speed, because 3pin fan has no PWM speed regulation.

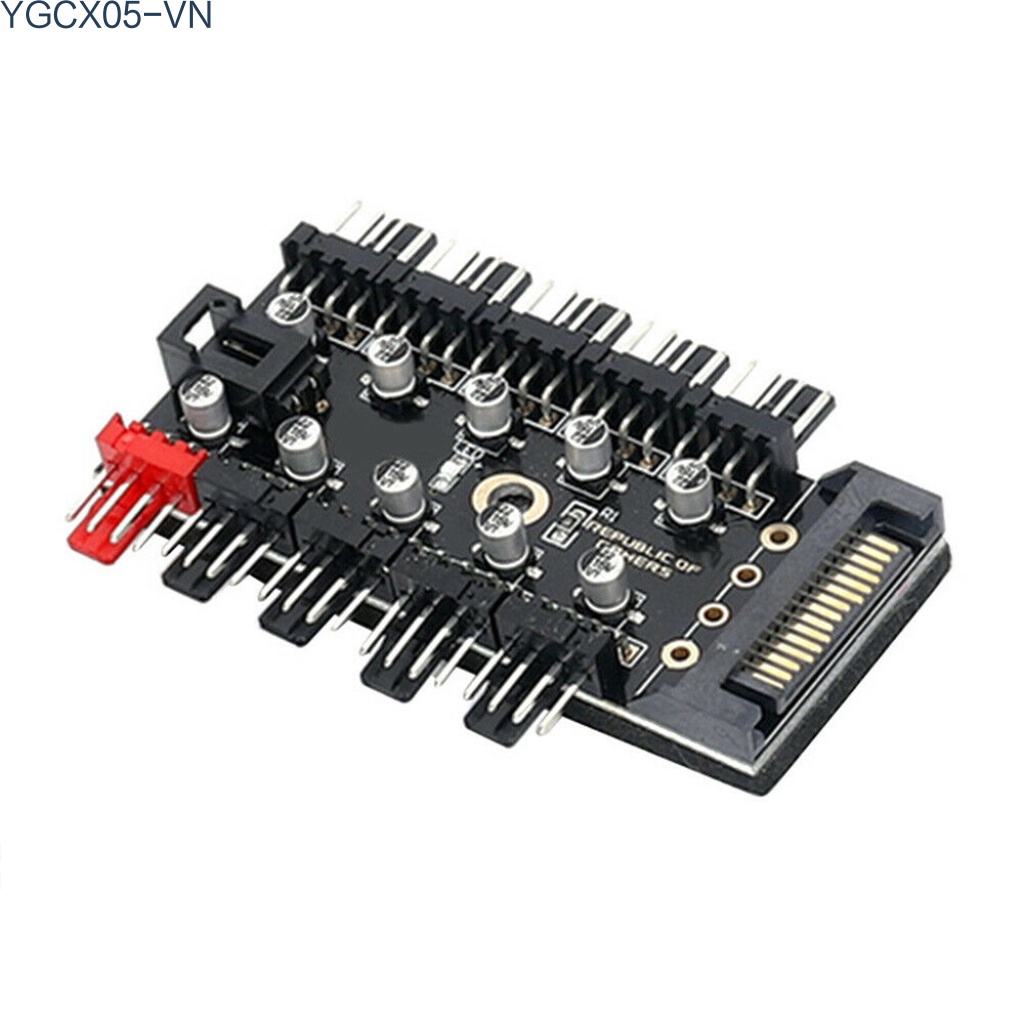

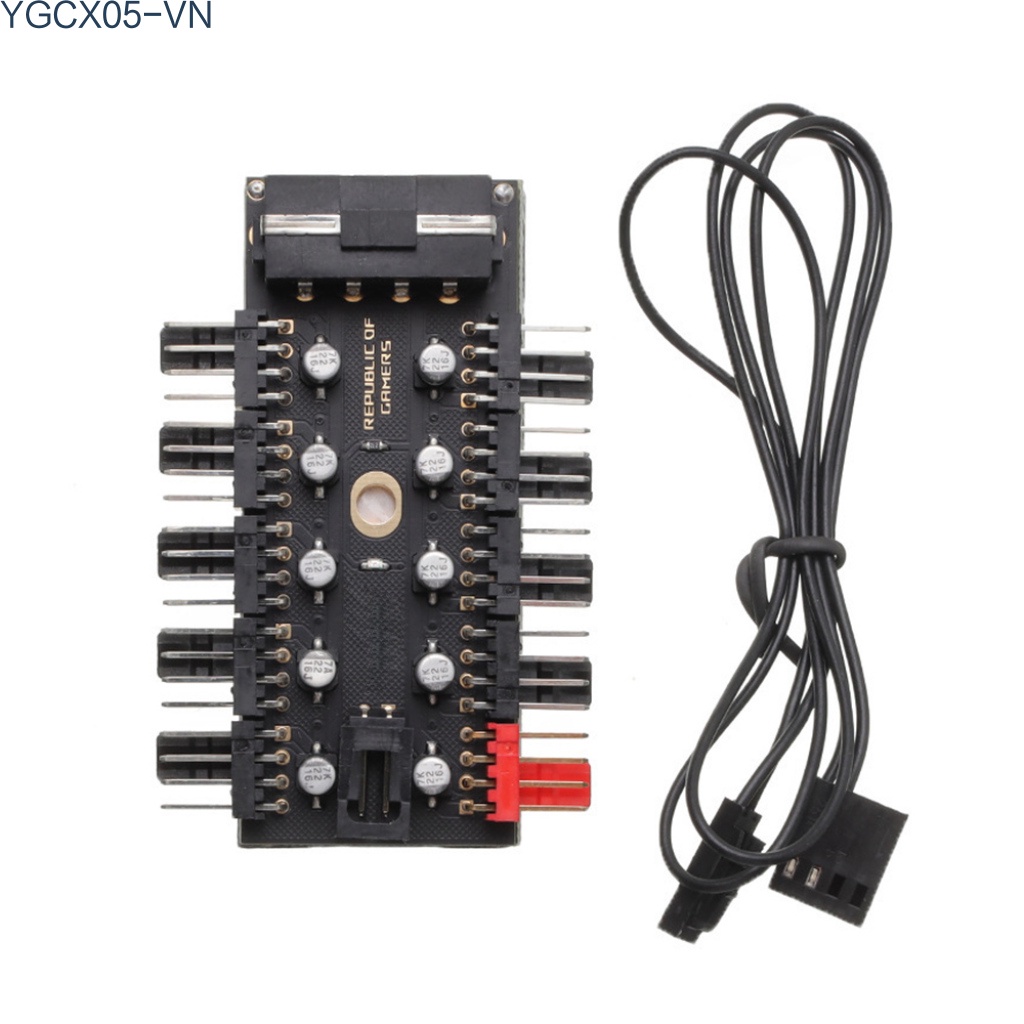

The back of the hub PCB board has adhesive, which is convenient for sticking in a flat place. Also comes with a fixed reel hole (product comes with a long PWM temperature control cable).

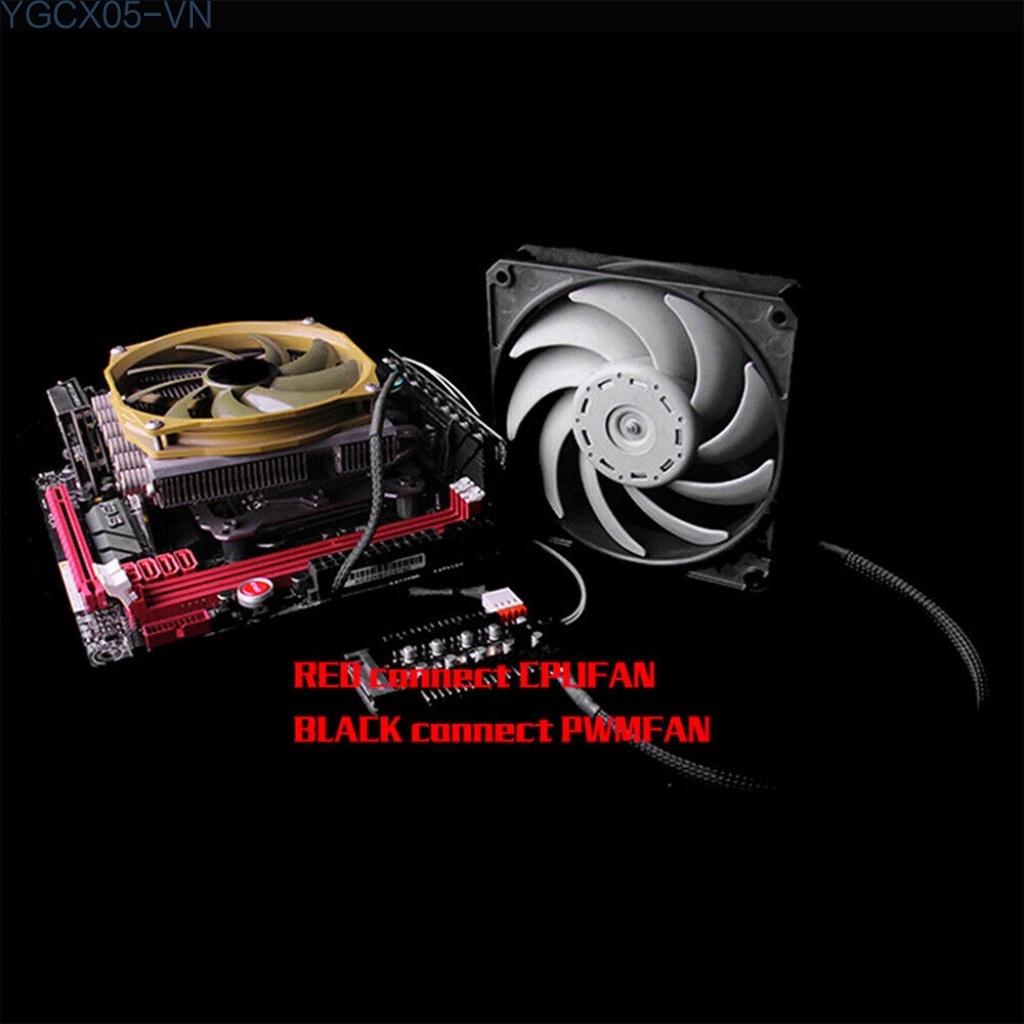

The PWM interface is connected to the CPU fan interface of the motherboard, and the red is the dedicated interface for the CPU fan (with speed measurement function). The black interface is a PWM conventional fan interface (no speed measurement signal, but does not affect the PWM function).

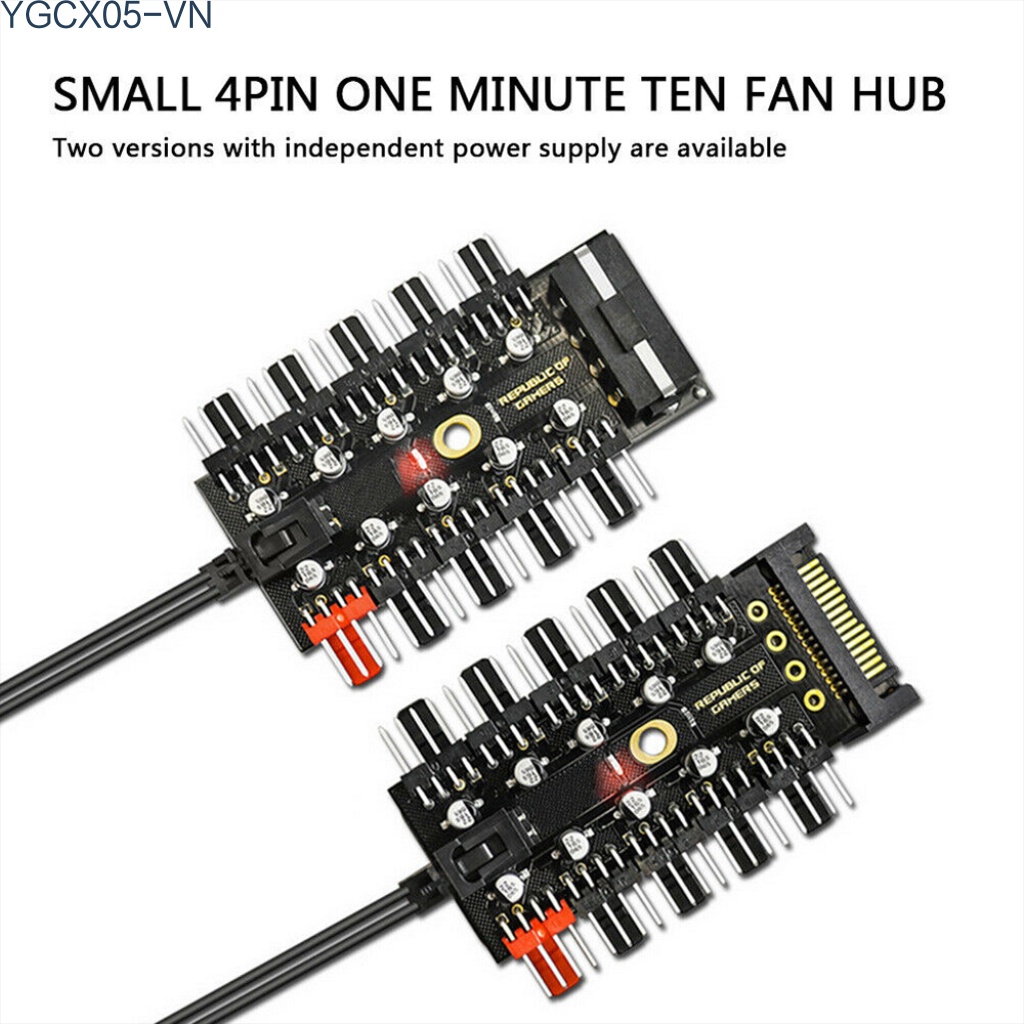

The power supply can be directly powered by the power supply, which can reduce the load pressure on the motherboard. The temperature control line PWM is separately connected from the motherboard, and the power supply and temperature control are correct.
Specifications:
Item name: 4 Pin PWM Cooler Fan HUB;Splitter
Material: Plastic + Metal
Color: Black

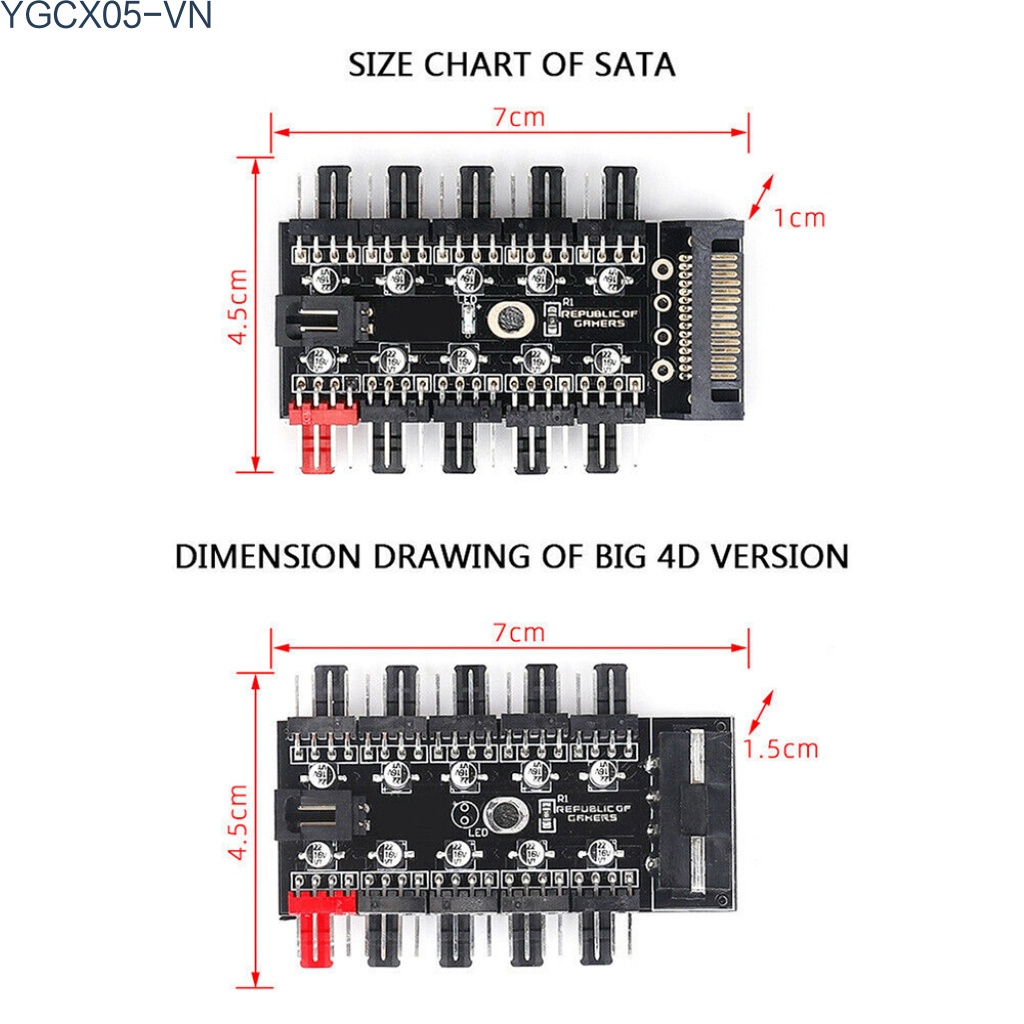

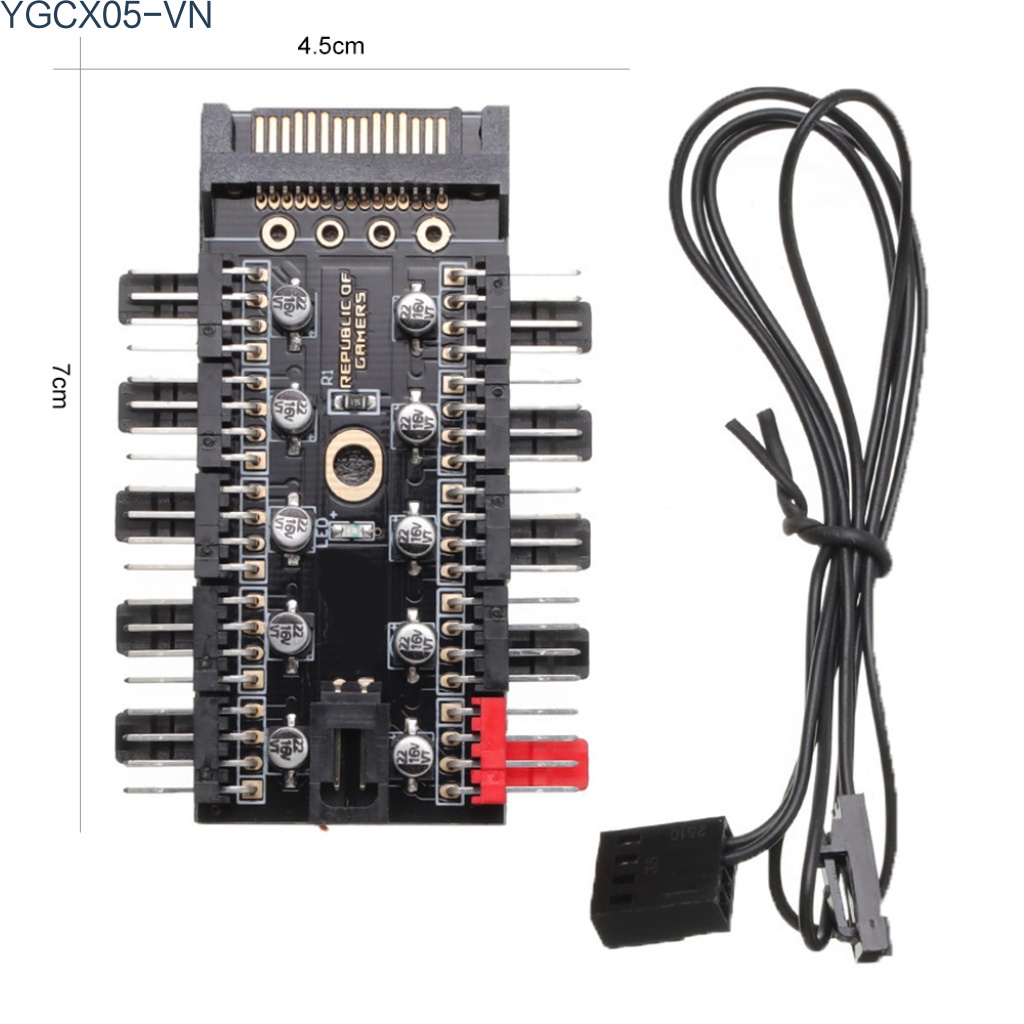

Size:
SATA Port Size:7 x 4.5 x 1cm
4Pin Port Size:7 x 4.5 x 1.5cm
Note:
- There might be little error of size for manual measurement.
- The colors deviation might differ due to different monitor settings, please kindly understand.
