Bộ Chia Cổng Usb 3.0 3.1 Usb-C Type C Usb 3.0 Sang 2.5 Sata 3 Cổng
0 Đánh Giá
Đã Bán 0
59
492.802 đ
Quốc tế
chủ nhật 08/08/2021 lúc 06:35 CH
MÔ TẢ SẢN PHẨM
Description:

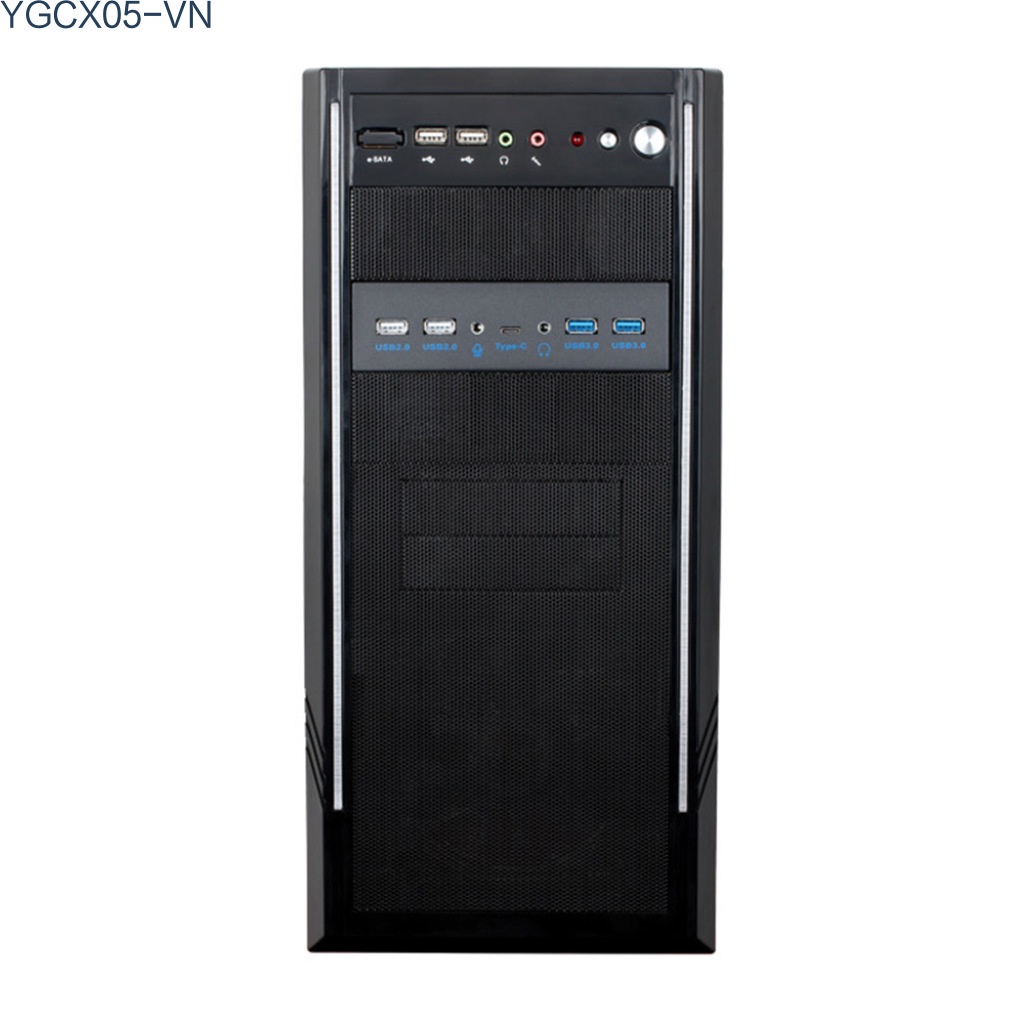

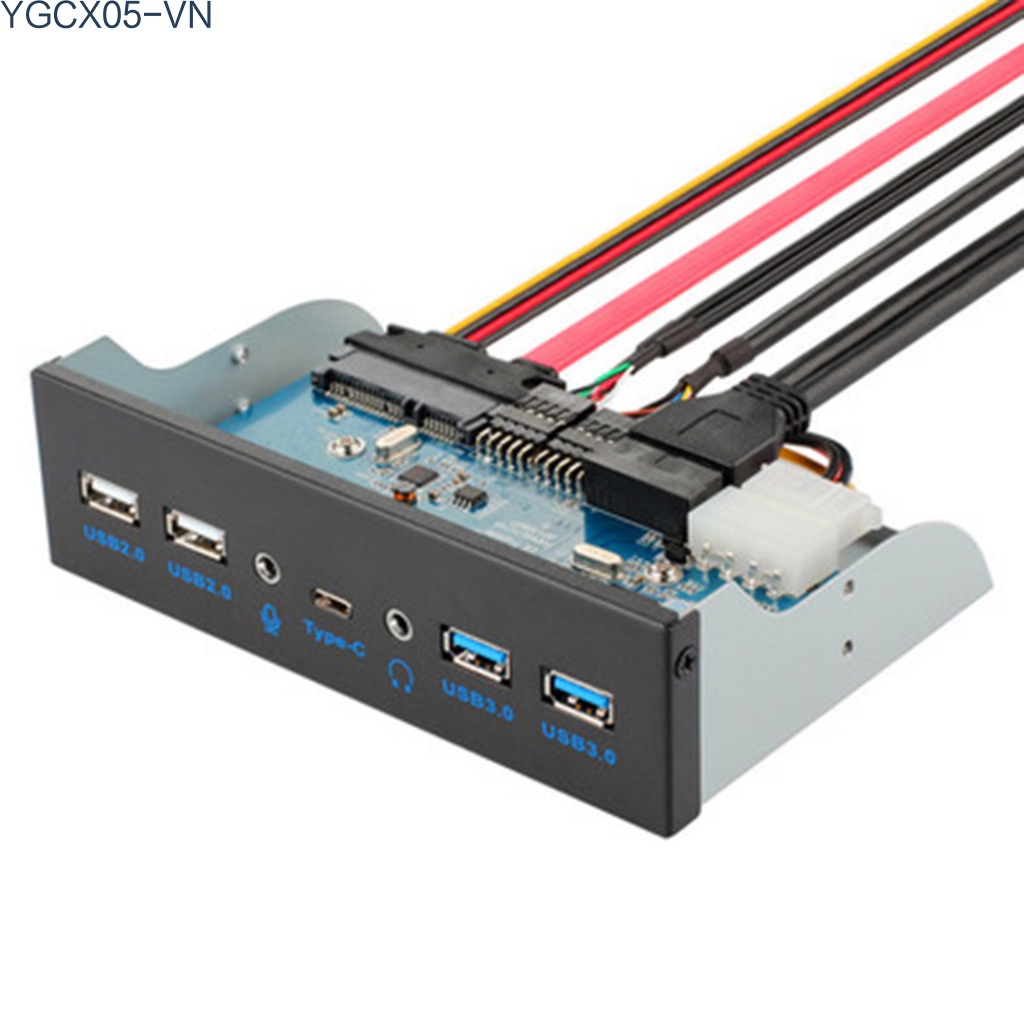

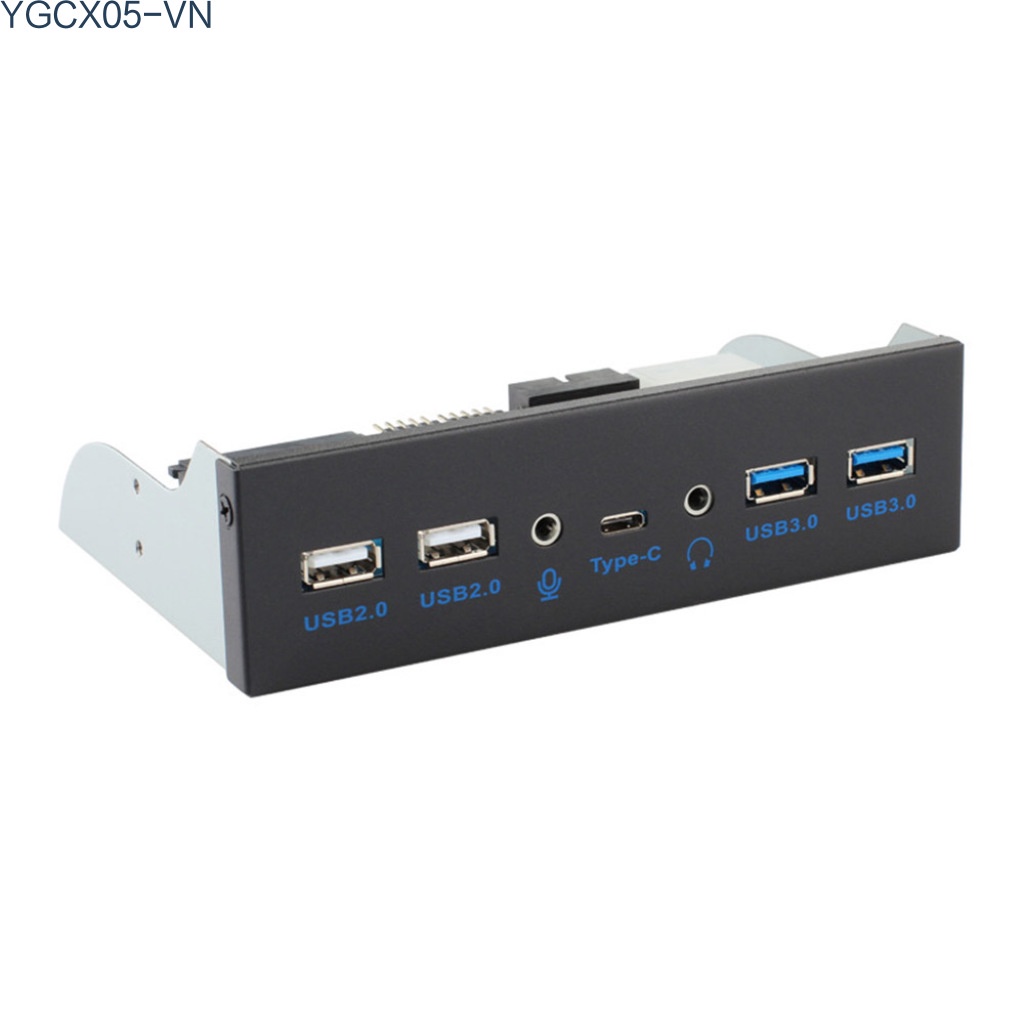

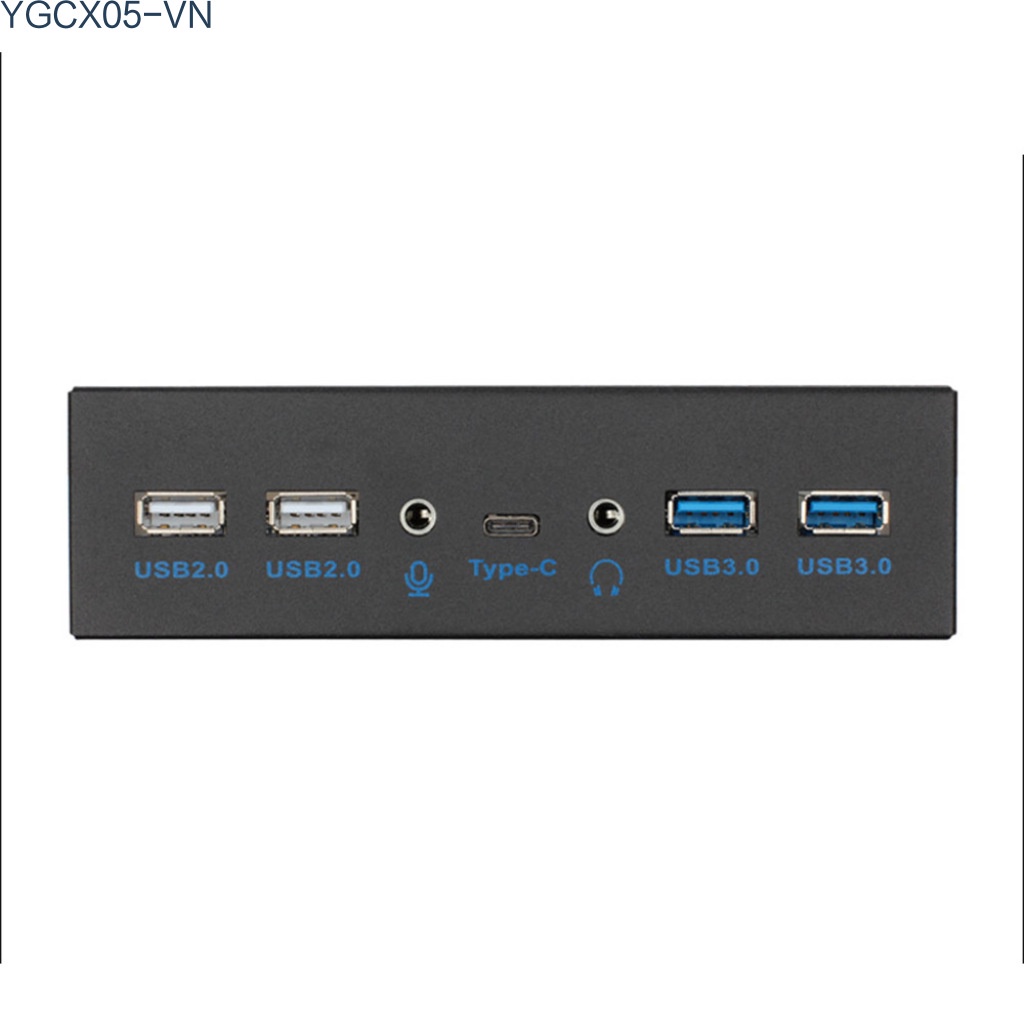

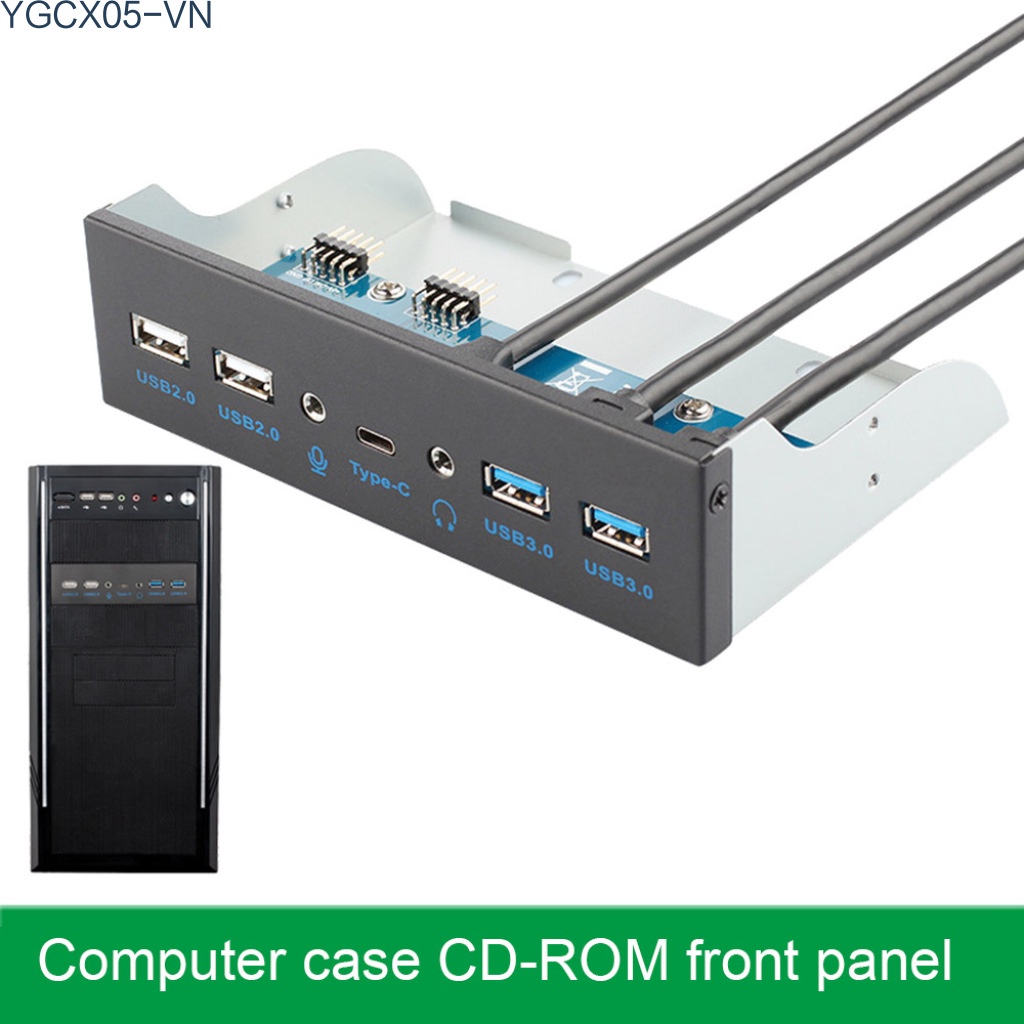

Turns any available 5.25-inch computer case front bay into a 5 Port USB hub, USB 3.1 Gen 1 Type-C,2 ports USB 3.0 and 2 ports USB 2.0, this front panel hub adds five easily accessible USB ports to the front of your computer case through a 5.25-inch bay.
USB 3.0 Ports, compliant with the USB 3.0 standard which supports up to 5Gbps of bandwidth and up to 900mA of power.
USB 2.0 Ports, compliant with the USB 2.0 standard which supports up to 480Mbps of bandwidth and up to 500mA of power.
Simply fit the bay into the space with the screws provided, plug the bay into the USB 3.0 19/20 pin connector and USB 2.0 10pin connector on the motherboard, and you;re all set.
HD audio and microphone is compatible with AC 97 or HD audio standards with autosensing, built with USB 3.0 to SATA III chipset, works for 2.5" hard disk drive HDD & SSD, no extra power is needed.
Specifications:
Item Name:;USB Front Panel Bay

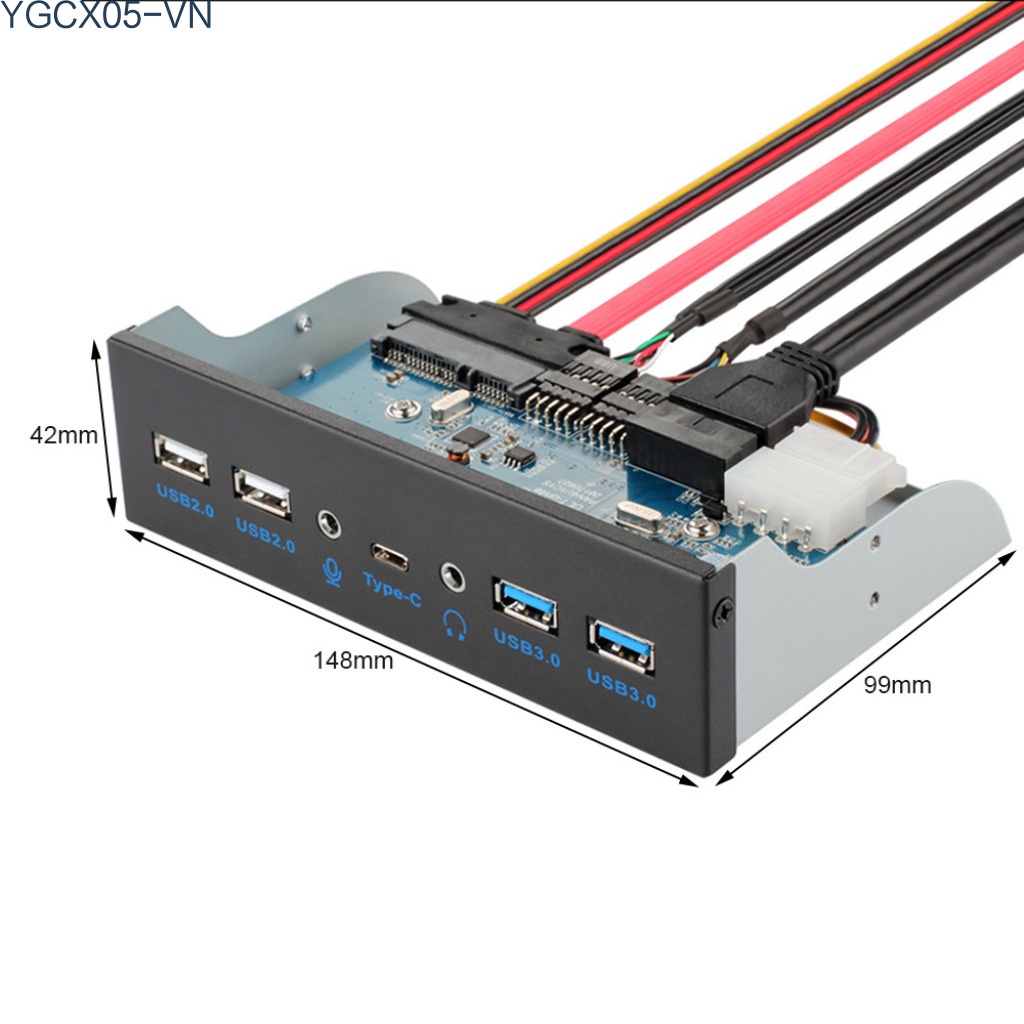

Size: 148x99x42mm
Fits: 5.25" Open Bay Space
Suitable: For Windows XP/Vista/7/8/8.1
Backwards Compatible: USB 1.1,USB 2.0
Ports: USB Type-C+2 x USB 3.0 and 2 x USB 2.0 Female
Support: 3.5mm stereo HD audio outout, 3.5mm microphone input
USB Data Transfer Rate: Up to 5Gb/s USB 3.0 Supper Speed and USB 2.0 480Mbps
Cable Length:
20pin USB 3.0 extension cable - 2.6ft/80CM
9pin USB 2.0 extension cable - 2.6ft/80CM
SATA 22pin and power combo cable - 8 inches/20CM
HD audio extension cable - 2.6ft/80CM
SATA to Molex 4pin power adapter cable - 6 inches/15CM
Note:
-There might be 1-3 cm error of size for manual measurement.
-The colors deviation might differ due to different monitor settings, please kindly understand.
Turns any available 5.25-inch computer case front bay into a 5 Port USB hub, USB 3.1 Gen 1 Type-C,2 ports USB 3.0 and 2 ports USB 2.0, this front panel hub adds five easily accessible USB ports to the front of your computer case through a 5.25-inch bay.
USB 3.0 Ports, compliant with the USB 3.0 standard which supports up to 5Gbps of bandwidth and up to 900mA of power.
USB 2.0 Ports, compliant with the USB 2.0 standard which supports up to 480Mbps of bandwidth and up to 500mA of power.
Simply fit the bay into the space with the screws provided, plug the bay into the USB 3.0 19/20 pin connector and USB 2.0 10pin connector on the motherboard, and you;re all set.
HD audio and microphone is compatible with AC 97 or HD audio standards with autosensing, built with USB 3.0 to SATA III chipset, works for 2.5" hard disk drive HDD & SSD, no extra power is needed.
Specifications:
Item Name:;USB Front Panel Bay
Size: 148x99x42mm
Fits: 5.25" Open Bay Space
Suitable: For Windows XP/Vista/7/8/8.1
Backwards Compatible: USB 1.1,USB 2.0
Ports: USB Type-C+2 x USB 3.0 and 2 x USB 2.0 Female
Support: 3.5mm stereo HD audio outout, 3.5mm microphone input
USB Data Transfer Rate: Up to 5Gb/s USB 3.0 Supper Speed and USB 2.0 480Mbps
Cable Length:
20pin USB 3.0 extension cable - 2.6ft/80CM
9pin USB 2.0 extension cable - 2.6ft/80CM
SATA 22pin and power combo cable - 8 inches/20CM
HD audio extension cable - 2.6ft/80CM
SATA to Molex 4pin power adapter cable - 6 inches/15CM
Note:
-There might be 1-3 cm error of size for manual measurement.
-The colors deviation might differ due to different monitor settings, please kindly understand.
