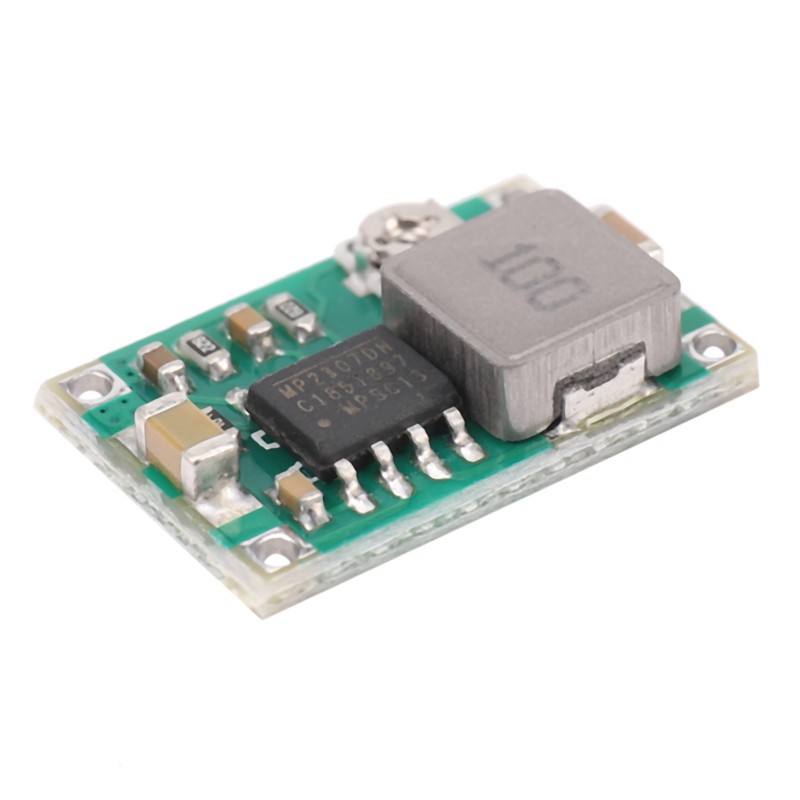

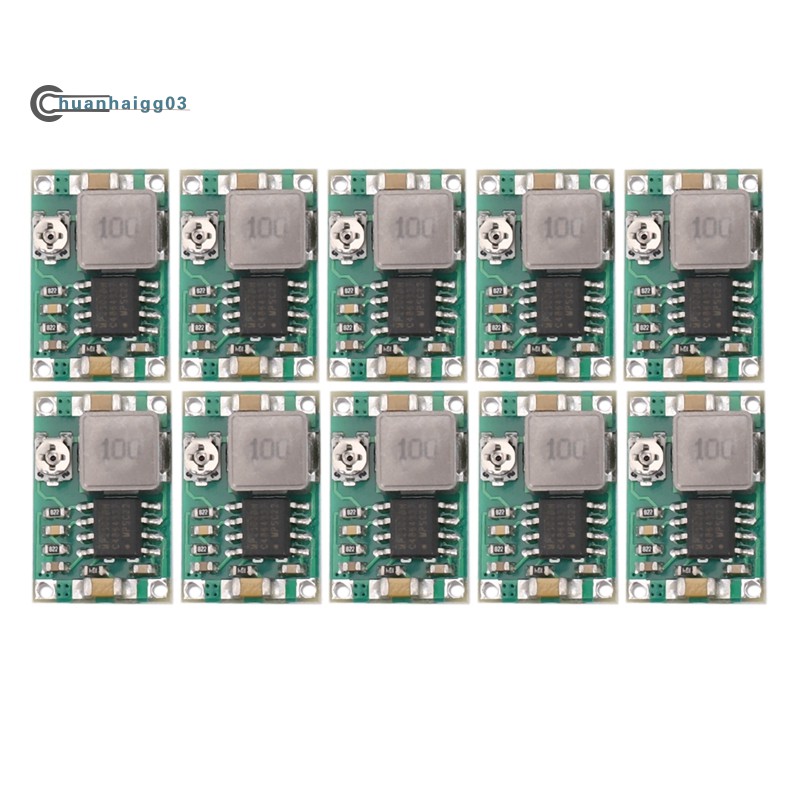

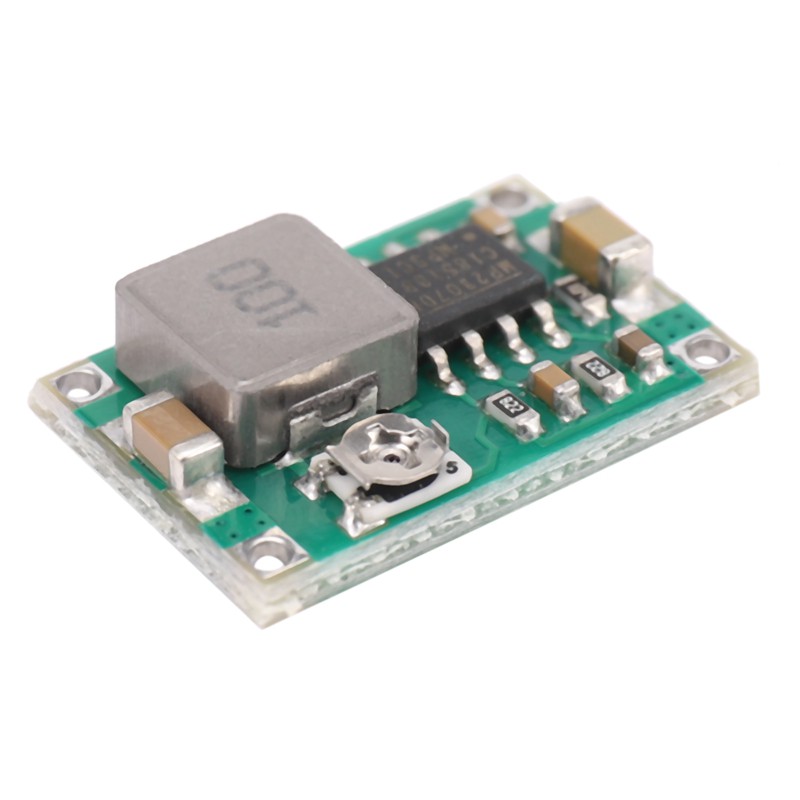

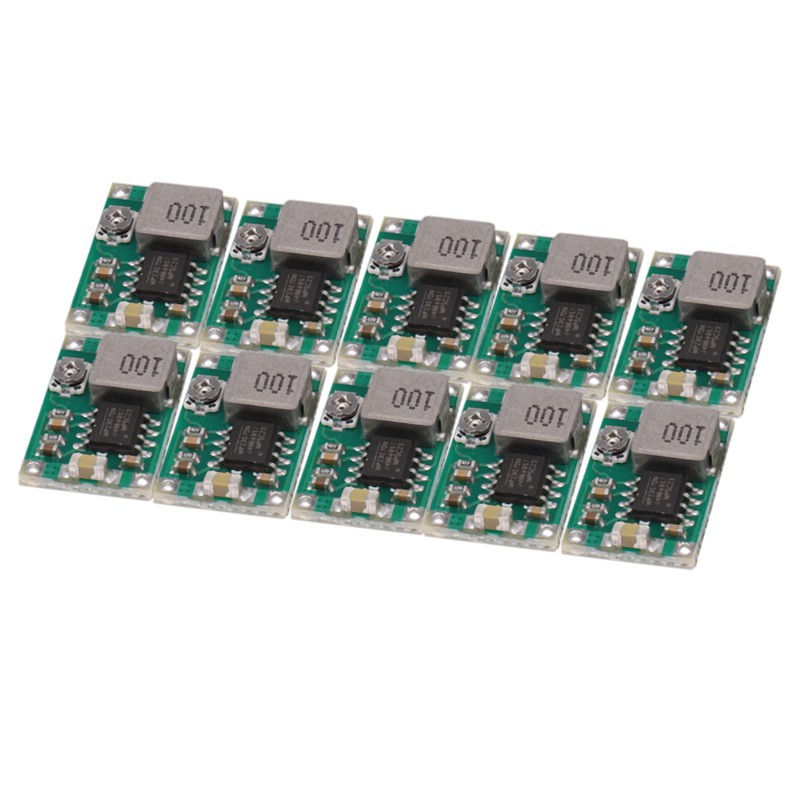

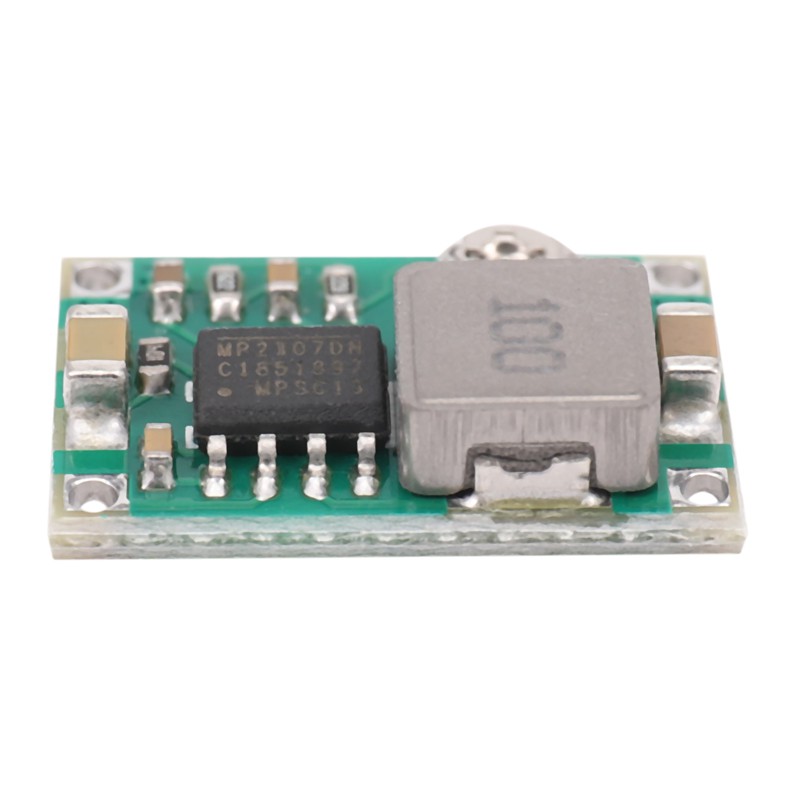

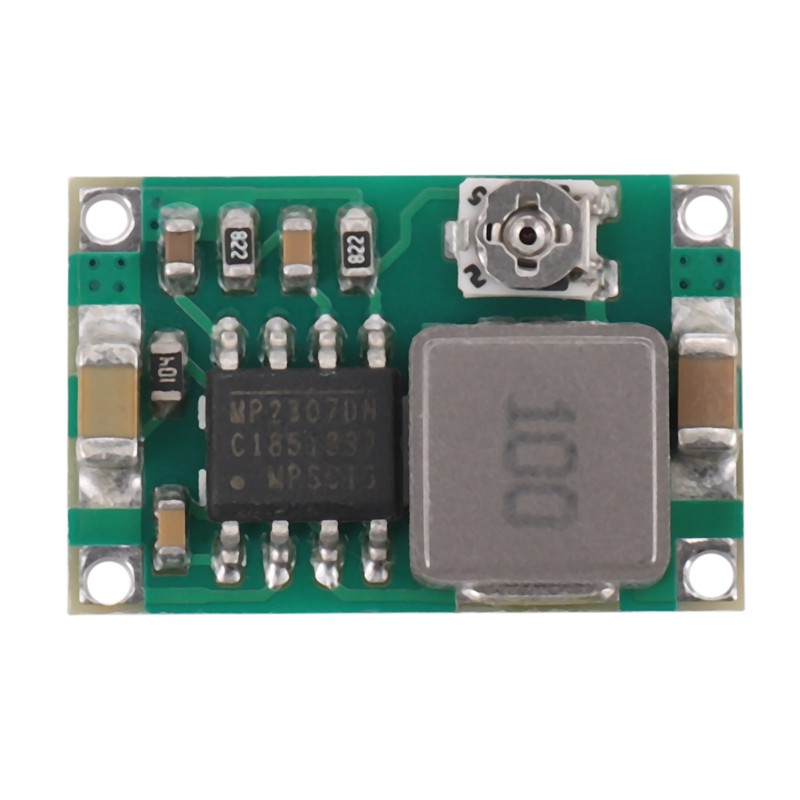

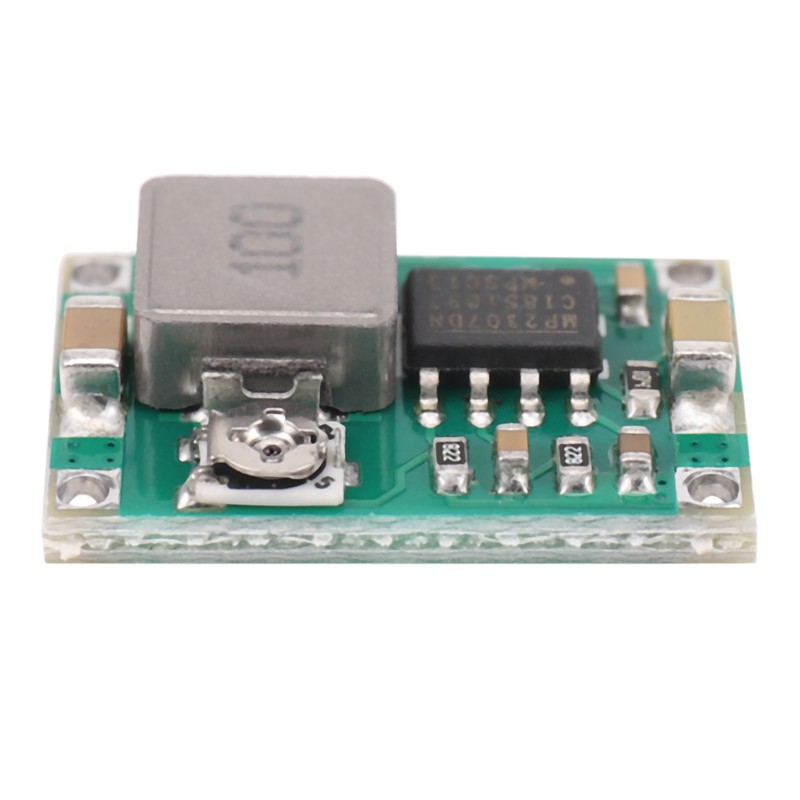

Bộ 10 Mạch Giảm Áp Mini 3a Dc-Dc 3v 5v 16v Mp2307
0 Đánh Giá
Đã Bán 2
82
147.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 26/06/2021 lúc 08:25 CH
MÔ TẢ SẢN PHẨM
100% brand new and high quality.
ule Properties: Non-isolated step-down ule (BUCK)
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output Less than Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Conversion efficiency:96%(highest)
Switching Frequency: 340KHz.
Output ripple:30mV(no-load)
Load regulation: +/- 0.5%
Voltage regulation: +/- 2.5%
Operating Temperature: Industrial (-40 Celsius ~ +85 Celsius )
Short circuit protection: No(Please do not short-circuit)
Input Reverse protection: No(Can not be reversed)
Dimension: approx.17 x 11 x 3.8mm(L x W x H)Supper mini board
NOTE:This can't be used to step up Voltage; Output voltage is always smaller than input!
Material:CCL
Package Include:10 x Supper mini 3A DC 3V 5V 16V Converter Step Down buck Power Supply ule
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
ule Properties: Non-isolated step-down ule (BUCK)
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output Less than Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Conversion efficiency:96%(highest)
Switching Frequency: 340KHz.
Output ripple:30mV(no-load)
Load regulation: +/- 0.5%
Voltage regulation: +/- 2.5%
Operating Temperature: Industrial (-40 Celsius ~ +85 Celsius )
Short circuit protection: No(Please do not short-circuit)
Input Reverse protection: No(Can not be reversed)
Dimension: approx.17 x 11 x 3.8mm(L x W x H)Supper mini board
NOTE:This can't be used to step up Voltage; Output voltage is always smaller than input!
Material:CCL
Package Include:10 x Supper mini 3A DC 3V 5V 16V Converter Step Down buck Power Supply ule
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
