Bảng Mạch Sạc Pin Li-Ion Lipo Micro Usb Pcb Bms Hai Trong Một 3 Pin 5v 1a 2a Tp4056 3.7v Lithium / Nhiều Màu
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
Cập nhật: thứ tư 16/09/2026 lúc 11:45 SA
LỊCH SỬ GIÁ SẢN PHẨM
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM

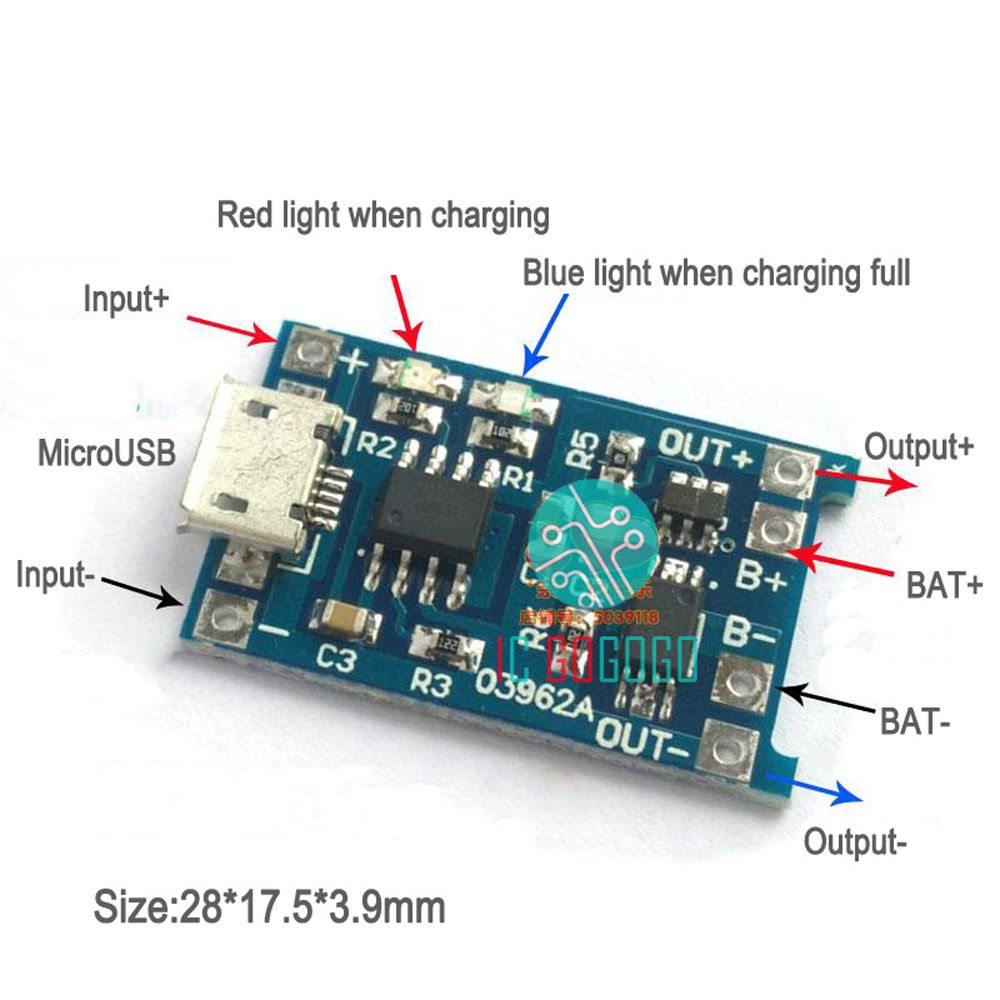

Charge indication: red light charge blue (green) lamp full charge
The maximum output currentOUT+,OUT- 2.3A
Peripheral dimensions: 27 * 17.5 * 3.9mm
Module name: 3.7V4.2V lithium battery charging board

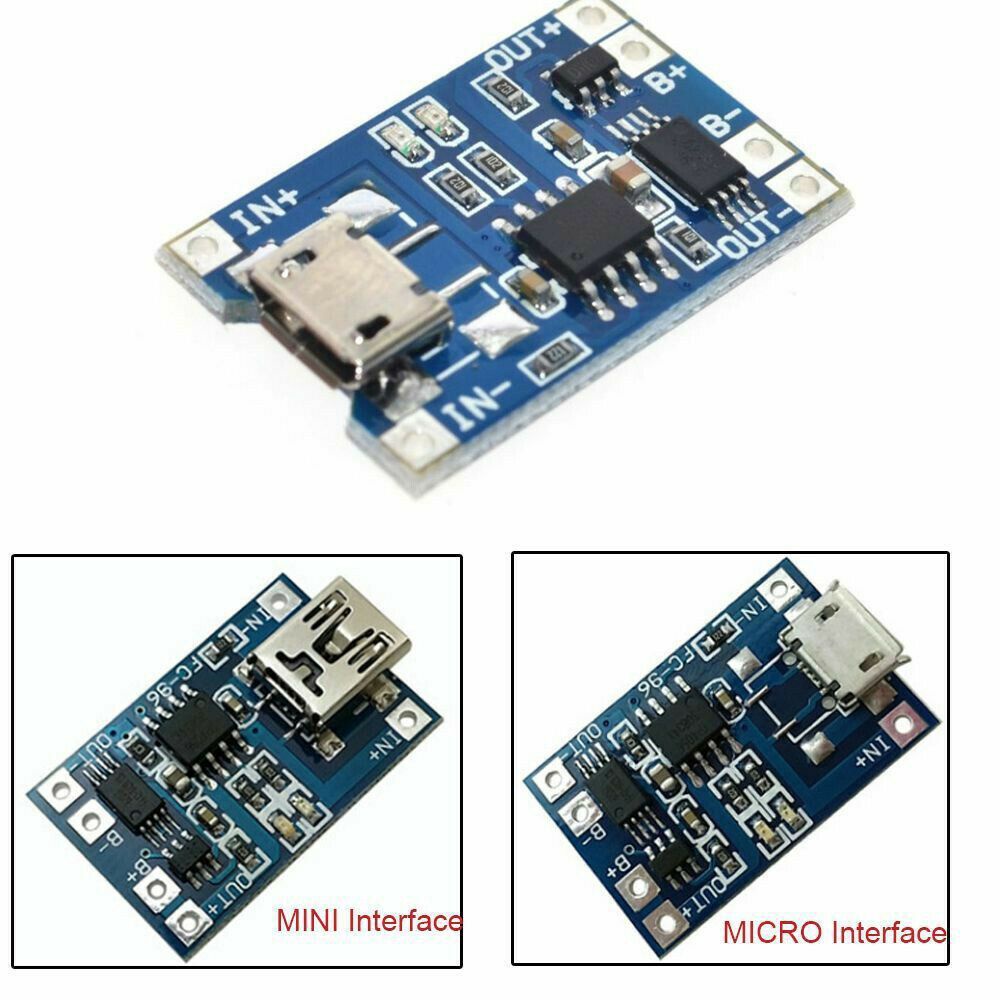

Input interface: MICRO USB
Package:3*Protection Board Charge Module
Charging accuracy: 1.5%
Weight: 2.3g
Operating temperature: -10 to +85
Battery over-discharge protection voltage: 2.5V
Can reverse: can not reverse
Charging mode: linear charging
Full charge voltage: 4.2V (4.1-4.2)
Charging cut-off voltage: 4.2V ± 1%
Input voltage: 4.5V-5.5V
Battery overcurrent protection current: 3A
Charge current: 1A

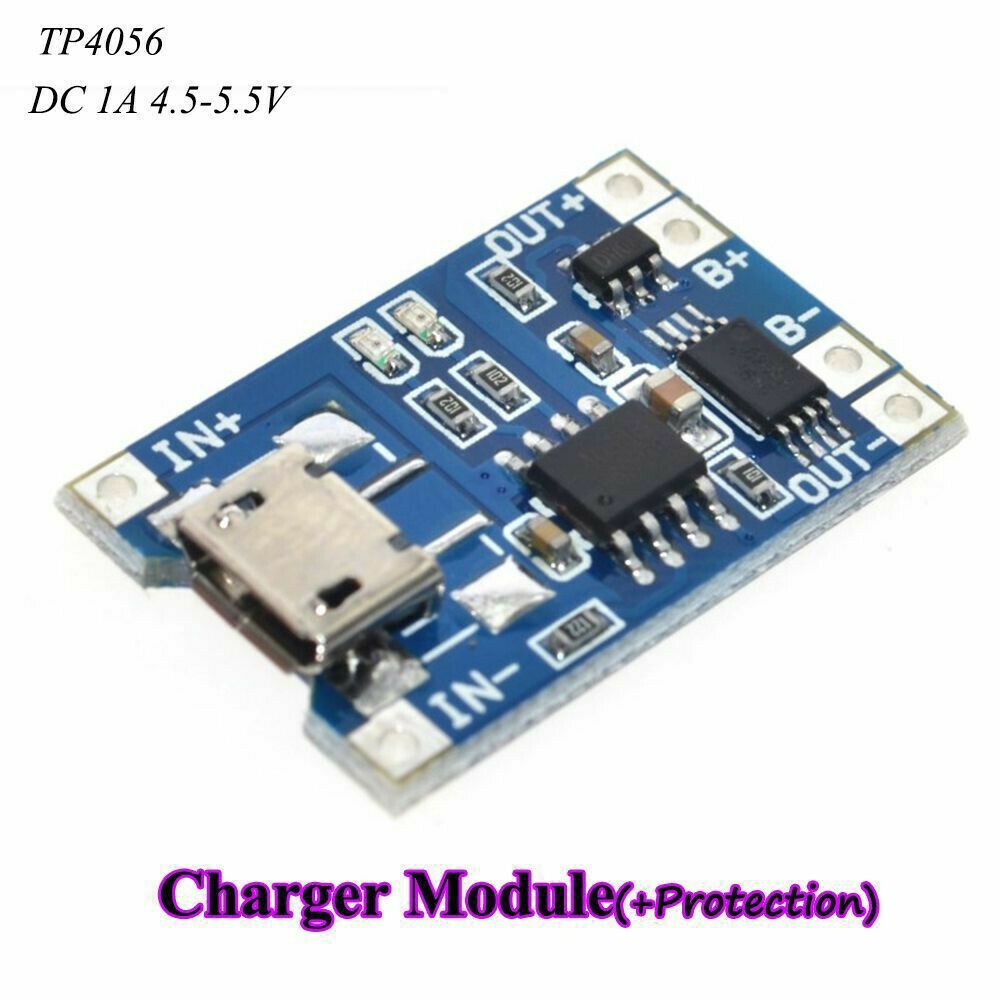

The module uses a very mature charge chip 4056, the external circuit is simple, good protection, high charging accuracy.
This module is mechanical automated processing, all-chip parts manufacturing, each module will be tested before shipment, high reliability.
The module current can be adjusted, as long as the change in the circuit board fixed resistance R3, you can change the output caused 100mA-1000mA, very convenient.
