Bảng Mạch Mở Rộng Cho Máy In 3d Nanodlp Shield V1.1 + 1602a Iic / I2C
0 Đánh Giá
Đã Bán 0
89
458.700 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 23/05/2021 lúc 05:02 CH
MÔ TẢ SẢN PHẨM

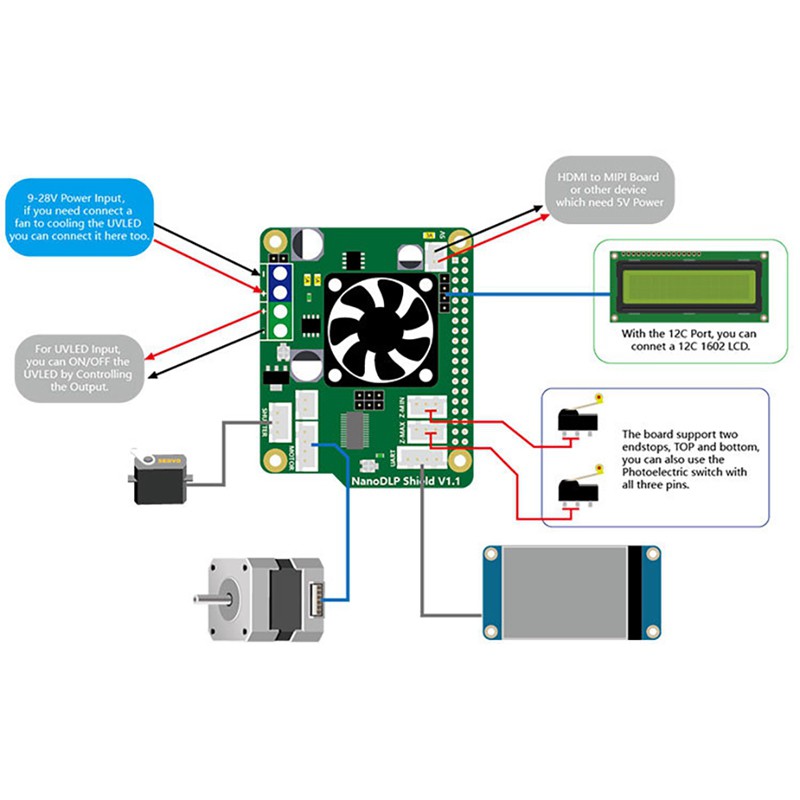

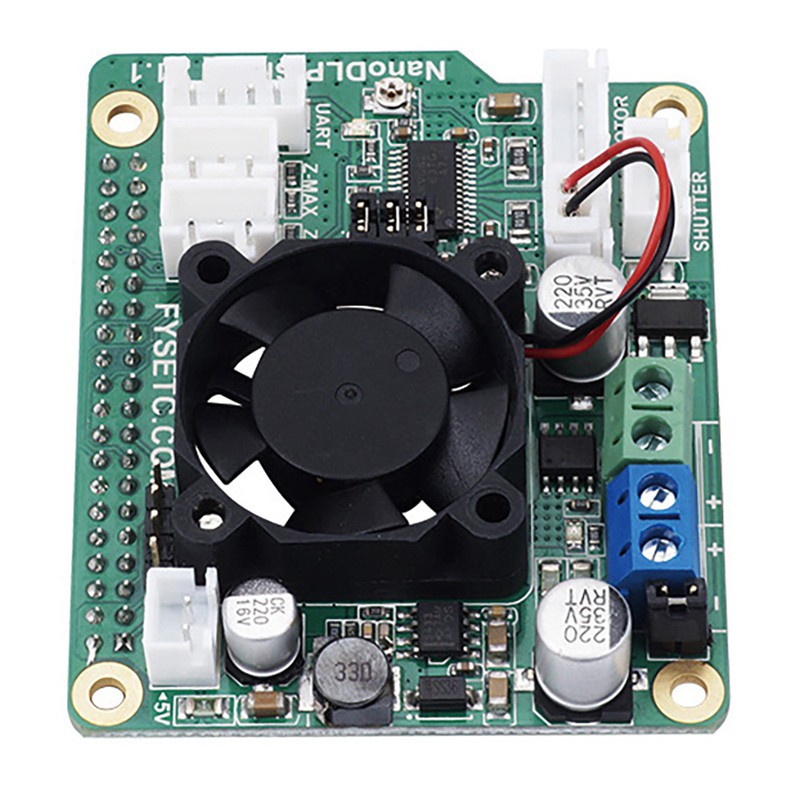

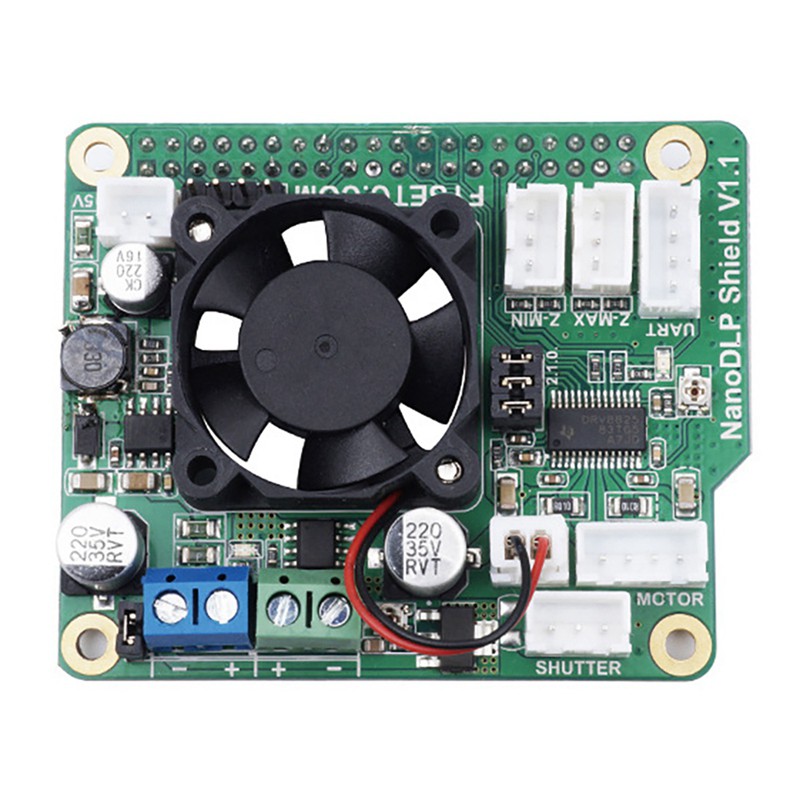

Product Introduction: This expansion board is designed for Raspberry Pi 3B, and is used to run NanoDLP light curing 3D printer. The board contains a 9-28V to 5V circuit, which can provide a maximum current of 3A, as well as the required by NanoDLP

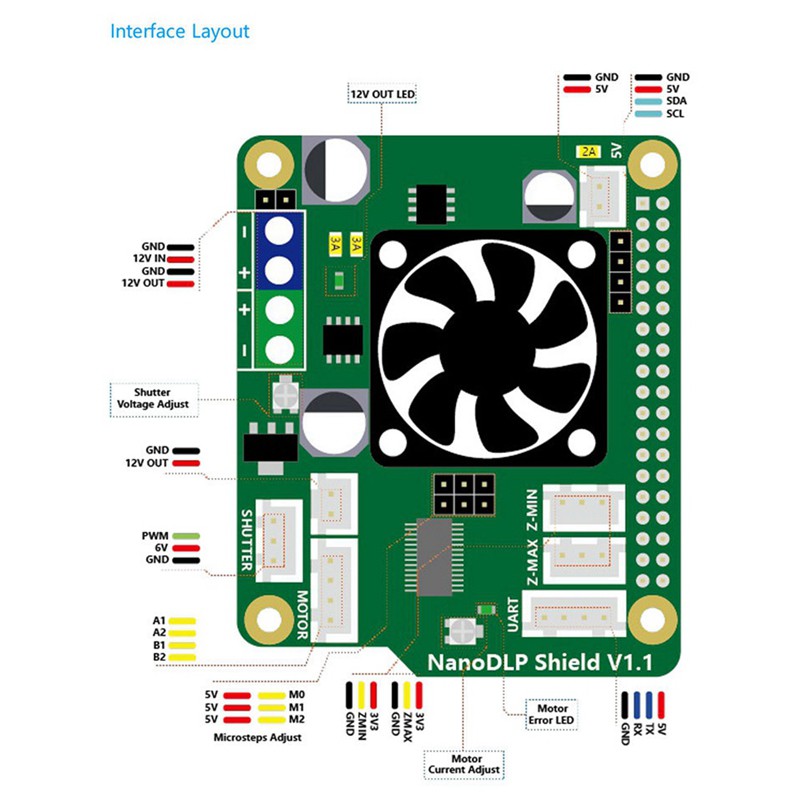

Features: DRV8825 Stepper Driver
12V Fans (cooling the Pi)
2X Endstops
Controled MOS for ext LED driver
I2C Connector for LCD1602
Uart Connector for Press Screen
Shutter support
5V OUT Connector for ext Board
specification:

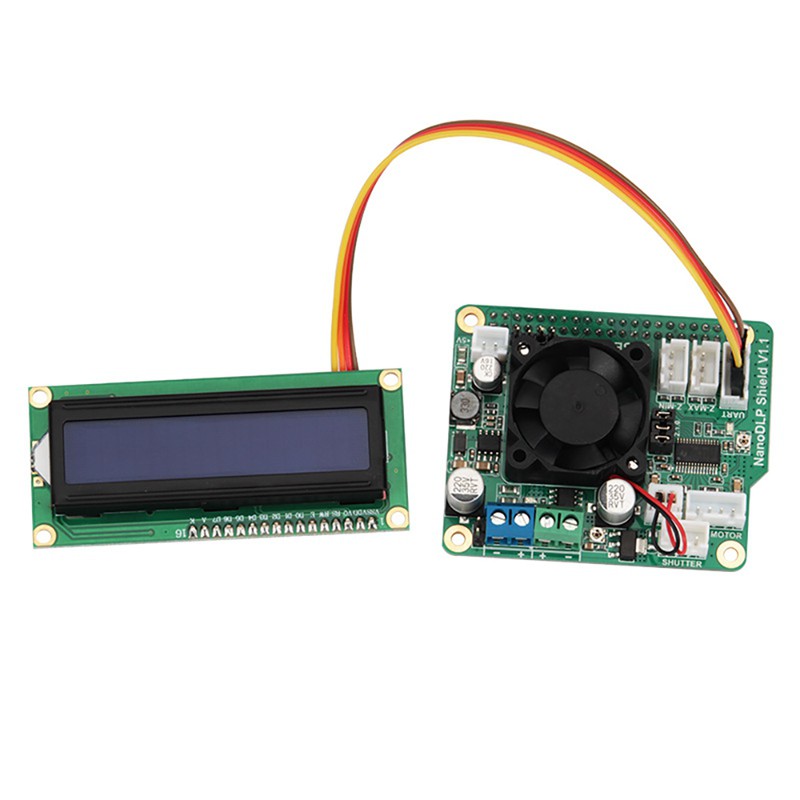

Product Name: Light Curing Expansion Board + Display
Type: 1602 display + NanoDLP Shield V1.1
Compatible with for Arduino UNO, Leonardo, Mega, 101 (Intel Curie), DUE, Micro, Mini, Nano
Interface: 1 I2C / TWI two-wire data communication interface, 2 gadgeteer interfaces
Backlight: blue, white characters
Contrast: adjustable
colour: picture color
Material: PCB+metal
size: 82x35x18mm

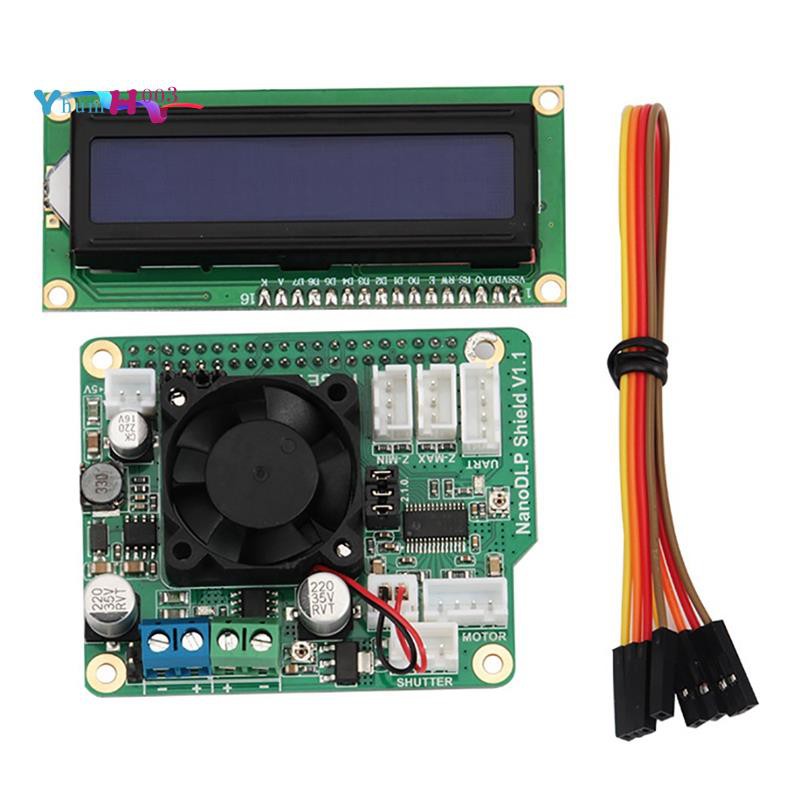

Package Contents:
1*Nanno DLP Shield V1.1 expansion board
1*heat sink

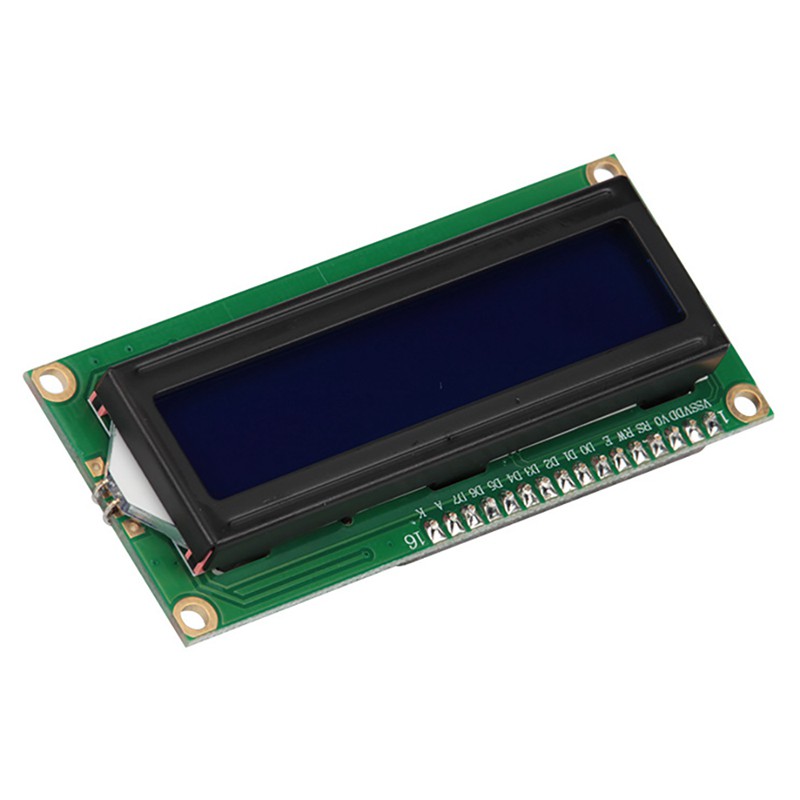

1*display
1*connection line(random colors, don't accept the specified color)Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
