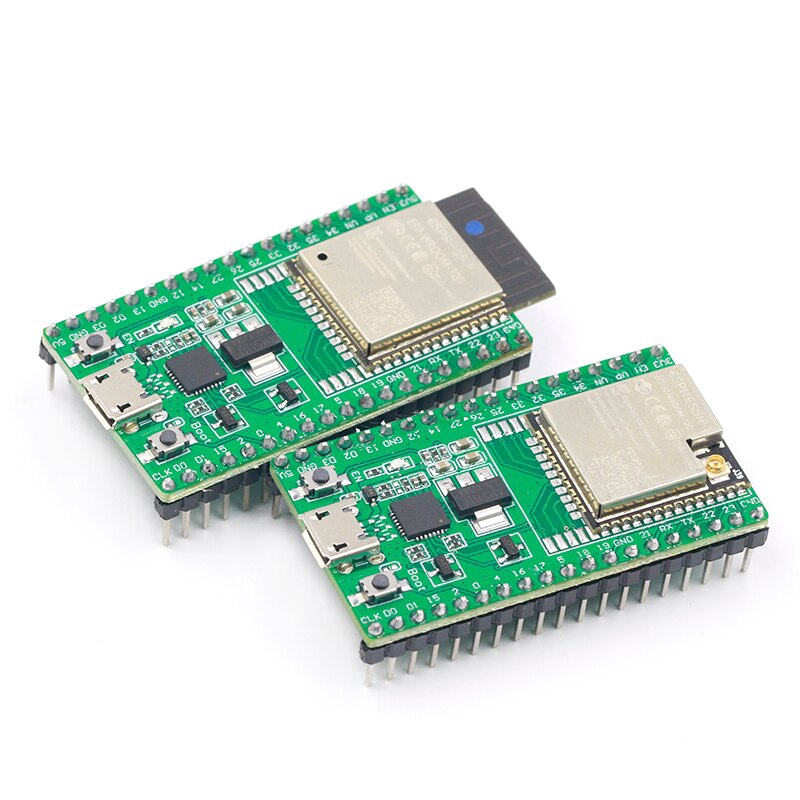

Bảng mạch lõi phát triển ESP32-DevKitC ESP32-WROOM-32D ESP32-WROOM-32U cho Arduino
7 Đánh Giá
Đã Bán 39
256
101.270 đ
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 21/11/2021 lúc 10:54 CH
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
ESP32-DevKitC core board ESP32 development board ESP32-WROOM-32D ESP32-WROOM-32U
ESP32-DevKitC V4 Getting Started Guide
This guide shows how to start using the ESP32-DevKitC V4 development board. For description of other versions of ESP32-DevKitC check ESP32 Hardware Reference.
What You Need
ESP32-DevKitC V4 board
USB A / micro USB B cable
Computer running Windows, Linux, or macOS
You can skip the introduction sections and go directly to Section Start Application Development.
Overview
ESP32-DevKitC V4 is a small-sized ESP32-based development board produced by Espres-sif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-DevKitC V4 on a breadboard.
To cover a wide range of user requirements, the following versions of ESP32-DevKitC V4 are available:
different ESP32 modules
ESP32-WROOM-32
ESP32-WROOM-32D
ESP32-WROOM-32U
ESP32-SOLO-1
ESP32-WROVER
ESP32-WROVER-B
ESP32-WROVER-I
ESP32-WROVER-B (IPEX)
male or female pin headers.
For details please refer to Espre-ssif Product Ordering Information.
Functional Description
The following figure and the table below describe the key components, interfaces and controls of the ESP32-DevKitC V4 board.
