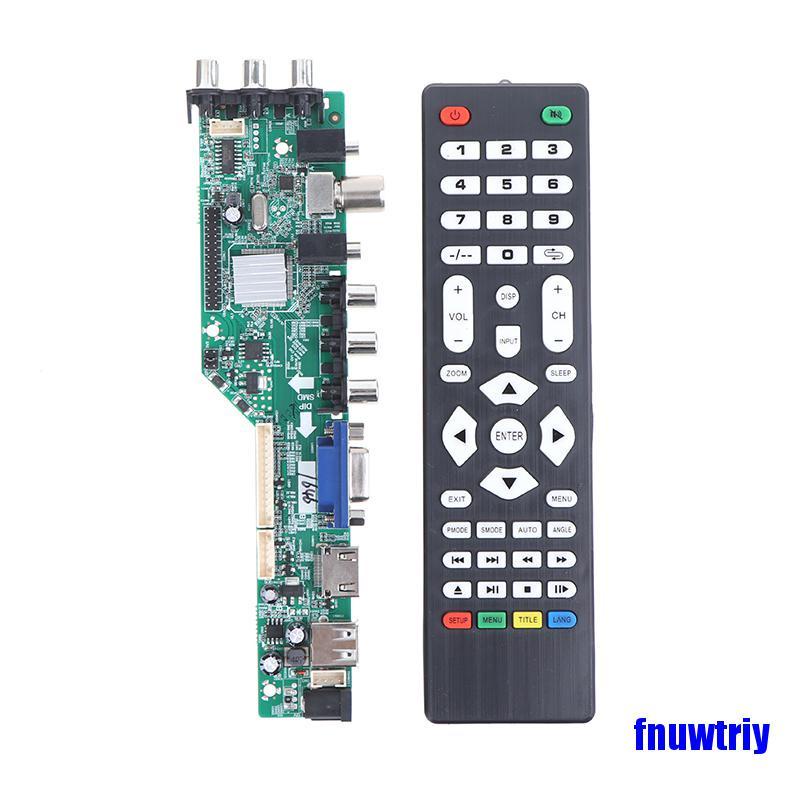

Bảng Mạch Điều Khiển Tv Lcd Kỹ Thuật Số Dvb-T2 / T / C 3663
1 Đánh Giá
3 Đã Bán
32
263.300 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ ba 16/11/2021 lúc 02:22 CH
Product Description:
1.This model is universal Controller 3663 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor.
2.Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip.
3.Suitable for :
Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.
Feature:
Support Digital Signal and Russian
Controller chip: LUA63A82
TV tuner chip: R842
OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video)
Power Input: DC 12V 4A
Audio output power: 2x8W
Consumption: operating mode -> = 6W
simple - <0.3W

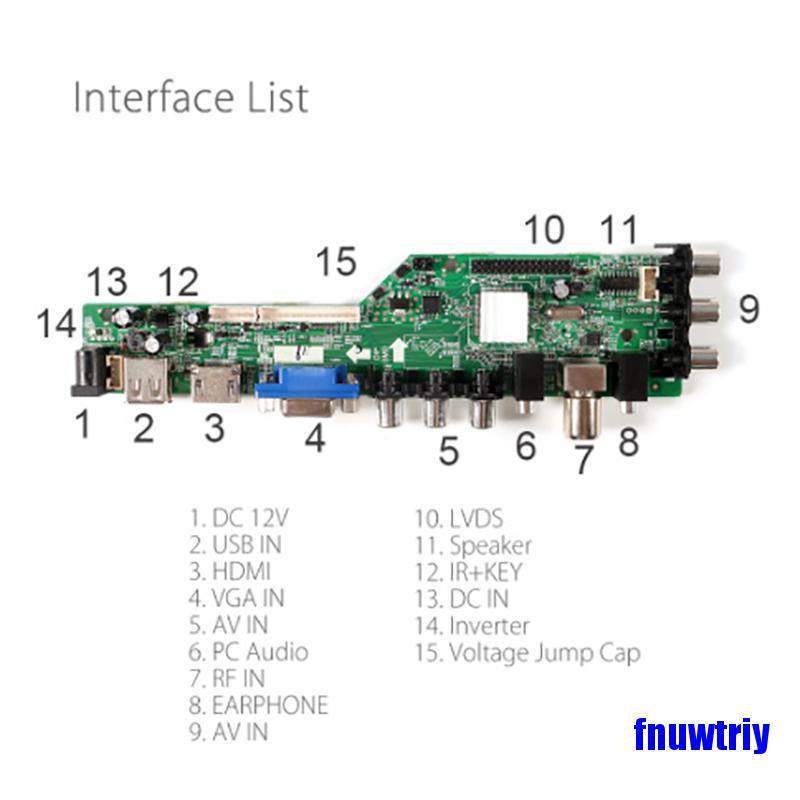

Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)
HDMI
VGA
AV IN
YPbPr
Additional inputs outputs: audio mini jack 3.5mm USB
USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG.
Step of USB upgrade :
1.Put the firmware of "LUA63A82.bin" in formatted USB flash disk ,then insert the USB disk and the 7KEY-Button to the board
2.After turn on the power ,the light of the 7key button will be Red then flash red and blue.after about 1 minute, the light stop flashing ,it means upgrade has finished.(Note that write programs do not power outages, crashing won't be able to use)
How to into Factory setting?
Press"Input" button then press"2 5 8 0"
How to know if your panel suitable for this board?
Step 1: Find your LCD model's resolution (you can check the resolution from this link: http://www.panelook.com/index.php)
Supported resolutions:
1024 X 600 6 bit 1 channel
1024 X 768 6-bit 2 channel
1024 X 768 8-bit 2 channel
1024 X 768 6-bit 1 channel
1024 X 768 8-bit 1 channel
1280 X 768 8-bit 1 channel
1280 X 800 6-bit 1 channel
1280 X 1024 8-bit 2 channel
1366 X 768 8-bit 2 channel
1366 X 768 8-bit 1 channel
1400 X 1050 6 bit 2 channel
1440 X 900 8 bit 2 channel
1600 X 900 8-bit 2 channel
1600 X 1200 6-bit 2 channel
1680 X 1050 8-bit 2 channel
1920 X 1080 8-bit 2 channel
1920 X 1080 6-bit 2 channel
Step 2: Download the firmware from the link as below
firmware download link:
