Bảng mạch điều khiển động cơ Wond F6 V1.4 ALL-in-one Up lên đến 6 cho TMC2208 UART VS SKR V1.3
0 Đánh Giá
0 Đã Bán
48
583.103 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ ba 14/12/2021 lúc 03:36 CH
#F6 #V1.4 #Board #ALL-in-one #Up #to #6 #Motor #Drivers #for #TMC2208 #UART #Flying #VS #SKR
F6 V1.4 Board ALL-in-one Up to 6 Motor Drivers for TMC2208 UART Flying VS SKR V1.3
100% brand new and high quality
Description:

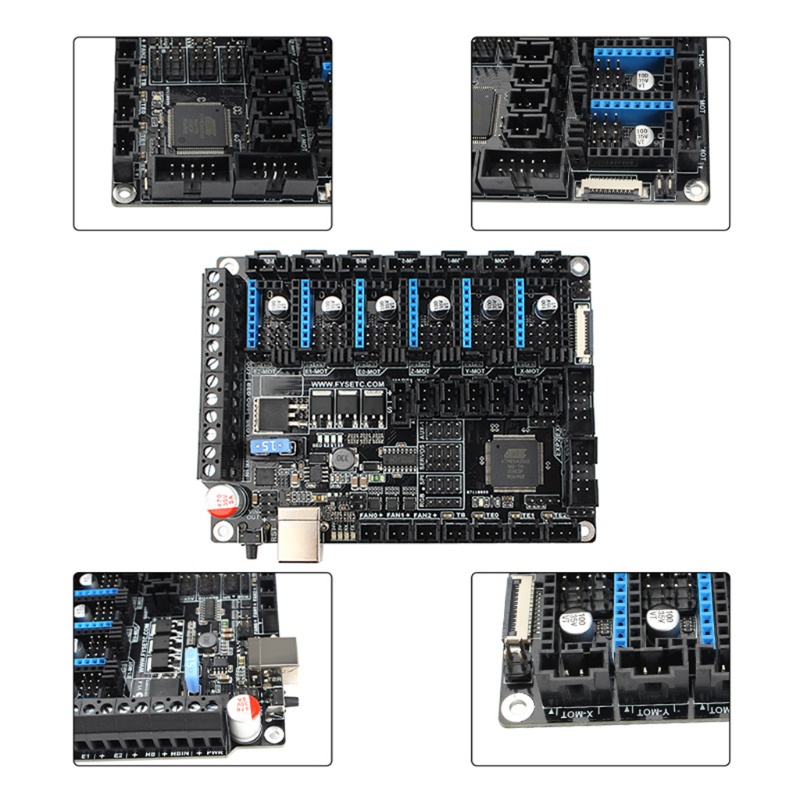

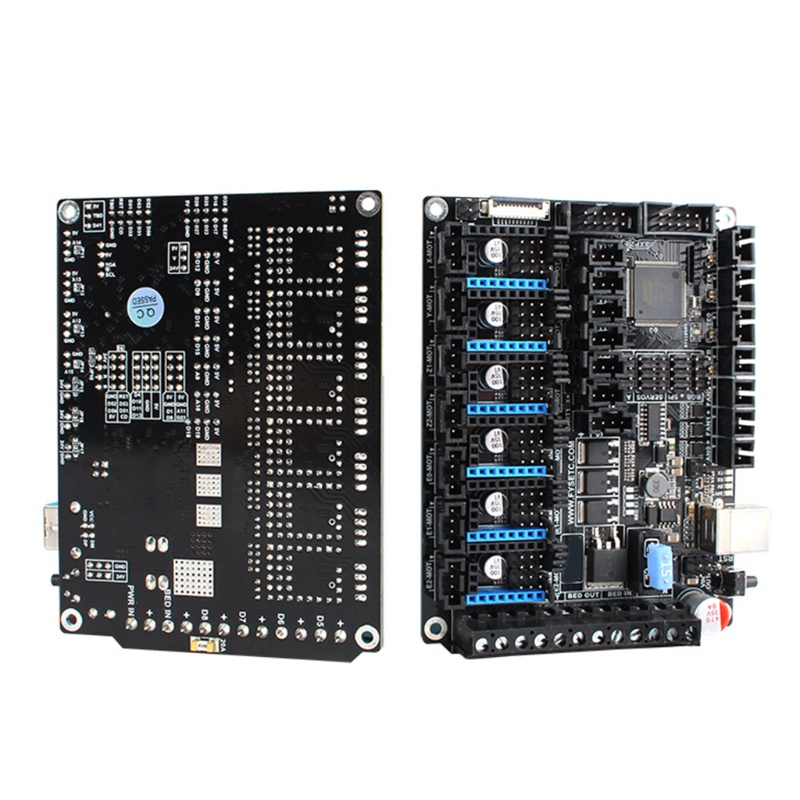

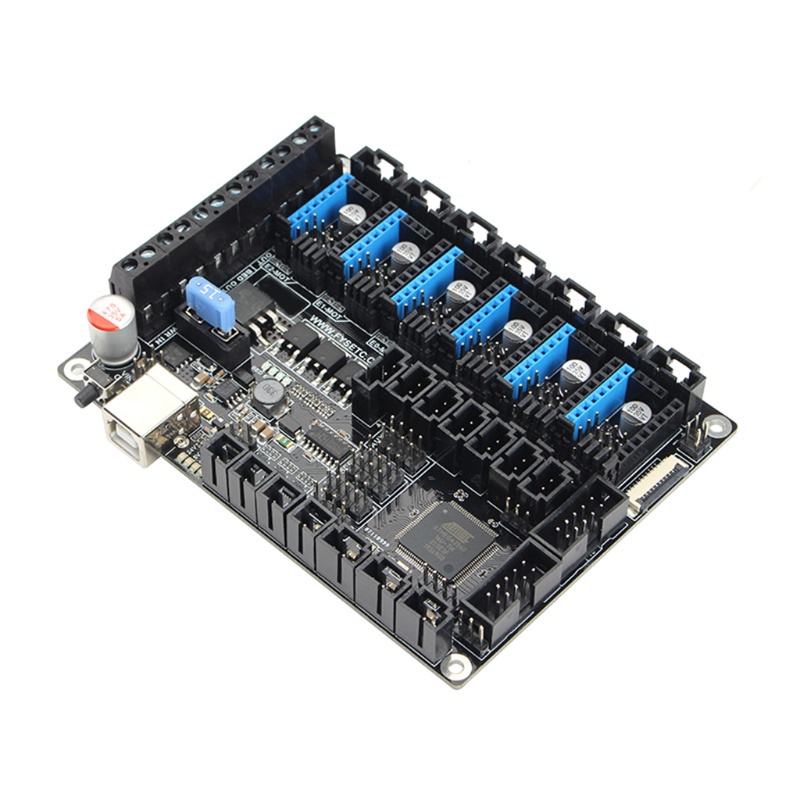

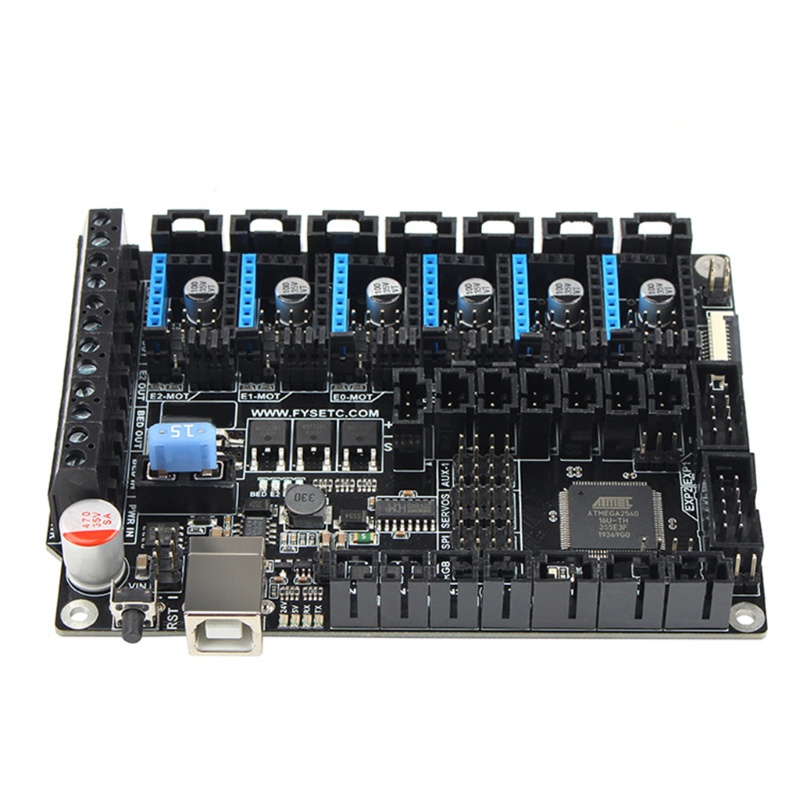

The FYSETC F6 board is a feature rich all-in-one electronics solution for 3D printer and other CNC devices. It provides six drivers slots and supports Pololu pin compatible stepper drivers, especially the TMC drivers modules. There is no need for flying wires when using TMC2100, TMC2130 SPI,other pin configer functions are available.
Feature:
1. Integrated all in one solution:

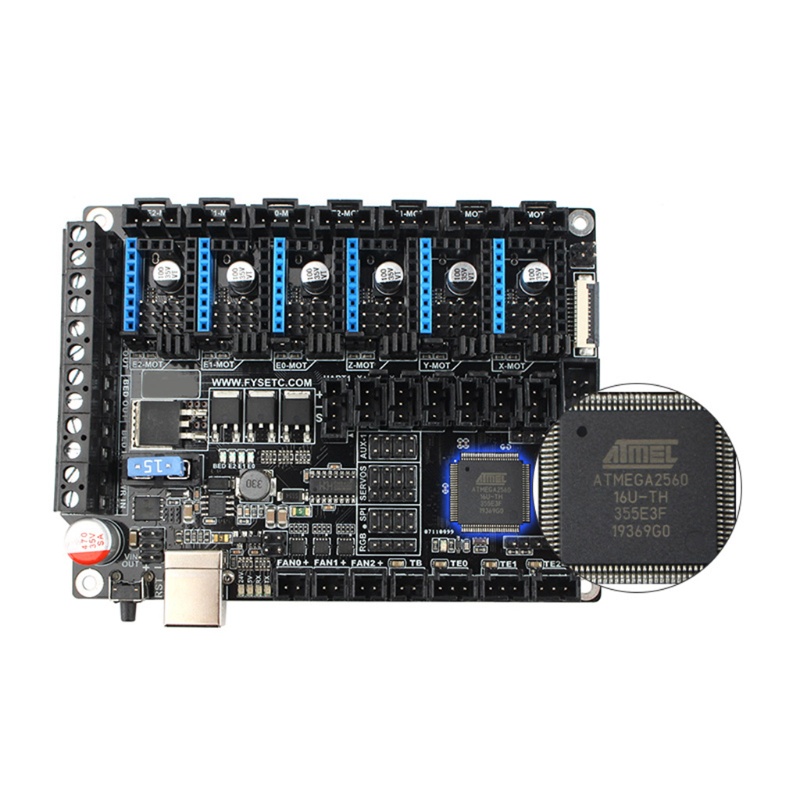

2560-R3 compatible (works with Sprinter, Repetier-Firmware, Marlin out of the box)
CH340 for high speed USB serial connection
2. UNIVERSAL POWER:
can be used with 9V-28V for motors / heated bed
integrated high precision power regulators (DC/DC): 5V 3A Max
power input auto selector for ATmega/logic (stand alone or power from USB)
Easy DISPLAY + SD-CARD connector:
RepRapDiscount SmartController compatible pin header on board
3. 10P FPC for Serial Touch display
2X4 PinHeader Out for SD Card moudle
4. Up to 6 motor drivers with easy micro-steps setup and Supports TMC driver without flying wire
10x PWM capable power mosfet outputs (1 for HotBed, 3 for Heat-End, 3 for fans, 3 for RGB LED strip)
The Hot-Bed is designed as a separate power input for maximum current

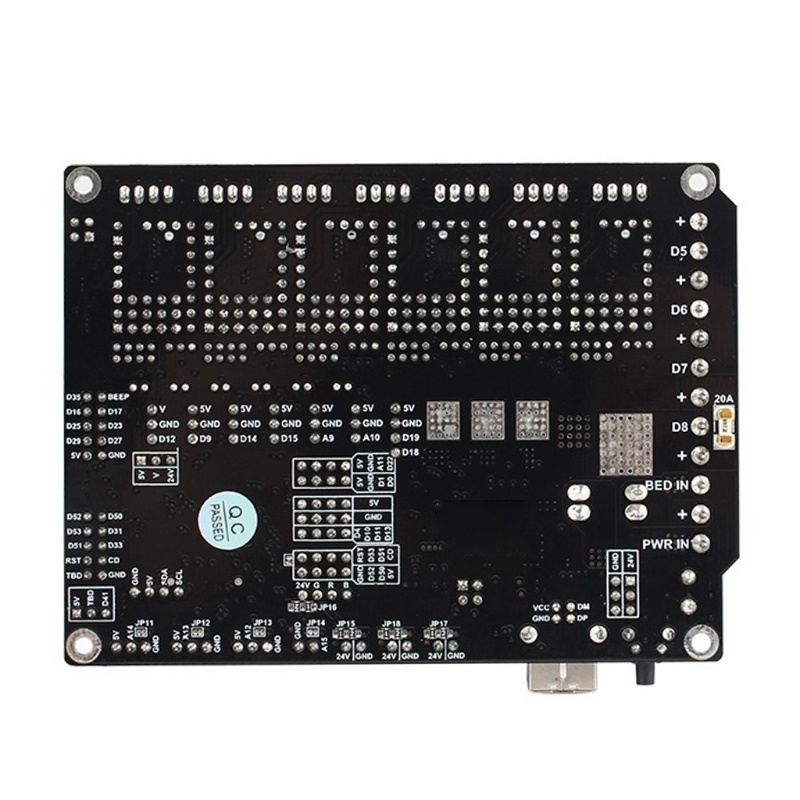

All unused pins are led out by pin headers
5. PCB：
4 layer
2OZ copper inner layers，1OZ out layers
High quality, High temperature FR4-TG130 PCB
Gold ENIG finishing
Specifications:
Material: Plastic and Metal

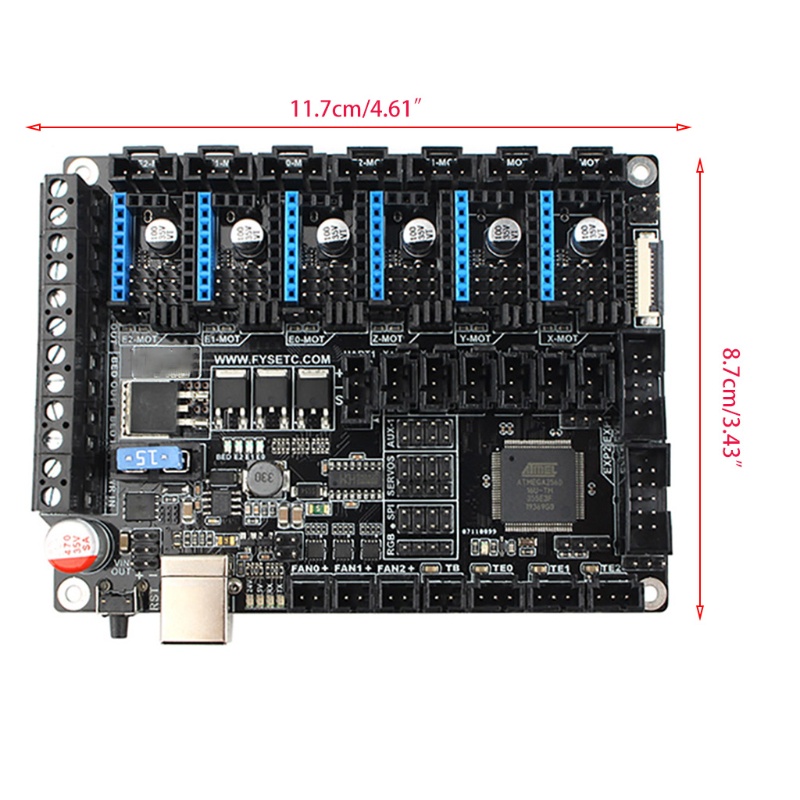

Size: approx.11.7x8.7cm/4.61x3.43in
Color: As pictures shown
Quantity: 1 Set
Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:

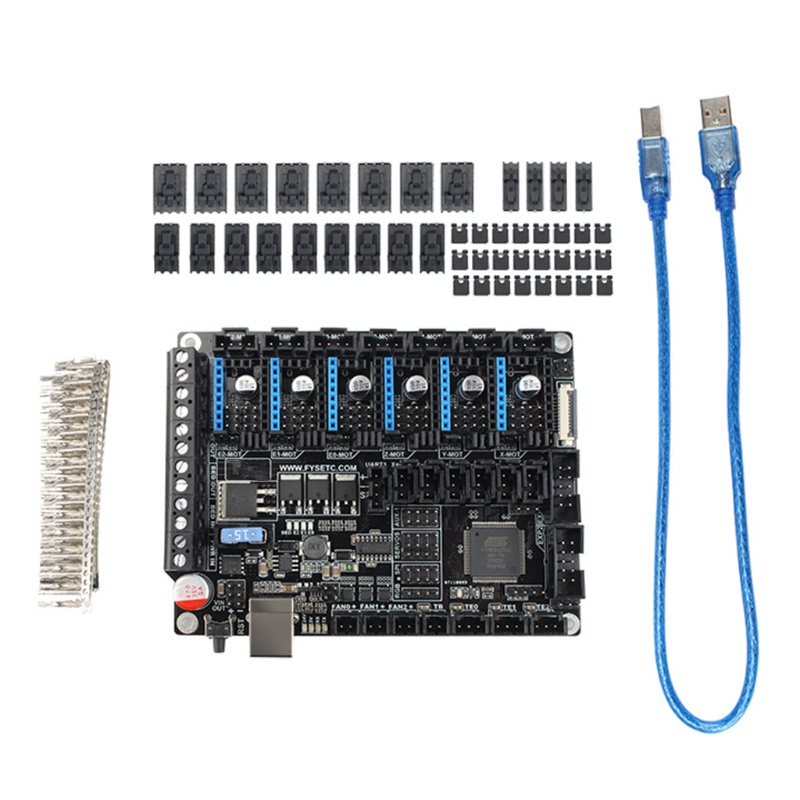

1 Set x F6 V1.4 Board with Accessories (other accessories demo in the picture is not included.)
