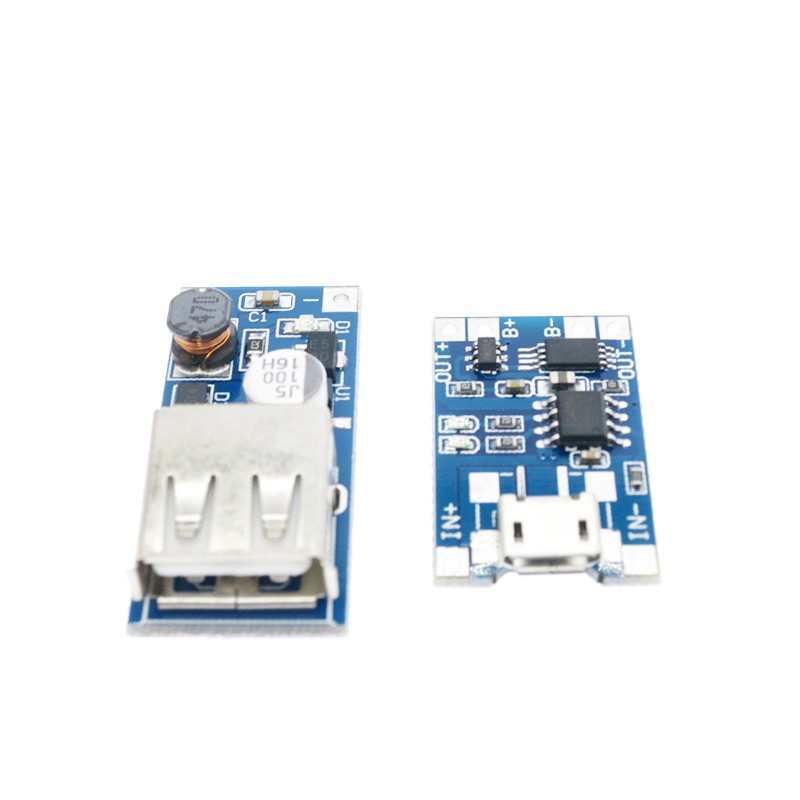

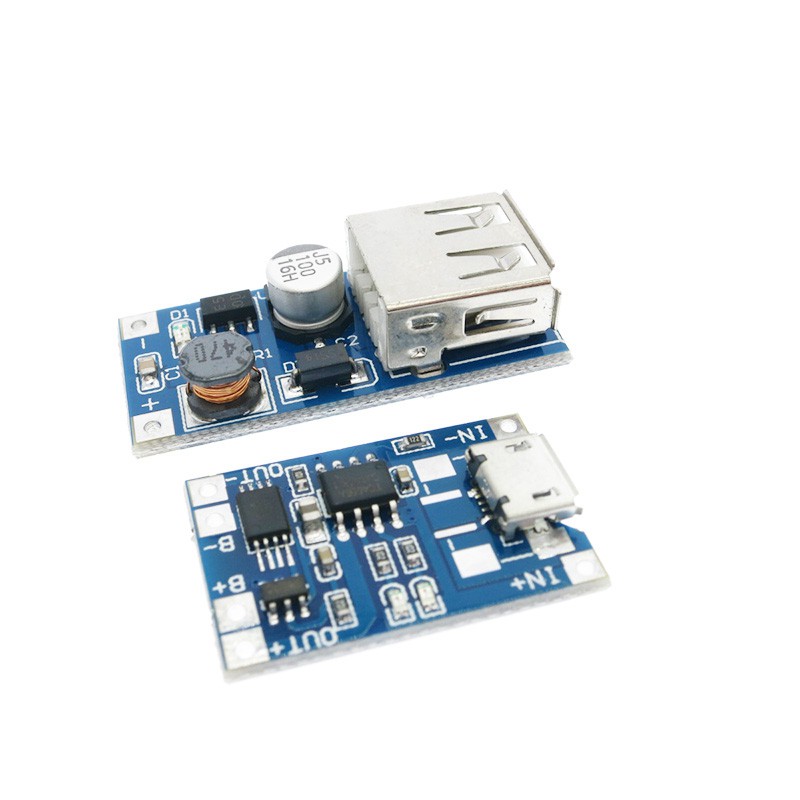

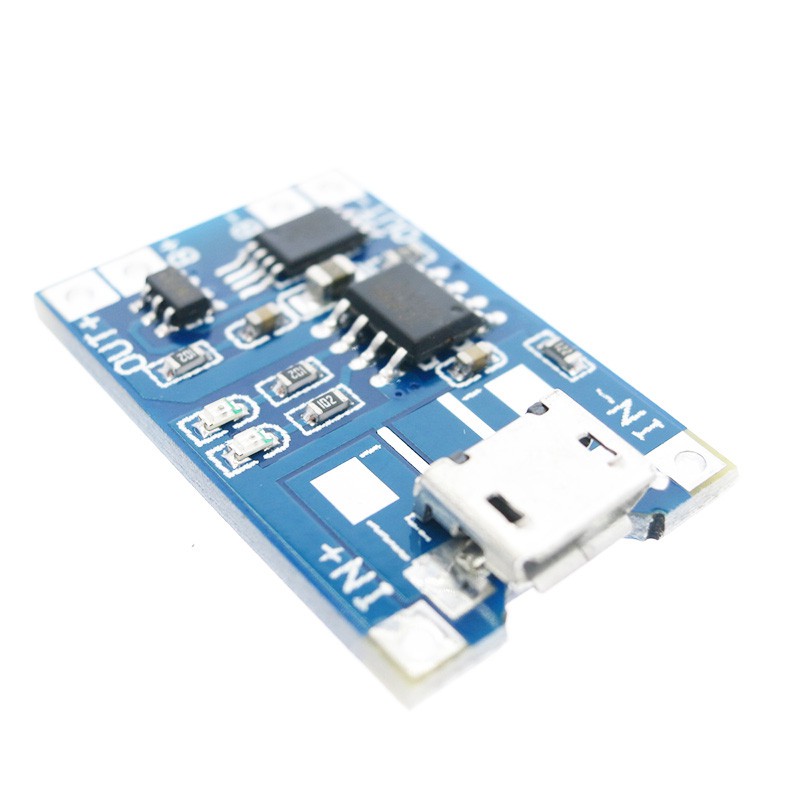

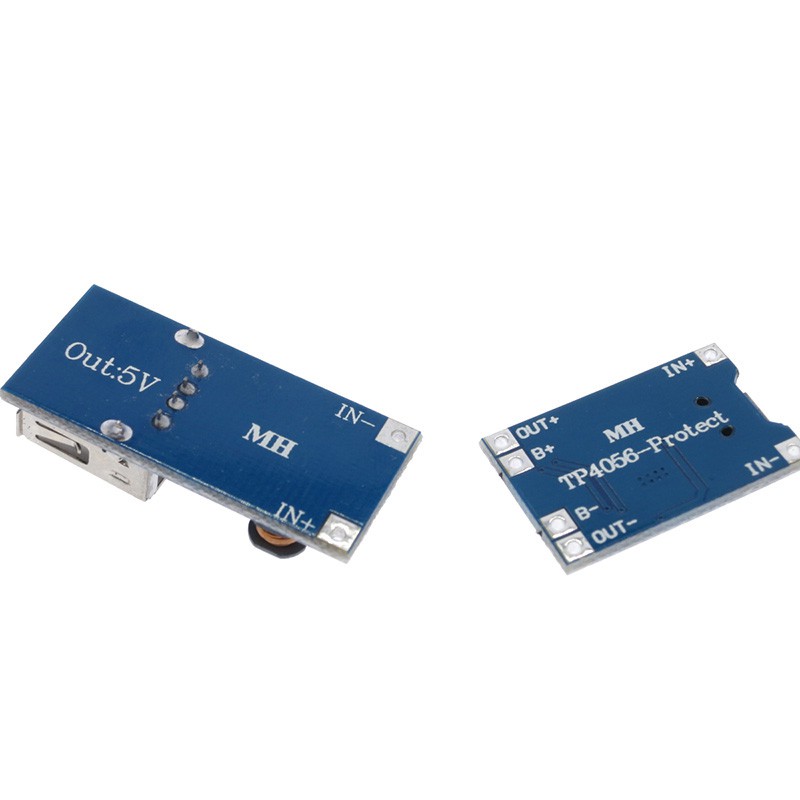

Bảng Mạch Cung Cấp Nguồn 0.9v ~ 5v 600ma Mini Dc-dc + Mô Đun Sạc Pin 1a Tp4056
5 Đánh Giá
Đã Bán 13
157
17.100 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 29/05/2021 lúc 03:57 CH
MÔ TẢ SẢN PHẨM
0.9V~5V 600MA USB Output charger Mini DC-DC Boost Converter +1a lithium battery charging TP4056 with protection one plate module
Module Applications
This module is used for single-cell lithium or lithium multi-section parallel, charging ports can take power from USB.
Instructions / Precautions
Test current meter in series with the charge sheet only 5V input.
Charge current is best battery capacity 0.37C, is 0.37 times the capacity, such 1000mAH battery charging current 400 this is enough. The effect of excessive charging speed backward, rushed over battery voltage out on much!
Not too small and too long charging connector wires. Such big connection resistance. Too thin, then rushed over battery voltage out on much.
Connected to the battery the best good contact. Otherwise rushed over battery voltage out on much.
If the 5V input voltage is high, such as 5.2 or even 5.5, will result in insufficient charging current is 1000mA, this is normal. High voltage chip fever will automatically reduce the charging current, not to chip burned. Chip at work about 60 degrees fever is normal. After the charging current is large.
Enter the reverse has no effect on the chip, but the output (battery terminals) reverse will burn the chip, please note that buyers.
0.9V~5V 600MA USB Output charger Mini DC-DC Boost Converter:
Module Applications
This module is used for single-cell lithium or lithium multi-section parallel, charging ports can take power from USB.
Instructions / Precautions
Test current meter in series with the charge sheet only 5V input.
Charge current is best battery capacity 0.37C, is 0.37 times the capacity, such 1000mAH battery charging current 400 this is enough. The effect of excessive charging speed backward, rushed over battery voltage out on much!
Not too small and too long charging connector wires. Such big connection resistance. Too thin, then rushed over battery voltage out on much.
Connected to the battery the best good contact. Otherwise rushed over battery voltage out on much.
If the 5V input voltage is high, such as 5.2 or even 5.5, will result in insufficient charging current is 1000mA, this is normal. High voltage chip fever will automatically reduce the charging current, not to chip burned. Chip at work about 60 degrees fever is normal. After the charging current is large.
Enter the reverse has no effect on the chip, but the output (battery terminals) reverse will burn the chip, please note that buyers.
0.9V~5V 600MA USB Output charger Mini DC-DC Boost Converter:
