MÔ TẢ SẢN PHẨM

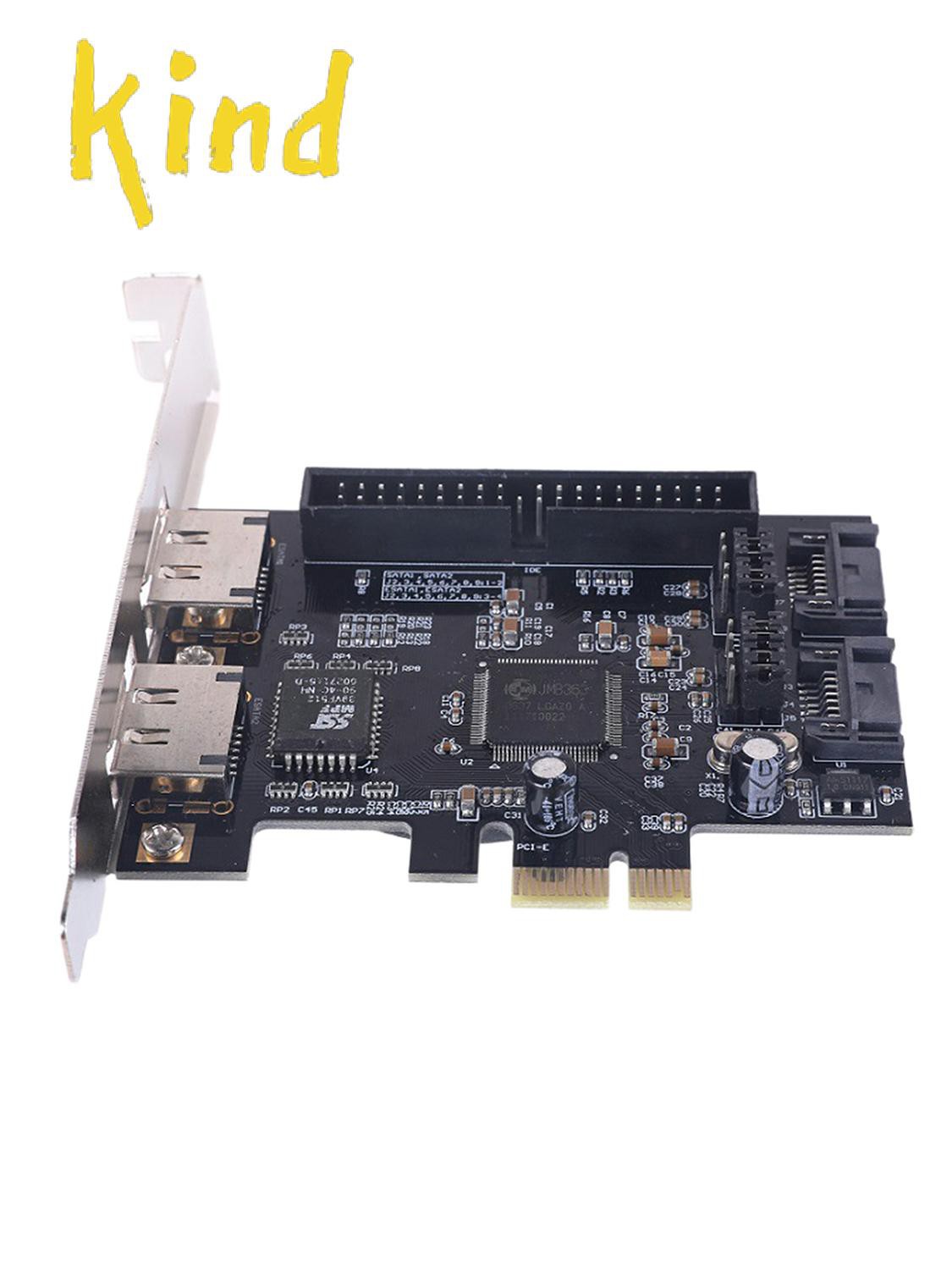

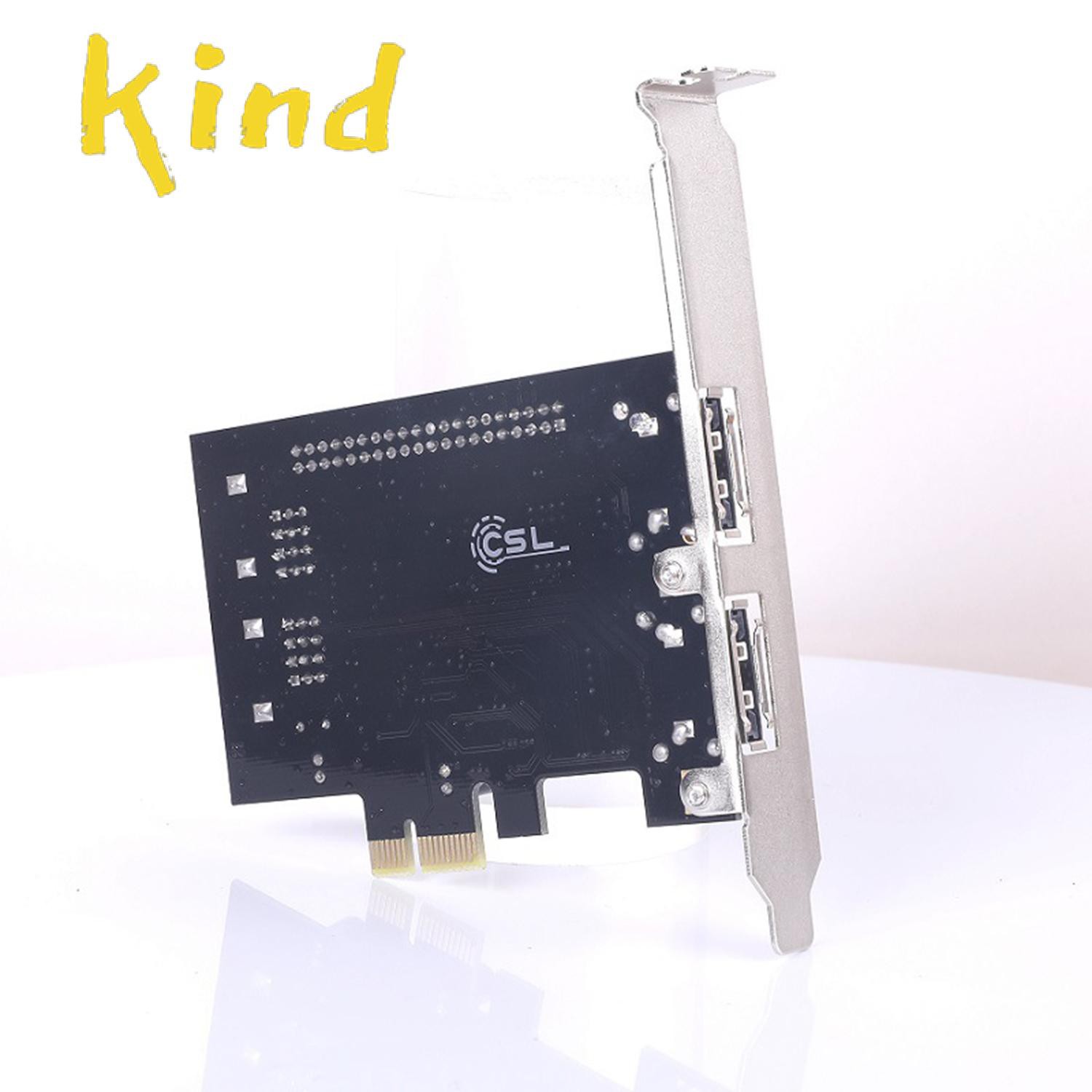

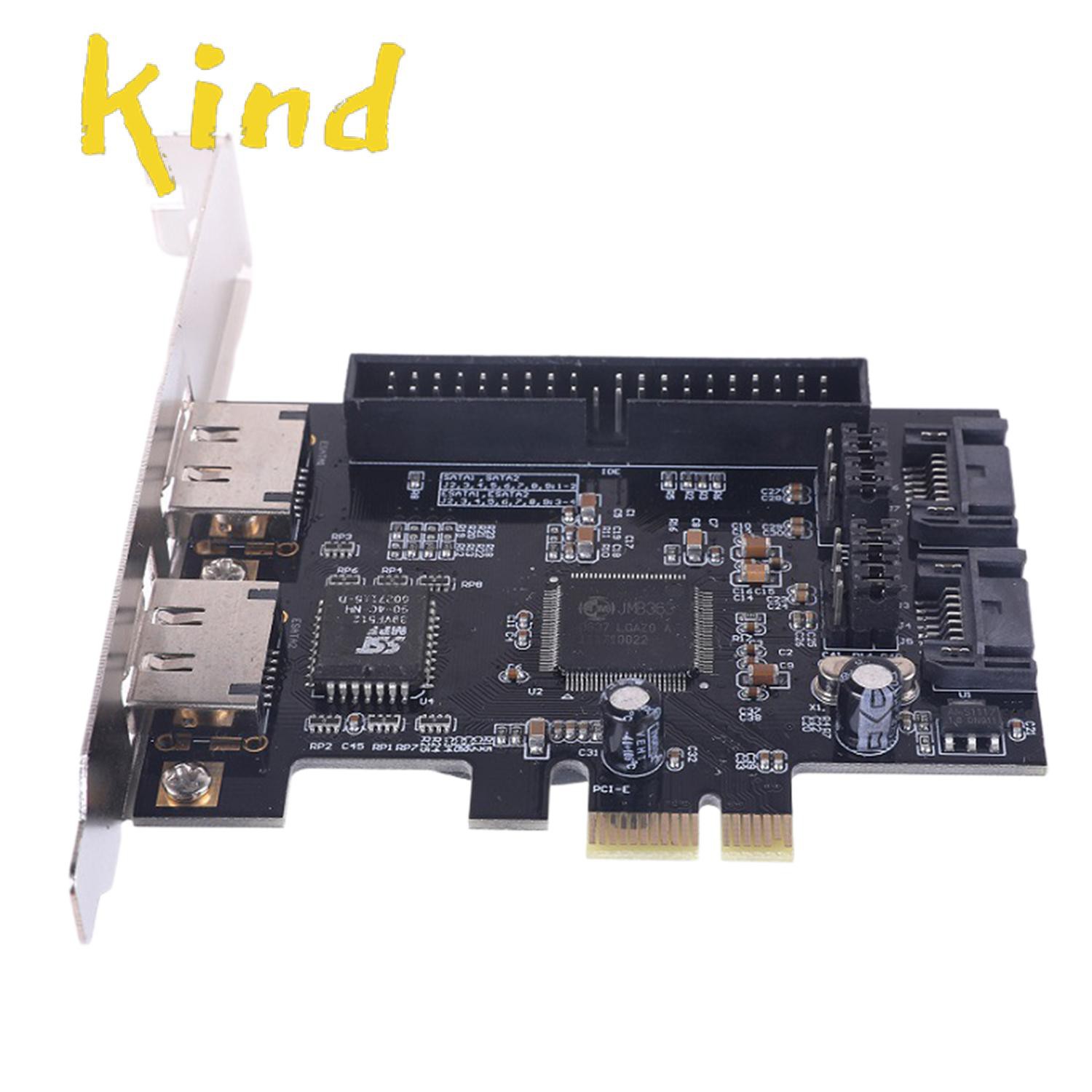

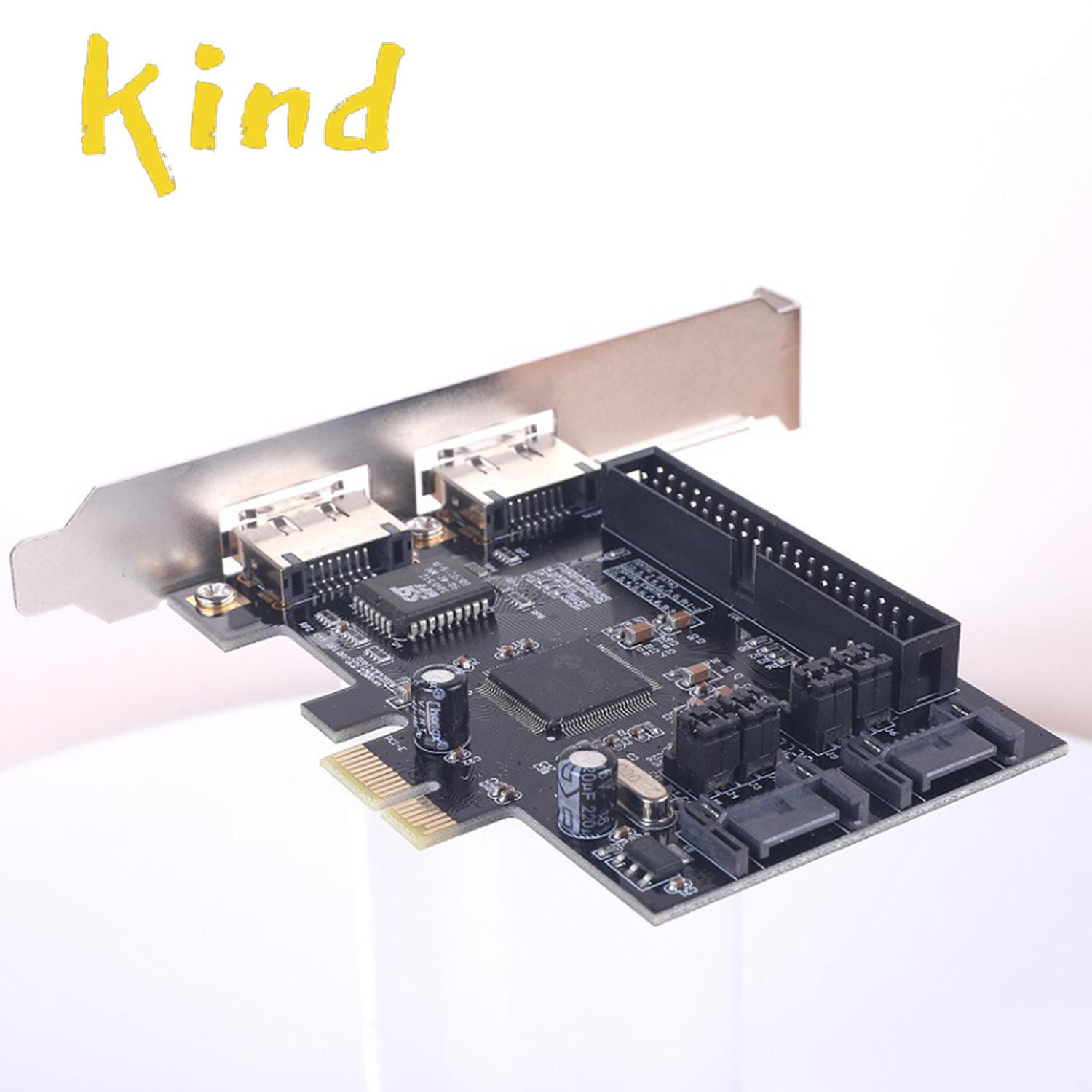

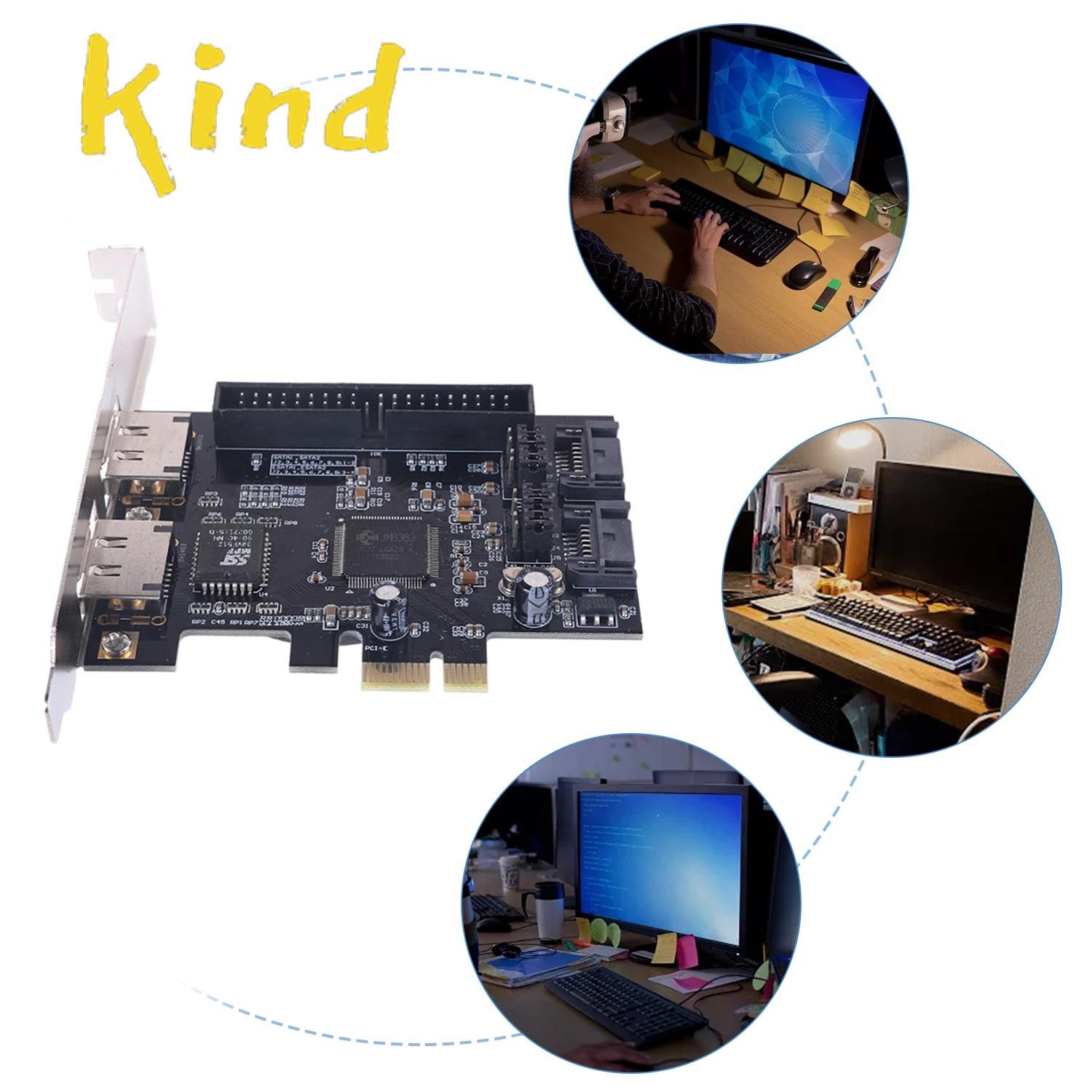

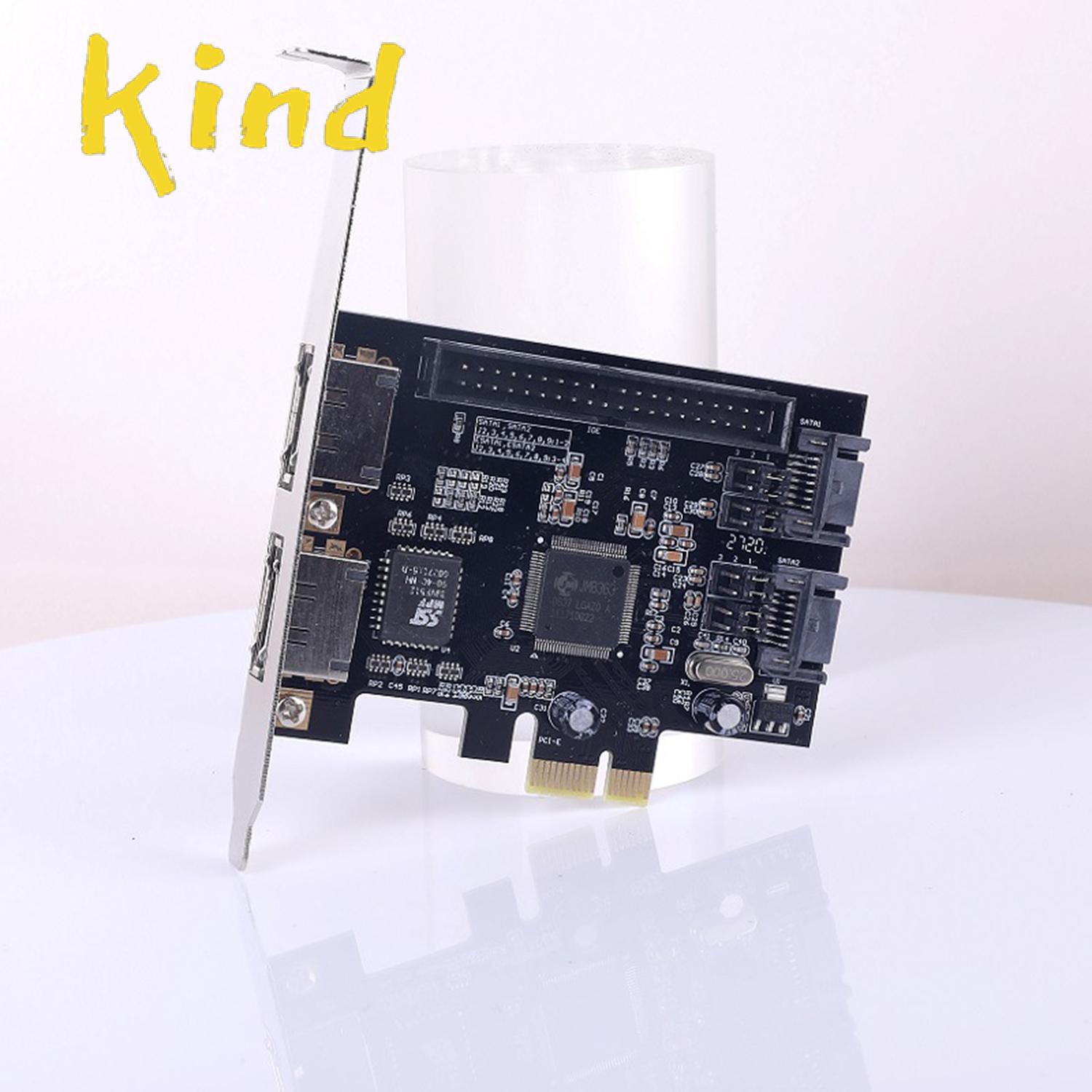

【kind】 PCI To SATA Controller PCI To Ide PCI-E To 2sata IDE Jmb363 Disk Array Card
Features:
1. Interface: 2 internal SATA interfaces, 1 ATA133 interface, 2 external ESATA interfaces (external ESATA and internal SATA can only use 2 at the same time, select through jumpers, the default is 2 internal SATA interfaces).
2. Support RAID 0, RAID 1, RAID 0+1 mode, support JBOD. Comply with PCI-Express 1.0 a standard, PCI-Express speed 2.5/s full duplex channel.
3. The driver supports Windows 2000/xp/7/8/server 2003/xp 64-bit/Vista, Mac, Dos.
4. Support Ultra ATA 133 hard drives, and down support Ultra ATA 100/66/33 standards
5. Supports 1 external ESATA interface and 1 internal SATA interface, with a transfer rate of up to 3Gb/s and supports SATA 1.0 standard.
Description:
The express expansion card supports fast read or write operations on the 256-byte FIFO port.
Specifications:
RAID array: support RAID 0, RAID 1, RAID 0+1 mode, support JBOD
Transmission rate: 133MB/sec, ATA133
Chip: JMB363
Support capacity hard disk (48-bit LBA mode): 137 GB or more
One IDE interface: supports up to 2 IDE devices
Package Included:
1* Express Expansion Card
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
