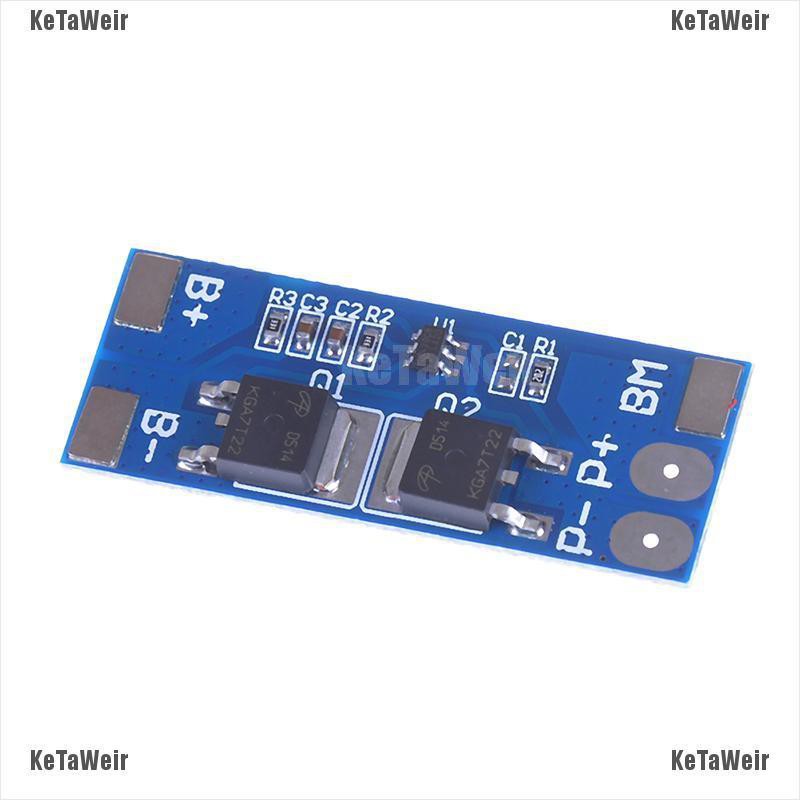

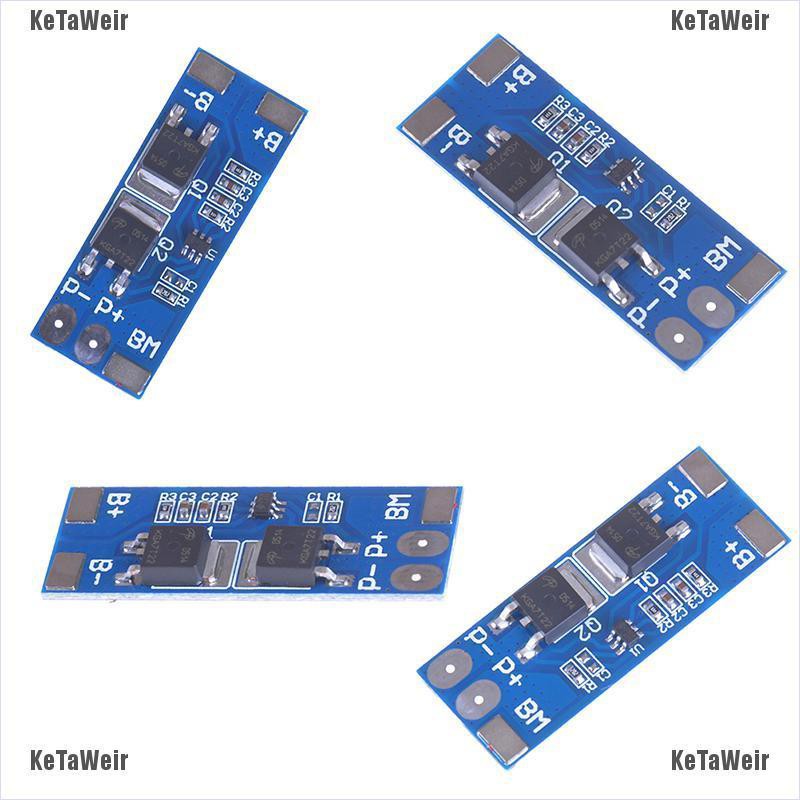

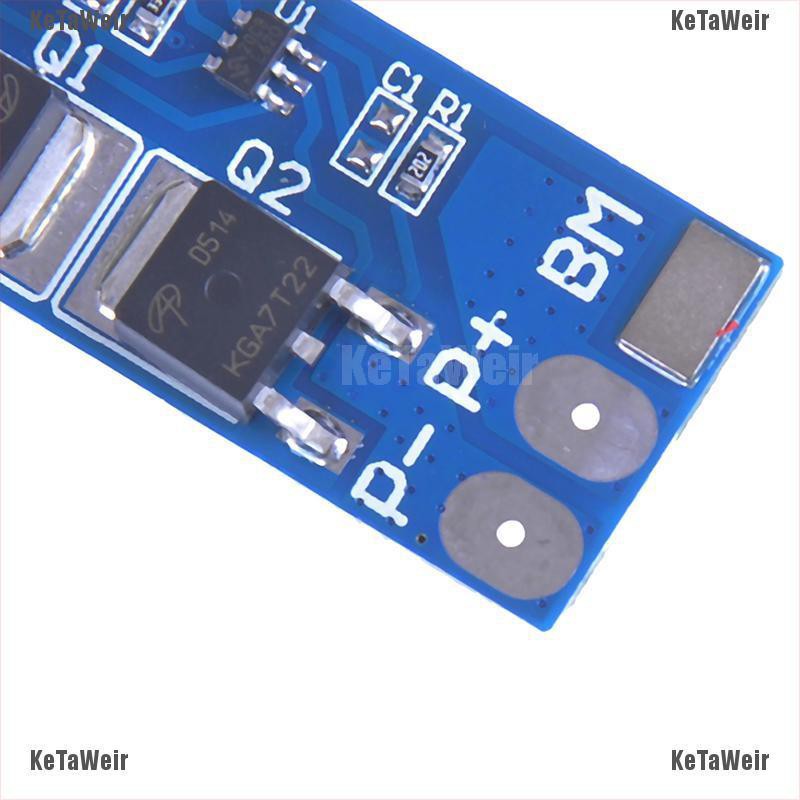

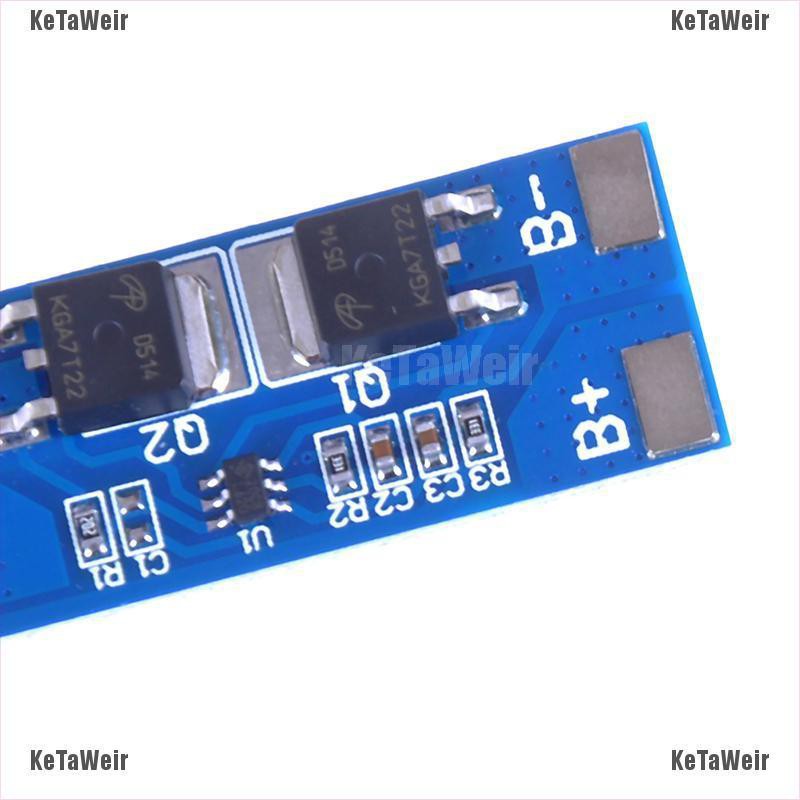

Bảng Mạch Bảo Vệ Sạc Pin Lithium Bms Ketaweir 2s 8a 7.4v W / Balance 18650 Li-ion
3 Đánh Giá
Đã Bán 5
99
17.600 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ năm 29/04/2021 lúc 08:55 CH
MÔ TẢ SẢN PHẨM
WelcomeTo Our Store KeTaWeir,
Description:

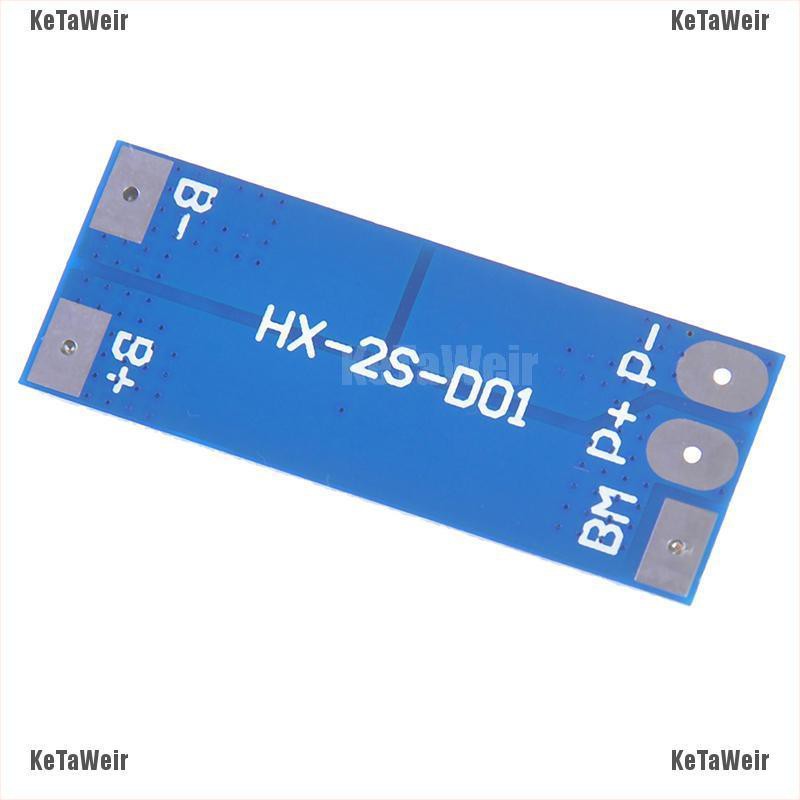

Model: HX-2S-D01
Overcharge voltage range: 4.25-4.35v±0.05v

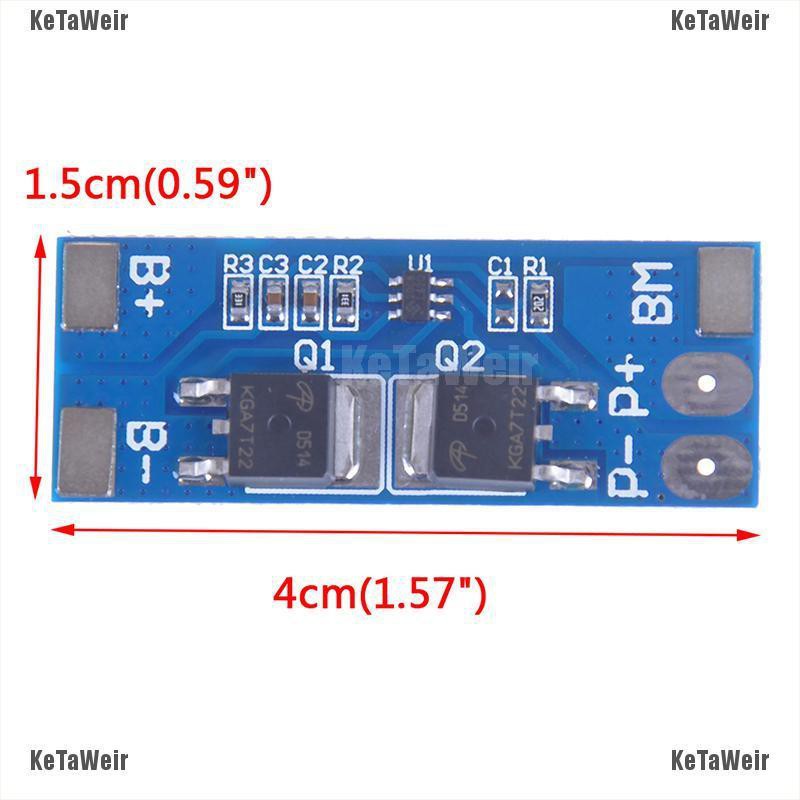

Size: Show in the picture
Over-discharge voltage range: 2.5-3.0v±0.05v
Upper limit working current: 8A
Working temperature: -40---+50 °C
Upper limit instantaneous current: 10A
Storage conditions: -40-- +80 ° C
Quiescent current: less than 10uA
Effective life: more than 50,000 hours
Internal resistance: less than 300mΩ
Short circuit protection: can protect, disconnect load self-recovery, charge recovery
Package include:
1x charger protection board
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
