Bảng Mạch Bảo Vệ Sạc Pin Lithium 11.1v 12.6v Tzt 3s 10a Li-Ion
5 Đánh Giá
Đã Bán 63
64
18.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ năm 29/04/2021 lúc 09:03 CH
MÔ TẢ SẢN PHẨM

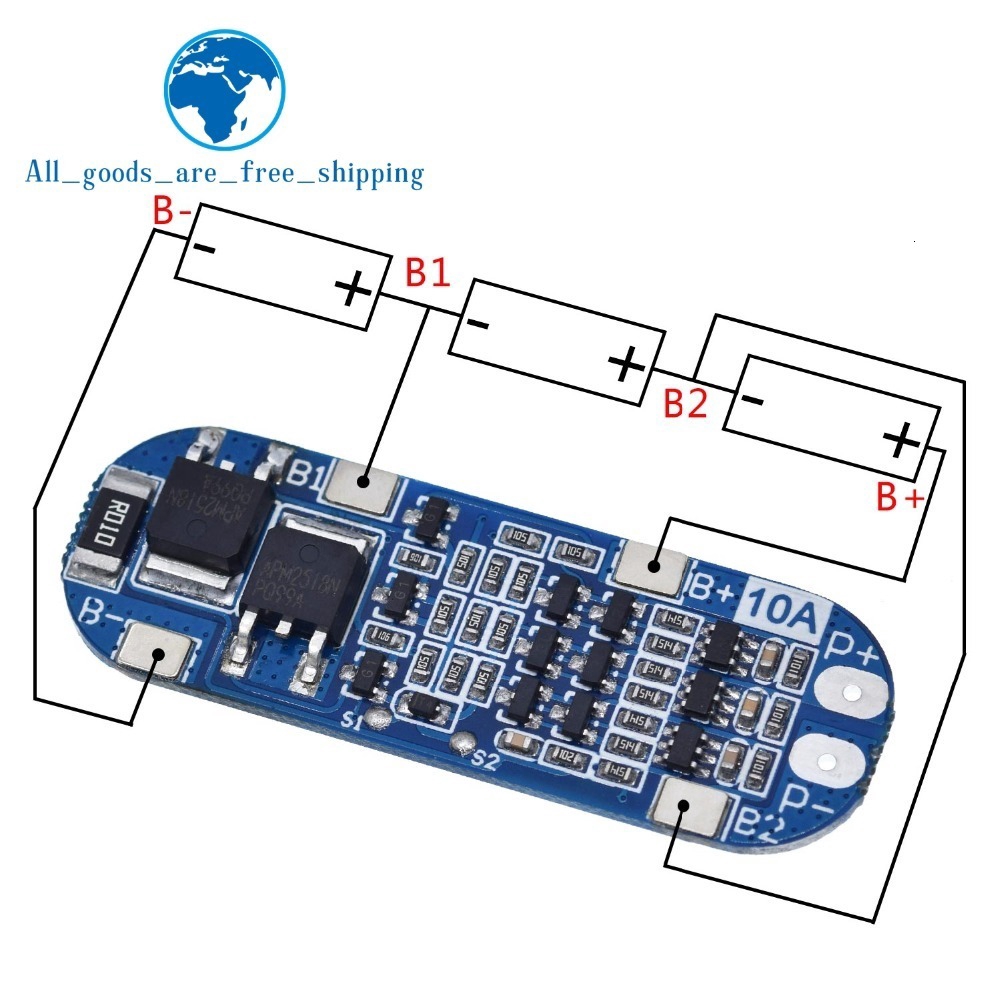

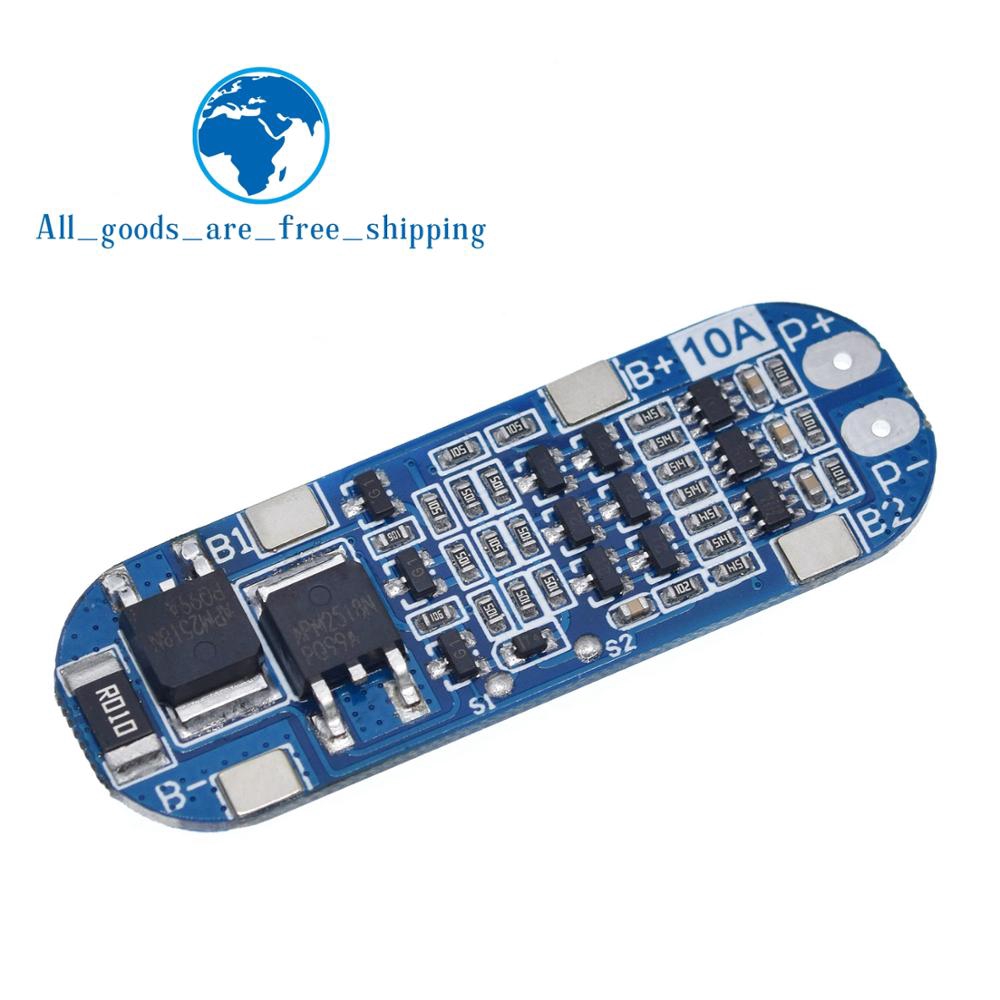

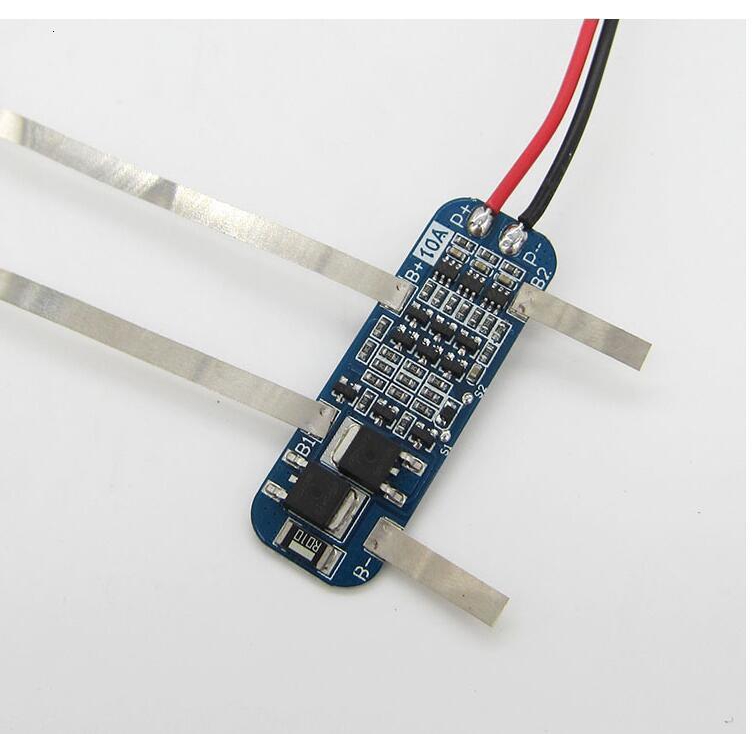

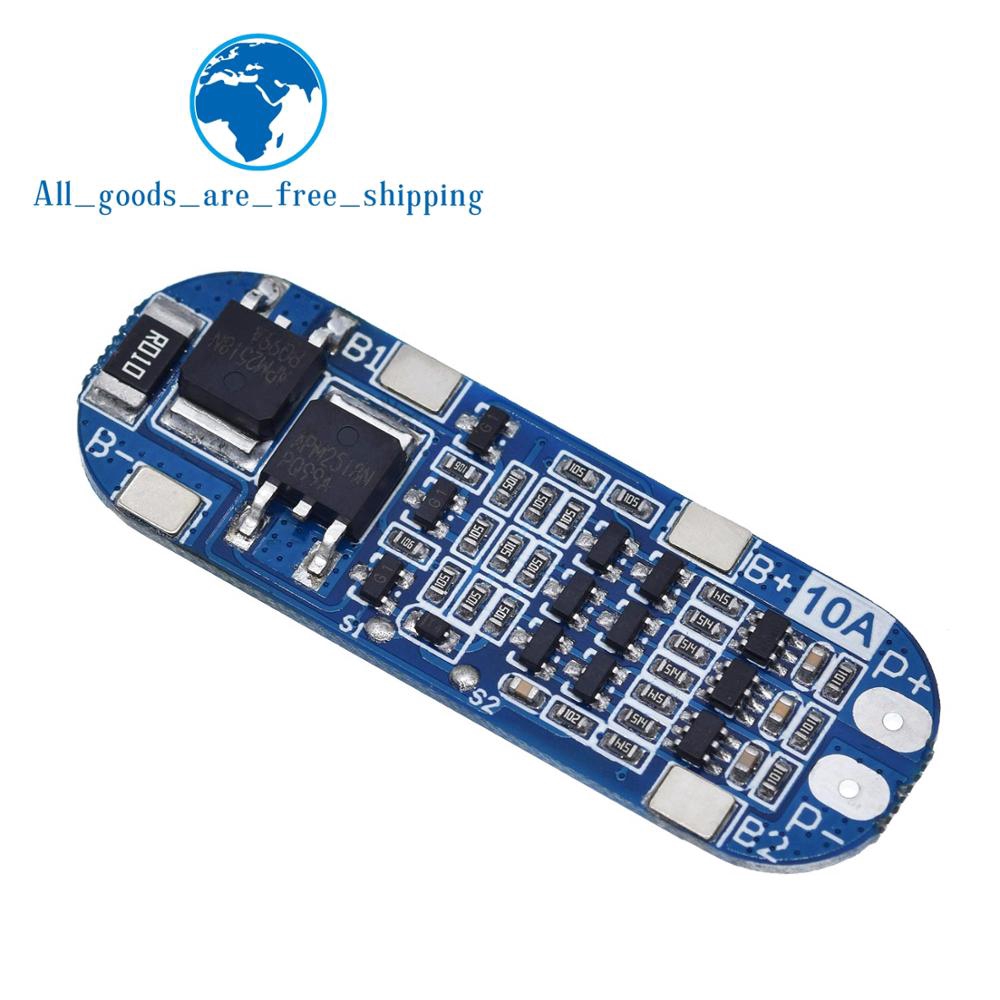

3S 10A 11.1V 12V 12.6V Lithium Battery Charger Protection Board Module for 18650 Li-ion Lipo Battery Cells BMS 3.7V
The attribute of the lithium battery protection board:

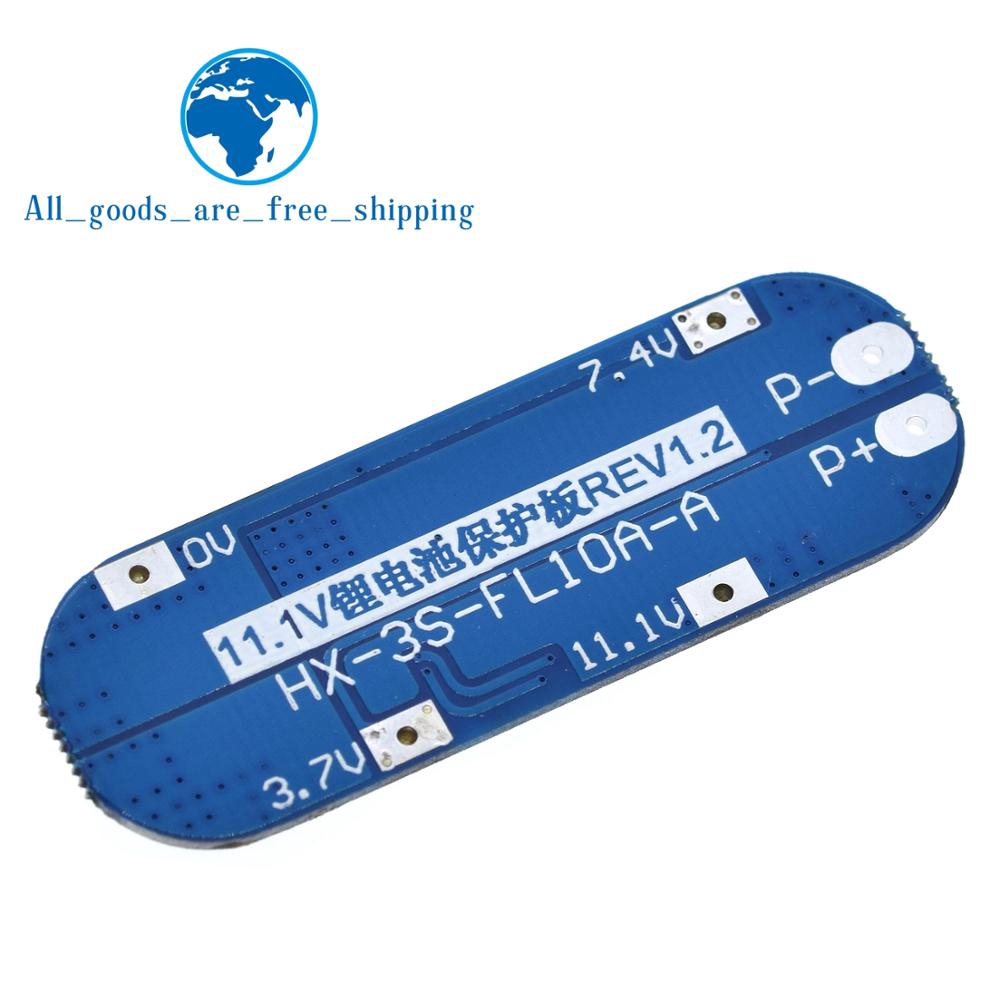

Model: HX - 3 s - FL10 - A
charging voltage range: 4.25 + / - 0.05 v to 4.35 v

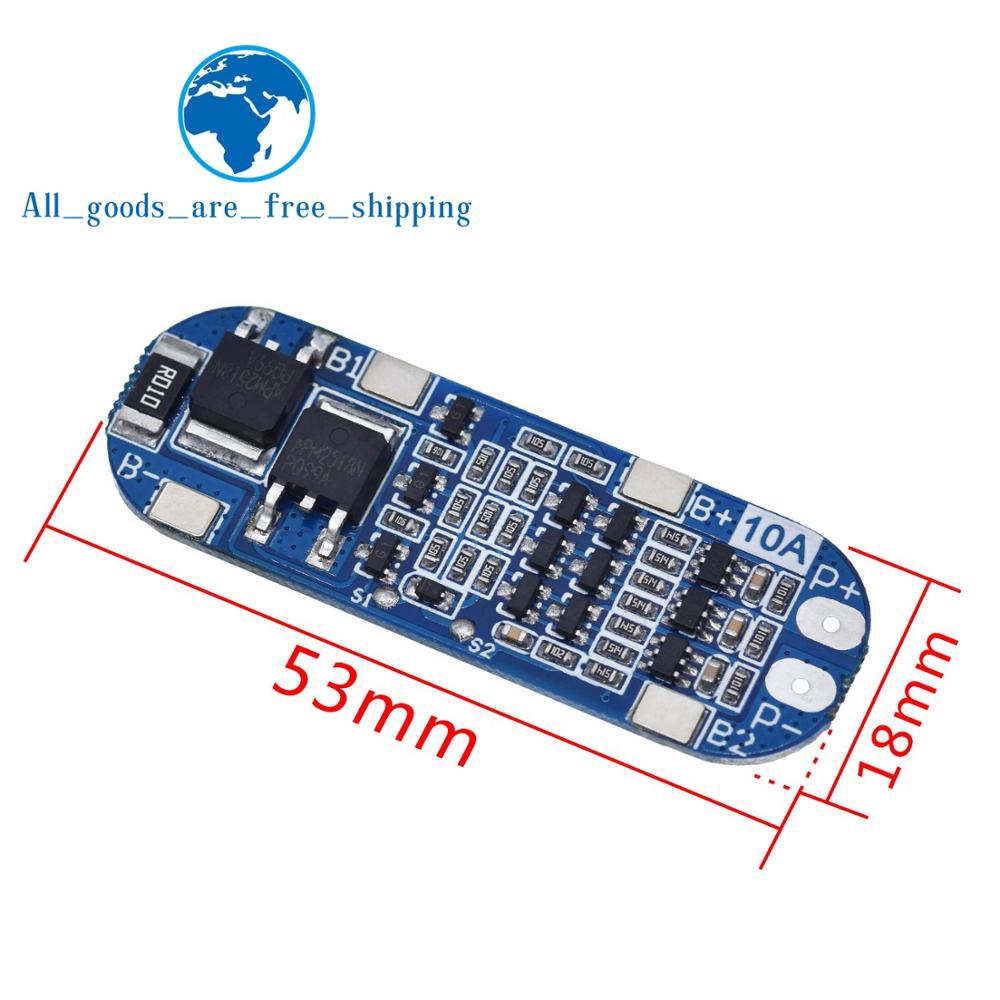

Size: 53 * 17 * 4.0 mm
discharge voltage range: 2.3 + / - 0.05 v to 3.0 v
Maximum working current: 6-8 a
working temperature: - 40 - + 50 ℃
Maximum instantaneous current: 10 to 13 a
storage conditions: - 40 - + 80 ℃
Static electricity: less than 30 ua
useful life: more than 30000 hours
Resistance: less than 100 m Ω
short circuit protection, can protect, delay the recovery.
Charging voltage: 12.6 V - 13 V
Package Include:
1PCS * 3S 10A 11.1V 12V 12.6V Lithium Battery Charger Protection Board
The attribute of the lithium battery protection board:
Model: HX - 3 s - FL10 - A
charging voltage range: 4.25 + / - 0.05 v to 4.35 v
Size: 53 * 17 * 4.0 mm
discharge voltage range: 2.3 + / - 0.05 v to 3.0 v
Maximum working current: 6-8 a
working temperature: - 40 - + 50 ℃
Maximum instantaneous current: 10 to 13 a
storage conditions: - 40 - + 80 ℃
Static electricity: less than 30 ua
useful life: more than 30000 hours
Resistance: less than 100 m Ω
short circuit protection, can protect, delay the recovery.
Charging voltage: 12.6 V - 13 V
Package Include:
1PCS * 3S 10A 11.1V 12V 12.6V Lithium Battery Charger Protection Board
