MÔ TẢ SẢN PHẨM

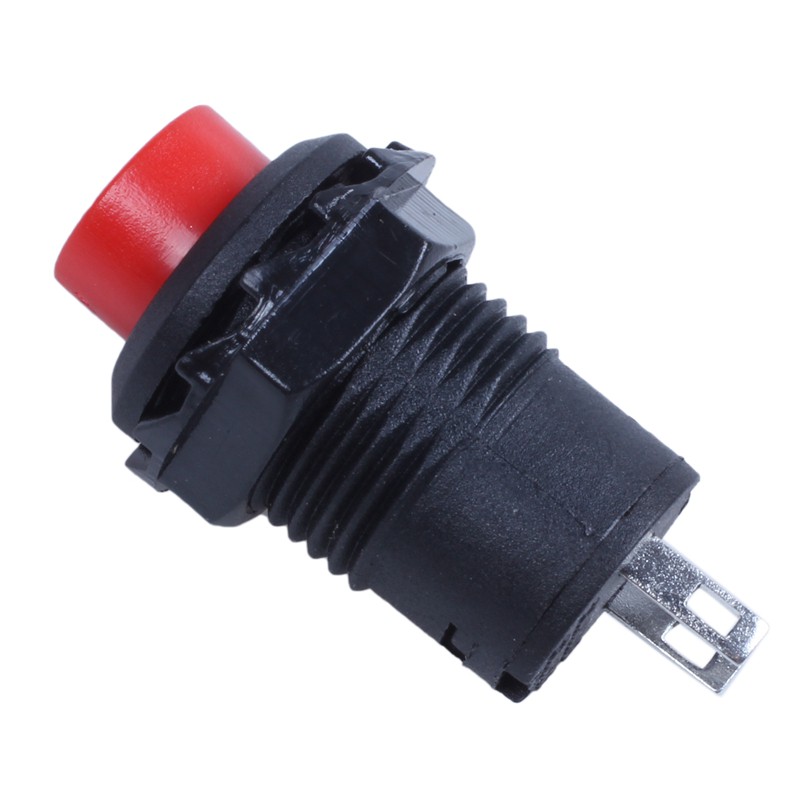

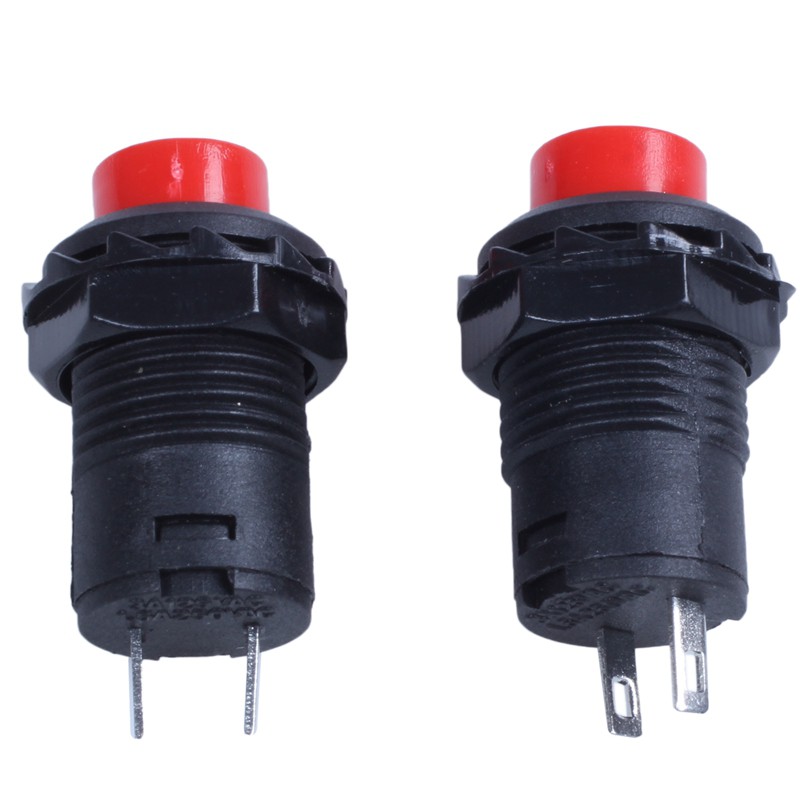

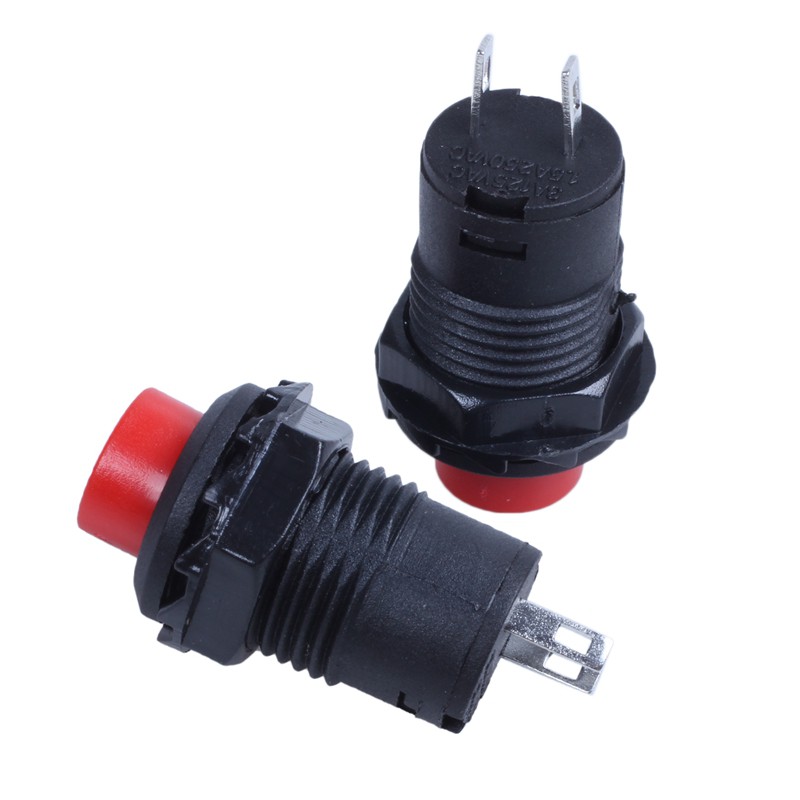

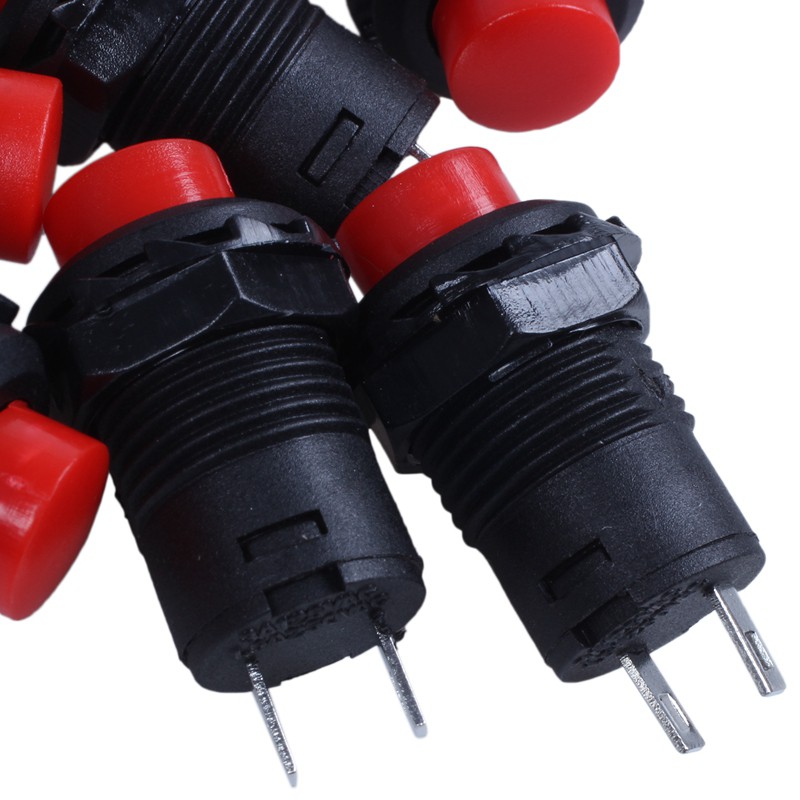

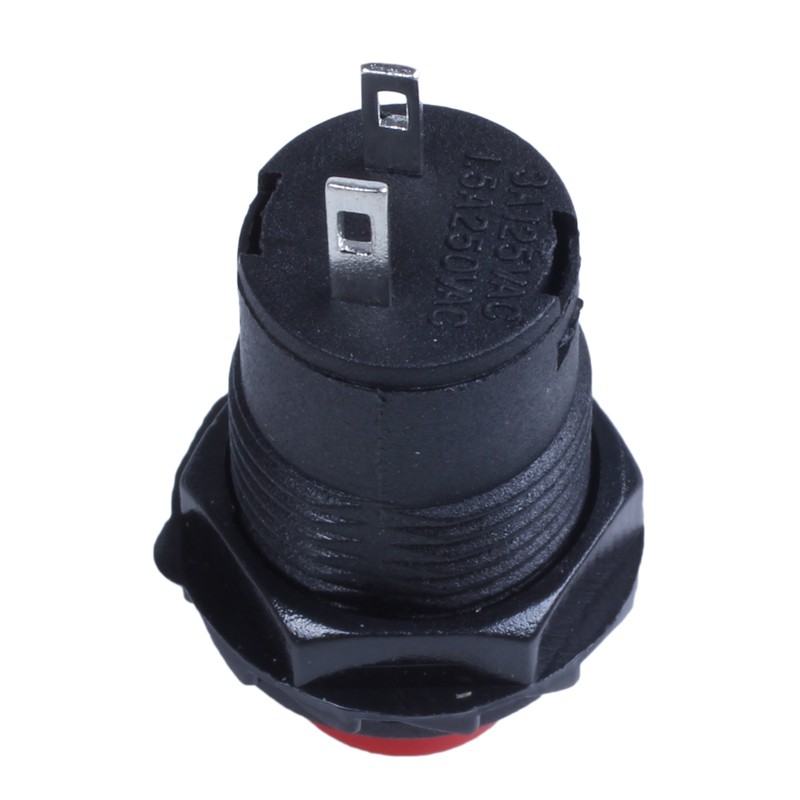

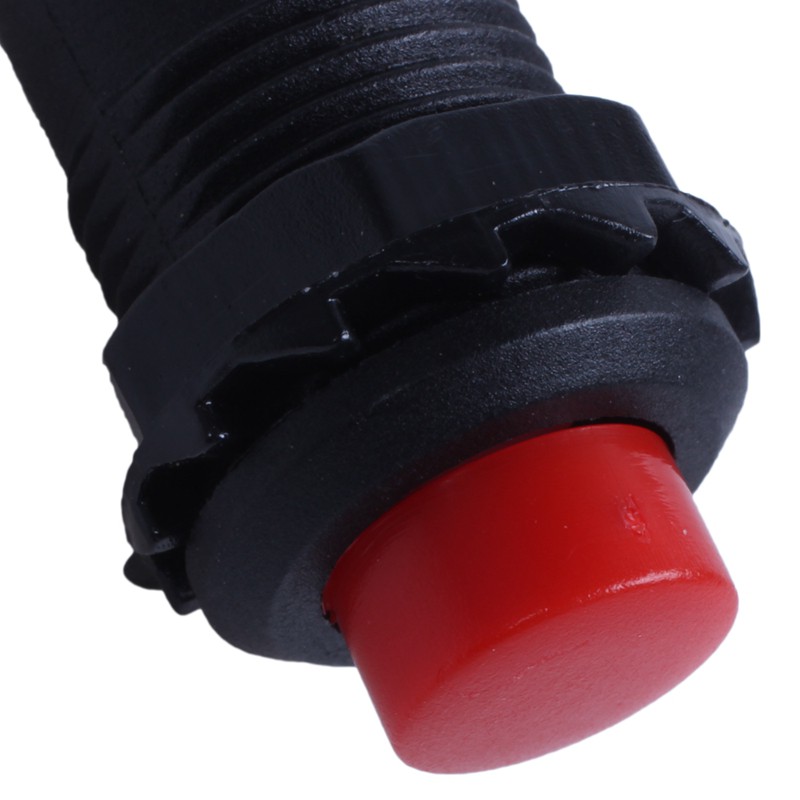

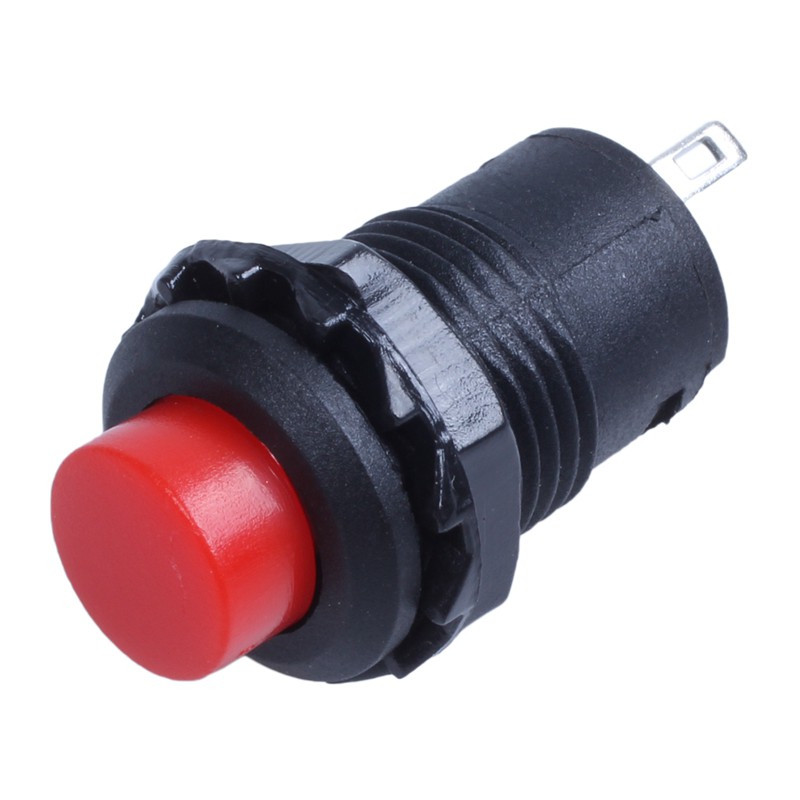

2 terminals,red round cap push button, momentary type, 1NO(Off) contact type, 12mm mounting hole diameter.
The push button switch is used in industrial controlling circuits for controlling in electromagnetic starter, Contactor, Relay and other electric circuits.
Product Name : Push Button Switch
Action Type : Momentary
Contact Type : NO
Poles : SPST
Rating Voltage : AC 250V 1.5A, AC 125V 3A
Terminals Quantity : 2
Mounting Thread Dia. : 12mm / 0.47"
Button Dia. : 9mm/ 0.35"
Terminals Pitch : 5.5mm / 0.22"
Overall Size : 30 x 14mm / 1.2" x 0.55"(Max. L * D)
Material : Plastic & Metal
Color : Red & Black
Weight : 25g
Package Content : 10 x Push Button Switch
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is +/-1-3 cm.
The push button switch is used in industrial controlling circuits for controlling in electromagnetic starter, Contactor, Relay and other electric circuits.
Product Name : Push Button Switch
Action Type : Momentary
Contact Type : NO
Poles : SPST
Rating Voltage : AC 250V 1.5A, AC 125V 3A
Terminals Quantity : 2
Mounting Thread Dia. : 12mm / 0.47"
Button Dia. : 9mm/ 0.35"
Terminals Pitch : 5.5mm / 0.22"
Overall Size : 30 x 14mm / 1.2" x 0.55"(Max. L * D)
Material : Plastic & Metal
Color : Red & Black
Weight : 25g
Package Content : 10 x Push Button Switch
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is +/-1-3 cm.
