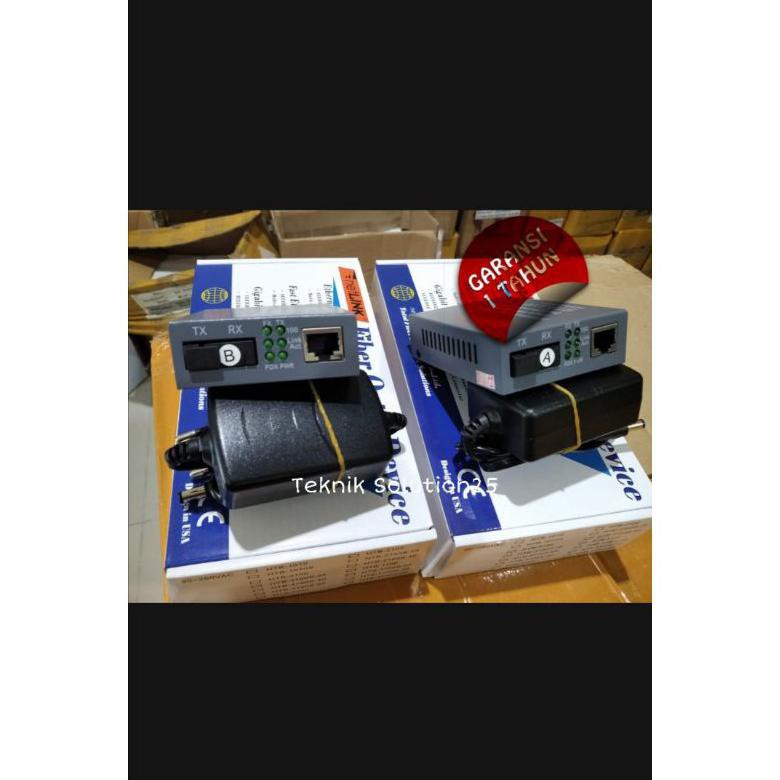

♥ 1 Cặp Đầu Chuyển Đổi Quang Học Htb-3100 A + B
0 Đánh Giá
Đã Bán 0
40
743.400 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 11/07/2021 lúc 05:43 SA
MÔ TẢ SẢN PHẨM
Notes:
It can save half of the fiber, the data on a single fiber and the 10 / 100 m rate of receiving and sending, where the optical fiber resource is very applicable
Brand-New, High Quality.
- an RJ45 ports and a single-fiber SC optical port, to achieve optical signal conversion between 10 / 100base TX twisted pair (Ethernet) and 100base FX (fiber optic);
- core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled;
Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards
- has 10M / 100M adaptive capacity;
- support full / half duplex mode;
- support IEEE802.3X duplex flow control and half-duplex backpressure flow control
- support broadcast storm prevention function;
10.1916 Byte support large data frame (optional);
Built-In lightning protection circuit, which can greatly produce the damage caused by lightning induction;
- utp up to 100 meters; longest 100 km single-mode fiber;
- there are six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working
Status of the transceiver and determine the cause of the fault;

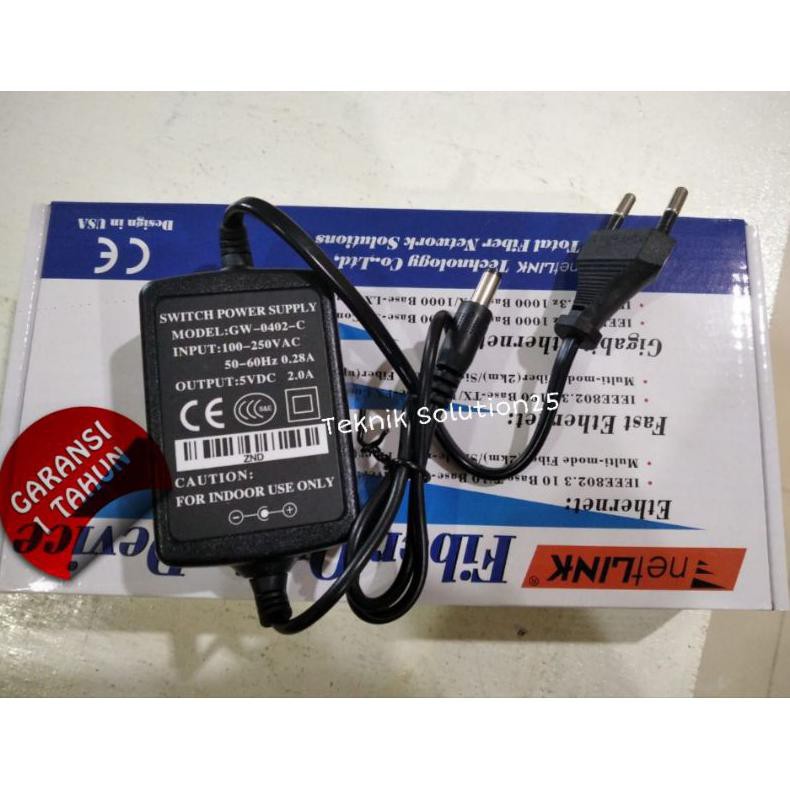

- there are external, internal power supply of two types: AC100~265V / DC5V switching power supply;
- working temperature: 0~50 degree;
- storage temperature: - 40~70 degree;
- transceiver Dimensions: External power 70x26 x 93mm; built-in 120x30 x 140mm.
Outer Dimensions: 95mm x 71mm x 25mm
- package: ESD package, cardon
Package acquired:
1 x Netlink HTB 3100 A
1 x Netlink HTB 3100 B
1 x manual User
(We 're from Jakarta)
