1 Cặp Phát Tín Hiệu 433Mhz RF Không Dây
9 Đánh Giá
Đã Bán 23
165
22.400 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 29/05/2021 lúc 04:03 CH
MÔ TẢ SẢN PHẨM

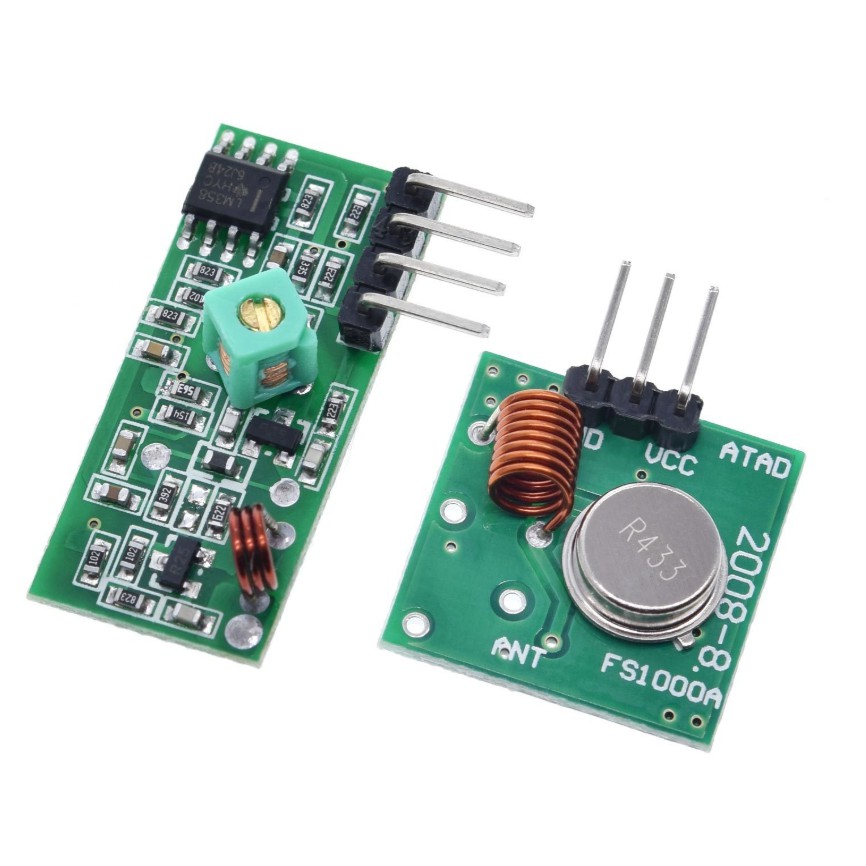

1 pair 433Mhz RF Transmitter With Receiver Kit ARM MCU Wireless
Description:

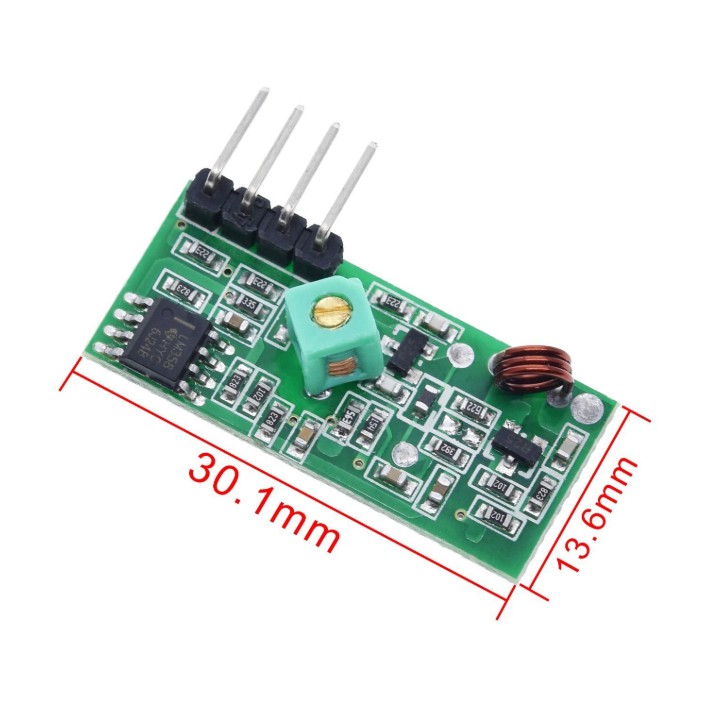

Product Model: XY-MK-5V
Operating voltage : DC5V quiescent current: 4MA
Receiving frequency: 433.92MHZ
Receiver sensitivity: - 105DB
Size : 30 * 14 * 7mm external antenna: 32CM single core wire wound into a spiral

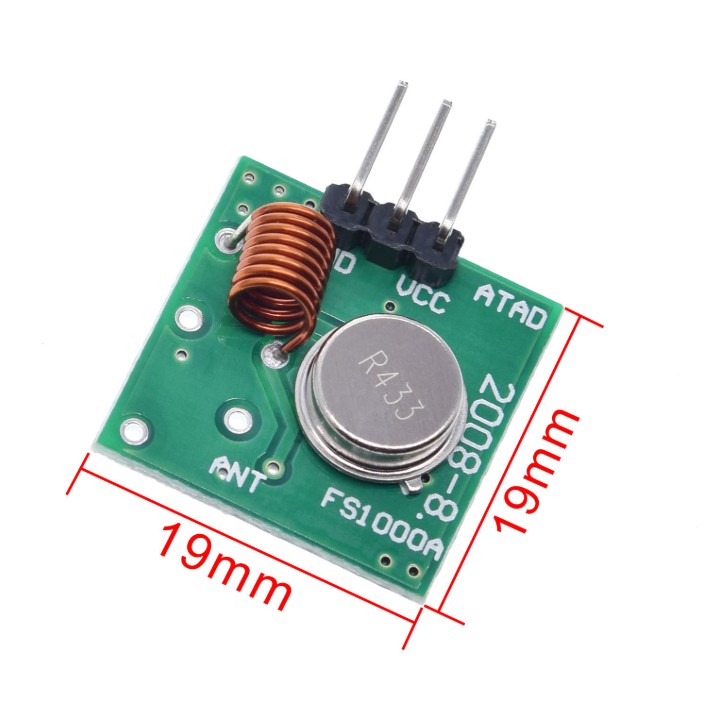

Technical parameters of the transmitter head
Product Model: XY-FS
Launch distance: 20 -200 meters (different voltage, different results) Operating voltage: 3.5-12V Dimensions: 19 * 19mm
Ways of working: AM transfer rate: 4KB / S transmit power: 10mW
Transmitting frequency: 433M
An external antenna: 25cm ordinary multi-core or single-core line
Pinout from left → right: ( DATA ; VCC ; GND )
Description:
Product Model: XY-MK-5V
Operating voltage : DC5V quiescent current: 4MA
Receiving frequency: 433.92MHZ
Receiver sensitivity: - 105DB
Size : 30 * 14 * 7mm external antenna: 32CM single core wire wound into a spiral
Technical parameters of the transmitter head
Product Model: XY-FS
Launch distance: 20 -200 meters (different voltage, different results) Operating voltage: 3.5-12V Dimensions: 19 * 19mm
Ways of working: AM transfer rate: 4KB / S transmit power: 10mW
Transmitting frequency: 433M
An external antenna: 25cm ordinary multi-core or single-core line
Pinout from left → right: ( DATA ; VCC ; GND )
