1 Cái Công Tắc Chitengyu 0.15a H3C Cho 4020 5600 S5500 Fan Efb0412Hhd 3600 12v 3pin Cgs
0 Đánh Giá
0 Đã Bán
28
74.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ sáu 02/07/2021 lúc 11:10 CH
❄ Welcome To Chitengyesuper ❄

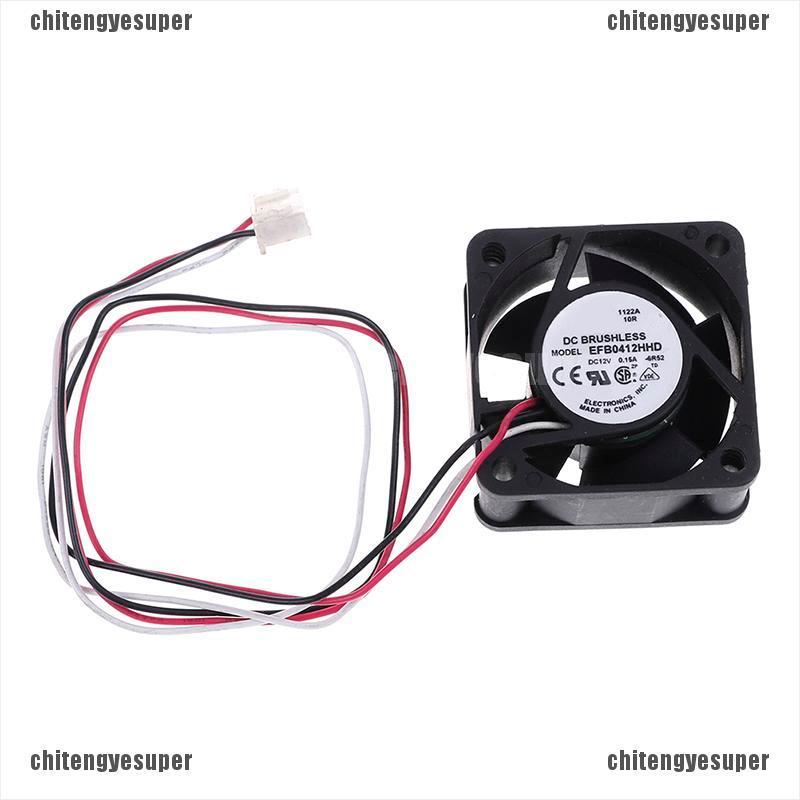

Product introduction:
Model: EFB0412HHD-ROO
Size: 40X40X20MM (4020)
Speed: 8200 RPM
Bearing: Double Ball Bearing
Noise: 30.5dBA
Air volume: 9.43 CFM
Power: 1.8W
Current: 0.15A
Voltage: DC 12V
Function: stop alarm
Interface: 4P 3 line interface (interface type 2.54P terminal as shown in figure)
Line length: 20CM
Features: Maintenance-free double ball bearings, long service life, with adequate cooling air volume and air pressure
Service life: 10.0000 hours (25 C, 45-85% relative humidity)
Scope of use: 1. H3C 3600 5600 S3100-52P switch firewall and other machine fan failure use, after replacing the status indicator from "F" to normal "1", there is no longer "Fan 1 Failed" entry in the log.
2. Other devices that need 12V stop alarm function can be used. The terminals can be changed to other terminals, corresponding to black negative, red positive and white signal lines.
Packaging includes: 1Pc
Product introduction:
Model: EFB0412HHD-ROO
Size: 40X40X20MM (4020)
Speed: 8200 RPM
Bearing: Double Ball Bearing
Noise: 30.5dBA
Air volume: 9.43 CFM
Power: 1.8W
Current: 0.15A
Voltage: DC 12V
Function: stop alarm
Interface: 4P 3 line interface (interface type 2.54P terminal as shown in figure)
Line length: 20CM
Features: Maintenance-free double ball bearings, long service life, with adequate cooling air volume and air pressure
Service life: 10.0000 hours (25 C, 45-85% relative humidity)
Scope of use: 1. H3C 3600 5600 S3100-52P switch firewall and other machine fan failure use, after replacing the status indicator from "F" to normal "1", there is no longer "Fan 1 Failed" entry in the log.
2. Other devices that need 12V stop alarm function can be used. The terminals can be changed to other terminals, corresponding to black negative, red positive and white signal lines.
Packaging includes: 1Pc
