1 Bộ Bảng Mạch Thiết Bị Đầu Cuối Mega-2560 R31
2 Đánh Giá
Đã Bán 12
89
119.000 đ
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 21/11/2021 lúc 10:43 CH
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
_______♤Welcome Iuxishop Store♤___________
✔Ready Stock
✔COD
✔Quality Checked
✔Whole Items: Good Quality/Ready Stock/Original/Wholesale Price
✔Shipping Time: 5-14 usually 8 days from China
★Surprises for you★
☛Free Gifts:Follow Shop
❤“Like” 5 Items: Priority Shipping
⚠️( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)
✌(Tip:We will be based on your guests in your country to send the corresponding adapter plug)
【After-sale】: If there are any problem, please contact us firstly, we will try our best to solve it.
__________________❀Product Information❀__________________
Features:
100% Brand new and high quality

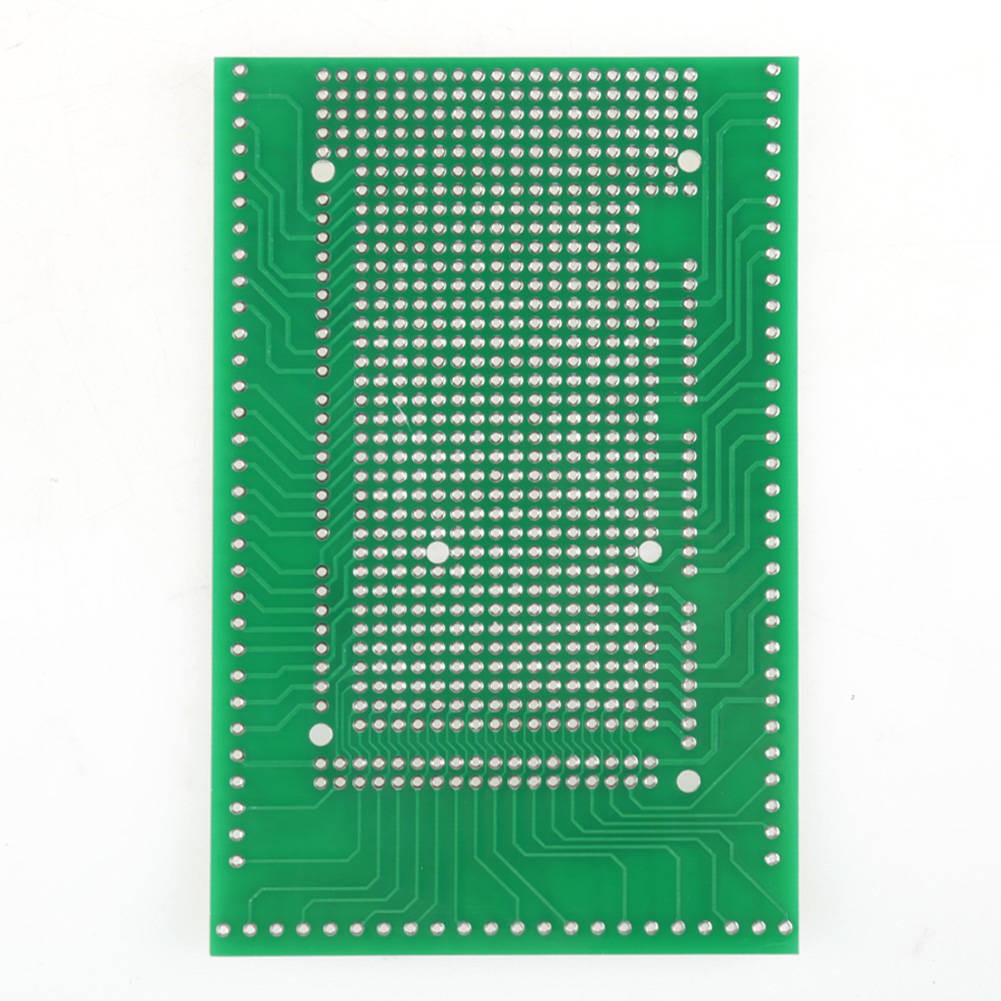

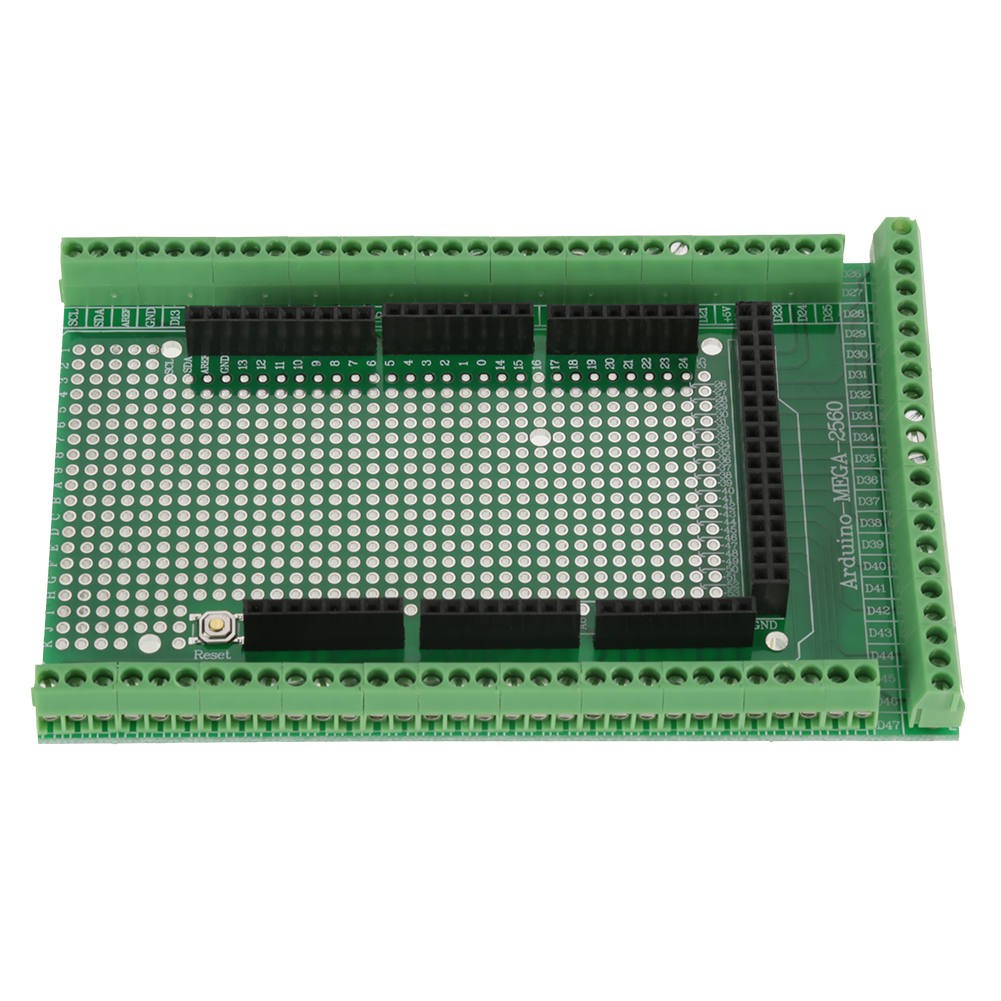

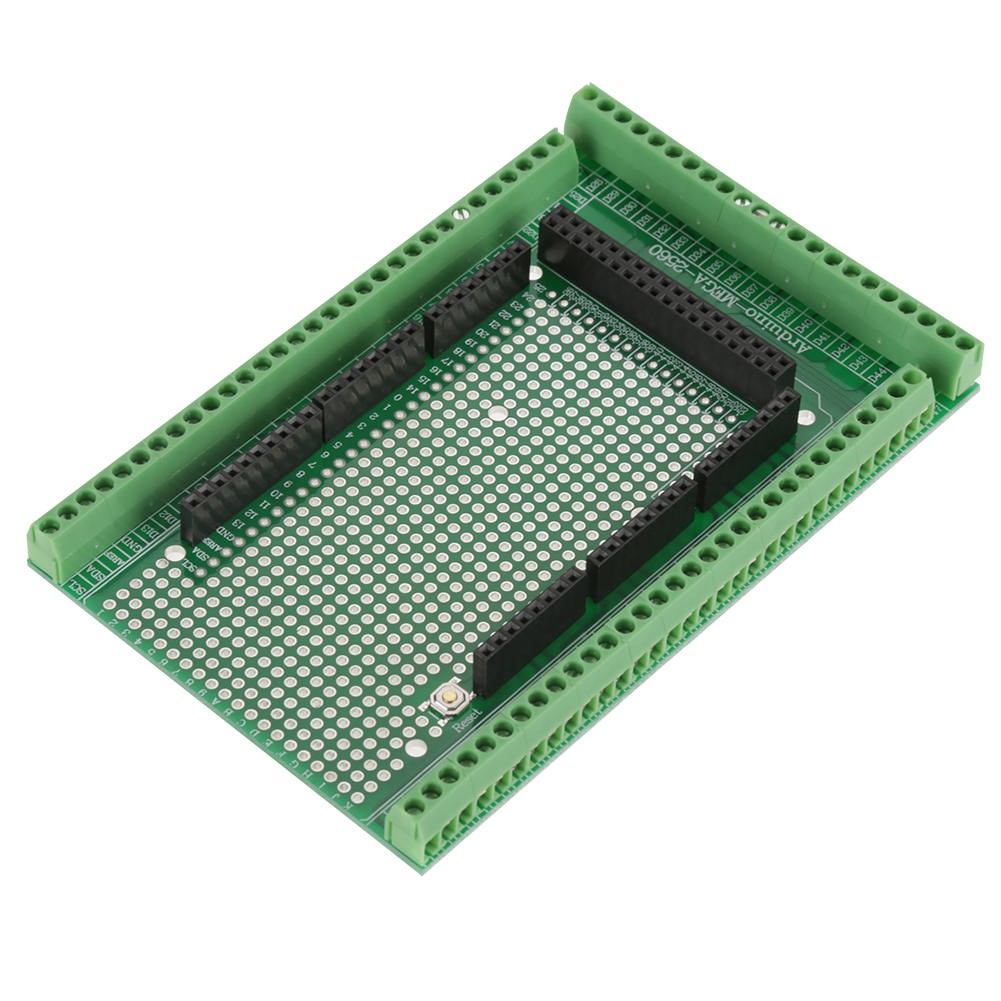

The kit contains Prototype PCB, Terminal Blocks,
Female Header Sockets.
Compact structure, made up of screw terminal block, high quality PCB carrier, FR-4 glass fiber PCB.
This Terminal Module is made of high quality material and by delicate workmanship treatment, with long serving life

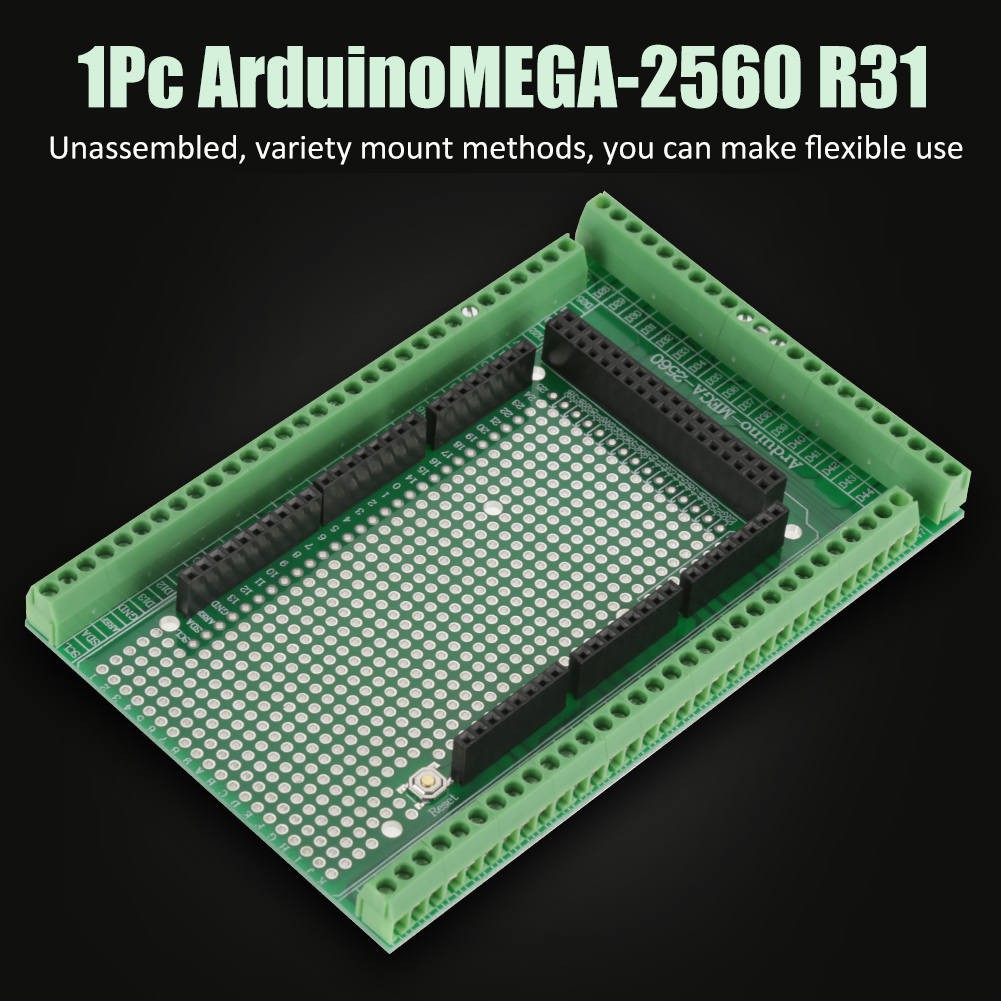

Not assembled, variety mount methods, you can make flexible use.
Specifications:
PCB:PCB size 12.024 x 7.72cm/4.73 x3.04inch
Pads grid / pitch: 2.54mm / 0.1", hole diameter 0.8mm.
Terminal block pitch: 3.5mm / 0.138", hole diameter 1.2mm.

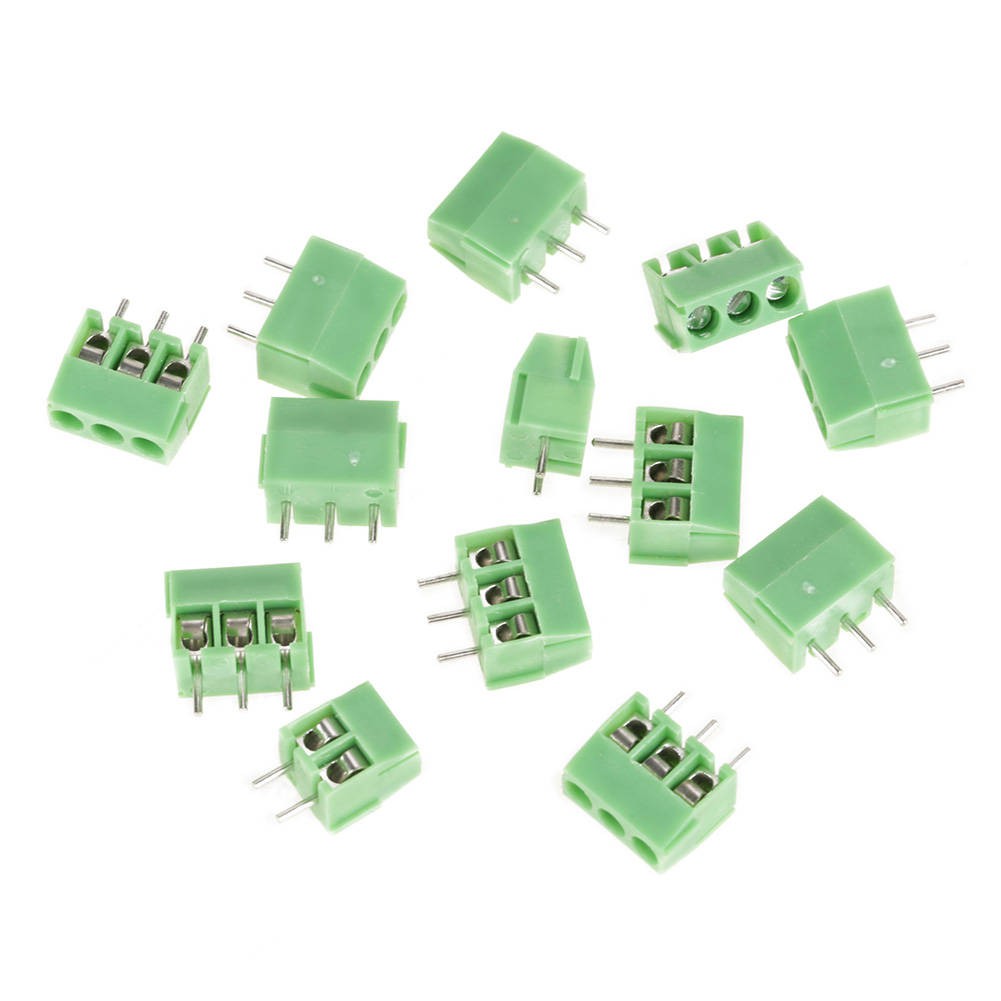

Terminal Block:
Pitch: 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs,2polex6pcs).
Wire range: 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.

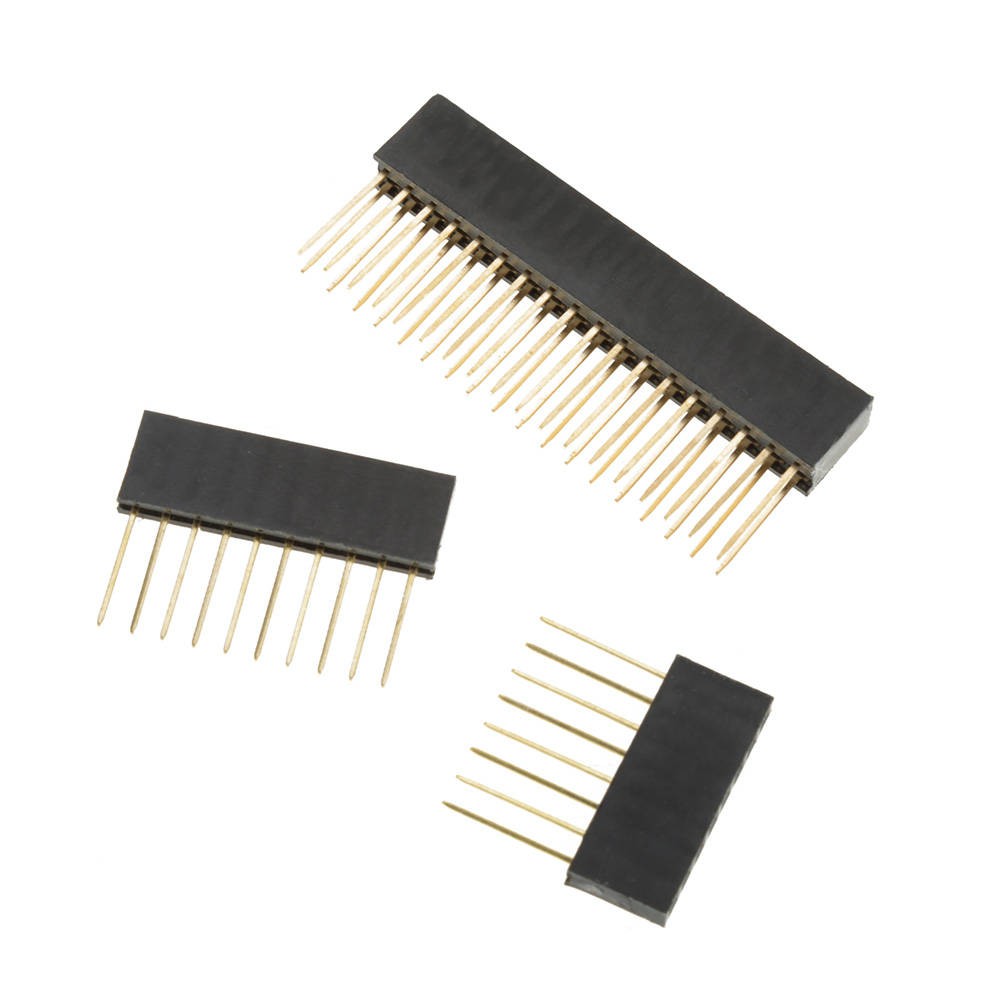

Female Header Socket:
Pitch: 0.1"/2.54mm, pin length 15mm / 0.59"
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs
Weight:73g
Package includes:
1 set x Terminal Block Shield Board Kit
#TerminalModuleKit #BreakoutBoard #TerminalBlocksModule #BreakoutBoardModule #TerminalBlockShieldBoard
✔Ready Stock
✔COD
✔Quality Checked
✔Whole Items: Good Quality/Ready Stock/Original/Wholesale Price
✔Shipping Time: 5-14 usually 8 days from China
★Surprises for you★
☛Free Gifts:Follow Shop
❤“Like” 5 Items: Priority Shipping
⚠️( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)
✌(Tip:We will be based on your guests in your country to send the corresponding adapter plug)
【After-sale】: If there are any problem, please contact us firstly, we will try our best to solve it.
__________________❀Product Information❀__________________
Features:
100% Brand new and high quality
The kit contains Prototype PCB, Terminal Blocks,
Female Header Sockets.
Compact structure, made up of screw terminal block, high quality PCB carrier, FR-4 glass fiber PCB.
This Terminal Module is made of high quality material and by delicate workmanship treatment, with long serving life
Not assembled, variety mount methods, you can make flexible use.
Specifications:
PCB:PCB size 12.024 x 7.72cm/4.73 x3.04inch
Pads grid / pitch: 2.54mm / 0.1", hole diameter 0.8mm.
Terminal block pitch: 3.5mm / 0.138", hole diameter 1.2mm.
Terminal Block:
Pitch: 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs,2polex6pcs).
Wire range: 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.
Female Header Socket:
Pitch: 0.1"/2.54mm, pin length 15mm / 0.59"
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs
Weight:73g
Package includes:
1 set x Terminal Block Shield Board Kit
#TerminalModuleKit #BreakoutBoard #TerminalBlocksModule #BreakoutBoardModule #TerminalBlockShieldBoard
