1 Bảng Mạch Công Tắc 0.15a H3c Cho Quạt 4020 5600 S5500 Efb0412hd 3600 12v 3pin
0 Đánh Giá
Đã Bán 0
41
94.200 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ sáu 14/05/2021 lúc 02:24 CH
MÔ TẢ SẢN PHẨM
Product introduction:

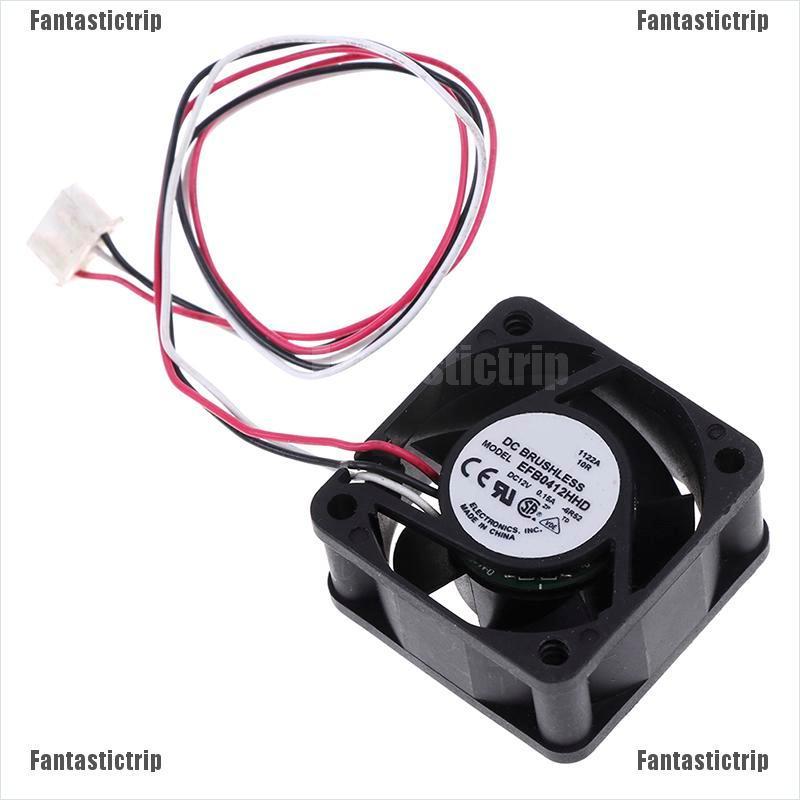

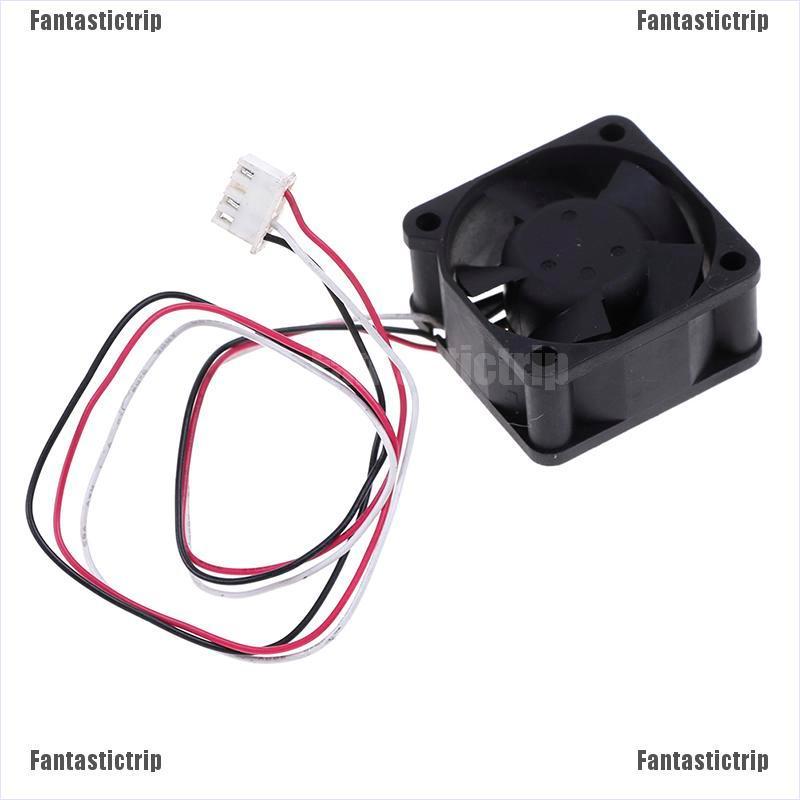

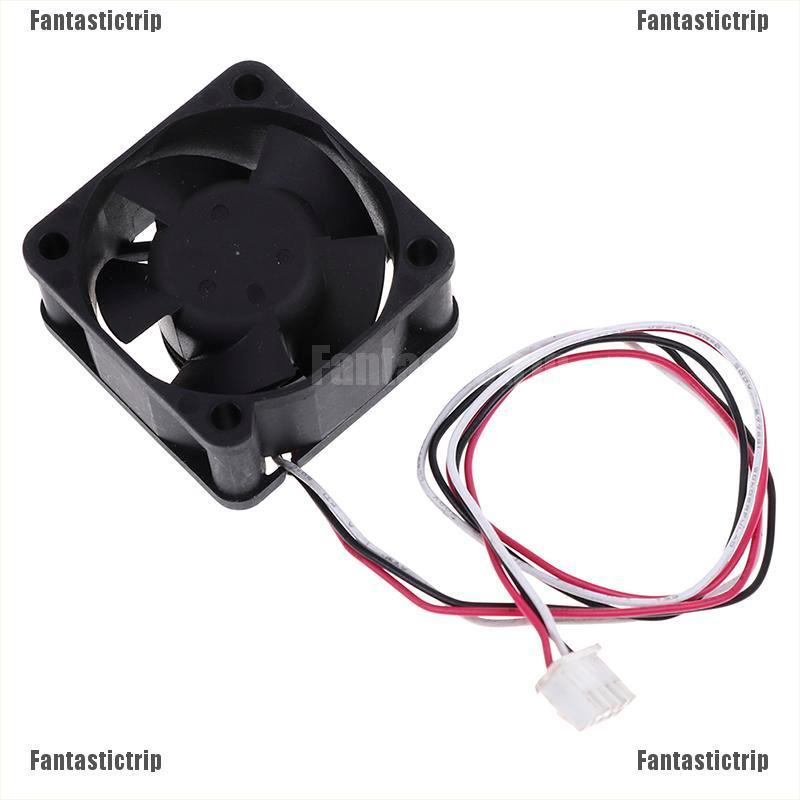

Model: EFB0412HHD-ROO
Size: 40X40X20MM (4020)
Speed: 8200 RPM
Bearing: Double Ball Bearing
Noise: 30.5dBA
Air volume: 9.43 CFM
Power: 1.8W
Current: 0.15A
Voltage: DC 12V
Function: stop alarm

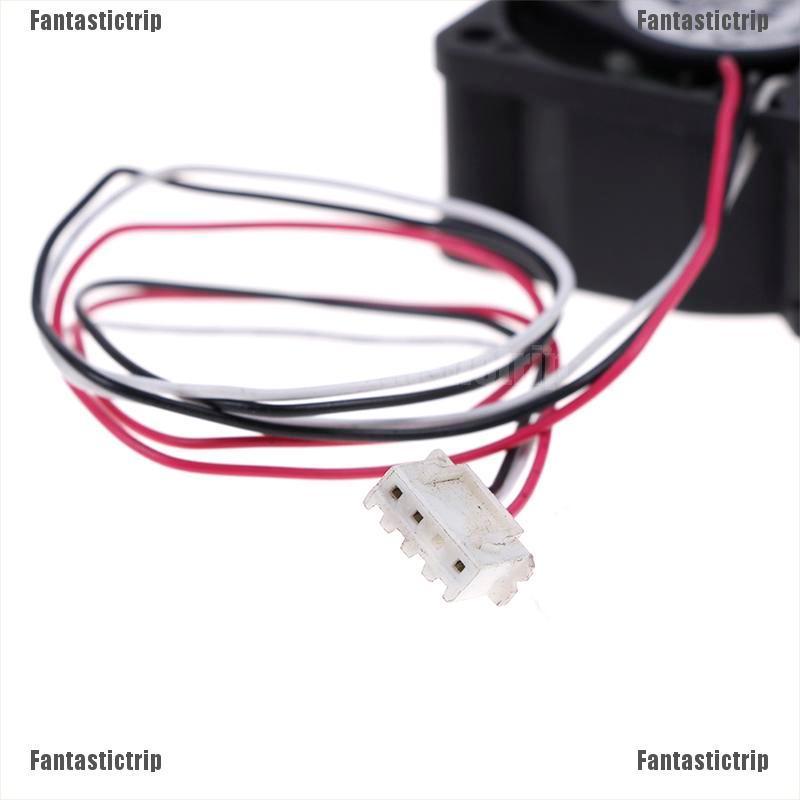

Interface: 4P 3 line interface (interface type 2.54P terminal as shown in figure)
Line length: 20CM
Features: Maintenance-free double ball bearings, long service life, with adequate cooling air volume and air pressure
Service life: 10.0000 hours (25 C, 45-85% relative humidity)
Scope of use: 1. H3C 3600 5600 S3100-52P switch firewall and other machine fan failure use, after replacing the status indicator from "F" to normal "1", there is no longer "Fan 1 Failed" entry in the log.
-Other devices that need 12V stop alarm function can be used. The terminals can be changed to other terminals, corresponding to black negative, red positive and white signal lines.
Packaging includes: 1Pc
Model: EFB0412HHD-ROO
Size: 40X40X20MM (4020)
Speed: 8200 RPM
Bearing: Double Ball Bearing
Noise: 30.5dBA
Air volume: 9.43 CFM
Power: 1.8W
Current: 0.15A
Voltage: DC 12V
Function: stop alarm
Interface: 4P 3 line interface (interface type 2.54P terminal as shown in figure)
Line length: 20CM
Features: Maintenance-free double ball bearings, long service life, with adequate cooling air volume and air pressure
Service life: 10.0000 hours (25 C, 45-85% relative humidity)
Scope of use: 1. H3C 3600 5600 S3100-52P switch firewall and other machine fan failure use, after replacing the status indicator from "F" to normal "1", there is no longer "Fan 1 Failed" entry in the log.
-Other devices that need 12V stop alarm function can be used. The terminals can be changed to other terminals, corresponding to black negative, red positive and white signal lines.
Packaging includes: 1Pc
